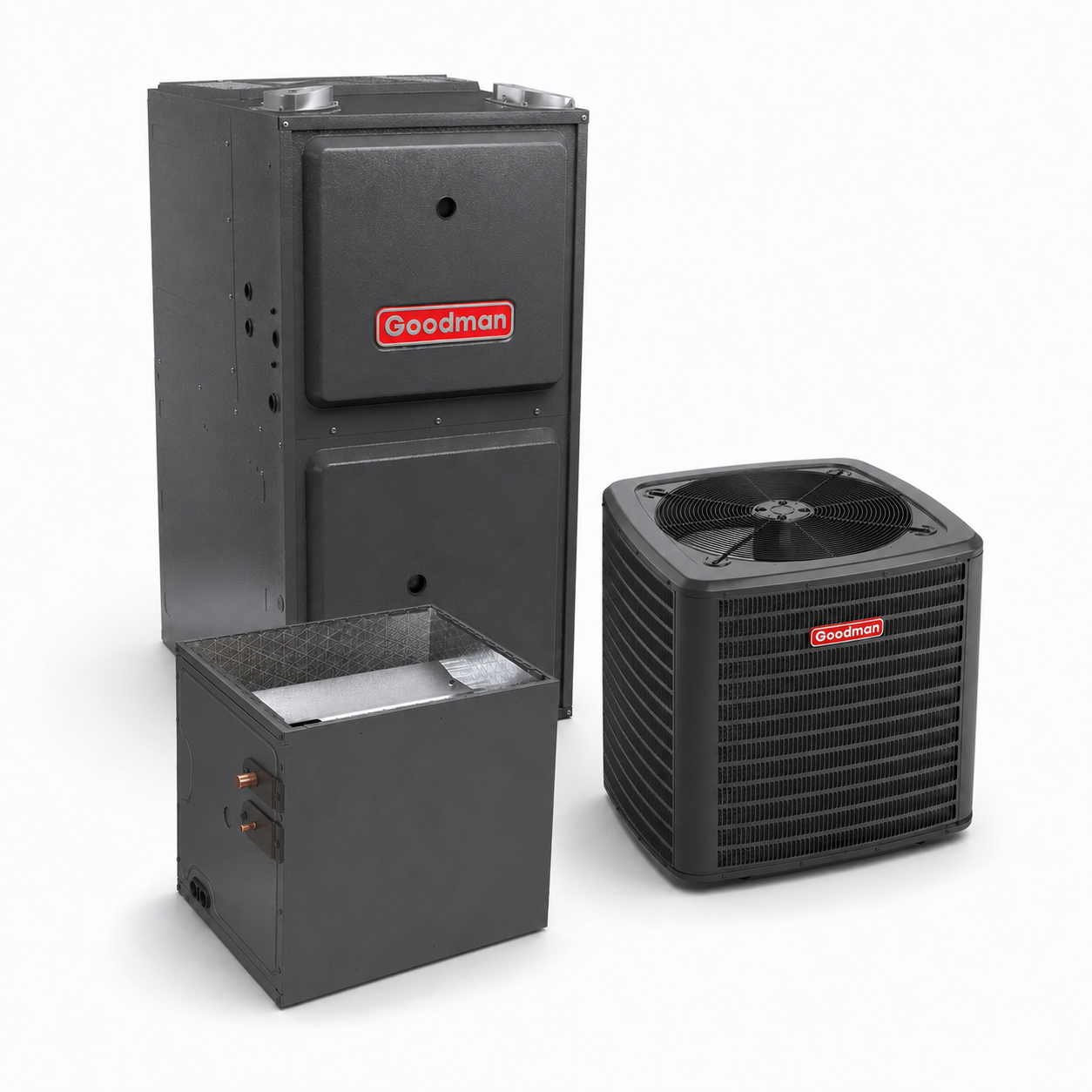

Goodman 5 Ton 14.5 SEER2 97% AFUE 100,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

• All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
• 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

OVERVIEW

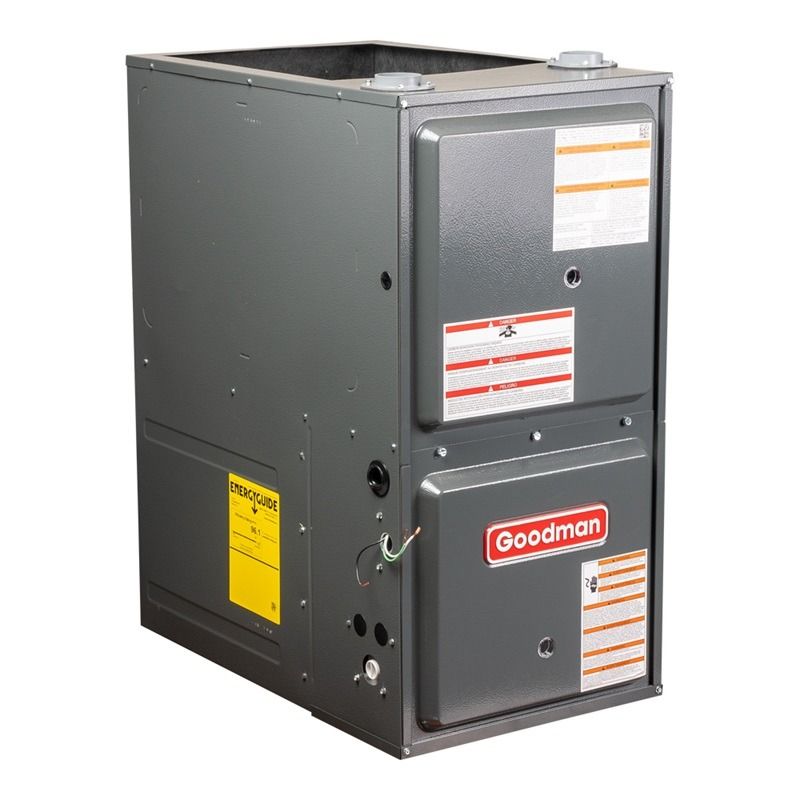

With a 97% efficiency rating, a variable-speed blower motor, and modulating gas valves, the GDVM971005CN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GDVM971005CN is an excellent choice, offering one of the best efficiency levels available on the market.

QUICK FACTS

• Ideal to heat a small to medium house (in an ideal climate)
• 100,000 BTU 97% AFUE modulating variable speed natural gas furnace
• Requires plastic/PVC flue venting
• Can be installed in the downflow or horizontal orientation
• Can be converted to propane with an LP conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

100,000 BTU

With an input of 100,000 BTU’s and an efficiency of 97%, the GDVM971005CN has an output of 97,000 BTU’s. This is calculated by taking 100,000 BTU’s times the efficiency of 97%. As such, the GDVM971005CN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.

97% AFUE

With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GDVM971005CN gas furnace is 97% efficient, meaning that a whopping 97% of the gas going into the furnace is used to heat your home, and only 3% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GDVM971005CN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.

Modulating Variable Speed Furnace

Goodman manufactured the GDVM971005CN gas furnace to utilize the best burner and blower technologies available. With a modulating gas valve and a variable speed blower motor, the GDVM971005CN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.

Warranty

The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.

Durability and Reliability

Not stopping at an enhanced functionality, Goodman designed the GDVM971005CN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GDVM971005CN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.

Fuel Types

Out of the factory, the GDVM971005CN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.

Installation and Maintenance

For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GDVM971005CN gas furnace can be installed in the downflow or horizontal orientations. The modulating gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GDVM971005CN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
