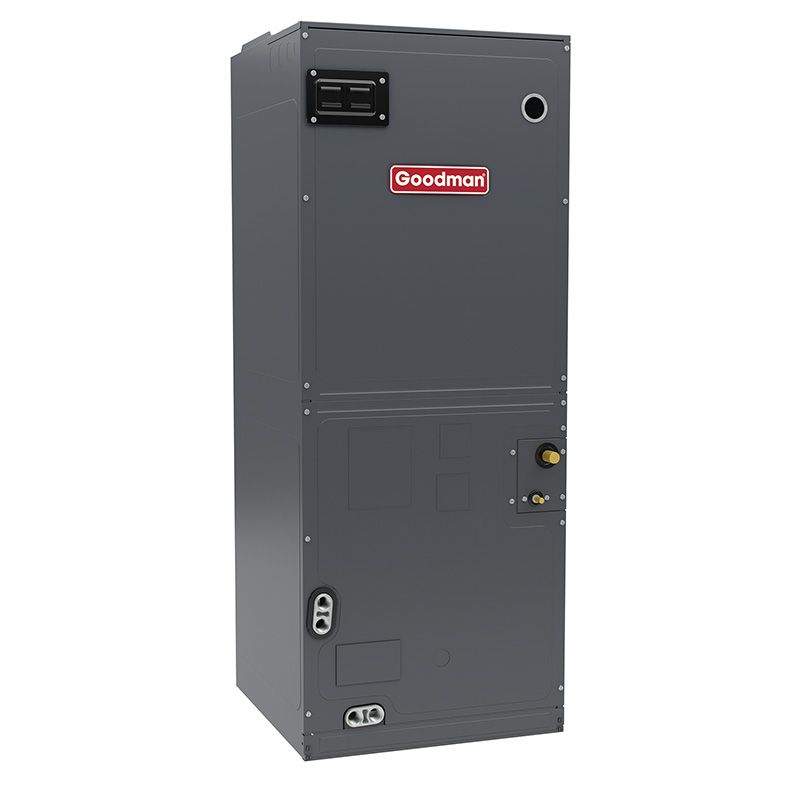

Goodman 4 Ton Variable-Speed Multi-Position Air Handler with Internal EEV, R32 (AHVE48CP1300)

Product Overview

Product Details

Product Features

• Electronic Expansion Valve (EEV) for cooling and heat pump applications
• 7 mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified
• ETL listed
• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• 3 kW – 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access

Cabinet Features

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
• tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
• tested in accordance with ASHRAE standard 193
• 3 kW – 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan
• with secondary drain connections
• Screw-less sides and back helps to reduce
• condensation when installed in humid locations
• Foil-faced insulation covers the internal
• casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access

Technical Specifications - AHVE48CP1300

Submittals

• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton
• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton

Leaflets & Manuals

• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton
• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton
• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton
• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton
• Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 4 Ton

Certificates

• AHVE48CP1300 — https://cdn.daikincloud.io/PIM/Assets/Documents/WC-PWCAHPQE-FR.pdf
• AHVE48CP1300 — https://cdn.daikincloud.io/PIM/Assets/Documents/WC-PWCAHPQF.pdf
