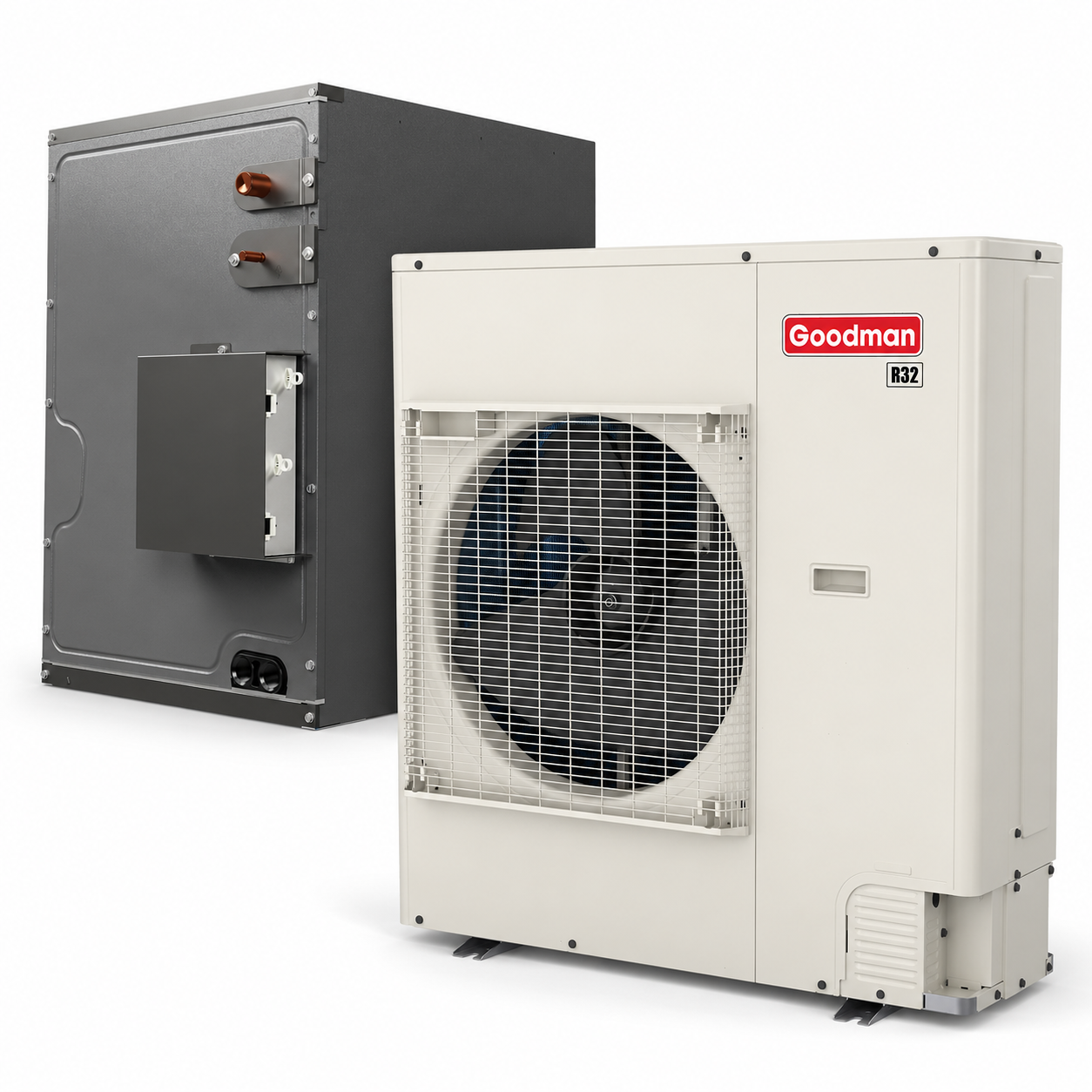

Goodman 4 Ton 16.5 SEER2 Central Air Conditioner Split with 26' inch Upflow/Downflow Cased Coil- R32
Product Overview
Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA6030D3
The Goodman CAPEA6030D3 is a 5-ton evaporator coil designed specifically for horizontal applications in split system air conditioners and heat pumps. Engineered with an all-aluminum A coil, this unit ensures long-lasting durability and efficient heat transfer. It comes factory-equipped with a thermal expansion valve (TXV) to provide accurate refrigerant control for R-32 systems. Additional features include foil-faced cabinet insulation to manage condensation and a DecaBDE-free thermoplastic drain pan for added environmental compliance. Ideal for residential installations between 2,400 and 3,000 square feet, this coil supports both cooling and heating operations.
Key Features
- 5 Ton Cooling Capacity (60,000 BTU)
- Horizontal Configuration for Low-Clearance Installations
- All-Aluminum Coil for Enhanced Durability and Corrosion Resistance
- Factory-Installed TXV for Accurate Refrigerant Metering
- Compatible with R-32 Refrigerant
- Foil-Faced Insulation Minimizes Internal Cabinet Moisture
- DecaBDE-Free Thermoplastic Drain Pan for Safe Condensation Control
- Single Front Access Panel for Easy Servicing
- Galvanized Cabinet with Leather Grain-Embossed Finish
- Suitable for Homes from 2,400 to 3,000 Sq. Ft.
- AHRI Certified, ETL Listed, and ISO Certified
Designed for energy-efficient performance in cooling and heat pump systems, this horizontal evaporator coil is a reliable choice for modern HVAC applications requiring R-32 refrigerant compatibility.
Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA6030D3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Details

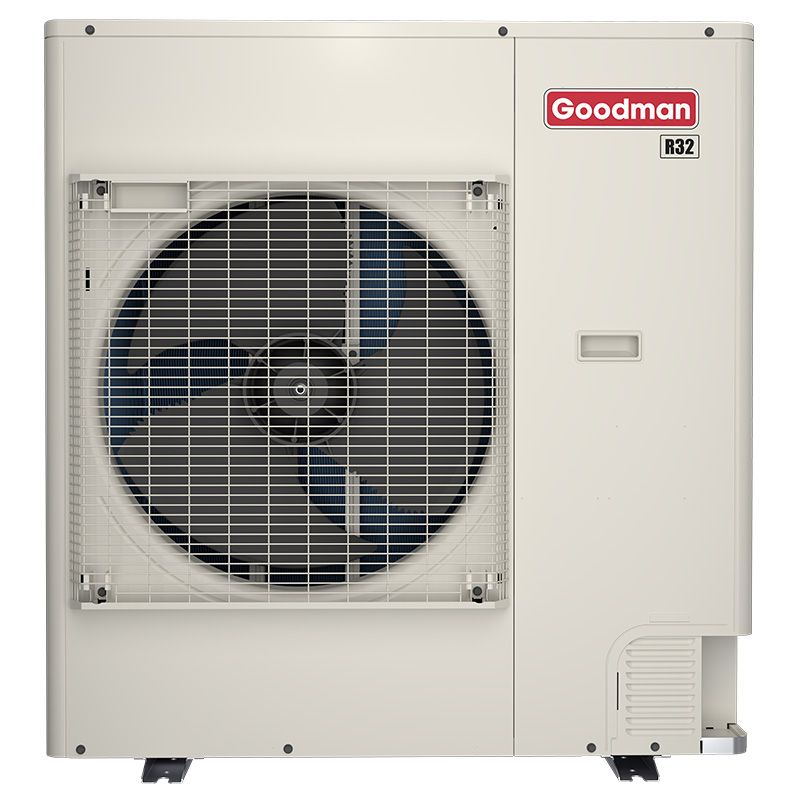

Goodman 4 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
High-Capacity Cooling with Quiet, Efficient Performance
The Goodman GXV9SA4810 is built to handle larger cooling demands while maintaining exceptional efficiency. Its variable-speed inverter system adapts to changing conditions to deliver steady comfort and reduced energy consumption. Quiet operation, a durable side-discharge design, and R-32 refrigerant make it a strong choice for high-performance homes.
- Up to 19 SEER2 efficiency rating
- Variable-speed inverter compressor
- Boost mode for high-demand cooling conditions
- Quiet operation with advanced sound control
- Environmentally responsible R-32 refrigerant
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
Product Benefits (CAPEA6030D3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CAPEA6030D3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CAPEA6030D3)
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA6030D3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| model efficiency | 17 SEER |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731523 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 60000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 30 in |
| dimensions unit width | 26 in |
| expansion device | EEV |
| indoor orifice size | 0.172 in |
| weight unit | 72 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 1-1/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.75 in |
| dimensions case height | 32.25 in |
| dimensions case width | 26.00 in |
| dimensions distribution unit depth | 26.75 in |
| dimensions distribution unit height | 32.25 in |
| dimensions distribution unit width | 26 in |
| dimensions pallet depth | 55.00 in |
| dimensions pallet height | 69.00 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 26.75 in |
| dimensions shipping unit height | 32.25 in |
| dimensions shipping unit width | 26.00 in |
| distribution shipping volume unit | 22429.875 in³ |
| shipping volume unit | 22429.875 in³ |
| truck factor | 0.0000 |
| volume case | 22429.875 in³ |
| volume distribution shipping unit | 22429.875 in³ |
| weight case | 75.000 lb |
| weight distribution shipping unit | 75 lb |
| weight shipping unit | 75.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GXV9SA4810)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostatand other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segment
- LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves witheasy access to gauge ports
Cabinet Features (GXV9SA4810)
- Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV9SA4810
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV9SA |
| series name | GXV9S |
| model efficiency | 19.2 SEER2 |
| communication feature | Yes |
| communication feature type | Goodman GTST Smart Thermostat |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747197 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 10 |
| energy star certified | No |
| seer 2 hsvtc | 17 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 30 A |
| max overcurrent protection | 40 A |
| min circuit amps | 37.5 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 71 dBA |
| weight unit | 174 lb |
| cooling capacity rated | 46500 Btu/H |
| factory std refrigerant charge | 118 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
