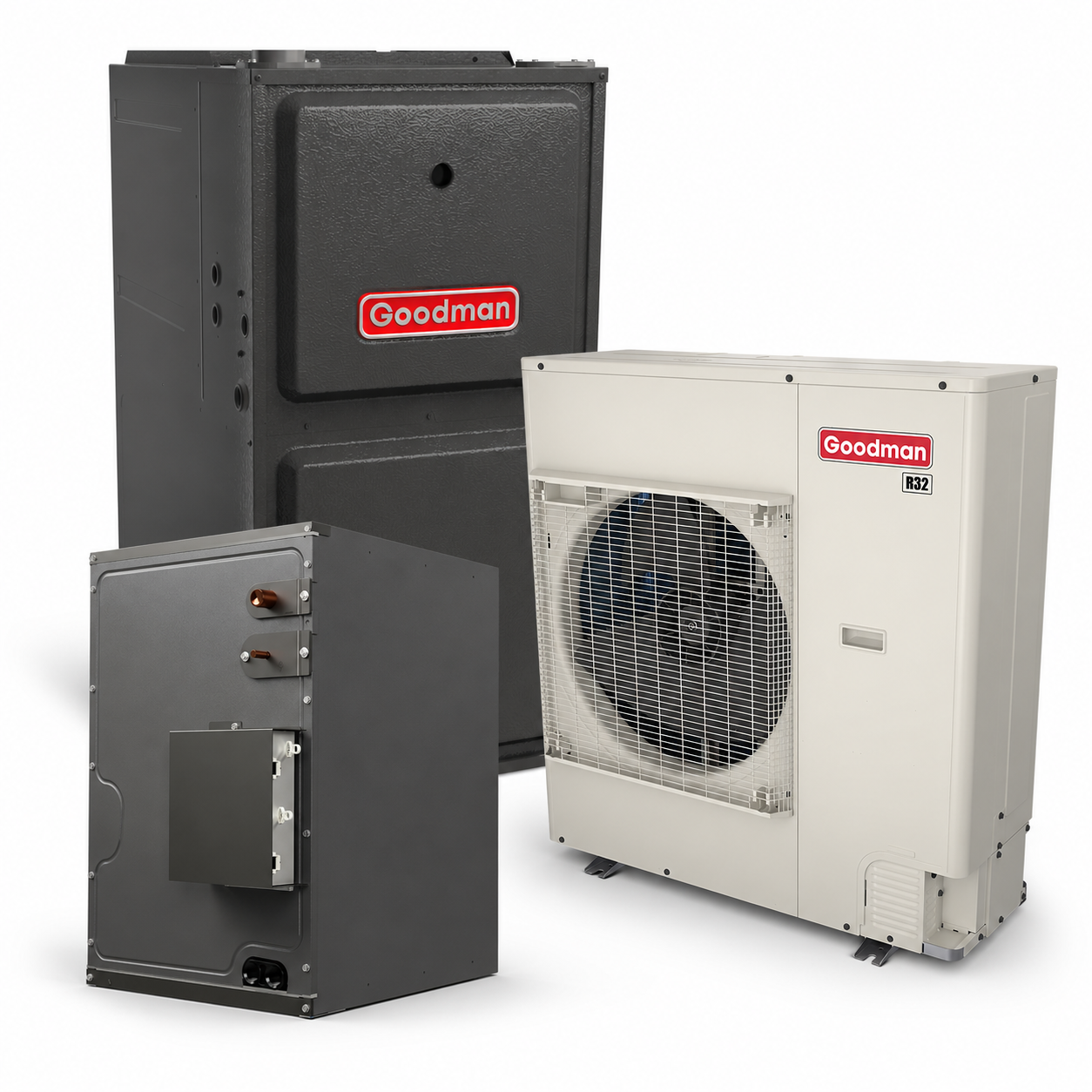

Goodman 4 Ton 16.5 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal
Product Overview
Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA6030C3
The Goodman CAPEA6030C3 is a 5-ton cased A coil evaporator designed for use in both split system air conditioners and heat pumps. Built with durable all-aluminum construction, this coil delivers reliable performance and superior heat transfer. It supports both upflow and downflow configurations and includes a factory-installed thermal expansion valve (TXV) for precise refrigerant control. Compatible with R-32 refrigerant, the coil also features foil-faced insulation and a thermoplastic drain pan to manage condensation effectively, all within a compact cabinet featuring a galvanized, leather grain-embossed finish.
Key Features
- 5 Ton Cooling Capacity (60,000 BTU)
- All-Aluminum A Coil Enhances Durability and Heat Transfer
- Factory-Installed TXV for Efficient Refrigerant Metering
- Optimized for R-32 Refrigerant Applications
- Upflow and Downflow Configuration Compatibility
- Thermoplastic Drain Pan for Improved Condensation Management
- Foil-Faced Insulation Minimizes Internal Cabinet Moisture
- Galvanized Steel Cabinet with Leather Grain-Embossed Finish
- Single Front Access Panel for Service Access
- AHRI Certified, ETL Listed, and ISO Certified
This 5-ton evaporator coil is an excellent fit for high-capacity residential HVAC systems requiring reliable performance, R-32 compatibility, and energy-efficient design in a flexible upflow/downflow configuration.
Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA6030C3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Details

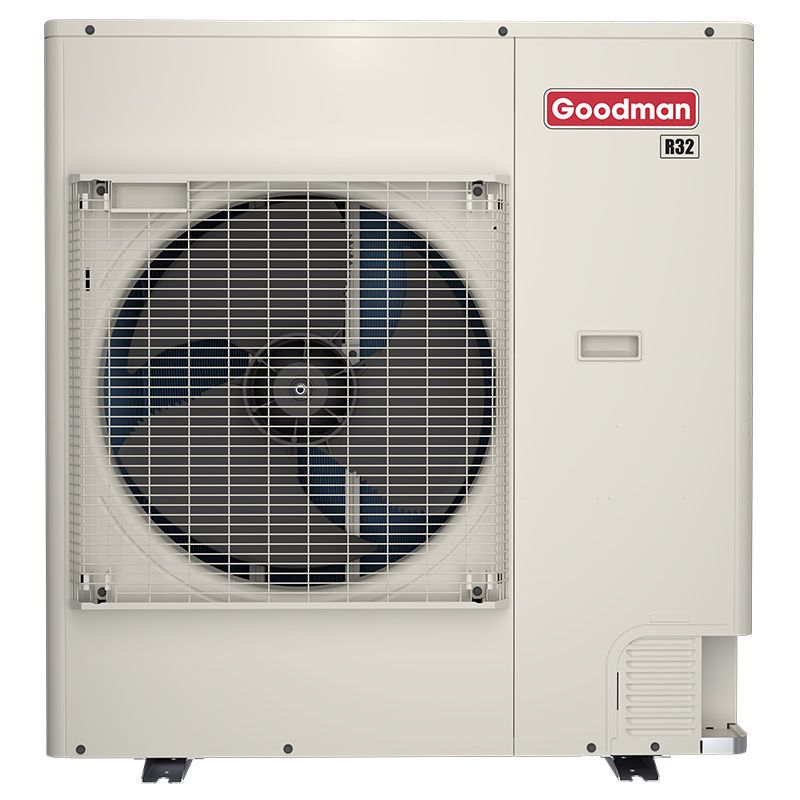

Goodman 4 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
High-Capacity Cooling with Quiet, Efficient Performance
The Goodman GXV9SA4810 is built to handle larger cooling demands while maintaining exceptional efficiency. Its variable-speed inverter system adapts to changing conditions to deliver steady comfort and reduced energy consumption. Quiet operation, a durable side-discharge design, and R-32 refrigerant make it a strong choice for high-performance homes.
- Up to 19 SEER2 efficiency rating
- Variable-speed inverter compressor
- Boost mode for high-demand cooling conditions
- Quiet operation with advanced sound control
- Environmentally responsible R-32 refrigerant
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
OVERVIEW
With a 96% efficiency rating, a variable-speed blower motor, and Single stage gas valves, the GRVS960805CU is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVS960805CU is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 80,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Innovative design for electrical efficiency, safety, and lower sound output
Ultra-Low NOx Compliant
In California, many counties have a lower NOx emission requirement than the rest of the United States. The GRVS960805CU Goodman gas furnace is California Ultra-Low NOx compliant. With a built-in low emission filter and special venting system, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Ultra-Low NOx furnaces are required for gas furnace installations in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. If you have any questions, please contact us.
80,000 BTU
With an input of 80,000 BTU’s and an efficiency of 96%, the GRVS960805CU has an output of 76,880 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 96%. As such, the GRVS960805CU Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
96% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVS960805CU gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVS960805CU is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Single Stage Furnace
The GRVS960805CU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVS960805CU with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVS960805CU is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVS960805CU gas furnace can be installed in the upflow or horizontal orientations. Moreover, the GRVS960805CU is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Benefits (CAPEA6030C3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CAPEA6030C3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CAPEA6030C3)
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA6030C3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| model efficiency | 17 SEER |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731516 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 60000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 30 in |
| dimensions unit width | 23.5 in |
| expansion device | EEV |
| indoor orifice size | 0.172 in |
| weight unit | 67 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 1-1/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 32.75 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 32.75 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 70.00 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 32.75 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 20010.25 in³ |
| shipping volume unit | 20010.250 in³ |
| truck factor | 0.0000 |
| volume case | 20010.250 in³ |
| volume distribution shipping unit | 20010.25 in³ |
| weight case | 70.000 lb |
| weight distribution shipping unit | 70 lb |
| weight shipping unit | 70.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GXV9SA4810)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostatand other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segment
- LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves witheasy access to gauge ports
Cabinet Features (GXV9SA4810)
- Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV9SA4810
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV9SA |
| series name | GXV9S |
| model efficiency | 19.2 SEER2 |
| communication feature | Yes |
| communication feature type | Goodman GTST Smart Thermostat |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747197 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 10 |
| energy star certified | No |
| seer 2 hsvtc | 17 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 30 A |
| max overcurrent protection | 40 A |
| min circuit amps | 37.5 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 71 dBA |
| weight unit | 174 lb |
| cooling capacity rated | 46500 Btu/H |
| factory std refrigerant charge | 118 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GRVS960805CU)
- Heavy-duty stainless-steel tubular heat exchanger 2. Efficientnd quiet variable-speed Blower3. Integrated communicating ComfortBridge™ technology4. Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication5. Stainless-steel sloped secondary heat exchanger6. Silicon Nitride igniter7. Dual 7-segment display8. Color-coded low-voltage terminals9. Single-Stage gas valve10.ll models comply with California 14 ng/J11.HRI Certified, ETL Listed12. Energy Star13. Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifier
Product Features (GRVS960805CU)
- Heavy-duty stainless-steel tubular heat exchangerSingle-stage gas valveDurable Silicon Nitride igniterSelf-diagnostic control board with constant memory fault code history output to LEDAll models comply with California 14 ng/Jultra Low NOx emissions standardFor installation in California’s South CoastirQuality Management District (SCAQMD) only.AHRI Certified
Cabinet Features (GRVS960805CU)
- Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gasnd electrical service5. Cabinetir leakage (Qleak) less than or equal to 2%6. Fully insulated heat exchangernd blower section7. Bottom or side returnirpplications8. Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVS960805CU
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVS96_U |
| series name | GRVS96 |
| model efficiency | 0.96 |
| family description | ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 96% AFUE |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051695979 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| afue | 96 % |
| cooling capacity nominal | 60000 Btu/H |
| energy star certified | Yes |
| installation configuration | Upflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 30-60 °F |
| current type | AC |
| max overcurrent protection | 25 A |
| min circuit amps | 15.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 2370 ft³/min |
| air flow rate low heating | 1185 ft³/min |
| ansi certifed | Yes |
| blower motor rpm | 1200 r/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 11 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 21 in |
| etl listed | Yes |
| external static pressure rated | 0.5 |
| filter quantity | 1 |
| filter size min | 20x25 |
| heat exchanger type | Gas |
| minimum clearances to combustible materials | 1 ft |
| motor speed type | Variable Speed ECM |
| nox burner type | Ultra-Low NOx |
| number of burners | 1 |
| weight unit | 147 lb |
| blower motor horsepower | 1 metric hp |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 76880 |
| gas valve type | Single Stage |
| vent diameter | 2 in;3 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 22.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 22 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 44.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 22.00 in |
| distribution shipping volume unit | 25410 in³ |
| shipping volume unit | 25410.000 in³ |
| truck factor | 0.0000 |
| volume case | 25410.000 in³ |
| volume distribution shipping unit | 25410 in³ |
| weight case | 138.000 lb |
| weight distribution shipping unit | 130.09 lb |
| weight shipping unit | 138.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Submittals
Leaflets & Manuals
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Single Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Single Stage
