Goodman

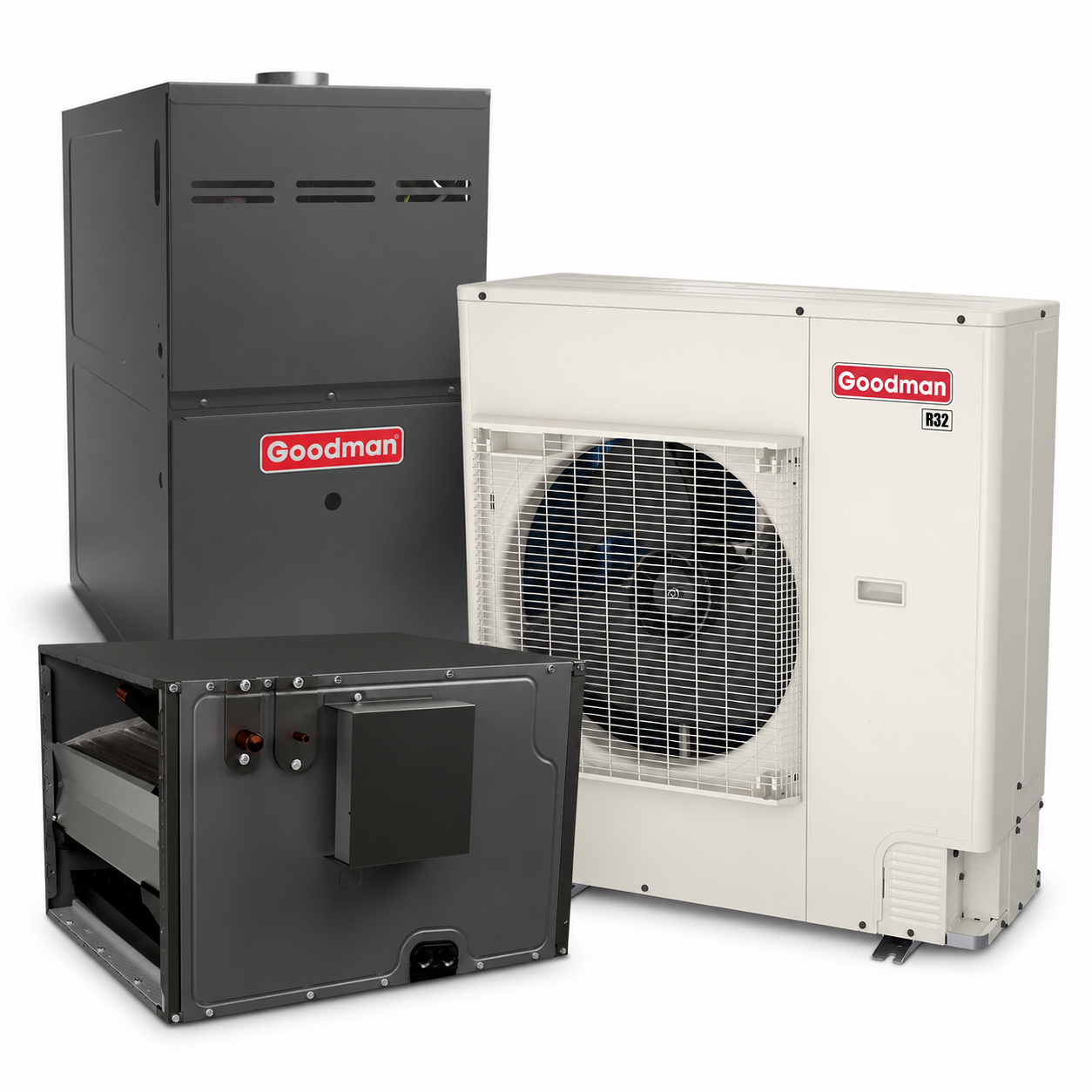

Goodman 4 Ton 16.5 SEER2 80% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CHPEA6030D3 + GXV9SA4810 + GRVS800805CU

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
48000 BTU VO (4.0 TON)
Indoor Unit
60000 BTU (5.0 TON)
Looking For
AC & Furnace System
SEER2 Rating
16.0
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
2000
Fuel Type
Natural Gas, Propane
Burner Stages
Single Stage
Coil Style
A-Coil
Furnace Heating BTU
80,000 BTU (6.67 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
26 1/2
! Cabinet might need adjustment for sizing.
Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$9,708.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 4 Ton 16.5 SEER2 80% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

The Goodman CHPEA6030D3 is a 5-ton horizontal evaporator coil engineered for efficient cooling performance. It includes a factory-installed electronic expansion valve (EEV) for enhanced refrigerant control and is optimized for use with R-32 refrigerant. The 21-inch depth allows easier installation in tight attic spaces, and its durable cabinet construction ensures long-lasting performance. Ideal for residential or light commercial HVAC systems requiring horizontal airflow configurations.

Key Features

  • Factory-Installed Electronic Expansion Valve (EEV) for Precise Refrigerant Control
  • Optimized for Use with R-32 Refrigerant Systems
  • Horizontal Airflow Configuration
  • 21" Cabinet Depth for Easier Attic Access
  • Galvanized Steel Cabinet with Leather-Grain Embossed Finish
  • Foil-Faced Insulation Minimizes Condensation and Sound
  • Single Front Access Panel for Simplified Maintenance

This coil is ideal for heat pump or air conditioner applications requiring horizontal orientation. Its design ensures reliable cooling performance and compatibility with advanced refrigerants like R-32.

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years

Product Details

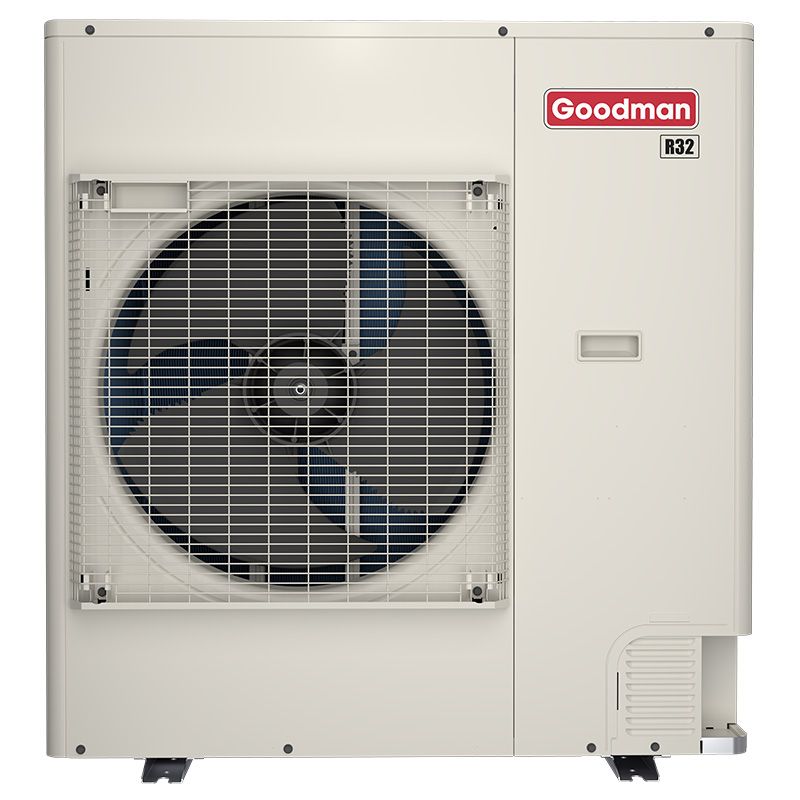

Goodman 4 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

High-Capacity Cooling with Quiet, Efficient Performance

The Goodman GXV9SA4810 is built to handle larger cooling demands while maintaining exceptional efficiency. Its variable-speed inverter system adapts to changing conditions to deliver steady comfort and reduced energy consumption. Quiet operation, a durable side-discharge design, and R-32 refrigerant make it a strong choice for high-performance homes.

  • Up to 19 SEER2 efficiency rating
  • Variable-speed inverter compressor
  • Boost mode for high-demand cooling conditions
  • Quiet operation with advanced sound control
  • Environmentally responsible R-32 refrigerant

Why Choose This AC Condenser?

  • Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
  • More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
  • Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
  • Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
  • Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

OVERVIEW

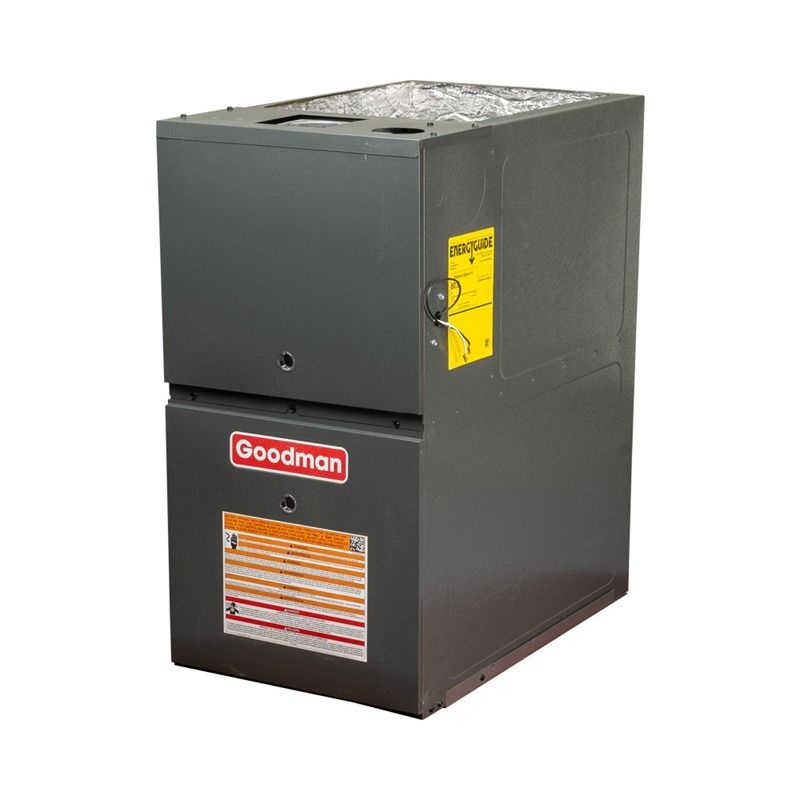

The GRVS800805CU Goodman gas furnace features high-quality construction and efficient operation at a great value. The GRVS800805CU single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GRVS800805CU.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

The GRVS800805CU Goodman gas furnace is 80,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU’s (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The GRVS800805CU Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Ultra-low NOx furnaces are only available in natural gas configurations. If you need a propane furnace, you will need to order the regular version of this furnace and add a propane conversion kit to it. You can find the regular version here:GR9S800604BN

.

Single Stage Furnace

The GRVS800805CU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GRVS800805CU utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GRVS800805CU model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Product Benefits (CHPEA6030D3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CHPEA6030D3)

  • All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
  • ETL listed

Cabinet Features (CHPEA6030D3)

  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish

Technical Specifications - CHPEA6030D3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CHPEA
series name CHPEA
model efficiency 17 SEER
family description Cased Horizontal "A" with Internal EEV
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051737044
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 60000 Btu/H
produced in us Yes
cabinet finish Galvanized, leather grain-embossed finish, Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 21 in
dimensions unit width 26.5 in
expansion device EEV
indoor orifice size 0.172 in
weight unit 75 lb
tonnage 5
tonnage range 5
condensate drain outlet 3/4 in
pipe size gas 1-1/8 in
pipe size liquid 1/4 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 32.50 in
dimensions case height 26.50 in
dimensions case width 26.50 in
dimensions distribution unit depth 32.5 in
dimensions distribution unit height 26.5 in
dimensions distribution unit width 26.5 in
dimensions pallet depth 34.00 in
dimensions pallet height 58.00 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 32.50 in
dimensions shipping unit height 26.50 in
dimensions shipping unit width 26.50 in
distribution shipping volume unit 22823.125 in³
shipping volume unit 22823.125 in³
truck factor 0.0000
volume case 22823.125 in³
volume distribution shipping unit 22823.125 in³
weight case 78.000 lb
weight distribution shipping unit 81.09 lb
weight shipping unit 78.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GXV9SA4810)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports
  • AHRI Certified

Cabinet Features (GXV9SA4810)

  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV9SA4810

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV9SA
series name GXV9S
model efficiency 19.2 SEER2
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
universal product code upc 663051747197
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 10
energy star certified No
seer 2 hsvtc 17
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 30 A
max overcurrent protection 40 A
min circuit amps 37.5 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 12.625 in
dimensions unit height 39 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 71 dBA
weight unit 174 lb
cooling capacity rated 46500 Btu/H
factory std refrigerant charge 118 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 16.50 in
dimensions case height 44.00 in
dimensions case width 40.00 in
dimensions distribution unit depth 16.5 in
dimensions distribution unit height 44 in
dimensions distribution unit width 40 in
dimensions pallet depth 66.00 in
dimensions pallet height 49.00 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 16.50 in
dimensions shipping unit height 44.00 in
dimensions shipping unit width 40.00 in
distribution shipping volume unit 29040 in³
shipping volume unit 29040.000 in³
truck factor 0.0000
volume case 29040.000 in³
volume distribution shipping unit 29040 in³
weight case 194.090 lb
weight distribution shipping unit 194.09 lb
weight shipping unit 194.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVS800805CU)

  • Heavy-duty stainless-steel tubular heat exchanger 2. Efficientnd quiet variable-speed Blower3. Integrated communicating ComfortBridge™ technology4. Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication5. Silicon Nitride igniter6. Dual 7-segment display7. Color-coded low-voltage terminals8. Single-Stage gas valve9.ll models comply with California 14 ng/J10.HRI Certified, ETL Listed

Product Features (GRVS800805CU)

  • Heavy-duty stainless-steel tubular heat exchangerSingle-stage gas valveDurable Silicon Nitride igniter Self-diagnostic control board with constantmemory fault code history output to LEDAll models comply with California 14 ng/Jultra Low NOx emissions standardFor installation in California’s South CoastirQuality Management District (SCAQMD) only.AHRI Certified

Cabinet Features (GRVS800805CU)

  • Multi-position installation: upflow, horizontal left or right2. Convenient left or right connection for gasnd electrical service5. Cabinetir leakage (Qleak) less than or equal to 2%6. Bottom or side returnirpplications7. Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVS800805CU

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVS80_U
series name GRVS80
family description ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051695177
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 60000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 35-65 °F
temperature rise range low fire 65 °F
current type AC
max overcurrent protection 15 A
min circuit amps 11.6 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1760 ft³/min
air flow rate low heating 1422 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 10 in
dimensions blower width 10 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 21 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 20x25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Ultra-Low NOx
number of burners 1
weight unit 127 lb
blower motor horsepower 3/4 metric hp
high fire input capacity 80000 Btu
high fire output capacity 64000
low fire input capacity na
low fire output capacity na
gas valve type Single Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 22.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 22 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 44.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 22.00 in
distribution shipping volume unit 23430 in³
shipping volume unit 23430.000 in³
truck factor 0.0000
volume case 23430.000 in³
volume distribution shipping unit 23430 in³
weight case 109.000 lb
weight distribution shipping unit 109 lb
weight shipping unit 109.000 lb
registered parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
