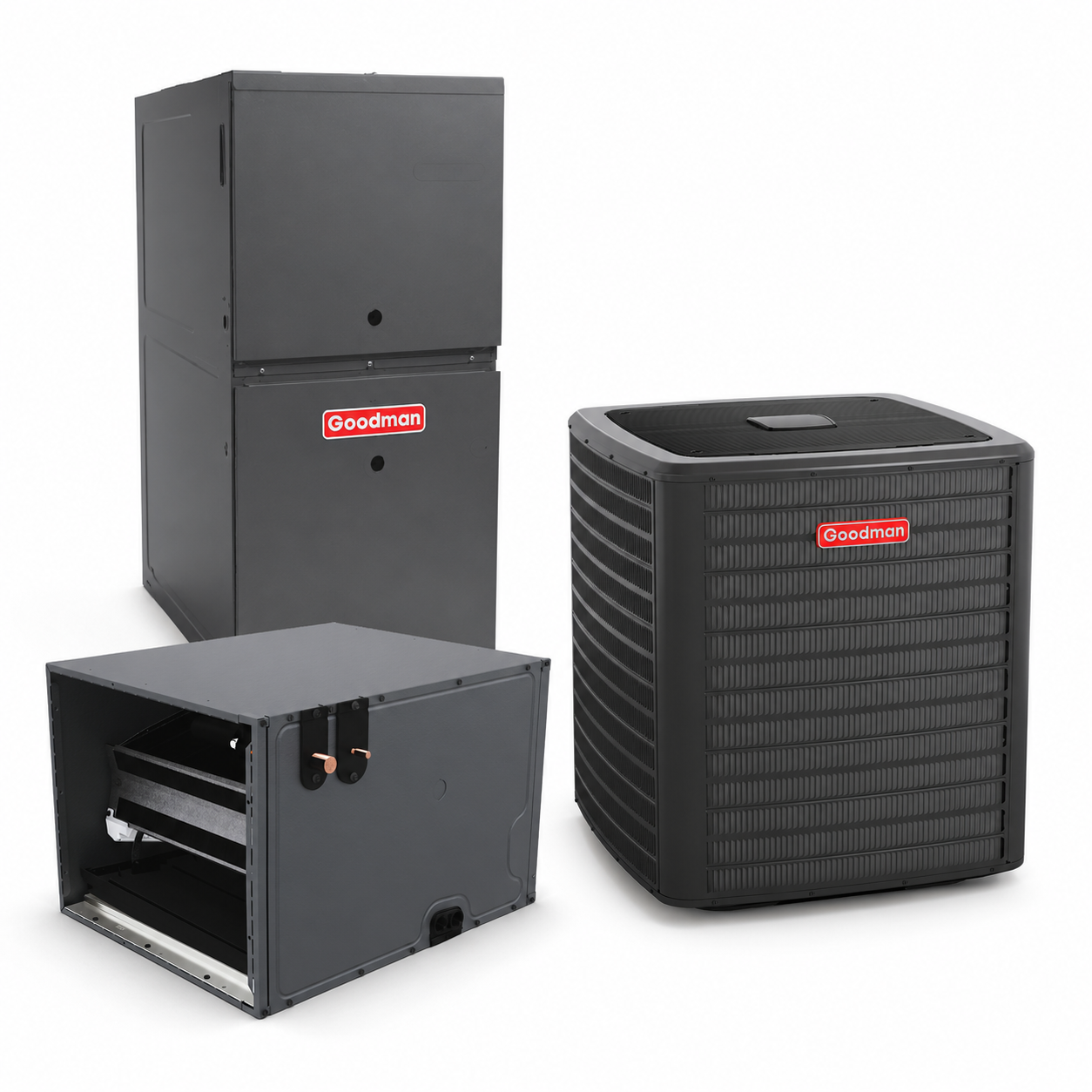

Goodman 4 Ton 15.0 SEER2 80% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

OVERVIEW

The Goodman CHPTA6030D3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA6030D3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

• 5 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit

5 Tons

At an output of 5 tons, the Goodman CHPTA6030D3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA6030D3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA6030D3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA6030D3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA6030D3 to live up to the Goodman quality name.

OVERVIEW

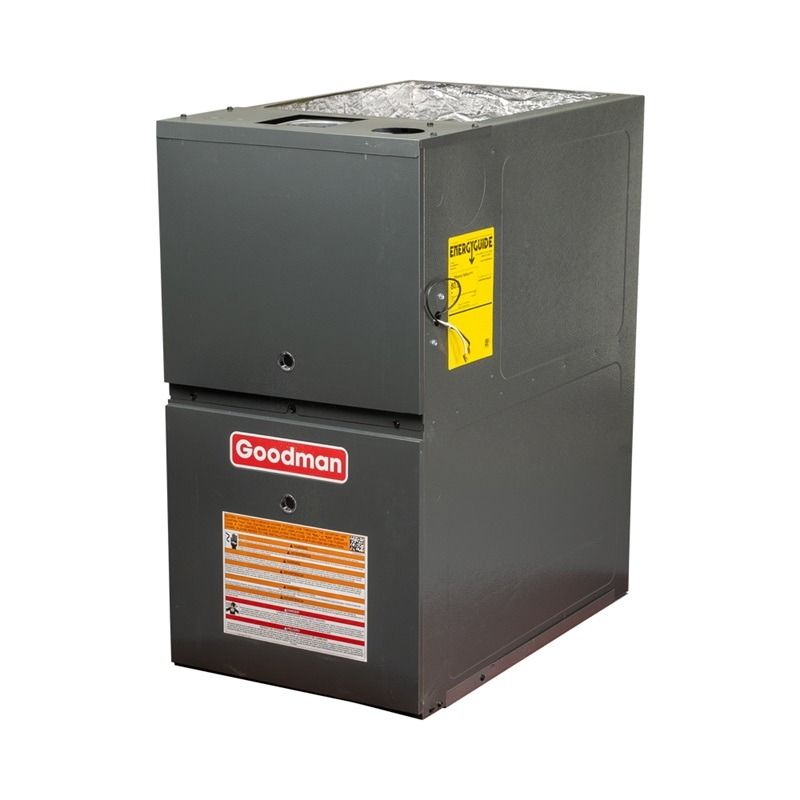

The Goodman GRVT800805DX gas furnace is part of Goodman's top-of-the-line series, known for its exceptional performance. This low NOx furnace features a two-stage burner and a variable speed blower motor, ensuring optimal comfort and efficiency. With the outstanding durability and reliability that Goodman 80% efficient furnaces are known for, we are proud to offer you this high-quality heating solution.

QUICK FACTS

• This furnace is ideal to heat a small to medium house (in average climate conditions)
• 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to propane with an LP conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

At an input of 80,000 BTU’s, the GRVT800805DX Goodman gas furnace is suitable for up to a small to medium house in an average climate. The output of this furnace is 64,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GRVT800805DX Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GRVT800805DX requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Two Stage Variable Speed Furnace

The GRVT800805DX is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Warranty

The GRVT800805DX comes standard with Goodman’s 10 year parts warranty and its phenomenal lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

The tubular heat exchanger on the GRVT800805DX is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GRVT800805DX furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the upflow or horizontal positions, allowing for a broader application potential.
