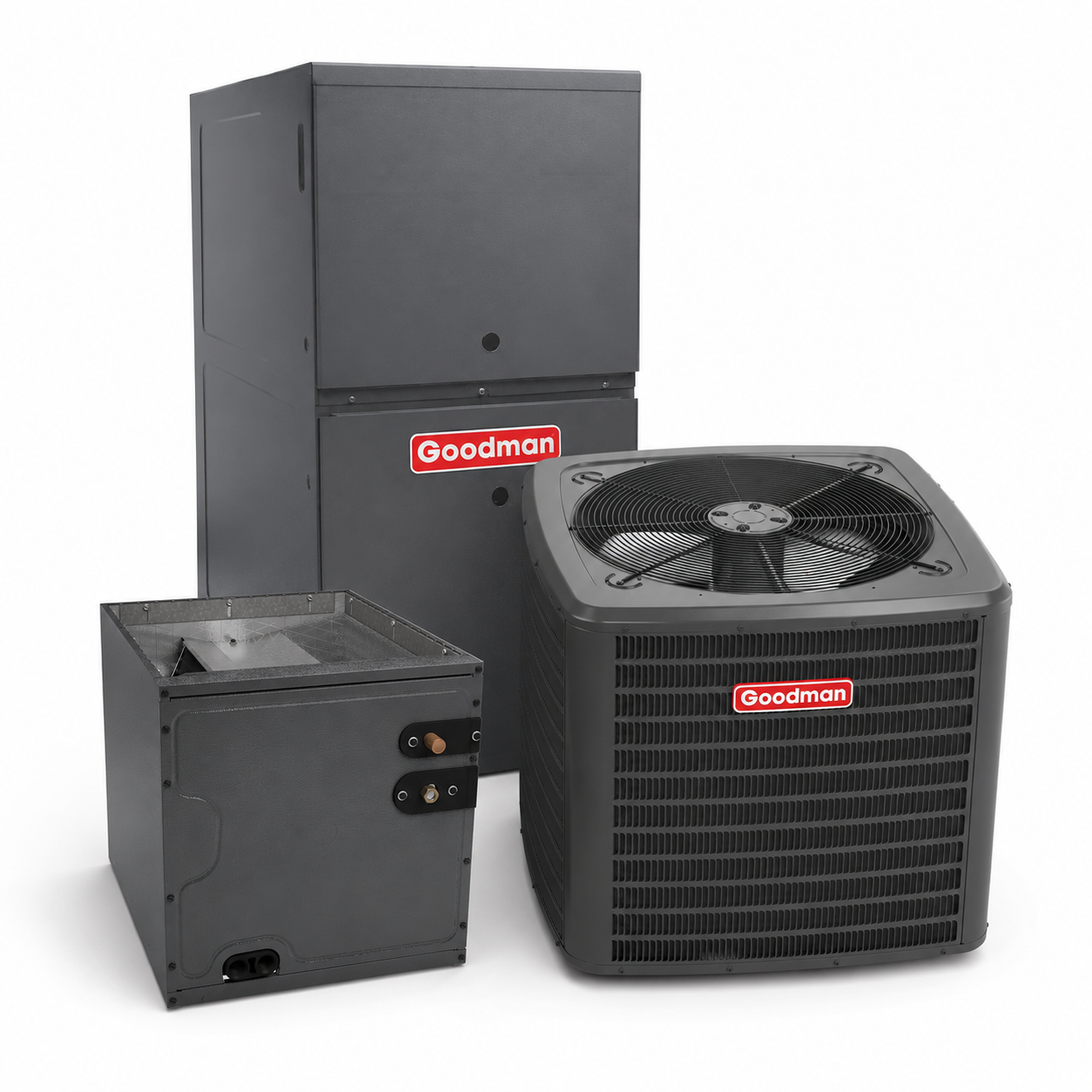

Goodman 4 Ton 13.4 SEER2 80% AFUE 100,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

OVERVIEW

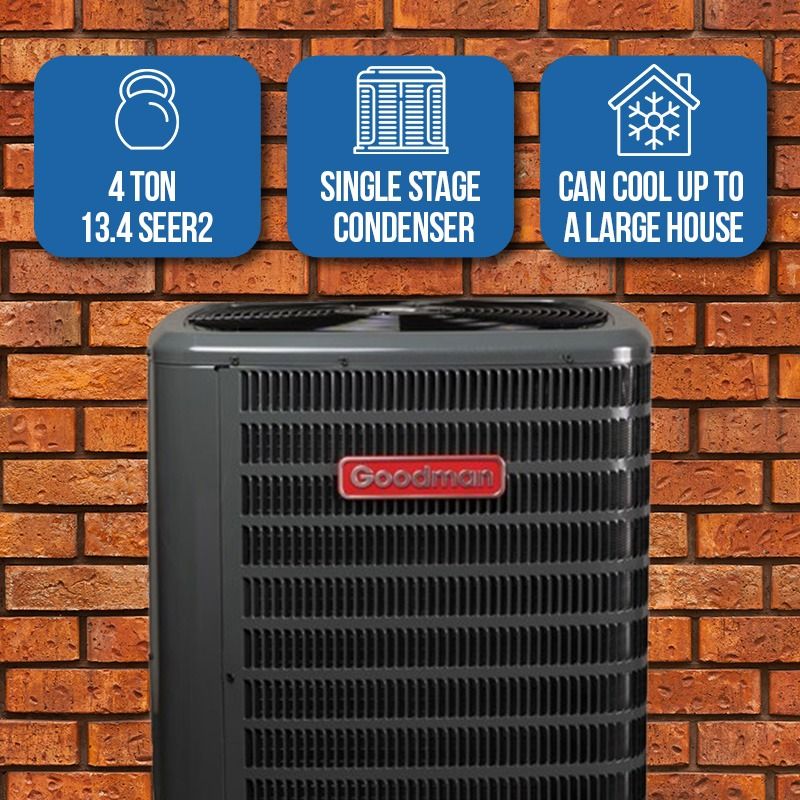

The Goodman GLXS3BN4810 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GLXS3BN4810 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

• Ideal size to cover a medium to large house
• 4 ton, 13.4 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Low sound output
• Fully charged for up to 15' of line set
• Factory-installed filter drier

4 ton

The GLXS3BN4810 condenser is a 4 ton AC only unit. In an ideal climate situation, the GLXS3BN4810 can usually cover a medium to large house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13.4 SEER2

The Goodman GLXS3BN4810 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GLXS3BN4810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GLXS3BN4810 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GLXS3BN4810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS3BN4810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

OVERVIEW

The GR9T801005CX Goodman low NOx gas furnace features high-quality construction and efficient operation at a great value. The GR9T801005CX two-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9T801005CX.

QUICK FACTS

• This furnace is ideal to heat a medium to large house (depending on climate)
• 100,000 BTU 80% efficient natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

100,000 BTU

The GR9T801005CX Goodman gas furnace is 100,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 80,000 BTU's (100,000 X 80% AFUE) per hour. In ideal climate conditions, this 100,000 BTU furnace is usually used to heat a medium to large house.

80% Efficiency Rating

The GR9T801005CX Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.

In California, many counties have a lower NOx emission requirement than the rest of the United States. The GR9T801005CX Goodman gas furnace is California Low NOx compliant. With a built-in low emission filter, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.

Two Stage Furnace

The GR9T801005CX Goodman gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn't have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the GR9T801005CX will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.

Natural Gas or LP Furnace

From the factory, the GR9T801005CX runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GR9T801005CX utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year unit replacement, 10-year parts, and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today's Goodman furnaces feature many different connection options to reduce installation. The GR9T801005CX model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
