Goodman

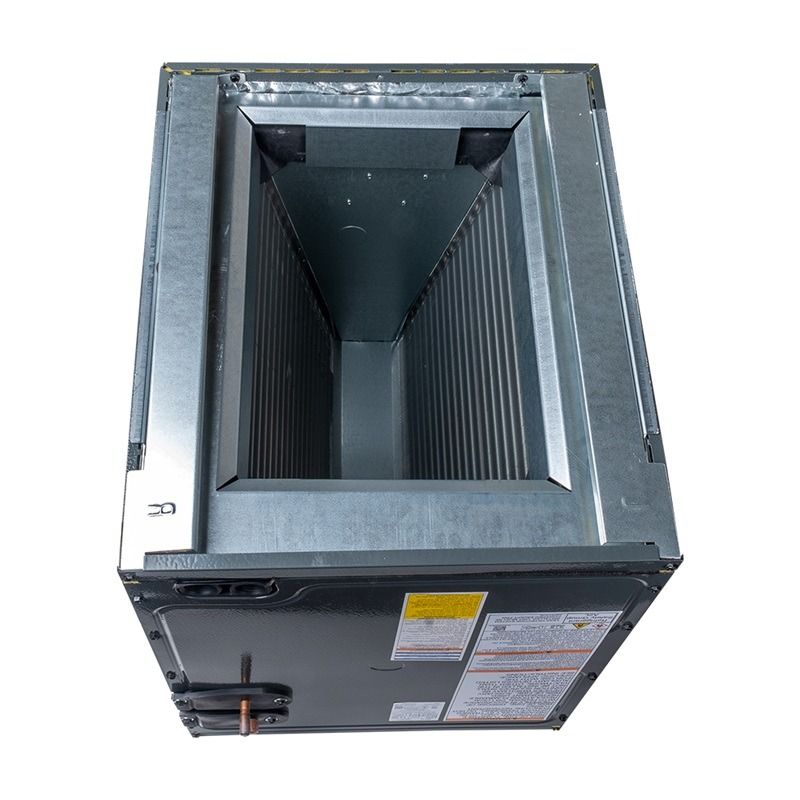

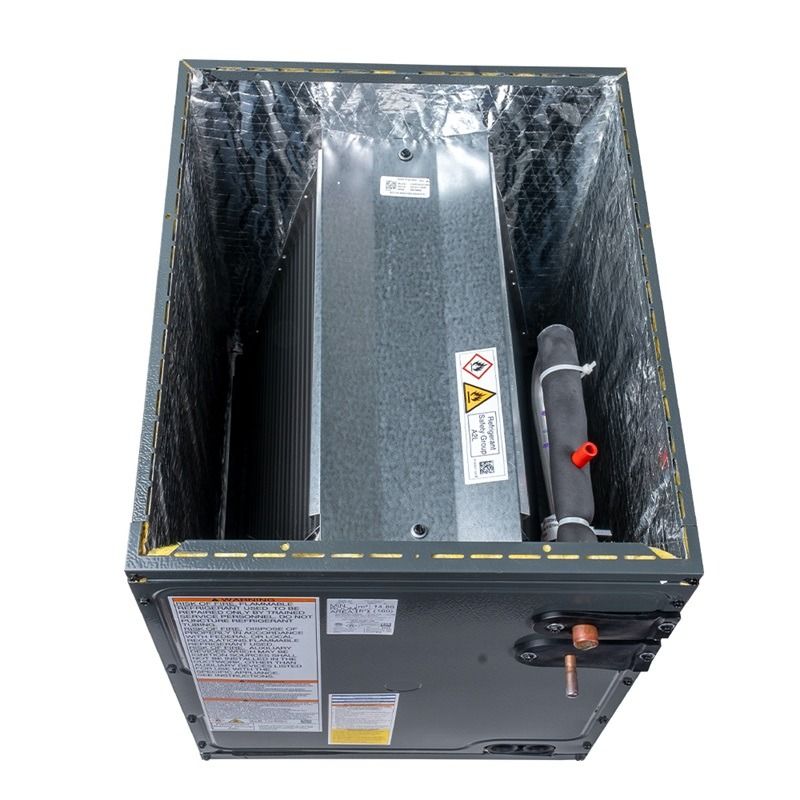

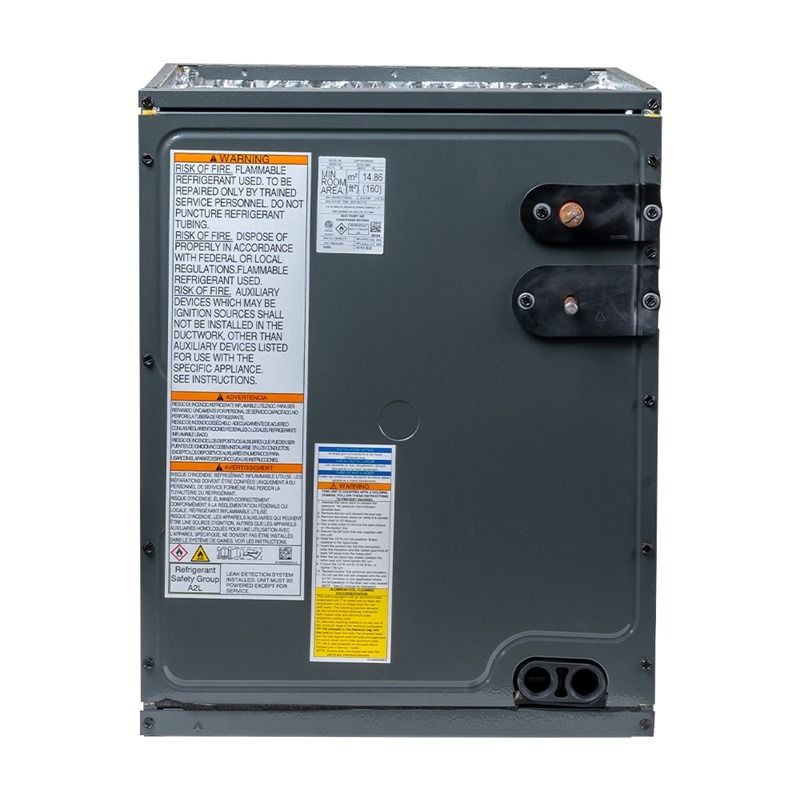

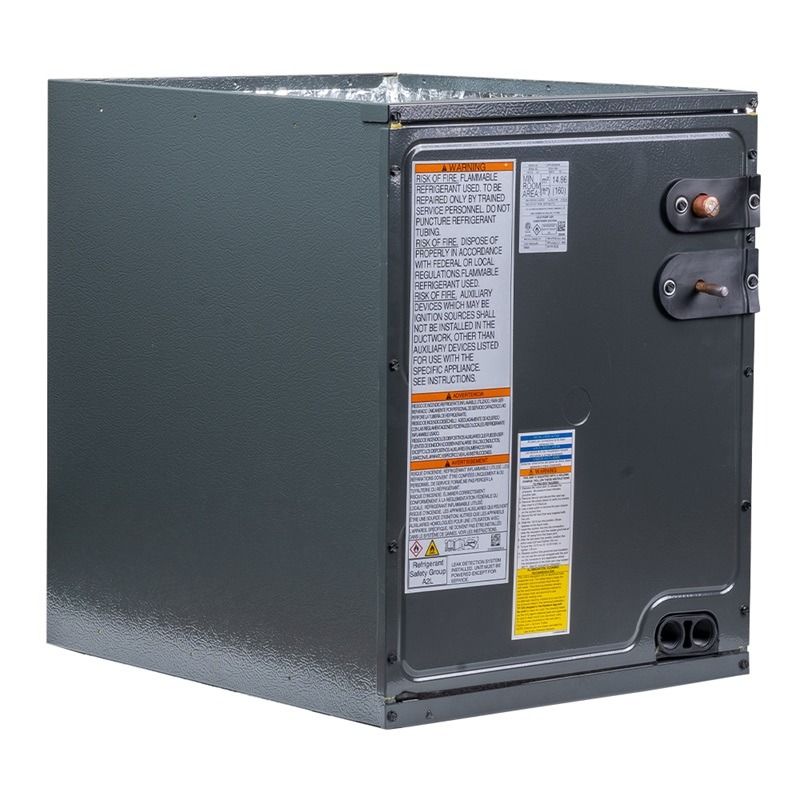

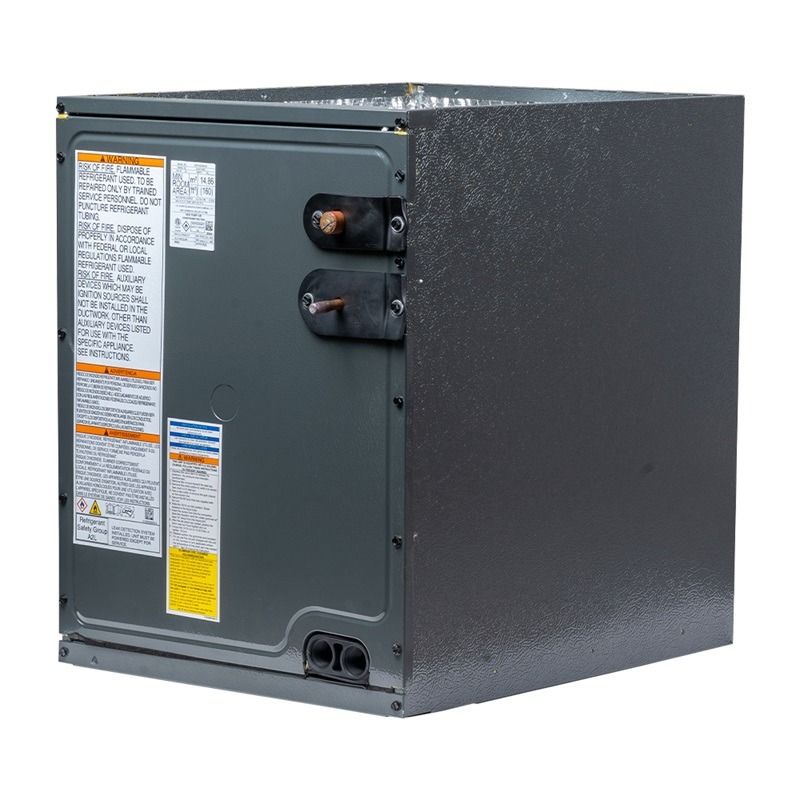

Goodman 4 to 5 Ton 24.5" Width Vertical Evaporator Cased Coil - R32

SKU: CAPFA6030D3

System highlights
AC Type
Evaporator Coils
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
60000 BTU VO (5.0 TON)
Looking For
Evaporator Coils
Airflow Direction
Upflow, Downflow
Coil Style
A-Coil
Cabinet Width (in)
24.5

Price

$1,272.00
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
Goodman
Goodman 4 to 5 Ton 24.5" Width Vertical Evaporator Cased Coil - R32

Product Overview

OVERVIEW

The Goodman CAPFA6030D3 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioning and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Rust-resistant, thermoplastic drain pans feature a low water-retention design
  • Check flowrater expansion device for heat pump or cooling-only applications
  • Rifled aluminum tubing and louvered aluminum fin coils on the CAPF, CAUF, and CHPF coils
  • AHRI Certified; ETL Listed
  • Foil-face insulation
  • Galvanized-steel, leather-grain finish
  • Architectural Gray paint finish on CAPF and CHPF cased coils
  • Split-seam front for easy access

Product Features

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed optimized metering device (piston)
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Vertical application
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Technical Specifications - CAPFA6030D3

sku CAPFA6030D3
weight (in lbs) 50.000000
brand/manufacturer Goodman
product features New Refrigerant Compliant
configuration Upflow / Downflow
refrigerant R32
liquid line 3/8"
suction line 7/8"
tonnage 5 Ton
style A-Coil
height 30"
width 24.5"
depth 21"
warranty 10 Years with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPFA_32
series name CAPFA AlumaFin7™
family description CAPFA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051696341
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 24.5 in
dimensions unit height 21 in
dimensions unit width 30 in
evap coil rows 3
evap fin density fins per inch 17
expansion device Orifice
tonnage range 4;5.0
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.75 in
dimensions case height 32.25 in
dimensions case width 26.00 in
dimensions distribution unit depth 26.75 in
dimensions distribution unit height 32.25 in
dimensions distribution unit width 26 in
dimensions pallet depth 55.00 in
dimensions pallet height 69.00 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 26.75 in
dimensions shipping unit height 32.25 in
dimensions shipping unit width 26.00 in
distribution shipping volume unit 22429.875 in³
shipping volume unit 22429.875 in³
truck factor 0.0000
volume case 22429.875 in³
volume distribution shipping unit 22429.875 in³
weight case 74.000 lb
weight distribution shipping unit 74 lb
weight shipping unit 74.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
