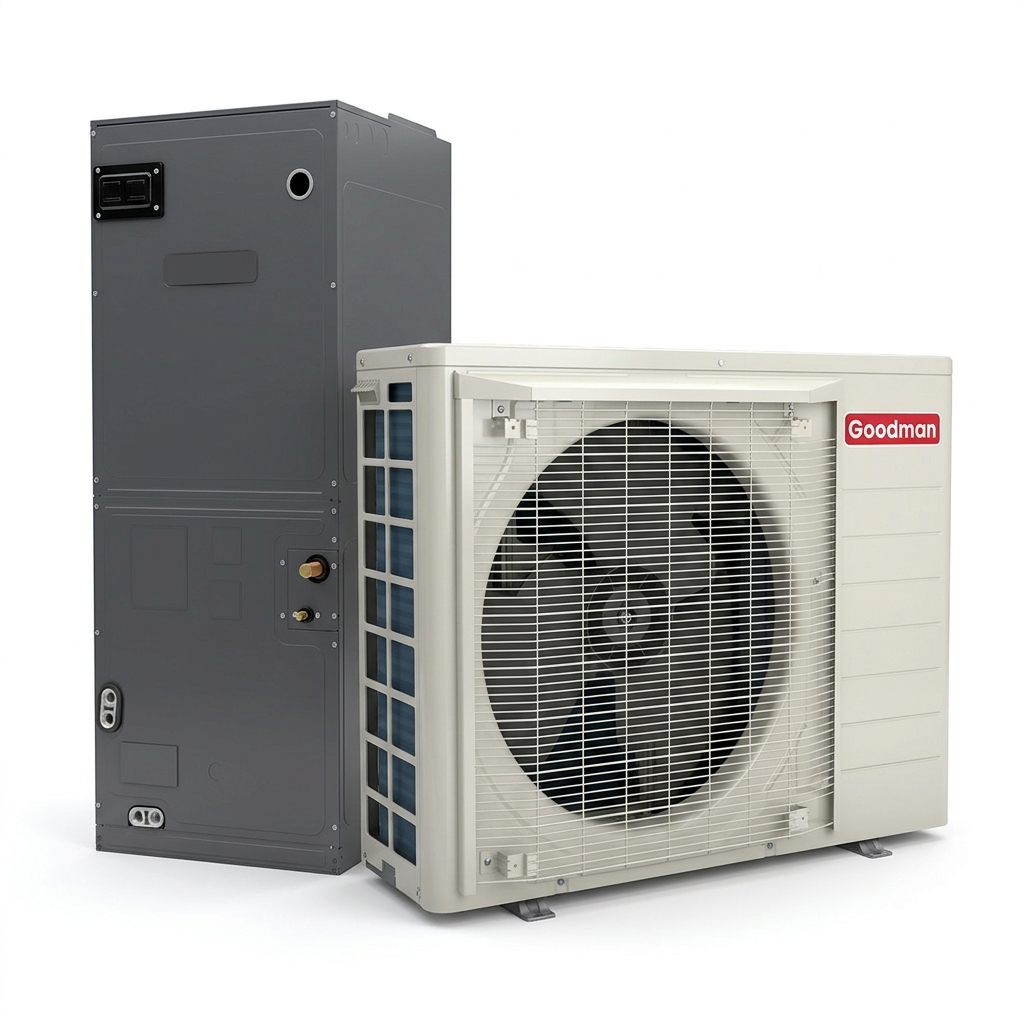

Goodman 36,000 BTU 19.0 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V
Product Overview
Goodman 4 Ton Ducted Air Handler Multi-Position Variable Speed 24.5"W 115V AHVE48DP0300
The Multi-Position, Variable-Speed ECM Air Handler is a high-performance HVAC solution designed to optimize comfort, efficiency, and reliability. This advanced air handler features a built-in Electronic Expansion Valve (EEV) for precise refrigerant control, making it ideal for both cooling and heat pump applications. Compatible with Goodman brand smart thermostats, this system integrates seamlessly with your existing HVAC setup to deliver energy-efficient, year-round comfort. It supports S-Series matchups for superior performance and communication and is available in sizes ranging from 1½ to 5 tons, suitable for residential and light commercial installations.
Key Product Features:
- Electronic Expansion Valve (EEV): Ensures precise refrigerant control for improved system efficiency in cooling and heat pump applications.
- Variable-Speed ECM Blower Motor: Offers customizable airflow to maintain consistent comfort levels across various static pressure conditions.
- All-Aluminum Evaporator Coil: Provides durability and improved heat transfer for long-lasting performance.
- Smart Thermostat Compatibility: Fully compatible with Goodman brand smart thermostats for enhanced control and efficiency.
- Constant CFM Across Static Pressure Variations: Delivers reliable airflow regardless of changes in the duct system, maintaining optimal system performance.
- CFM Indicator: Conveniently monitors airflow levels for quick troubleshooting and performance tracking.
- Adjustable Low CFM: The thermostat allows for energy-efficient fan-only operation with customizable low airflow settings.
- Coil Mounting Track: Simplifies repositioning of the evaporator coil for fast and flexible installation.
- R-32 Refrigerant Optimized: Factory-installed R-32 sensor ensures optimal compatibility with R-32 refrigerant, a more environmentally friendly option.
- Improved Humidity and Comfort Control: Designed to provide better humidity management and overall comfort.
- Fault Recall Function: Stores the six most recent faults, aiding quick diagnostics and repairs.
- Rigid SmartFrame™ Cabinet: Offers increased durability and structural integrity for the system.
- Energy Efficiency: Meets AHRI certification standards and is UL 60335 2-40 compliant for high performance and safety.
- Low Cabinet Air Leakage: Ensures efficient operation with less than 2.0% air leakage at 1.0 inch H₂O (tested per ASHRAE standard 193).
- Flexible Configuration Options: Can be installed in horizontal or vertical configurations for versatile placement in various spaces.
- 21" Depth for Easier Attic Access: Compact design simplifies installation in tight or challenging spaces such as attics.
- DecaBDE-Free Thermoplastic Drain Pan: Includes secondary drain connections for added reliability.
- Foil-Faced Insulation: Reduces internal casing condensation and improves overall system performance.
- Galvanized Leather Grain-Embossed Finish: Durable, attractive finish ensures longevity and resistance to wear and tear.
- Screw-less Sides and Back: Helps reduce condensation in humid environments for reliable operation.
- Tool-less Filter Access: Easy filter removal and replacement for convenient maintenance.
The Multi-Position ECM Air Handler is the ideal choice for anyone seeking superior energy efficiency, easy installation, and long-lasting performance for both residential and commercial applications.
Goodman 4 Ton Ducted Air Handler Multi-Position Variable Speed 24.5"W 115V AHVE48DP0300
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |
Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610
The Goodman GZV7SA3610 is a high-efficiency 3-ton side discharge heat pump condenser designed for superior comfort, quiet performance, and long-term durability. Featuring a variable-speed inverter compressor and environmentally friendly R-32 refrigerant, this unit delivers precise temperature control while meeting the latest 2023 M1 test standards. ENERGY STAR® certification ensures optimal energy savings for residential and light commercial applications.
Key Features
- Variable-Speed Inverter Compressor for Enhanced Comfort and Efficiency
- Optimized for R-32 Refrigerant Systems
- Quiet Digitally Commutated Fan Motor
- Advanced Proprietary Control Algorithm Logic
- Non-Communicating System Configuration
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
- ENERGY STAR® Certified
Cabinet Features
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Enhanced Corrosion Resistance
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored
This 3-ton inverter heat pump condenser is ideal for installations requiring high efficiency, compact outdoor design, and reliable performance.
Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Features (AHVE48DP0300)
- Electronic Expansion Valve (EEV) for cooling and heat pump applications
- 7 mm evaporator coil tube size
- Variable-speed ECM blower motor
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Thermostat provides adjustable low CFM for efficient fan-only operation
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- Improved humidity and comfort control
- AHRI certified
- ETL listed
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Cabinet Features (AHVE48DP0300)
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
- tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan
- with secondary drain connections
- Screw-less sides and back helps to reduce
- condensation when installed in humid locations
- Foil-faced insulation covers the internal
- casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Technical Specifications - AHVE48DP0300
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AHVE115V_32 |
| series name | 115V AHVE |
| installation type | Ducted Multi-position |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735279 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| cooling capacity nominal | 48000 Btu/H |
| produced in us | No |
| indoor blower fla | 5.2 A |
| max overcurrent protection | 15/15 A |
| max voltage | 126 V |
| min circuit amps | 6.5/6.5 A |
| min voltage | 103 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 120 V |
| dimensions blower diameter | 12 in |
| dimensions blower width | 10.625 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 53 in |
| dimensions unit width | 26 in |
| evap motor rpm | 1250 r/min |
| expansion device | EEV |
| indoor orifice size | 0.172 in |
| motor speed type | Variable Speed ECM |
| number of speeds | Variable |
| weight unit | 150 lb |
| blower motor horsepower | 3/4 metric hp |
| tonnage | 4 |
| tonnage range | 4 |
| condensate drain outlet | 3/4 in |
| factory std refrigerant charge | 0 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 57.50 in |
| dimensions case width | 26.00 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 57.5 in |
| dimensions distribution unit width | 26 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 57.50 in |
| dimensions pallet width | 52.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 57.50 in |
| dimensions shipping unit width | 26.00 in |
| distribution shipping volume unit | 36627.5 in³ |
| shipping volume unit | 36627.500 in³ |
| truck factor | 0.0000 |
| volume case | 36627.500 in³ |
| volume distribution shipping unit | 36627.5 in³ |
| weight case | 152.000 lb |
| weight distribution shipping unit | 152 lb |
| weight shipping unit | 152.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GZV7SA3610)
- Meets the 2023 M1 Test Standards
Product Features (GZV7SA3610)
- Variable-speed swing compressors
- Strong heating capacity
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and otherGoodman communicating equipment
- Proprietary control algorithmic logic
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easyaccess to gauge ports
Cabinet Features (GZV7SA3610)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GZV7SA3610
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV7SA |
| series name | GSV7SA |
| model efficiency | 17.5 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 17.5 SEER2 & 8.6 HSPF2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747203 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.3 |
| eer2 hsvtc | 10.5 |
| energy star certified | Yes |
| heating capacity nominal | 36000 Btu/H |
| hspf 2 hsvtc | 8.8 |
| seer 2 hsvtc | 19 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 35 A |
| min circuit amps | 31.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 25.4 A |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 70 dBA |
| weight unit | 168 lb |
| cooling capacity rated | 35000 Btu/H |
| heating capacity rated | 35000 Btu/H |
| tonnage | 3 |
| factory std refrigerant charge | 100 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- 115V AHVE Air Handler, Variable Speed ECM Motor, 4 Ton
- 115V AHVE Air Handler, Variable Speed ECM Motor, 4 Ton
- 115V AHVE Air Handler, Variable Speed ECM Motor, 4 Ton
- 115V AHVE Air Handler, Variable Speed ECM Motor, 4 Ton
- 115V AHVE Air Handler, Variable Speed ECM Motor, 4 Ton
- Goodman Split Heat Pump 17.5 SEER2, Variable
- Goodman Split Heat Pump 17.5 SEER2, Variable
- Goodman Split Heat Pump 17.5 SEER2, Variable
