Goodman

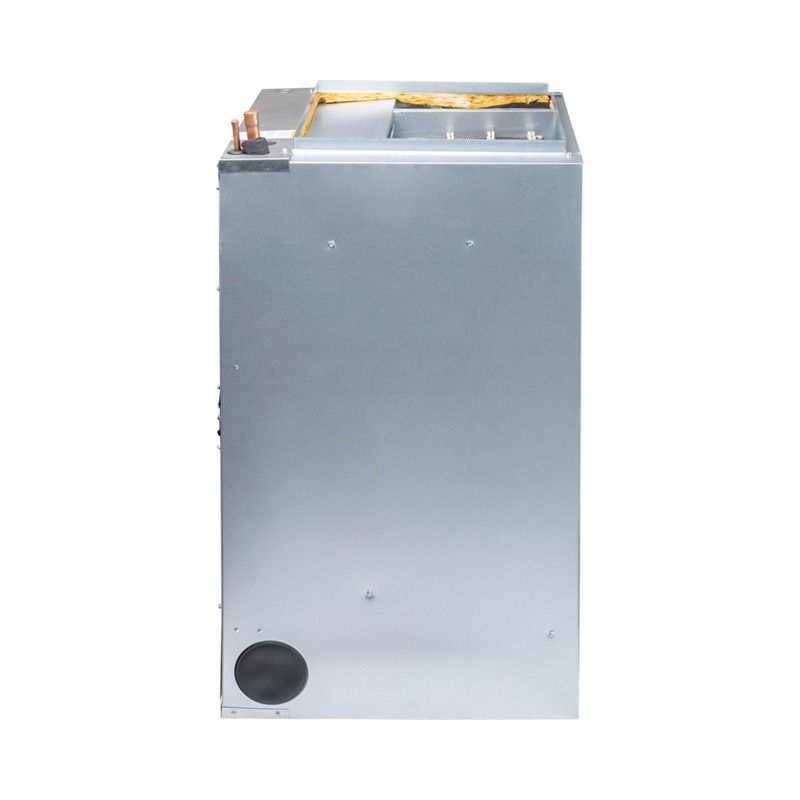

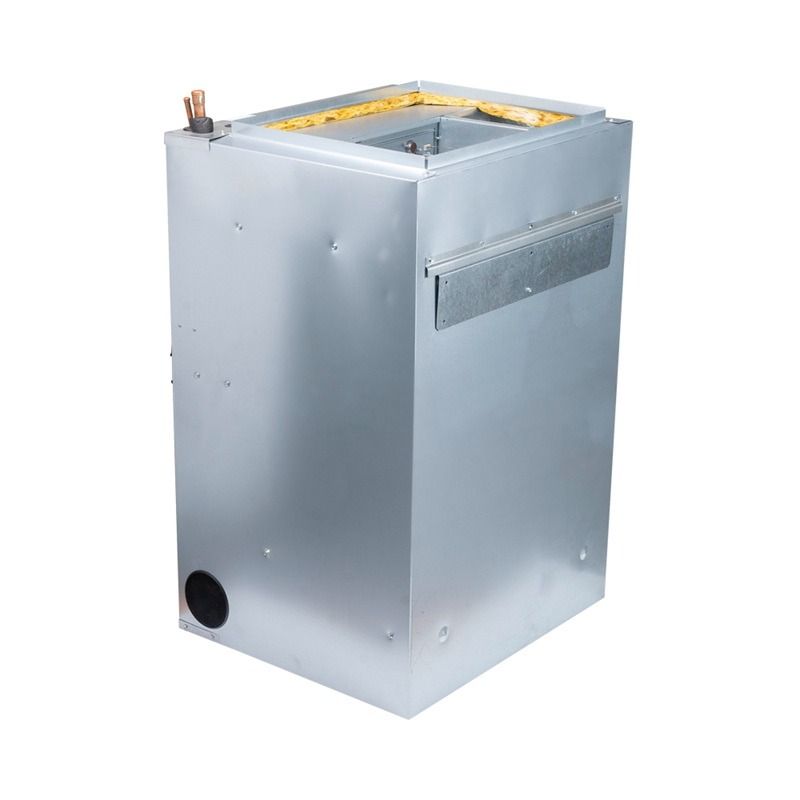

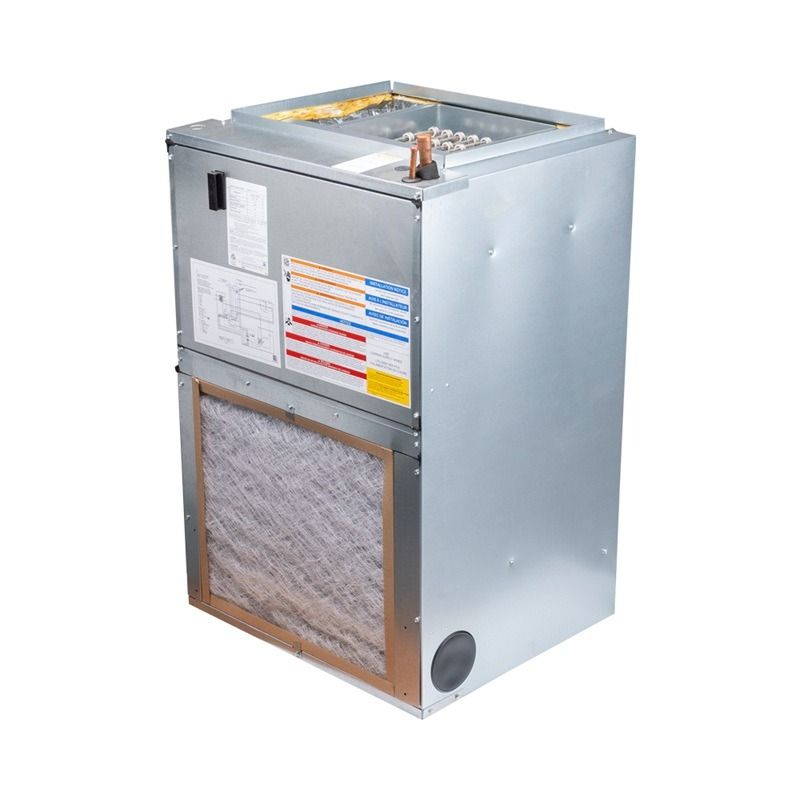

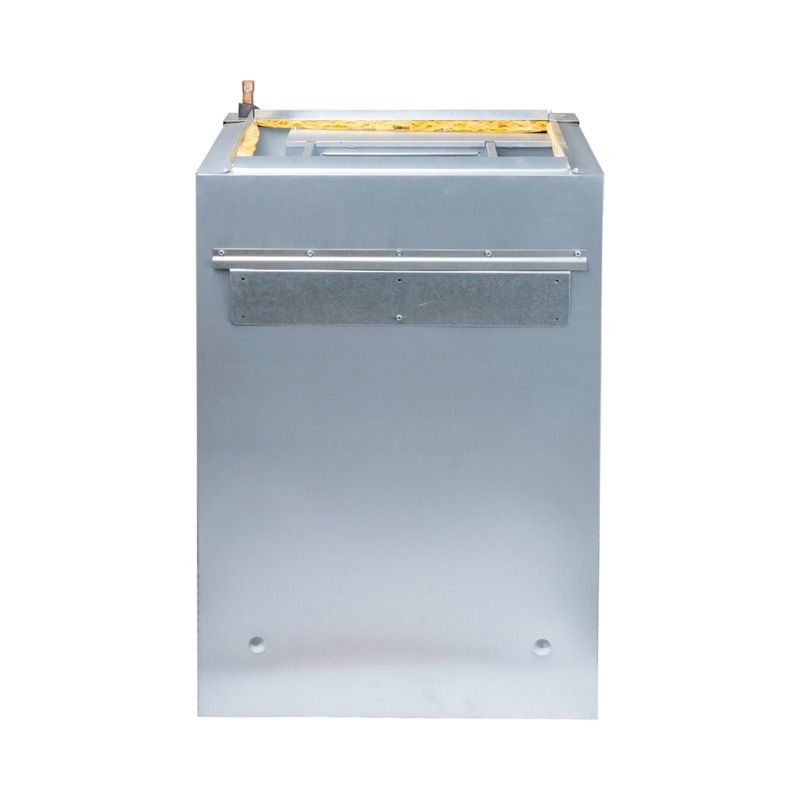

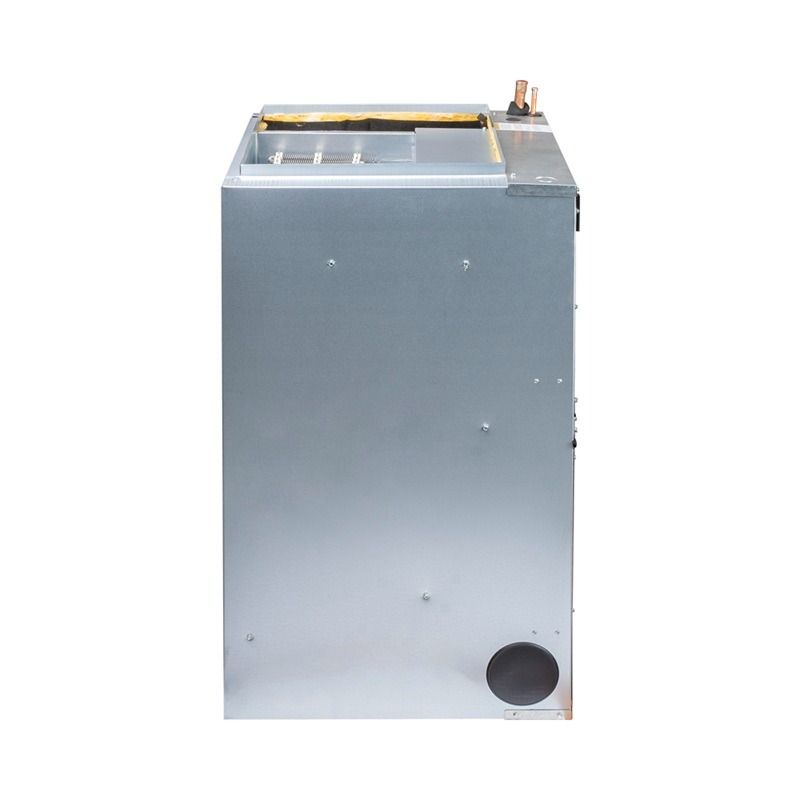

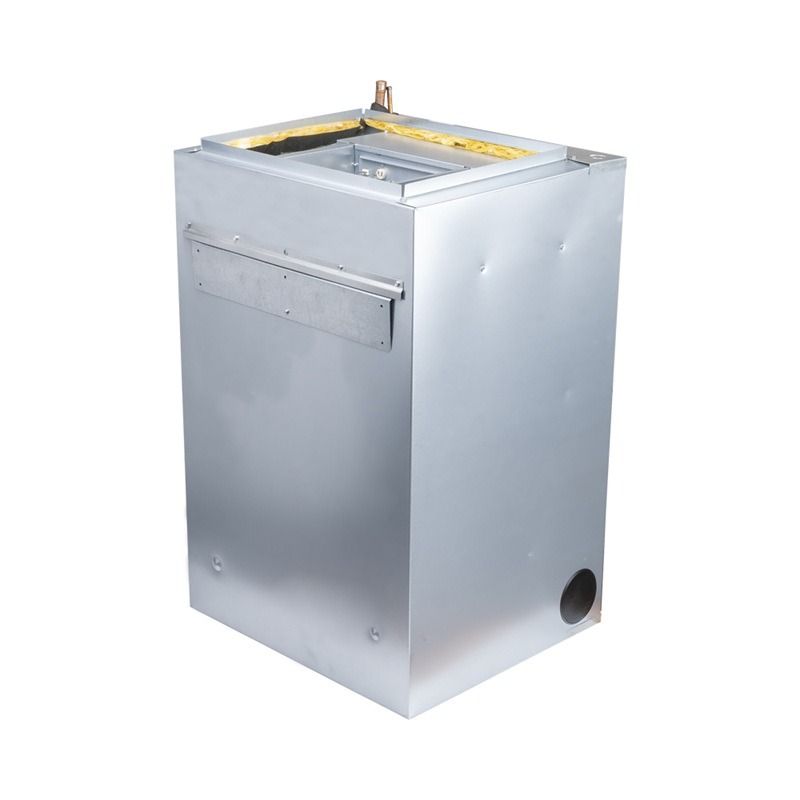

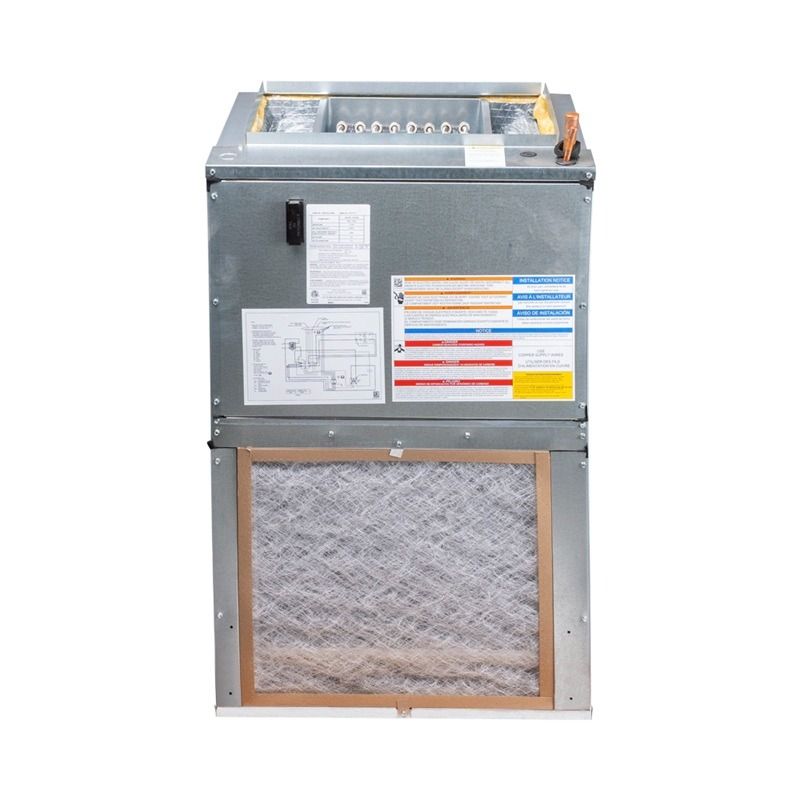

Goodman 3 Ton Wall Mounted Air Handler w/ 5kW Heat - R32

SKU: AWST36LU1305

System highlights
AC Type
Stud Mount Air Handler
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-230V
Looking For
Air Handler
Blower Motor
Multi Speed Direct Drive Motor
Cabinet Width (in)
24
Electric Heat
8 Kilowatt

Price

$1,131.00
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
Goodman
Goodman 3 Ton Wall Mounted Air Handler w/ 5kW Heat - R32

Product Overview

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Product Benefits

  • All Aluminum Coil
  • Improved Reliability and Quality
  • Factory TXV Installed for Quicker Install
  • More Efficient Refrigerant Metering

Product Features

  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features

  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided

Technical Specifications - AWST36LU1305

sku AWST36LU1305
weight (in lbs) 109.000000
brand/manufacturer Goodman
product features Space-Saving
additional information 18" x 20" x 1" Large Chassis Filter
cooling btu 36,000 BTU
blower motor Multi Speed Direct Drive Motor
maximum cfm 1360
horsepower 1/2 HP
electric heat 5 Kilowatts
refrigerant R32
liquid line 3/8"
suction line 3/4"
electrical 208/230v Single Phase 60 Hz
max breaker size 30/30 Amps
min. breaker size 26.4/29.8 Amps
tonnage 3 Ton
fuel type Electric
height 36"
width 24"
depth 21"
warranty 10 Years Parts with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AWST_32
series name AWST
family description Wall-Mount Air Handler 1½ to 3 Tons
installation type Ducted Wall Mounted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051683709
item stocking unit of measure uom EA
pallet qty 4
us hts code 8415.90.8065
cooling capacity nominal 36000 Btu/H
produced in us No
indoor blower fla 3.8 A
max overcurrent protection 30/30 A
max voltage 253 V
min circuit amps 26.4/29.8 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions evap wheel diameter 10 in
dimensions evap wheel width 8 in
dimensions unit depth 21 in
dimensions unit height 36 in
dimensions unit width 24 in
evap coil face area ft 3.35
evap motor rpm 1200 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 109 lb
blower motor horsepower 1/2 metric hp
tonnage range 1.5;3
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 25.00 in
dimensions case height 39.00 in
dimensions case width 22.50 in
dimensions distribution unit depth 25 in
dimensions distribution unit height 39 in
dimensions distribution unit width 22.5 in
dimensions pallet depth 52.00 in
dimensions pallet height 44.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 25.00 in
dimensions shipping unit height 39.00 in
dimensions shipping unit width 22.50 in
distribution shipping volume unit 21937.5 in³
shipping volume unit 21937.500 in³
truck factor 0.0000
volume case 21937.500 in³
volume distribution shipping unit 21937.5 in³
weight case 110.090 lb
weight distribution shipping unit 110.09 lb
weight shipping unit 110.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
