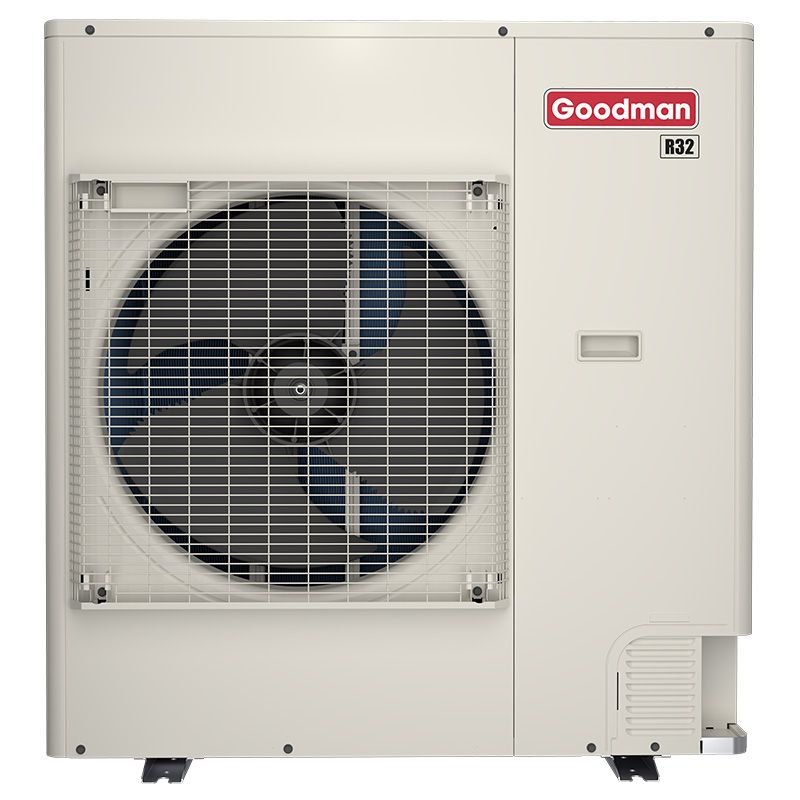

Goodman 3 Ton Up to 19 SEER2 Variable-Speed Inverter Side Discharge AC Condenser, R32

SKU: GXV9SA3610

System highlights
AC Type
Air Conditioner Condenser Units
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Voltage
208-230V
Looking For
Air Conditioner Condenser Units
SEER2 Rating
19.2
Region Approved
Northern States, Southern States

Price

$5,335.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton Up to 19 SEER2 Variable-Speed Inverter Side Discharge AC Condenser, R32

Product Overview

Product Details

Goodman 3 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

Advanced Inverter Cooling for Consistent Home Comfort

Designed for mid-sized homes, the Goodman GXV9SA3610 provides powerful yet efficient cooling with a variable-speed inverter compressor. This system helps reduce temperature swings, improves humidity control, and operates quietly. The side-discharge cabinet saves space, and R-32 refrigerant delivers modern performance with a lower environmental footprint.

  • Up to 19 SEER2 high-efficiency performance
  • Variable-speed inverter technology for smooth operation
  • Improved humidity control and comfort consistency
  • Compact side-discharge design
  • R-32 refrigerant for next-generation efficiency

Why Choose This AC Condenser?

  • Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
  • More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
  • Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
  • Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
  • Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

Product Features

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports
  • AHRI Certified
  • ETL Listed

Cabinet Features

  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV9SA3610

sku GXV9SA3610
manufacturer Goodman
product category Unitary
product class Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV9SA
series name GXV9S
short description Goodman Split Air Conditioner 19.2 SEER2, Variable
product description g sd high eff 19.0 s2 r32 inv-3.0t ac
cooling btu 35,000
seer2 19.2
decibel level (dba) 70 dBA
refrigerant R-32
compressor type Inverter
liquid line 3/8 in
suction line 7/8 in
electrical 208/230 V | 60 Hz | 1 Ph
max breaker size 35 A
min. breaker size 31.8 A
min/max outdoor temp for cooling 0 °F to 115 °F
height 39 in
width 37 in
depth 12.625 in
weight 163 lb
warranty COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
safety information Proposition 65 Label: Yes
product class pim Split Air Conditioner
model efficiency 19.2 SEER2
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
universal product code upc 663051747180
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 10.5
energy star certified No
seer 2 hsvtc 19
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 25.4 A
max overcurrent protection 35 A
min circuit amps 31.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
dimensions unit depth 12.625 in
dimensions unit height 39 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 70 dBA
weight unit 163 lb
cooling capacity rated 35000 Btu/H
factory std refrigerant charge 100 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 16.50 in
dimensions case height 44.00 in
dimensions case width 40.00 in
dimensions distribution unit depth 16.5 in
dimensions distribution unit height 44 in
dimensions distribution unit width 40 in
dimensions pallet depth 66.00 in
dimensions pallet height 49.00 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 16.50 in
dimensions shipping unit height 44.00 in
dimensions shipping unit width 40.00 in
distribution shipping volume unit 29040 in³
shipping volume unit 29040.000 in³
truck factor 0.0000
volume case 29040.000 in³
volume distribution shipping unit 29040 in³
weight case 194.090 lb
weight distribution shipping unit 194.09 lb
weight shipping unit 194.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
