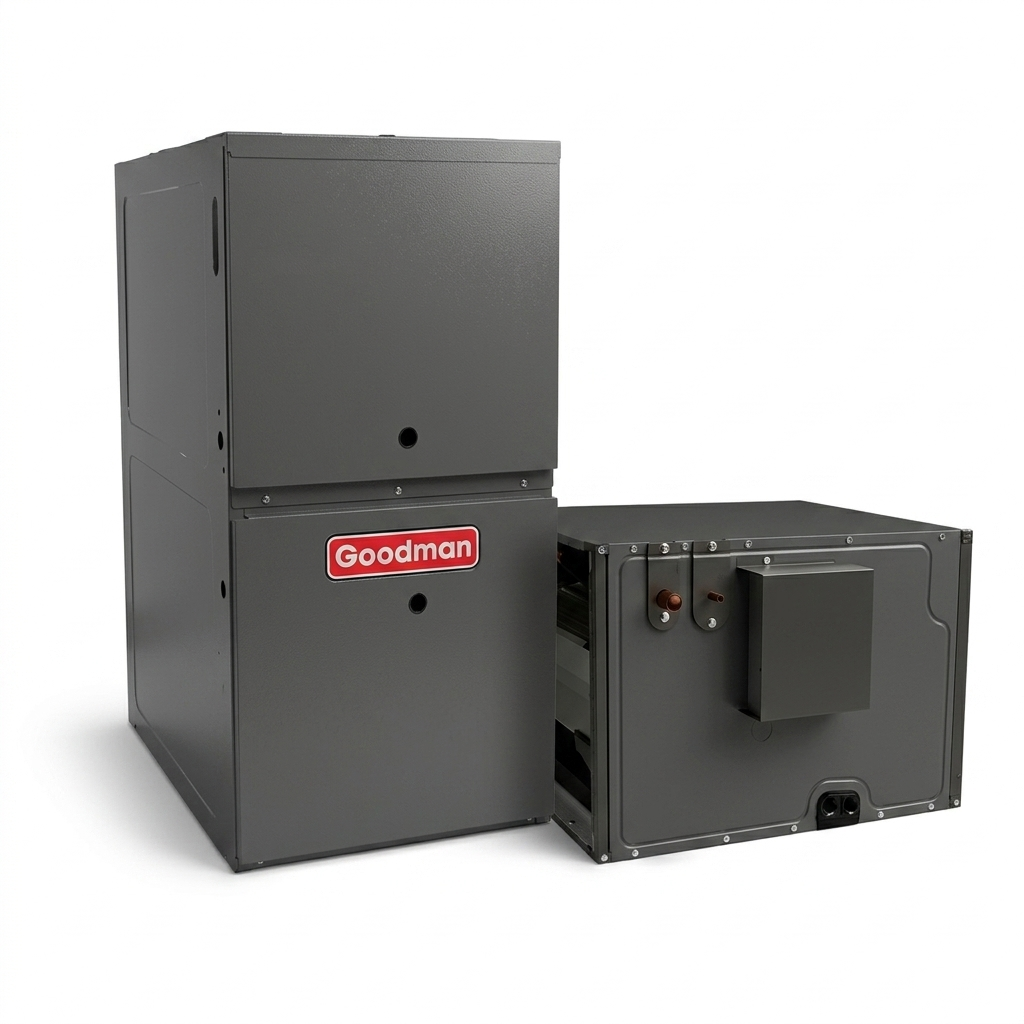

Goodman 3 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

SKU: CHPEA3626C3 + GRVT800603BX

System highlights
AC Type
Furnace & Coil Systems
Refrigerant Type
R32
Brand
Goodman
Indoor Unit
36000 BTU (3.0 TON)
Looking For
Furnace & Coil Systems
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
1200
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
26 1/2
! Cabinet might need adjustment for sizing.
Goodman 3 Ton Evaporator Coil Cased Horizontal 21" Cabinet With EEV R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,067.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

Product Overview

Goodman 3 Ton Evaporator Coil Cased Horizontal 21" Cabinet With EEV R32 CHPEA3626C3

Upgrade your HVAC system with this high-performance all-aluminum evaporator coil, engineered for optimized efficiency and long-term durability. Specifically designed for use with R-32 refrigerant, this advanced coil system ensures reliable cooling and heat pump operation while supporting modern smart HVAC integrations. Built with corrosion-resistant materials and service-friendly features, it delivers consistent performance for residential and light commercial applications.

  • All-aluminum evaporator coil design for enhanced corrosion resistance and long-lasting HVAC performance
  • Optimized for R-32 refrigerant systems with precision-engineered circuits and manifolds
  • Integrated R-32 leak detection sensor designed to last the lifespan of the coil
  • Factory-installed electronic expansion valve (EEV) for accurate refrigerant flow control and improved energy efficiency (CHPEA models)
  • Compatible with Daikin One+ smart thermostat and other communicating HVAC systems for smart climate control integration
  • Supports both cooling and heat pump applications for year-round comfort solutions
  • Fault recall memory stores up to six recent system faults for easier HVAC diagnostics and maintenance
  • CAPFA models equipped with optimized piston metering devices for reliable refrigerant regulation
  • Standardized copper suction tube stub length for simplified installation and system compatibility
  • Available in vertical and horizontal configurations to fit various HVAC installation requirements
  • Compact 21-inch depth design for easier attic access and space-saving installation
  • Single front access panel (CHPEA models) for convenient service and maintenance access
  • Foil-faced internal insulation reduces cabinet condensation and improves thermal efficiency
  • Durable galvanized steel cabinet with leather grain-embossed, rust-resistant finish
  • High-strength thermoplastic drain pans with low water-retention design for improved drainage and hygiene
  • DecaBDE-free, environmentally friendly drain pan construction with secondary drain connections
  • Reinforced drain pan rails for easy coil removal and repositioning without compromising structural integrity
  • UV-resistant drain pan for added durability in varying environmental conditions
  • AHRI certified and ETL listed for verified performance, safety, and quality assurance

Goodman 3 Ton Evaporator Coil Cased Horizontal 21" Cabinet With EEV R32 CHPEA3626C3

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years

OVERVIEW

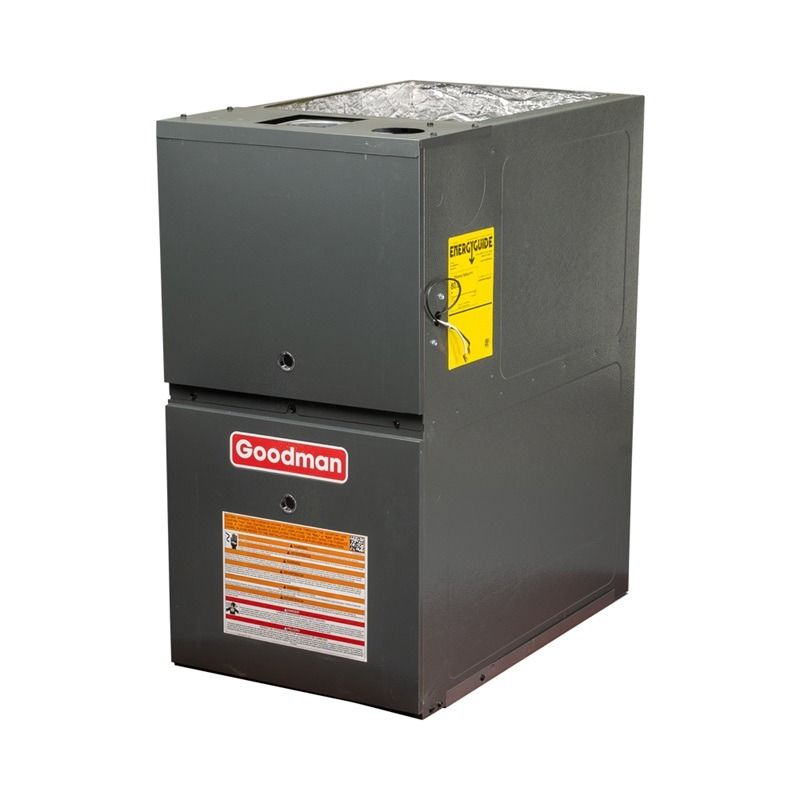

The Goodman GRVT800603BX gas furnace is part of Goodman's top-of-the-line series, known for its exceptional performance. This low NOx furnace features a two-stage burner and a variable speed blower motor, ensuring optimal comfort and efficiency. With the outstanding durability and reliability that Goodman 80% efficient furnaces are known for, we are proud to offer you this high-quality heating solution.

QUICK FACTS

  • This low NOx furnace is ideal to heat a small to medium house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

At an input of 60,000 BTU’s, the GRVT800603BX Goodman low NOx gas furnace is suitable for up to a small to medium house in an average climate. The output of this furnace is 48,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GRVT800603BX Goodman low NOx gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GRVT800603BX requires metal flue venting like any 80

Product Benefits (CHPEA3626C3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CHPEA3626C3)

  • All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
  • ETL listed

Cabinet Features (CHPEA3626C3)

  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish

Technical Specifications - CHPEA3626C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CHPEA
series name CHPEA
model efficiency 17 SEER
family description Cased Horizontal "A" with Internal EEV
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051737006
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 36000 Btu/H
produced in us Yes
cabinet finish Galvanized, leather grain-embossed finish, Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 21 in
dimensions unit width 26.5 in
expansion device EEV
indoor orifice size 0.157 in
weight unit 69 lb
tonnage 3
tonnage range 2.0;3
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 1/4 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 28.00 in
dimensions case height 23.50 in
dimensions case width 26.50 in
dimensions distribution unit depth 28 in
dimensions distribution unit height 23.5 in
dimensions distribution unit width 26.5 in
dimensions pallet depth 58.50 in
dimensions pallet height 75.50 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 28.00 in
dimensions shipping unit height 23.50 in
dimensions shipping unit width 26.50 in
distribution shipping volume unit 17437 in³
shipping volume unit 17437.000 in³
truck factor 0.0000
volume case 17437.000 in³
volume distribution shipping unit 17437 in³
weight case 71.000 lb
weight distribution shipping unit 71 lb
weight shipping unit 71.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Benefits (GRVT800603BX)

  • High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
  • Capable of using non communicating single-stage thermostats
  • Durablend long igniter life
  • Quietnd Economical heating
  • Operates on single-stage thermostats

Product Features (GRVT800603BX)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Efficientnd quiet variable-speed Blower
  • ComfortBridge™ Communicating System compatible
  • Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
  • Silicon Nitride igniter
  • Two-Stage gas valve

Cabinet Features (GRVT800603BX)

  • Multi-position installation: upflow, horizontal left or right
  • Convenient left or right connection for gasnd electrical service
  • Cabinetir leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchangernd blower section
  • Bottom or side returnirpplications
  • Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVT800603BX

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVT80
series name GRVT80
model efficiency 0.80
family description Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051703209
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 36000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 15-45 °F
temperature rise range low fire 15-45 °F
current type AC
max overcurrent protection 15 A
min circuit amps 7.75 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1400 ft³/min
air flow rate low heating 980 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 17-1/2 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 16X25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Low NOx
number of burners 3
weight unit 105 lb
blower motor horsepower 1/2 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48,000
low fire input capacity 42,000
low fire output capacity 33,600
gas valve type Two Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 19702.5 in³
shipping volume unit 19702.500 in³
truck factor 0.0000
volume case 19702.500 in³
volume distribution shipping unit 19702.5 in³
weight case 104.000 lb
weight distribution shipping unit 110.09 lb
weight shipping unit 104.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
