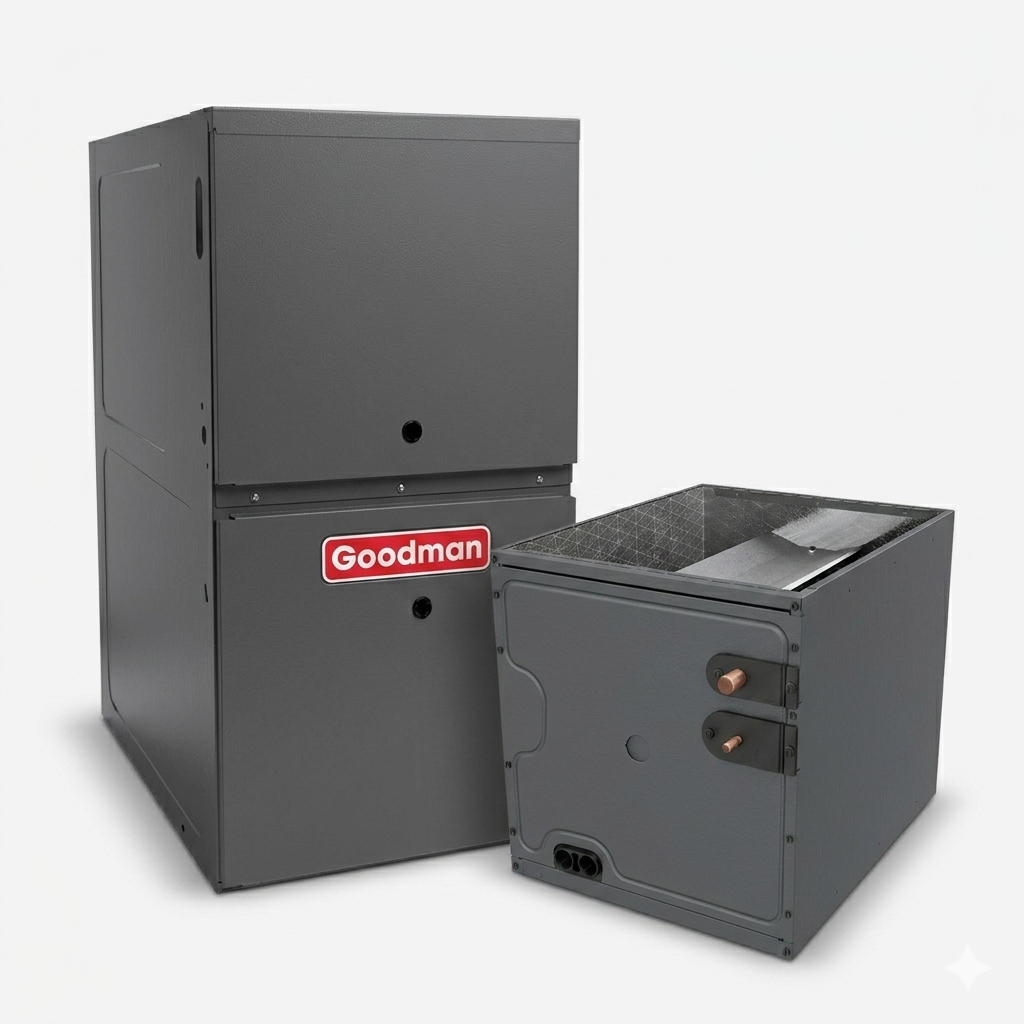

Goodman 3 Ton 80% AFUE Furnace and Coil System - R32 - Downflow/Horizontal

SKU: CAPTA3626B3 + GD9S800603AX

System highlights
AC Type
Furnace & Coil Systems
Refrigerant Type
R32
Brand
Goodman
Indoor Unit
36000 BTU (3.0 TON)
Looking For
Furnace & Coil Systems
Airflow Direction
Downflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1400
Fuel Type
Natural Gas, Propane
Burner Stages
Single Stage
Coil Style
A-Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
17 1/2
! Cabinet might need adjustment for sizing.

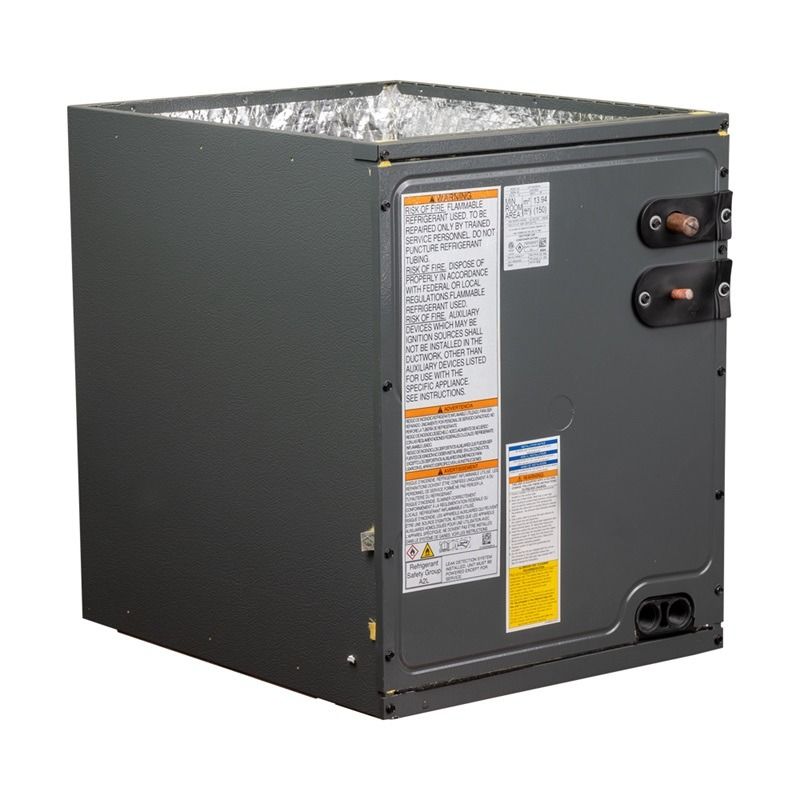

Goodman 3 Ton 17.5" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$2,444.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 80% AFUE Furnace and Coil System - R32 - Downflow/Horizontal

Product Overview

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

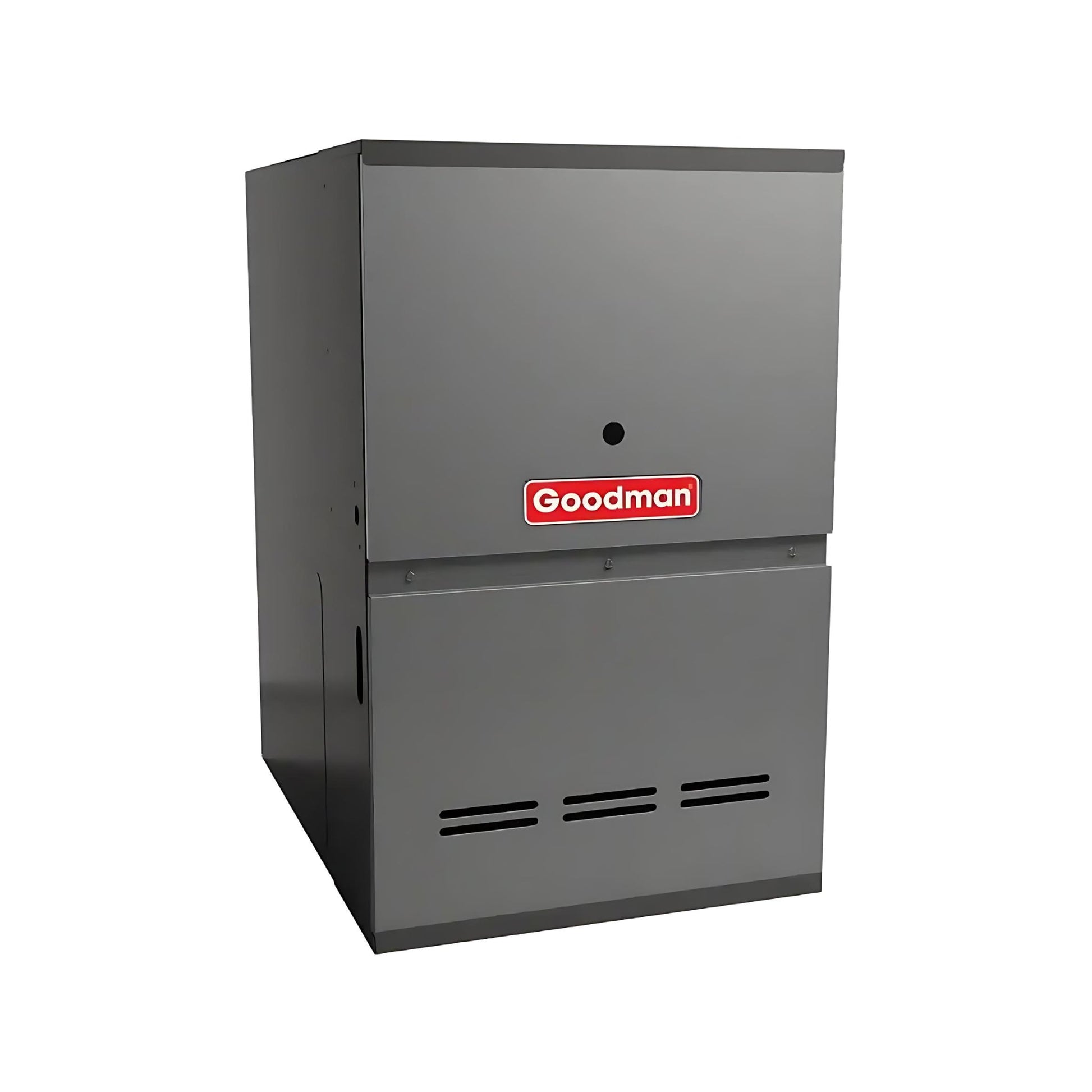

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX

The Goodman GD9S800603AX is a reliable, high-efficiency furnace offering 60,000 BTU heating capacity and 80% AFUE. Its Low NOx emissions design makes it ideal for homes in California counties with stricter air quality regulations. With a 9-speed ECM blower motor, heavy-gauge steel cabinet, and smart diagnostic controls, this unit delivers dependable performance, quiet operation, and energy savings — all in a compact, flexible installation package.

Key Features

  • 60,000 BTU Heating Capacity – Ideal for Small to Medium Homes
  • 80% AFUE Efficiency – Requires Metal Flue Venting
  • Low NOx Compliant – Meets California Emissions Standards (Exclusions Apply)
  • 9-Speed ECM Blower Motor – Enhances Electrical Efficiency & Airflow Control
  • Single-Stage Gas Valve – Operates at 100% Output When Active
  • Heavy-Gauge Steel Cabinet – Reduces Noise & Heat Loss
  • Hot Surface Ignitor – Reliable and Durable Startup Mechanism
  • Self-Diagnostic Control Board – Simplifies Maintenance and Troubleshooting
  • Flexible Installation – Downflow or Horizontal (Left or Right) Configurations
  • Color-Coded Low Voltage Terminals – Eases and Speeds Up Installation

Important California Compliance Note

This model meets California Low NOx requirements, but it cannot be installed in the following counties: Los Angeles, Fresno, San Joaquin, Kern, Kings, Madera, Merced, Orange, Riverside, San Bernardino, Stanislaus, and Tulare.
These areas require Ultra-Low NOx models. Contact us if you need help finding compliant alternatives.

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Product Features (CAPTA3626B3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL Listed

Technical Specifications - CAPTA3626B3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688407
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 17-1/2 in
expansion device TXV
tonnage 3.0
tonnage range 2.5;3.0
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.25 in
dimensions case height 28.50 in
dimensions case width 20.00 in
dimensions distribution unit depth 26.25 in
dimensions distribution unit height 28.5 in
dimensions distribution unit width 20 in
dimensions pallet depth 54.00 in
dimensions pallet height 61.50 in
dimensions pallet width 41.00 in
dimensions shipping unit depth 26.25 in
dimensions shipping unit height 28.50 in
dimensions shipping unit width 20.00 in
distribution shipping volume unit 14962.5 in³
shipping volume unit 14962.500 in³
truck factor 0.0000
volume case 14962.500 in³
volume distribution shipping unit 14962.5 in³
weight case 54.000 lb
weight distribution shipping unit 54 lb
weight shipping unit 54.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Benefits (GD9S800603AX)

  • Higher reliabilitynd quality
  • Durablend long igniter life
  • Provisions for electronicir cleanernd humidifier
  • Energy Efficientnd quiet circulation
  • Self-diagnostic control board with constant memory
  • Simple installationnd setup
  • Quietnd simple operation

Product Features (GD9S800603AX)

  • Heavy-duty stainless-steel tubular heat exchanger
  • "Silicon Nitride igniter"
  • Color-coded low-voltage terminals
  • Multi-speed ECM blower motor with continuous fan speed
  • Fault code LED Output
  • Single-Stage gas Valve
  • Single-speed inducer draft blower

Technical Specifications - GD9S800603AX

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GD9S80
model efficiency 0.80
family description Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
export control classification number eccn EAR99
universal product code upc 663051684751
item stocking unit of measure uom EA
pallet qty 6
afue 80 %
cooling capacity nominal 36000 Btu/H
installation configuration Downflow/Horizontal
produced in us No
temperature rise range high fire 30-60 °F
max overcurrent protection 15 A
min circuit amps 8.7 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1200 ft³/min
dimensions blower diameter 10 in
dimensions blower width 6 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 14 in
etl listed Yes
heat exchanger type Gas
motor speed type Nine Speed ECM
nox burner type Low NOx
number of burners 3
weight unit 94 lb
blower motor horsepower 1/2 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48,000
gas valve type Single Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 15.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 15 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 45.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 15.00 in
distribution shipping volume unit 15975 in³
shipping volume unit 15975.000 in³
truck factor 0.0000
volume case 15975.000 in³
volume distribution shipping unit 15975 in³
weight case 96.000 lb
weight distribution shipping unit 96 lb
weight shipping unit 96.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
