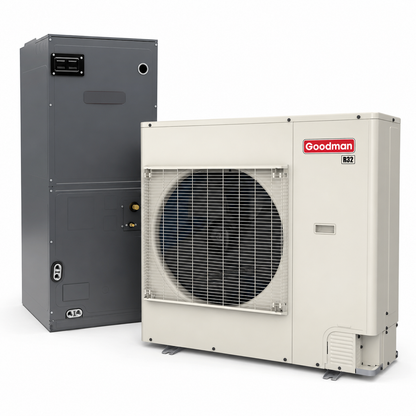

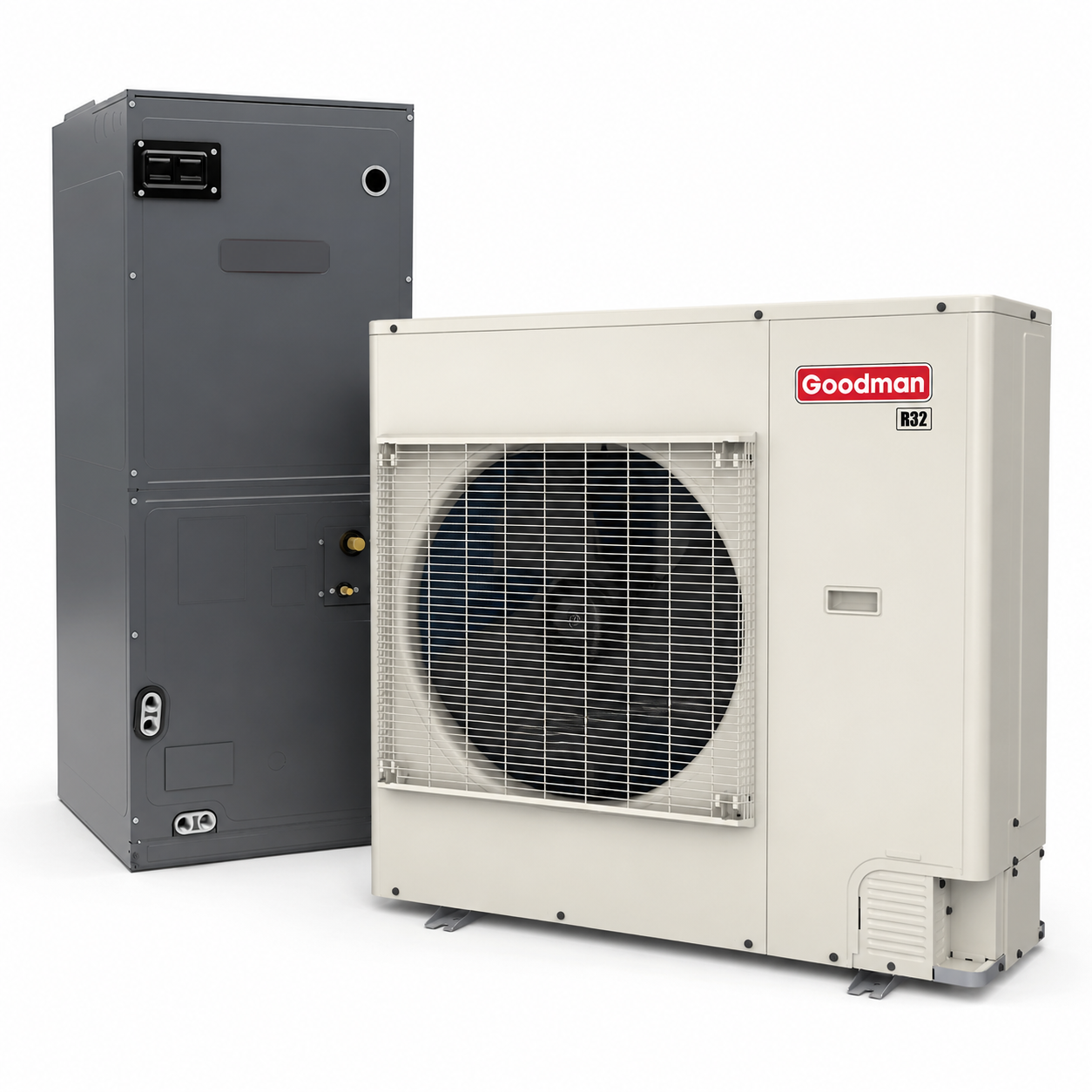

Goodman 3 Ton 19.0 SEER2 R32 Air Conditioner Split System - Multi-Positional
Product Overview
Goodman 6 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R32 AHVE60DP1300
The Goodman AHVE60DP1300 is a high-capacity 5-ton variable-speed air handler designed to deliver exceptional comfort, energy efficiency, and quiet operation for large residential and commercial spaces. Equipped with ComfortBridge™ communicating technology, this air handler intelligently monitors and adjusts system performance to maintain consistent temperature, precise humidity control, and superior indoor air quality.
Built with a durable, insulated steel cabinet and flexible multi-position installation options, the AHVE60DP1300 seamlessly integrates with Goodman heat pumps and air conditioning systems. Its variable-speed ECM blower motor ensures smooth and efficient airflow while reducing energy consumption and operational noise, providing a reliable and long-lasting HVAC solution.
Key Features
- 6 Ton Cooling Capacity (60,000 BTU) – Ideal for large homes or commercial spaces requiring efficient central air distribution and balanced airflow.
- Variable-Speed ECM Blower Motor – Provides precise airflow control, lowers energy usage, and operates quietly compared to standard motors.
- ComfortBridge™ Communicating Technology – Self-configuring system continuously monitors and optimizes performance for maximum comfort, energy savings, and humidity control.
- Multi-Position Installation – Supports upflow, downflow, and horizontal configurations for versatile placement in various building layouts.
- Enhanced Humidity Management – Maintains balanced indoor moisture levels for improved air quality and comfort.
- Heavy-Gauge Steel Cabinet – Durable, insulated construction reduces noise transmission and ensures long-term reliability.
- Compatible with Goodman Heat Pumps & Air Conditioners – Works seamlessly with high-efficiency split systems to optimize SEER and HSPF performance.
- Factory-Installed Thermal Expansion Valve (TXV) – Ensures proper refrigerant flow for improved cooling efficiency and system longevity.
The Goodman AHVE60DP1300 variable-speed air handler is the perfect choice for homeowners and businesses seeking high-efficiency airflow, reliable performance, and advanced climate control. With ComfortBridge technology and quiet, energy-efficient operation, it is a durable and long-lasting solution for year-round comfort.
Goodman 6 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R32 AHVE60DP1300
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |
Product Details

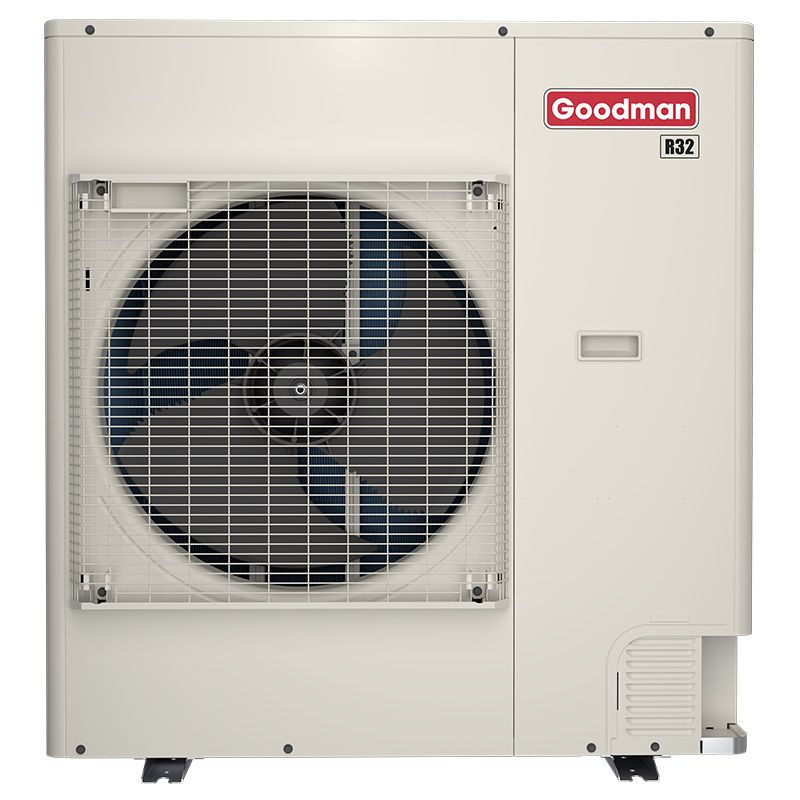

Goodman 3 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
Advanced Inverter Cooling for Consistent Home Comfort
Designed for mid-sized homes, the Goodman GXV9SA3610 provides powerful yet efficient cooling with a variable-speed inverter compressor. This system helps reduce temperature swings, improves humidity control, and operates quietly. The side-discharge cabinet saves space, and R-32 refrigerant delivers modern performance with a lower environmental footprint.
- Up to 19 SEER2 high-efficiency performance
- Variable-speed inverter technology for smooth operation
- Improved humidity control and comfort consistency
- Compact side-discharge design
- R-32 refrigerant for next-generation efficiency
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
Product Features (AHVE60DP1300)
- Electronic Expansion Valve (EEV) for cooling and heat pump applications
- 7 mm evaporator coil tube size
- Variable-speed ECM blower motor
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Thermostat provides adjustable low CFM for efficient fan-only operation
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- Improved humidity and comfort control
- AHRI certified
- ETL listed
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3 kW – 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Cabinet Features (AHVE60DP1300)
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
- tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
- 3 kW – 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan
- with secondary drain connections
- Screw-less sides and back helps to reduce
- condensation when installed in humid locations
- Foil-faced insulation covers the internal
- casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Technical Specifications - AHVE60DP1300
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AHVE230V_32 |
| series name | Inverter compatible Air Handler |
| installation type | Ducted Multi-position |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735224 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 60000 Btu/H |
| produced in us | Yes |
| indoor blower fla | 6.9 A |
| max overcurrent protection | 15/15 A |
| max voltage | 253 V |
| min circuit amps | 6.8/6.5 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| dimensions blower diameter | 12 in |
| dimensions blower width | 10.625 in |
| dimensions evap wheel diameter | 12 in |
| dimensions evap wheel width | 10.625 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 58 in |
| dimensions unit width | 24-1/2 in |
| evap coil face area ft | 6.14 |
| evap motor rpm | 1250 r/min |
| expansion device | EEV |
| motor speed type | Variable Speed ECM |
| number of speeds | Variable |
| weight unit | 167 lb |
| blower motor horsepower | 1 metric hp |
| tonnage | 6 |
| tonnage range | 5 |
| factory std refrigerant charge | 0 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 62.00 in |
| dimensions case width | 26.00 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 62 in |
| dimensions distribution unit width | 26 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 62.00 in |
| dimensions pallet width | 52.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 62.00 in |
| dimensions shipping unit width | 26.00 in |
| distribution shipping volume unit | 39494 in³ |
| shipping volume unit | 39494.000 in³ |
| truck factor | 0.0000 |
| volume case | 39494.000 in³ |
| volume distribution shipping unit | 39494 in³ |
| weight case | 164.000 lb |
| weight distribution shipping unit | 163.09 lb |
| weight shipping unit | 164.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Features (GXV9SA3610)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostatand other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segment
- LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves witheasy access to gauge ports
Cabinet Features (GXV9SA3610)
- Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV9SA3610
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV9SA |
| series name | GXV9S |
| model efficiency | 19.2 SEER2 |
| communication feature | Yes |
| communication feature type | Goodman GTST Smart Thermostat |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747180 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 10.5 |
| energy star certified | No |
| seer 2 hsvtc | 19 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 25.4 A |
| max overcurrent protection | 35 A |
| min circuit amps | 31.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 70 dBA |
| weight unit | 163 lb |
| cooling capacity rated | 35000 Btu/H |
| factory std refrigerant charge | 100 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
