Goodman

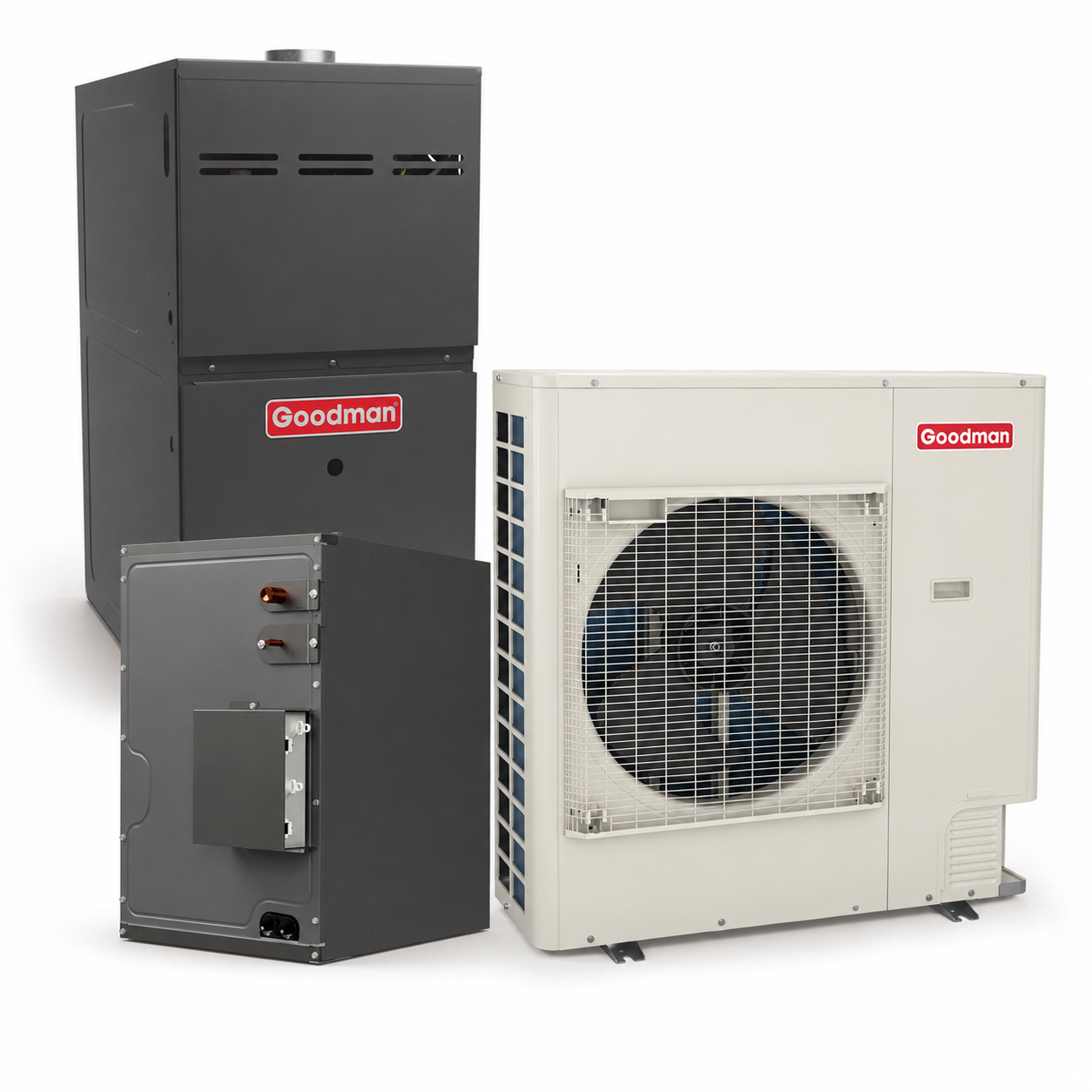

Goodman 3 Ton 19.0 SEER2 80% AFUE 80,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R32 - Upflow/Horizontal

SKU: CAPEA6030C3 + GZV7SA3610 + GRVS800805CU

System highlights
AC Type
Dual Fuel Systems
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
60000 BTU (5.0 TON)
Looking For
Dual Fuel Systems
SEER2 Rating
18.5
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
2000
Fuel Type
Natural Gas, Propane
Burner Stages
Single Stage
Coil Style
A-Coil
Furnace Heating BTU
80,000 BTU (6.67 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
23 1/2
! Cabinet might need adjustment for sizing.
Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$7,895.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 19.0 SEER2 80% AFUE 80,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R32 - Upflow/Horizontal

Product Overview

Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow  CAPEA6030C3

The Goodman CAPEA6030C3 is a 5-ton cased A coil evaporator designed for use in both split system air conditioners and heat pumps. Built with durable all-aluminum construction, this coil delivers reliable performance and superior heat transfer. It supports both upflow and downflow configurations and includes a factory-installed thermal expansion valve (TXV) for precise refrigerant control. Compatible with R-32 refrigerant, the coil also features foil-faced insulation and a thermoplastic drain pan to manage condensation effectively, all within a compact cabinet featuring a galvanized, leather grain-embossed finish.

Key Features

  • 5 Ton Cooling Capacity (60,000 BTU)
  • All-Aluminum A Coil Enhances Durability and Heat Transfer
  • Factory-Installed TXV for Efficient Refrigerant Metering
  • Optimized for R-32 Refrigerant Applications
  • Upflow and Downflow Configuration Compatibility
  • Thermoplastic Drain Pan for Improved Condensation Management
  • Foil-Faced Insulation Minimizes Internal Cabinet Moisture
  • Galvanized Steel Cabinet with Leather Grain-Embossed Finish
  • Single Front Access Panel for Service Access
  • AHRI Certified, ETL Listed, and ISO Certified

This 5-ton evaporator coil is an excellent fit for high-capacity residential HVAC systems requiring reliable performance, R-32 compatibility, and energy-efficient design in a flexible upflow/downflow configuration.

Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow  CAPEA6030C3

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years

Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610

The Goodman GZV7SA3610 is a high-efficiency 3-ton side discharge heat pump condenser designed for superior comfort, quiet performance, and long-term durability. Featuring a variable-speed inverter compressor and environmentally friendly R-32 refrigerant, this unit delivers precise temperature control while meeting the latest 2023 M1 test standards. ENERGY STAR® certification ensures optimal energy savings for residential and light commercial applications.

Key Features

  • Variable-Speed Inverter Compressor for Enhanced Comfort and Efficiency
  • Optimized for R-32 Refrigerant Systems
  • Quiet Digitally Commutated Fan Motor
  • Advanced Proprietary Control Algorithm Logic
  • Non-Communicating System Configuration
  • Diagnostic Indicator Lights with Fault Code Storage
  • AHRI Certified and ETL Listed
  • Meets 2023 M1 Test Standards
  • ENERGY STAR® Certified

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Enhanced Corrosion Resistance
  • Wire Fan Discharge Grille
  • Top and Side Maintenance Access Panels
  • Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored

This 3-ton inverter heat pump condenser is ideal for installations requiring high efficiency, compact outdoor design, and reliable performance.

Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610

Warranty Type Parts Compressor
Manufacturer Warranty 10 Years Limited Lifetime

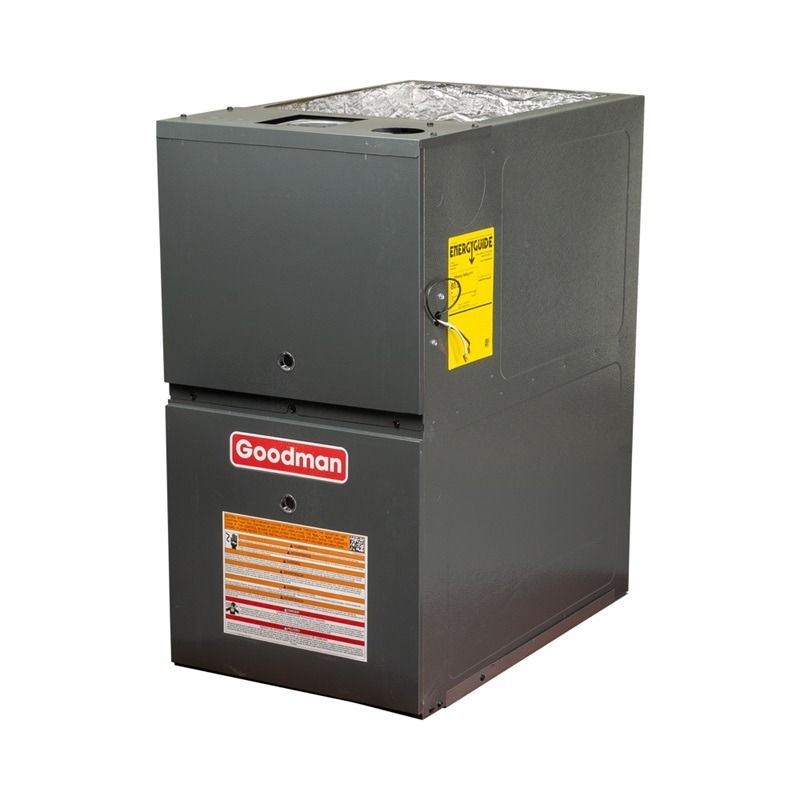

OVERVIEW

The GRVS800805CU Goodman gas furnace features high-quality construction and efficient operation at a great value. The GRVS800805CU single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GRVS800805CU.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

The GRVS800805CU Goodman gas furnace is 80,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU’s (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The GRVS800805CU Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Ultra-low NOx furnaces are only available in natural gas configurations. If you need a propane furnace, you will need to order the regular version of this furnace and add a propane conversion kit to it. You can find the regular version here:GR9S800604BN

.

Single Stage Furnace

The GRVS800805CU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GRVS800805CU utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GRVS800805CU model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Product Benefits (CAPEA6030C3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CAPEA6030C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CAPEA6030C3)

  • Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CAPEA6030C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPEA_32
series name CAPEA
model efficiency 17 SEER
family description CAPEA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051731516
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 60000 Btu/H
produced in us Yes
cabinet finish Painted
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 23.5 in
expansion device EEV
indoor orifice size 0.172 in
weight unit 67 lb
condensate drain outlet 3/4 in
pipe size gas 1-1/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20010.25 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20010.25 in³
weight case 70.000 lb
weight distribution shipping unit 70 lb
weight shipping unit 70.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Benefits (GZV7SA3610)

  • Meets the 2023 M1 Test Standards

Product Features (GZV7SA3610)

  • Variable-speed swing compressors
  • Strong heating capacity
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman GTST connected thermostat and otherGoodman communicating equipment
  • Proprietary control algorithmic logic
  • In communicating mode, only two low-voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segmentLED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
  • Field-selectable boost mode increases compressor speed during unusually high loads
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves with easyaccess to gauge ports

Cabinet Features (GZV7SA3610)

  • Heavy-gauge galvanized steel cabinet with grille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion (ZAM®), unpainted steel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GZV7SA3610

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GZV7SA
series name GSV7SA
model efficiency 17.5 SEER2
family description High-Effciency, Communication, Split System Heat Pump Up to 17.5 SEER2 & 8.6 HSPF2
installation type Ducted
communication feature Yes
communication feature type Non-Communicating
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051747203
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cop47 hsvtc 3.3
eer2 hsvtc 10.5
energy star certified Yes
heating capacity nominal 36000 Btu/H
hspf 2 hsvtc 8.8
seer 2 hsvtc 19
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
heating operation range std max 70 °F
heating operation range std min -10 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 35 A
min circuit amps 31.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
rated load amps 25.4 A
compressor stages Variable
compressor type Inverter
dimensions unit depth 12.625 in
dimensions unit height 39 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 70 dBA
weight unit 168 lb
cooling capacity rated 35000 Btu/H
heating capacity rated 35000 Btu/H
tonnage 3
factory std refrigerant charge 100 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 16.50 in
dimensions case height 44.00 in
dimensions case width 40.00 in
dimensions distribution unit depth 16.5 in
dimensions distribution unit height 44 in
dimensions distribution unit width 40 in
dimensions pallet depth 66.00 in
dimensions pallet height 49.00 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 16.50 in
dimensions shipping unit height 44.00 in
dimensions shipping unit width 40.00 in
distribution shipping volume unit 29040 in³
shipping volume unit 29040.000 in³
truck factor 0.0000
volume case 29040.000 in³
volume distribution shipping unit 29040 in³
weight case 194.090 lb
weight distribution shipping unit 194.09 lb
weight shipping unit 194.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVS800805CU)

  • Heavy-duty stainless-steel tubular heat exchanger 2. Efficientnd quiet variable-speed Blower3. Integrated communicating ComfortBridge™ technology4. Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication5. Silicon Nitride igniter6. Dual 7-segment display7. Color-coded low-voltage terminals8. Single-Stage gas valve9.ll models comply with California 14 ng/J10.HRI Certified, ETL Listed

Product Features (GRVS800805CU)

  • Heavy-duty stainless-steel tubular heat exchangerSingle-stage gas valveDurable Silicon Nitride igniter Self-diagnostic control board with constantmemory fault code history output to LEDAll models comply with California 14 ng/Jultra Low NOx emissions standardFor installation in California’s South CoastirQuality Management District (SCAQMD) only.AHRI Certified

Cabinet Features (GRVS800805CU)

  • Multi-position installation: upflow, horizontal left or right2. Convenient left or right connection for gasnd electrical service5. Cabinetir leakage (Qleak) less than or equal to 2%6. Bottom or side returnirpplications7. Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVS800805CU

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVS80_U
series name GRVS80
family description ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051695177
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 60000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 35-65 °F
temperature rise range low fire 65 °F
current type AC
max overcurrent protection 15 A
min circuit amps 11.6 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1760 ft³/min
air flow rate low heating 1422 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 10 in
dimensions blower width 10 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 21 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 20x25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Ultra-Low NOx
number of burners 1
weight unit 127 lb
blower motor horsepower 3/4 metric hp
high fire input capacity 80000 Btu
high fire output capacity 64000
low fire input capacity na
low fire output capacity na
gas valve type Single Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 22.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 22 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 44.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 22.00 in
distribution shipping volume unit 23430 in³
shipping volume unit 23430.000 in³
truck factor 0.0000
volume case 23430.000 in³
volume distribution shipping unit 23430 in³
weight case 109.000 lb
weight distribution shipping unit 109 lb
weight shipping unit 109.000 lb
registered parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
