Goodman

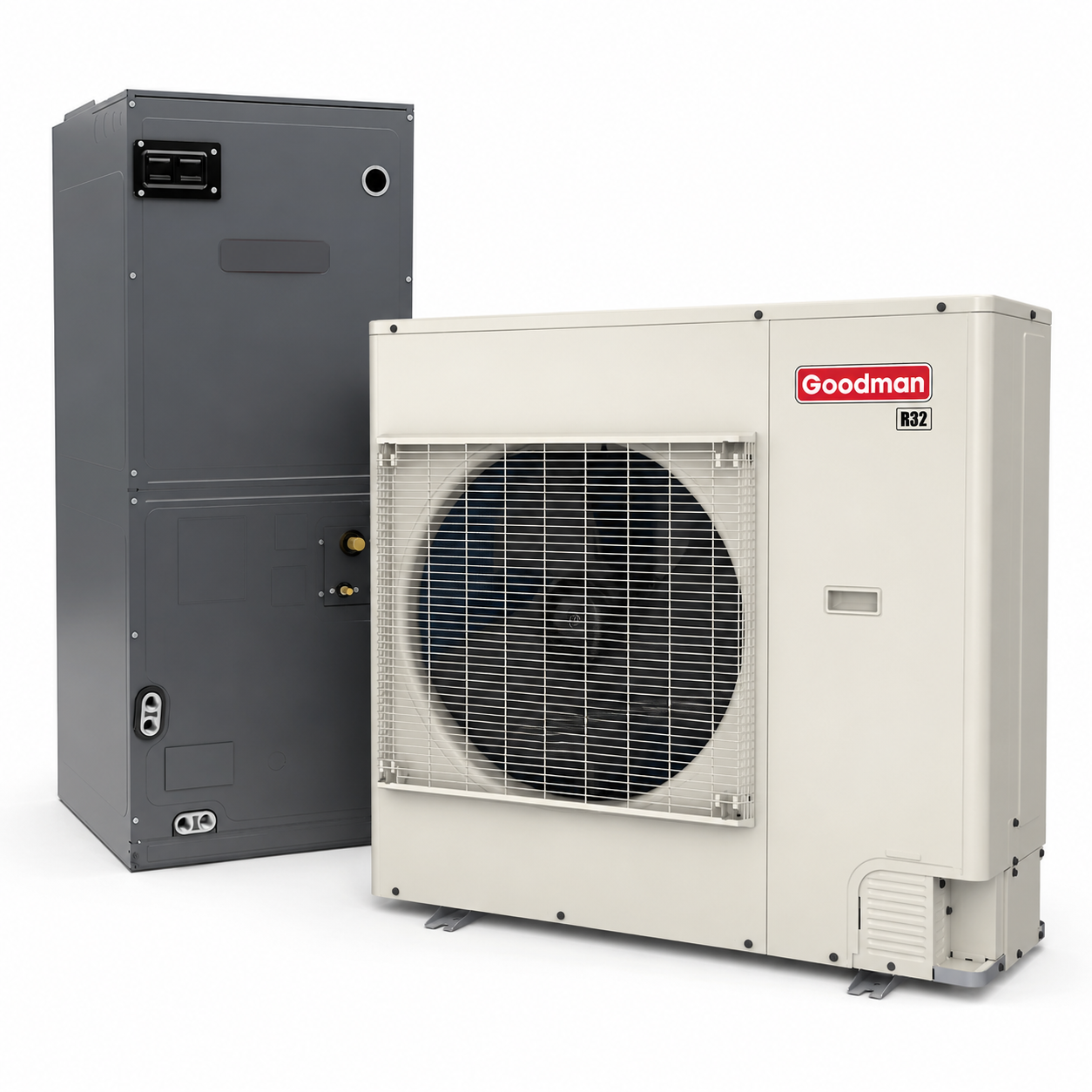

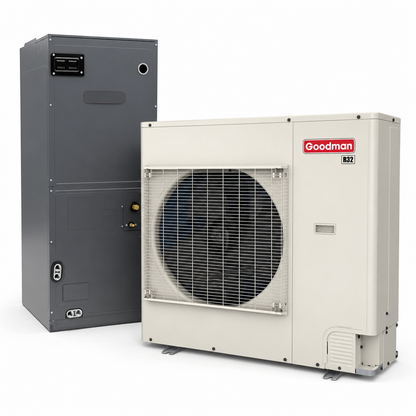

Goodman 3 Ton 18.5 SEER2 R32 Air Conditioner Split System - Multi-Positional

SKU: AHVE42CP1300 + GXV9SA3610

System highlights
AC Type
AC Air Handler Systems
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
42000 BTU (3.5 TON)
Voltage
208-230V
Looking For
Ducted
SEER2 Rating
18.5
Airflow Direction
Multi-Positional
Goodman 3.5 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R-32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$7,595.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 18.5 SEER2 R32 Air Conditioner Split System - Multi-Positional

Product Overview

Goodman 3.5 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R-32 AHVE42CP1300

The AHVE42CP1300 is a high-efficiency 3.5 ton variable-speed air handler designed to deliver consistent indoor comfort and optimized HVAC system performance. Built for compatibility with inverter-driven heat pumps and air conditioners, this advanced indoor air handler enhances airflow control, improves humidity management, and supports energy-efficient operation in residential applications.

Equipped with a variable-speed ECM blower motor, the AHVE42CP1300 automatically adjusts airflow to match system demand, helping reduce energy consumption while maintaining even temperatures throughout the home. Its multi-position configuration allows for upflow, downflow, or horizontal installation, making it ideal for new construction projects or retrofit HVAC replacements.

Engineered for use with modern R-32 refrigerant systems, this air handler supports environmentally conscious heating and cooling solutions while delivering reliable, long-term performance.

Key Features

  • 3.5 Ton (42,000 BTU) Capacity – Ideal for medium to large residential HVAC systems requiring dependable airflow and comfort control
  • Variable-Speed ECM Blower Motor – Enhances energy efficiency, reduces operating noise, and improves indoor air circulation
  • Inverter System Compatibility – Designed to pair with high-efficiency inverter heat pumps and air conditioners
  • Multi-Position Installation – Supports upflow, downflow, and horizontal configurations for flexible ductwork applications
  • R-32 Refrigerant Compatibility – Supports lower GWP refrigerant systems for modern energy-efficient HVAC setups
  • Improved Humidity Control – Variable airflow operation helps manage indoor moisture levels
  • 208/230V Single-Phase Power – Standard residential electrical compatibility
  • Durable Cabinet Construction – Built for long-term reliability and service-friendly maintenance access

Goodman 3.5 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R-32 AHVE42CP1300

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years

Product Details

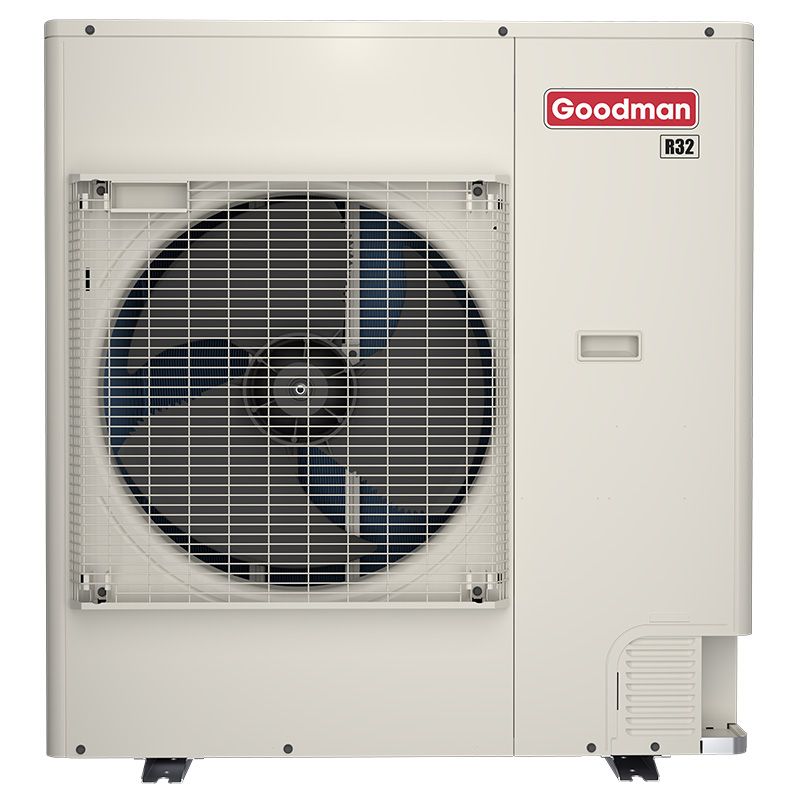

Goodman 3 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

Advanced Inverter Cooling for Consistent Home Comfort

Designed for mid-sized homes, the Goodman GXV9SA3610 provides powerful yet efficient cooling with a variable-speed inverter compressor. This system helps reduce temperature swings, improves humidity control, and operates quietly. The side-discharge cabinet saves space, and R-32 refrigerant delivers modern performance with a lower environmental footprint.

  • Up to 19 SEER2 high-efficiency performance
  • Variable-speed inverter technology for smooth operation
  • Improved humidity control and comfort consistency
  • Compact side-discharge design
  • R-32 refrigerant for next-generation efficiency

Why Choose This AC Condenser?

  • Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
  • More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
  • Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
  • Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
  • Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

Product Features (AHVE42CP1300)

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications
  • 7 mm evaporator coil tube size
  • Variable-speed ECM blower motor
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Thermostat provides adjustable low CFM for efficient fan-only operation
  • All-aluminum evaporator coil
  • Fault recall of six most recent faults
  • Improved humidity and comfort control
  • AHRI certified
  • ETL listed
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Cabinet Features (AHVE42CP1300)

  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
  • tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
  • 3 kW – 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan
  • with secondary drain connections
  • Screw-less sides and back helps to reduce
  • condensation when installed in humid locations
  • Foil-faced insulation covers the internal
  • casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Technical Specifications - AHVE42CP1300

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AHVE230V_32
series name Inverter compatible Air Handler
installation type Ducted Multi-position
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051735194
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 42000 Btu/H
produced in us Yes
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min circuit amps 6.5/6.5 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10.625 in
dimensions blower width 10.625 in
dimensions evap wheel diameter 10.625 in
dimensions evap wheel width 10.625 in
dimensions unit depth 21 in
dimensions unit height 53.4375 in
dimensions unit width 21 in
evap coil face area ft 5.37
evap motor rpm 1250 r/min
expansion device EEV
motor speed type Variable Speed ECM
number of speeds Variable
weight unit 140 lb
blower motor horsepower 3/4 metric hp
tonnage 3.5
tonnage range 3.5
factory std refrigerant charge 0 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 24.50 in
dimensions case height 57.50 in
dimensions case width 22.50 in
dimensions distribution unit depth 24.5 in
dimensions distribution unit height 57.5 in
dimensions distribution unit width 22.5 in
dimensions pallet depth 49.00 in
dimensions pallet height 57.50 in
dimensions pallet width 45.00 in
dimensions shipping unit depth 24.50 in
dimensions shipping unit height 57.50 in
dimensions shipping unit width 22.50 in
distribution shipping volume unit 31696.875 in³
shipping volume unit 31696.875 in³
truck factor 0.0000
volume case 31696.875 in³
volume distribution shipping unit 31696.875 in³
weight case 142.000 lb
weight distribution shipping unit 146.09 lb
weight shipping unit 142.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (GXV9SA3610)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports

Cabinet Features (GXV9SA3610)

  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV9SA3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV9SA
series name GXV9S
model efficiency 19.2 SEER2
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
universal product code upc 663051747180
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 10.5
energy star certified No
seer 2 hsvtc 19
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 25.4 A
max overcurrent protection 35 A
min circuit amps 31.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 12.625 in
dimensions unit height 39 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 70 dBA
weight unit 163 lb
cooling capacity rated 35000 Btu/H
factory std refrigerant charge 100 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 16.50 in
dimensions case height 44.00 in
dimensions case width 40.00 in
dimensions distribution unit depth 16.5 in
dimensions distribution unit height 44 in
dimensions distribution unit width 40 in
dimensions pallet depth 66.00 in
dimensions pallet height 49.00 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 16.50 in
dimensions shipping unit height 44.00 in
dimensions shipping unit width 40.00 in
distribution shipping volume unit 29040 in³
shipping volume unit 29040.000 in³
truck factor 0.0000
volume case 29040.000 in³
volume distribution shipping unit 29040 in³
weight case 194.090 lb
weight distribution shipping unit 194.09 lb
weight shipping unit 194.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
