Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32
Product Overview

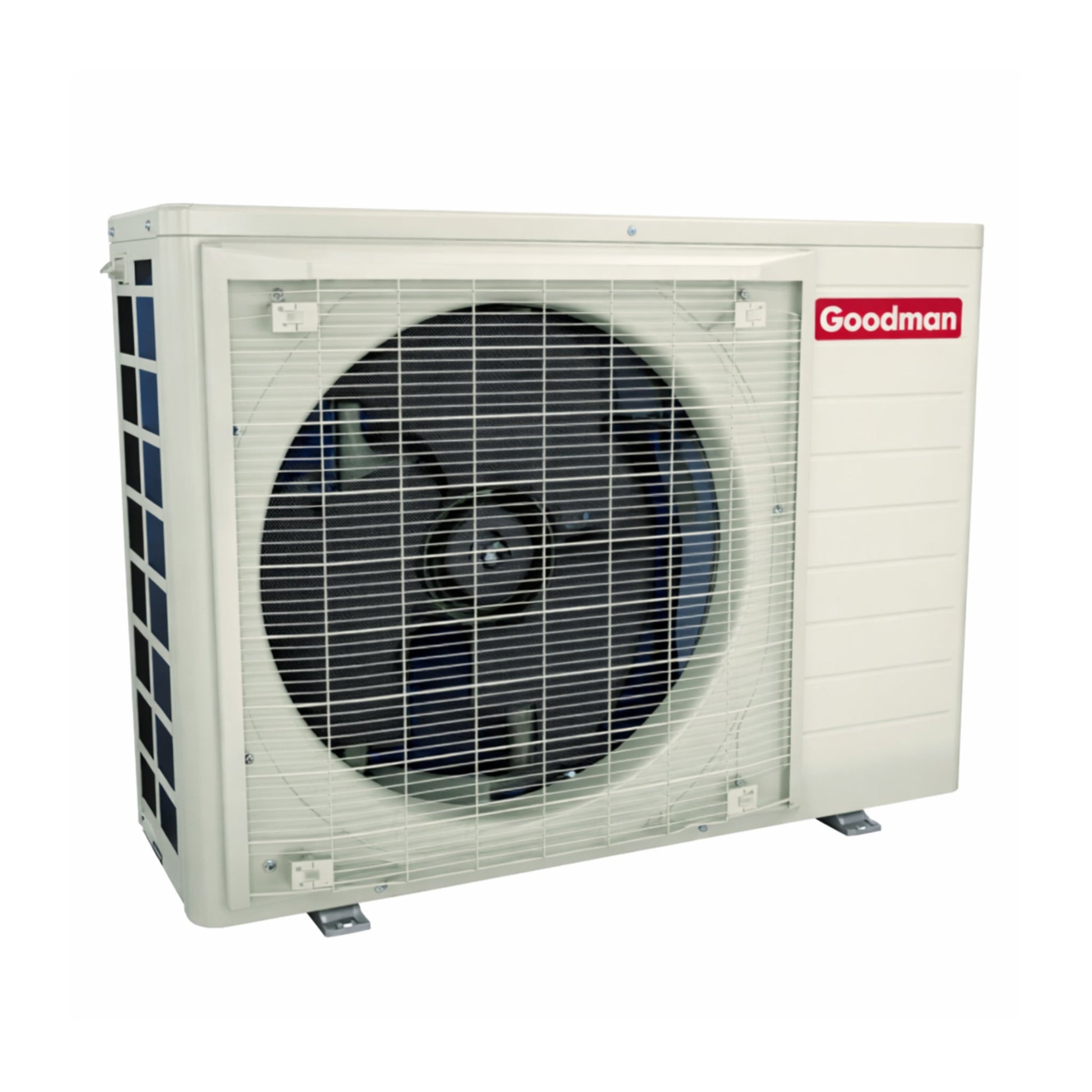

Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610
The Goodman GZV7SA3610 is a high-efficiency 3-ton side discharge heat pump condenser designed for superior comfort, quiet performance, and long-term durability. Featuring a variable-speed inverter compressor and environmentally friendly R-32 refrigerant, this unit delivers precise temperature control while meeting the latest 2023 M1 test standards. ENERGY STAR® certification ensures optimal energy savings for residential and light commercial applications.
Key Features
- Variable-Speed Inverter Compressor for Enhanced Comfort and Efficiency
- Optimized for R-32 Refrigerant Systems
- Quiet Digitally Commutated Fan Motor
- Advanced Proprietary Control Algorithm Logic
- Non-Communicating System Configuration
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
- ENERGY STAR® Certified
Cabinet Features
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Enhanced Corrosion Resistance
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored
This 3-ton inverter heat pump condenser is ideal for installations requiring high efficiency, compact outdoor design, and reliable performance.
Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Benefits
- Meets the 2023 M1 Test Standards
Product Features
- Variable-speed swing compressors
- Strong heating capacity
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and otherGoodman communicating equipment
- Proprietary control algorithmic logic
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easyaccess to gauge ports
- AHRI Certified
- ETL Listed
Cabinet Features
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GZV7SA3610
| sku | GZV7SA3610 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV7SA |
| series name | GSV7SA |
| short description | Goodman Split Heat Pump 17.5 SEER2, Variable |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 17.5 SEER2 & 8.6 HSPF2 |
| product description | 17.5 SEER2 HP R32, 3 Ton |
| cooling btu | 35,000 |
| heating btu | 35,000 |
| seer2 | 17.5 |
| decibel level (dba) | 70 dBA |
| refrigerant | R-32 |
| compressor type | Inverter |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 31.8 A |
| tonnage | 3 |
| btu/tonnage | 35,000 BTU/3 Ton |
| min/max outdoor temp for heating | -10 °F to 70 °F |
| min/max outdoor temp for cooling | 0 °F to 115 °F |
| height | 39 in |
| width | 37 in |
| depth | 12.625 in |
| weight | 168 lb |
| warranty | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Heat Pump |
| model efficiency | 17.5 SEER2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747203 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.3 |
| eer2 hsvtc | 10.5 |
| energy star certified | Yes |
| heating capacity nominal | 36000 Btu/H |
| hspf 2 hsvtc | 8.8 |
| seer 2 hsvtc | 19 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 35 A |
| min circuit amps | 31.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 25.4 A |
| compressor stages | Variable |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 70 dBA |
| weight unit | 168 lb |
| cooling capacity rated | 35000 Btu/H |
| heating capacity rated | 35000 Btu/H |
| factory std refrigerant charge | 100 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
