Goodman

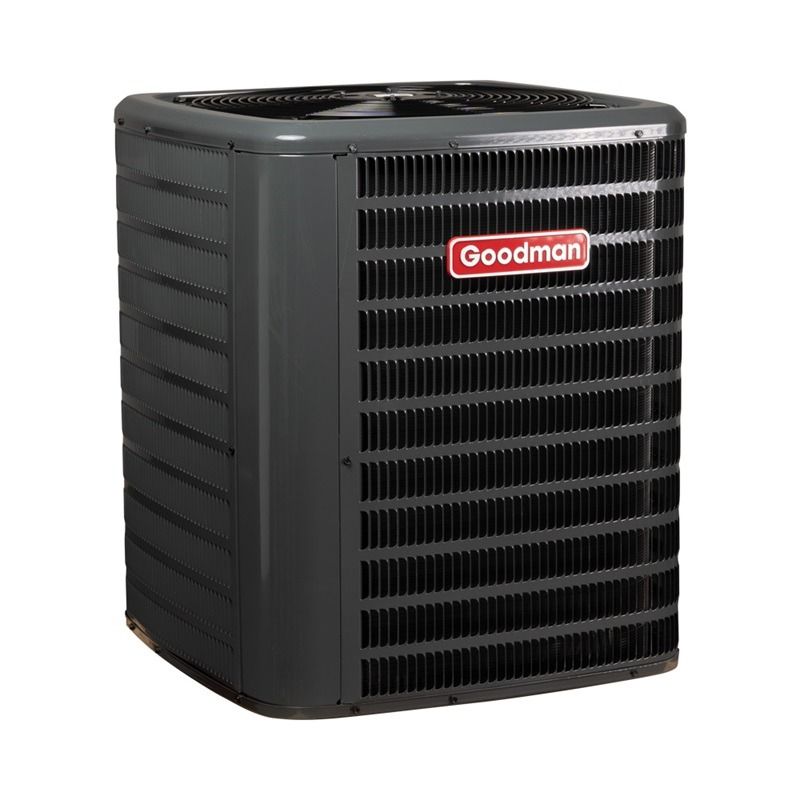

Goodman 3 Ton 17.0 SEER2 Electric Furnace and Heat Pump System - Upflow/Downflow - 21"

SKU: GLZT7CA3610 + CAPTA3626C3 + MBVB16CP1X00

System highlights
AC Type
Heat Pump & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-230V
Looking For
Heat Pump & Electrical Furnace System
SEER2 Rating
17.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1600
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
21
Goodman 3 Ton 21" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$6,830.00
Shipping calculated at checkout.
Quantity
View full details
Goodman
Goodman 3 Ton 17.0 SEER2 Electric Furnace and Heat Pump System - Upflow/Downflow - 21"

Product Overview

OVERVIEW

Considered part of the highest quality series offered by Goodman, the GLZT7CA3610 heat pump condenser is a superior to any other series made by Goodman. With all of its features, the GLZT7CA3610 continues to promote Goodman's goals to provide enhanced comfort at a high efficiency while staying under budget.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Designed to cover a larger house in average climates
  • 2 ton, 17 SEER2 heat pump condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Two stage compressor
  • Low sound output
  • Fully charged for up to 15 ft of line set
  • Factory installed bi-flow filter drier

2 Ton

At 2 tons, the GLZT7CA3610 Goodman Heat Pump is suitable for a larger house in average climate conditions. Please note that for this unit to function, a compatible air handler or coil is required. Sometimes, the air handler or coil that is paired in a system bundle will be larger than the heat pump condenser in tonnage to maintain the units overall efficiency.

17 SEER2

At 17 SEER2, the GLZT7CA3610 condenser is manufactured to be the highest possible efficiency made by Goodman today. The GLZT7CA3610 can save you around 25% in energy bills in comparison to a 14.3 SEER2 standard efficiency condenser, saving you a significant amount of money over time to spend on the things you care about most instead of on your energy bills.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 82% efficiency, making it a good fit for maximizing efficiency in the coldest climates.

Two Stage Compressor, Designed with Comfort in Mind

The Goodman GLZT7CA3610 heat pump is built with a two stage compressor, allowing for a more stable temperature output. With its built in compressor muffler, noise blanket, and superior cabinet insulation, the noise output is decreased to make it almost whisper quiet, along with the two stage compressor that decreases operation noise output when on the lower stage.

Warranty

The GLZT7CA3610 heat pump condenser comes standard with a 10 year parts warranty. To provide a peace of mind on its two stage compressor, Goodman also offers a lifetime heat exchanger warranty when paired with a new air handler or coil. All of these warranties require an installation that follows your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

With its durable structure designed for harsh conditions and its paint layer that makes it approved for up to 500 hours of salt spray, the Goodman GLZT7CA3610 heat pump condenser is compliant with Florida 2010 integrity building codes when properly anchored. For enhanced reliability, the liquid line is fitted with a bi-flow filter drier, lowering general wear and tear by filtering out impurities and system contaminants. All of these features provide peace of mind to system owners, lowering the costs of equipment upkeep.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GLZT7CA3610 heat pump is factory installed with pressure switches, a high capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.

Why Buy at

is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensure long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Benefits (GLZT7CA3610)

  • Meets the 2023 M1 Test Standards

Product Features (GLZT7CA3610)

  • Two-Stage Copeland® UltraTech scroll compressor
  • High-density foam compressor sound blanket
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
  • ComfortAlert™ built in diagnostics
  • Copper tube/enhanced aluminum fin coil- 5mm on 2.0-3.0T
  • Copper tube/enhanced aluminum fin coil - 7mm on 4.0-5.0T
  • Efficient, two-speed ECM condenser fan motor
  • Simple low-voltage wiring to outdoor unit in communicating mode
  • Diagnostic indicator lights and storage of six fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches
  • Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Factory-installed coil and ambient temperature sensors
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLZT7CA3610)

  • Grille-style sound control top design
  • Custom Nickel Gray powder-paint finish
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Steel louver coil guard
  • Single panel access to controls with space provided for field-installed accessories
  • Sweat connection service valves with easy access to gauge ports
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLZT7CA3610

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZT7C
series name GLZT7C
model efficiency 17.2 SEER2
family description High-Effciency, Communication, Split System Heat Pump Up to 17.2 SEER2 & 8.2 HSPF2
installation type Ducted
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051747661
item stocking unit of measure uom EA
pallet qty 1
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 12.5
energy star certified Yes
heating capacity nominal 36000 Btu/H
hspf 2 hsvtc 8.1
hspf ducted 8.1
seer 2 hsvtc 17.2
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 35 A
min circuit amps 20.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 14.6 A
compressor stages Two Stage
compressor type Scroll
dimensions unit depth 35.75 in
dimensions unit height 35.5 in
dimensions unit width 35-1/2 in
energy source Electric
expansion device TXV
sound pressure high cooling 71 dBA
weight unit 262 lb
cooling capacity rated 34800 Btu/H
heating capacity rated 34400 Btu/H
tonnage 3
additional refrigerant charge oz ft 0.58 lb
factory std refrigerant charge 129 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 150 ft
standard line set length vertical 80 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 37.00 in
dimensions case height 38.50 in
dimensions case width 37.00 in
dimensions distribution unit depth 37 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 37 in
dimensions pallet depth 37.00 in
dimensions pallet height 38.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 37.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 37.00 in
distribution shipping volume unit 52706.5 in³
shipping volume unit 52706.500 in³
truck factor 0.0000
volume case 52706.500 in³
volume distribution shipping unit 52706.5 in³
weight case 270.000 lb
weight distribution shipping unit 266.09 lb
weight shipping unit 270.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAPTA3626C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan

Technical Specifications - CAPTA3626C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688414
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 21 in
expansion device TXV
tonnage 3.0
tonnage range 2.5;3.0
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.25 in
dimensions case height 28.50 in
dimensions case width 23.50 in
dimensions distribution unit depth 26.25 in
dimensions distribution unit height 28.5 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 61.50 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.25 in
dimensions shipping unit height 28.50 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 17580.9375 in³
shipping volume unit 17580.937 in³
truck factor 0.0000
volume case 17580.937 in³
volume distribution shipping unit 17580.9375 in³
weight case 60.000 lb
weight distribution shipping unit 60 lb
weight shipping unit 60.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

  • Variable-speed ECM blower motor
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692909
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.99
produced in us No
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 21 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.75 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 25.5 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 24.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20460.5625 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20460.5625 in³
weight case 72.090 lb
weight distribution shipping unit 72.09 lb
weight shipping unit 72.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
