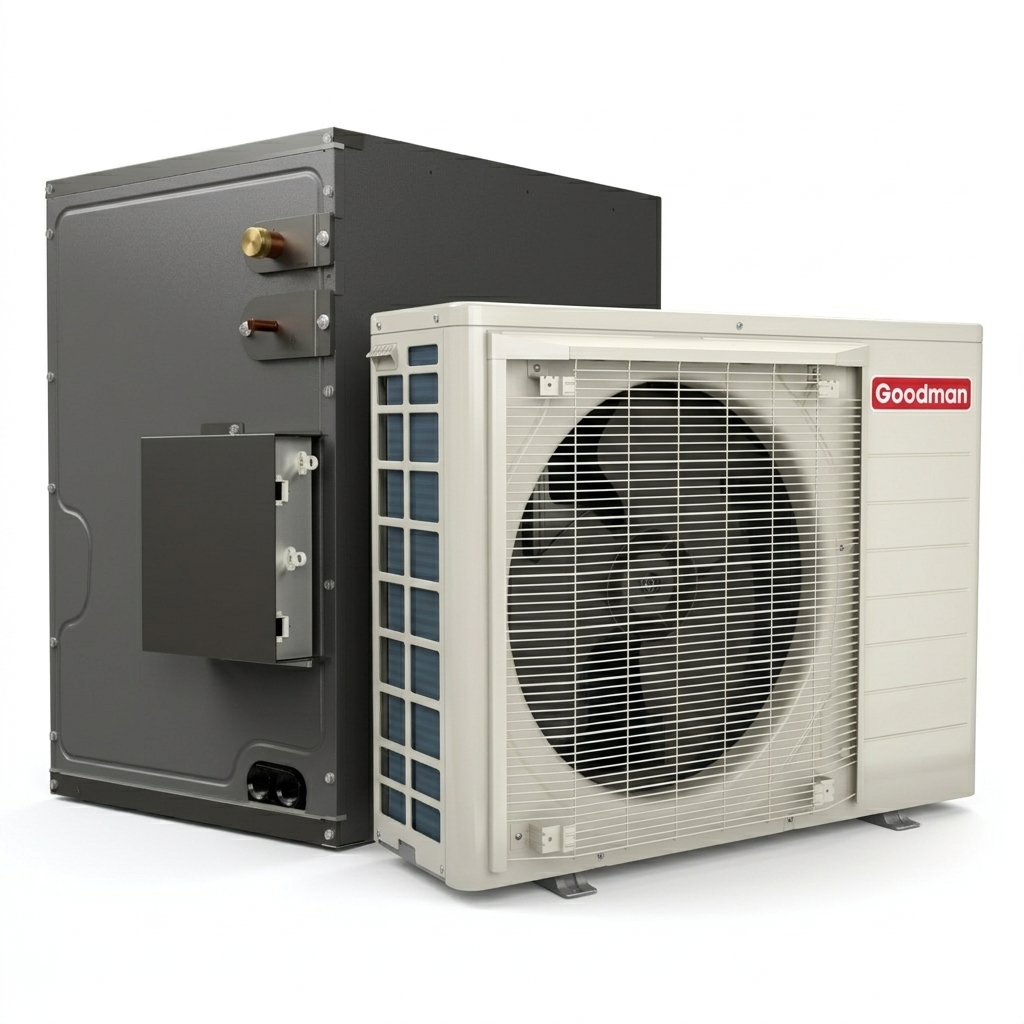

Goodman 3 Ton 16.6 SEER2 Central Heat Pump with 23 1/2' inch Upflow/Downflow Cased Coil | Inverter - R32
Product Overview
Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA3626C3
The Goodman CAPEA3626C3 is a 3-ton cased evaporator coil engineered for upflow and downflow installations in split system air conditioners and heat pumps. Built with a durable all-aluminum coil, this unit ensures high-efficiency heat transfer while maintaining long-term corrosion resistance. The factory-installed thermal expansion valve (TXV) provides precise refrigerant control, making the coil compatible with R-32 refrigerant systems. Its compact cabinet features foil-faced insulation and a galvanized, leather grain-embossed finish for durability and reduced condensation.
Key Features
- 3 Ton Cooling Capacity (36,000 BTU)
- All-Aluminum Coil Enhances Heat Transfer and Resists Corrosion
- Factory-Installed TXV for Reliable Refrigerant Metering
- R-32 Refrigerant Compatible for Modern HVAC Applications
- Versatile Upflow and Downflow Configuration
- Foil-Faced Insulation Reduces Internal Condensation
- Galvanized Cabinet with Leather Grain-Embossed Finish
- Single Front Access Panel for Easy Maintenance
- AHRI Certified, ETL Listed, and ISO Certified
This evaporator coil offers a high-efficiency cooling solution for residential installations, combining advanced thermal performance with ease of servicing and long-lasting cabinet protection.
Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA3626C3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |

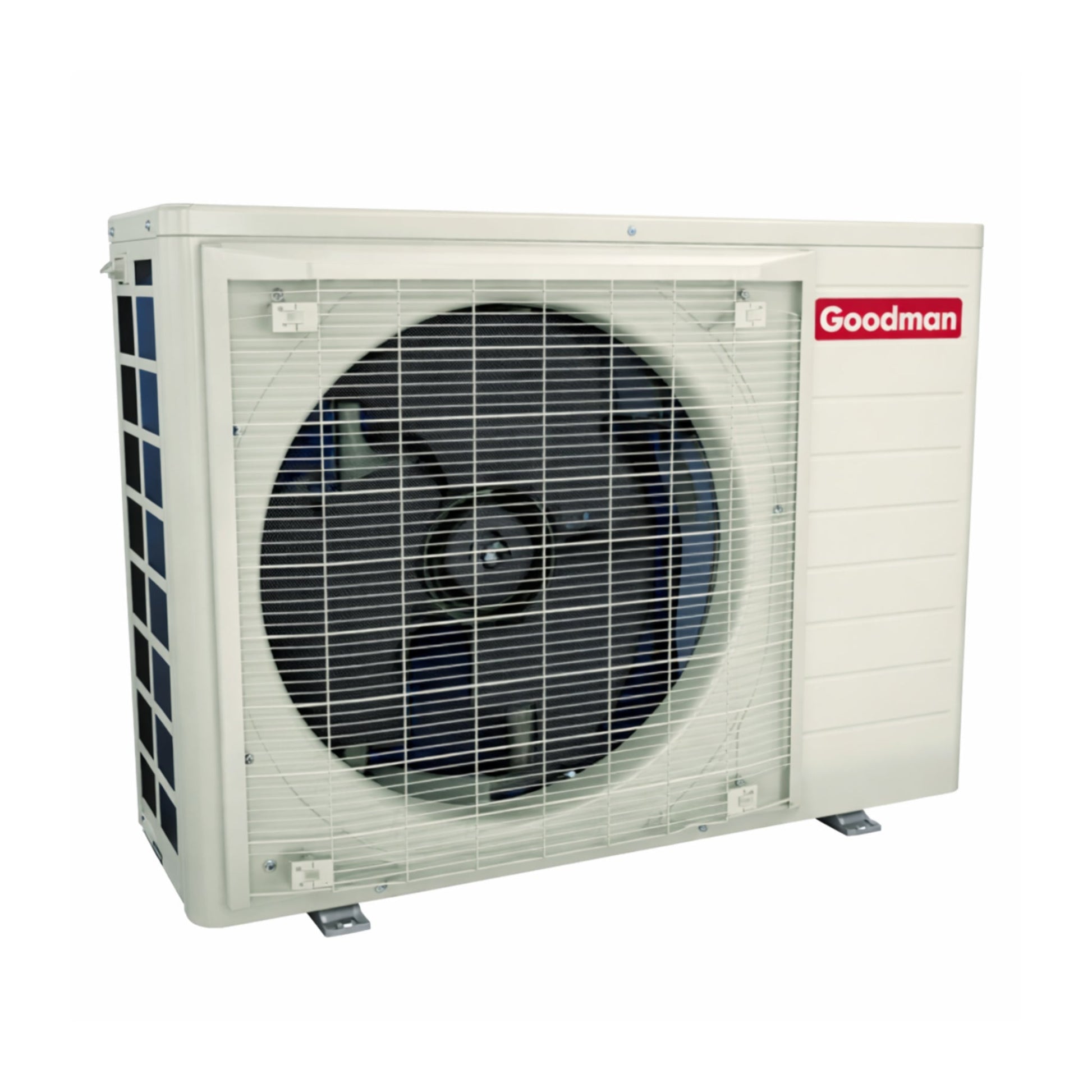

Goodman 3 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA3610
The Goodman GZV6SA3610 is a high-efficiency 3-ton side discharge heat pump condenser designed for quiet performance, compact installation, and dependable comfort. Utilizing a variable-speed inverter compressor and R-32 refrigerant, this unit delivers precise temperature control while meeting modern efficiency and durability standards. Its smaller footprint makes it ideal for residential applications with limited outdoor space.
Key Features
- Variable-Speed Inverter Compressor for Consistent Comfort and Energy Savings
- Quiet Digitally Commutated Fan Motor
- High-Density Compressor Sound Blanket for Reduced Operating Noise
- Advanced Proprietary Control Algorithmic Logic
- Non-Communicating System Configuration
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
Cabinet Features
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Long-Term Corrosion Resistance
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored
This 3-ton condenser is ideal for homeowners seeking inverter technology, space-saving installation, and long-term reliability in a side discharge design.
Goodman 3 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA3610
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Benefits (CAPEA3626C3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CAPEA3626C3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CAPEA3626C3)
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA3626C3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| model efficiency | 17 SEER |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731479 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 36000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 26 in |
| dimensions unit width | 23.5 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 57 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.25 in |
| dimensions case height | 28.50 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26.25 in |
| dimensions distribution unit height | 28.5 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 61.50 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.25 in |
| dimensions shipping unit height | 28.50 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 17580.9375 in³ |
| shipping volume unit | 17580.937 in³ |
| truck factor | 0.0000 |
| volume case | 17580.937 in³ |
| volume distribution shipping unit | 17580.9375 in³ |
| weight case | 59.000 lb |
| weight distribution shipping unit | 50.09 lb |
| weight shipping unit | 59.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Benefits (GZV6SA3610)
- Meets the 2023 M1 Test Standards
Product Features (GZV6SA3610)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
Cabinet Features (GZV6SA3610)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GZV6SA3610
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV6SA |
| series name | GSV6S |
| model efficiency | 16.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16.2 SEER2 & 8.5 HSPF2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747098 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | Mexico |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.3 |
| eer2 hsvtc | 9 |
| energy star certified | No |
| heating capacity nominal | 36000 Btu/H |
| hspf 2 hsvtc | 8.5 |
| seer 2 hsvtc | 16.6 |
| produced in us | No |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 25 A |
| min circuit amps | 22.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 17.6 A |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 68 dBA |
| weight unit | 137 lb |
| cooling capacity rated | 34200 Btu/H |
| heating capacity rated | 34600 Btu/H |
| tonnage | 3 |
| factory std refrigerant charge | 83 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- Goodman Split Heat Pump 16.2 SEER2, Variable
- Goodman Split Heat Pump 16.2 SEER2, Variable
- Goodman Split Heat Pump 16.2 SEER2, Variable
