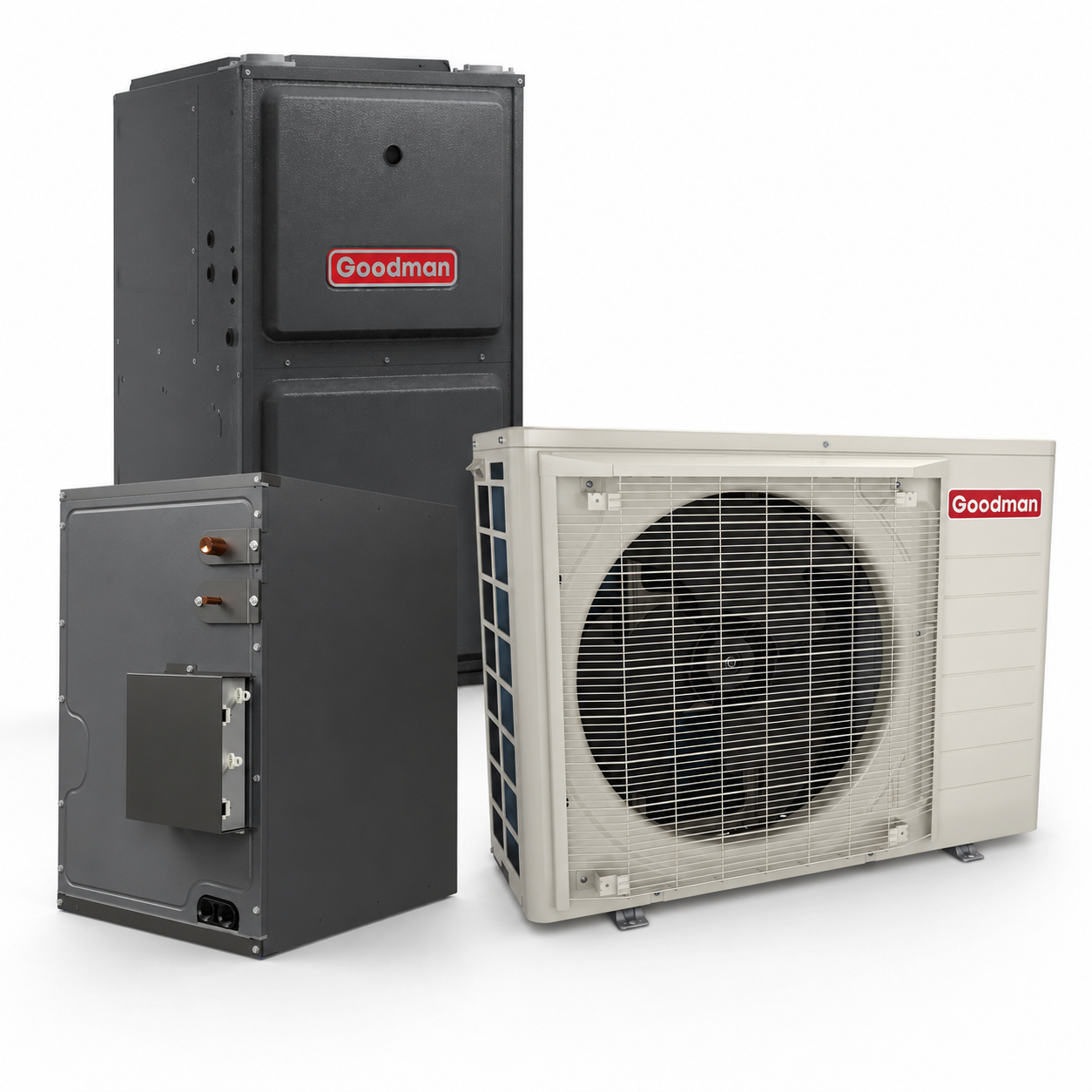

Goodman 3 Ton 16.6 SEER2 96% AFUE 100,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CAPEA3626D3 + GXV6SA3610 + GRVT961005DN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Looking For
AC & Furnace System
SEER2 Rating
16.6
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
2000
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
100,000 BTU (8.33 Ton)
Furnace Efficiency
96% AFUE
Cabinet Width (in)
26 1/2
! Cabinet might need adjustment for sizing.
Goodman 3 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$7,116.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 16.6 SEER2 96% AFUE 100,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

Goodman 3 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA3626D3

The Goodman CAPEA3626D3 is a 3-ton cased A coil engineered for upflow and downflow HVAC installations. Built with all-aluminum construction, it offers enhanced corrosion resistance and efficient heat transfer. This evaporator coil includes a factory-installed electronic expansion valve (EEV) that delivers accurate refrigerant metering, supporting optimal performance with R-32 refrigerant systems. Designed for reliability, the unit meets AHRI, ETL, and ISO standards and includes cabinet insulation features for improved moisture control and maintenance access.

Key Features

  • 3 Ton Cooling Capacity (36,000 BTU)
  • All-Aluminum Coil for Enhanced Heat Transfer and Durability
  • Factory-Installed Electronic Expansion Valve (EEV) Ensures Precise Refrigerant Flow
  • Compatible with R-32 Refrigerant Systems
  • Upflow and Downflow Installation Flexibility
  • Foil-Faced Insulation Reduces Cabinet Condensation
  • Galvanized Cabinet with Leather Grain-Embossed Finish
  • Single Front Access Panel for Easy Service
  • AHRI Certified, ETL Listed, and ISO Certified
  • Made in the USA

This indoor coil is ideal for homeowners and HVAC professionals seeking a reliable, high-efficiency coil that integrates easily into modern residential systems using R-32 refrigerant.

Goodman 3 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA3626D3

Warranty Type Parts Warranty
Standard Coverage 12-Year Limited Parts Warranty

Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA3610

This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.

Standard Features

  • Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
  • Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
  • High-density compressor sound blanket for enhanced sound reduction
  • Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
  • Proprietary control algorithmic logic for optimized system performance and reliability
  • Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
  • Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
  • Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
  • Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
  • Field-selectable boost mode increases compressor speed during unusually high cooling loads
  • Field-installed bi-flow filter drier for enhanced refrigerant system protection
  • Integrated coil and ambient temperature sensors for accurate system monitoring
  • Suction pressure transducer for improved compressor protection and performance tracking
  • Sweat connection service valves with easy access to gauge ports for streamlined maintenance
  • AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance

Cabinet & Durability Features

  • Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
  • Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
  • High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
  • 500-hour salt spray tested to ensure superior corrosion protection
  • Wire fan discharge grille for added safety and structural integrity
  • Top and side maintenance access panels for easier installation and serviceability
  • When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
  • Optional anchor bracket kits available for high-wind and severe weather installations

Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA3610

Warranty Type Parts Compressor
Manufacturer Warranty 10 Years Limited Lifetime

OVERVIEW

With a 96% efficiency rating, a variable-speed blower motor, and two stage gas valves, the GRVT961005DN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVT961005DN is an excellent choice, offering one of the best efficiency levels available on the market.

QUICK FACTS

  • Ideal to heat a small to medium house (in an ideal climate)
  • 100,000 BTU 96% AFUE modulating variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be installed in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

100,000 BTU

With an input of 100,000 BTU’s and an efficiency of 96%, the GRVT961005DN has an output of 96,100 BTU’s. This is calculated by taking 100,000 BTU’s times the efficiency of 96%. As such, the GRVT961005DN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.

96% AFUE

With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVT961005DN gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVT961005DN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.

Two Stage Variable Speed Furnace

Goodman manufactured the GRVT961005DN gas furnace to utilize the best burner and blower technologies available. With a two stage gas valve and a variable speed blower motor, the GRVT961005DN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.

Warranty

The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.

Durability and Reliability

Not stopping at an enhanced functionality, Goodman designed the GRVT961005DN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVT961005DN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.

Fuel Types

Out of the factory, the GRVT961005DN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.

Installation and Maintenance

For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVT961005DN gas furnace can be installed in the upflow or horizontal orientations. The two stage gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GRVT961005DN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.

Product Benefits (CAPEA3626D3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CAPEA3626D3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CAPEA3626D3)

  • Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CAPEA3626D3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPEA_32
series name CAPEA
model efficiency 17 SEER
family description CAPEA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051731486
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 36000 Btu/H
produced in us Yes
cabinet finish Painted
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 26.5 in
expansion device EEV
indoor orifice size 0.157 in
weight unit 61 lb
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.75 in
dimensions case height 28.50 in
dimensions case width 26.50 in
dimensions distribution unit depth 26.75 in
dimensions distribution unit height 28.5 in
dimensions distribution unit width 26.5 in
dimensions pallet depth 55.00 in
dimensions pallet height 61.50 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 26.75 in
dimensions shipping unit height 28.50 in
dimensions shipping unit width 26.50 in
distribution shipping volume unit 20202.9375 in³
shipping volume unit 20202.937 in³
truck factor 0.0000
volume case 20202.937 in³
volume distribution shipping unit 20202.9375 in³
weight case 64.000 lb
weight distribution shipping unit 68.09 lb
weight shipping unit 64.000 lb

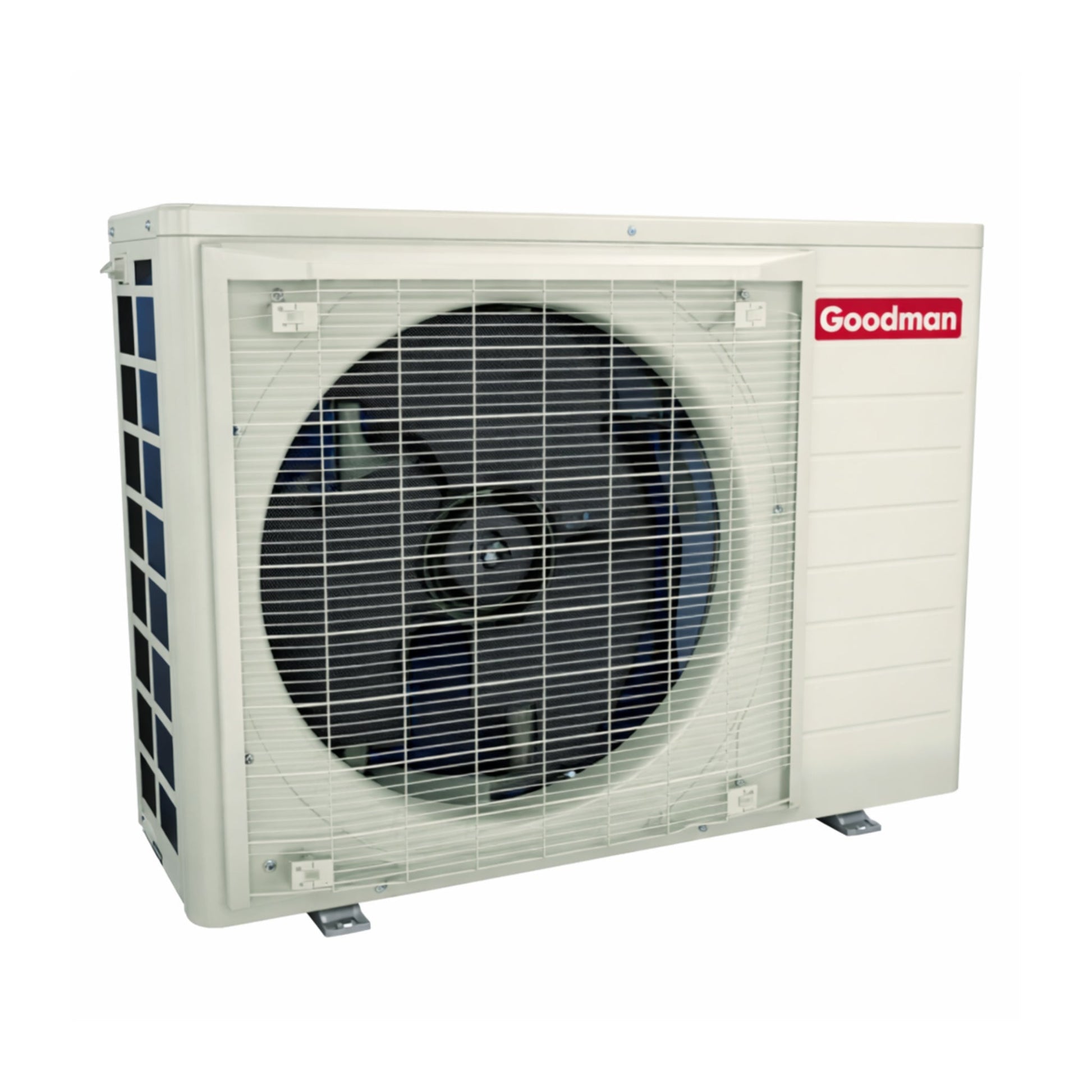

Product Features (GXV6SA3610)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostat and other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two low-voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segmentLED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increases compressor speed during unusually high loads
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves with easy access to gauge ports

Cabinet Features (GXV6SA3610)

  • Heavy-gauge galvanized steel cabinet with grille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV6SA3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV6SA
series name GXV6SA
model efficiency 16.2 SEER2
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051747050
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 9.8
energy star certified No
seer 2 hsvtc 16.6
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 17.6 A
max overcurrent protection 25 A
min circuit amps 22.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 13.75 in
dimensions unit height 27.375 in
dimensions unit width 36-5/8 in
expansion device EEV
sound pressure high cooling 68 dBA
weight unit 133 lb
cooling capacity rated 33600 Btu/H
tonnage 3
factory std refrigerant charge 83 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.50 in
dimensions case height 30.00 in
dimensions case width 39.00 in
dimensions distribution unit depth 17.5 in
dimensions distribution unit height 30 in
dimensions distribution unit width 39 in
dimensions pallet depth 35.50 in
dimensions pallet height 64.50 in
dimensions pallet width 39.00 in
dimensions shipping unit depth 17.50 in
dimensions shipping unit height 30.00 in
dimensions shipping unit width 39.00 in
distribution shipping volume unit 20475 in³
shipping volume unit 20475.000 in³
truck factor 0.0000
volume case 20475.000 in³
volume distribution shipping unit 20475 in³
weight case 136.090 lb
weight distribution shipping unit 136.09 lb
weight shipping unit 136.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVT961005DN)

  • High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
  • Faster condensate water drainagend no unit water leakage
  • Durablend long igniter life
  • Self-diagnostic control board with constant memory fault code history output
  • Provisions for electronicir cleanernd humidifier
  • Quietnd Economical heating
  • Lower NOx emission
  • Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards.
  • Tax Credit
  • Operates on two-stage or single-stage thermostats
  • Easy Connection for EACnd Humidifier

Product Features (GRVT961005DN)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Efficientnd quiet variable-speed Blower
  • Integrated communicating ComfortBridge™ technology
  • Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
  • Stainless-steel sloped secondary heat exchanger
  • Silicon Nitride igniter
  • Dual 7-segment display
  • Color-coded low-voltage terminals
  • Two-Stage gas valve;10.ll models comply with California 40 ng/J;11.HRI Certified, ETL Listed
  • Energy Star
  • Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers

Cabinet Features (GRVT961005DN)

  • Multi-position installation: upflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
  • Easy to install top venting with optional side vent
  • Convenient left or right connection for gasnd electrical service
  • Cabinetir leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchangernd blower section
  • Bottom or side returnirpplications
  • Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVT961005DN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVT96
series name GRVT96
model efficiency 0.96
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051702929
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 96 %
cooling capacity nominal 60000 Btu/H
energy star certified Yes
installation configuration Upflow/Horizontal
produced in us Yes
temperature rise range high fire 30-60 °F
temperature rise range low fire 25-55 °F
current type AC
max overcurrent protection 20.0 A
min circuit amps 13.9 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1984 ft³/min
dimensions blower diameter 11 in
dimensions blower width 11 in
dimensions unit depth 28-7/8 in
dimensions unit height 34-1/2 in
dimensions unit width 24-1/2 in
heat exchanger type Gas
motor speed type Variable Speed ECM
nox burner type Low NOx
number of burners 5
blower motor horsepower 1 metric hp
high fire input capacity 100000 Btu
high fire output capacity 97500
low fire input capacity 70000
low fire output capacity 68250
gas valve type Two Stage
vent diameter 2 in;3 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 38.50 in
dimensions case width 25.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 25.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 38.50 in
dimensions pallet width 51.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 25.50 in
distribution shipping volume unit 29452.5 in³
shipping volume unit 29452.500 in³
truck factor 0.0000
volume case 29452.500 in³
volume distribution shipping unit 29452.5 in³
weight case 152.000 lb
weight distribution shipping unit 140.09 lb
weight shipping unit 152.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
