Goodman

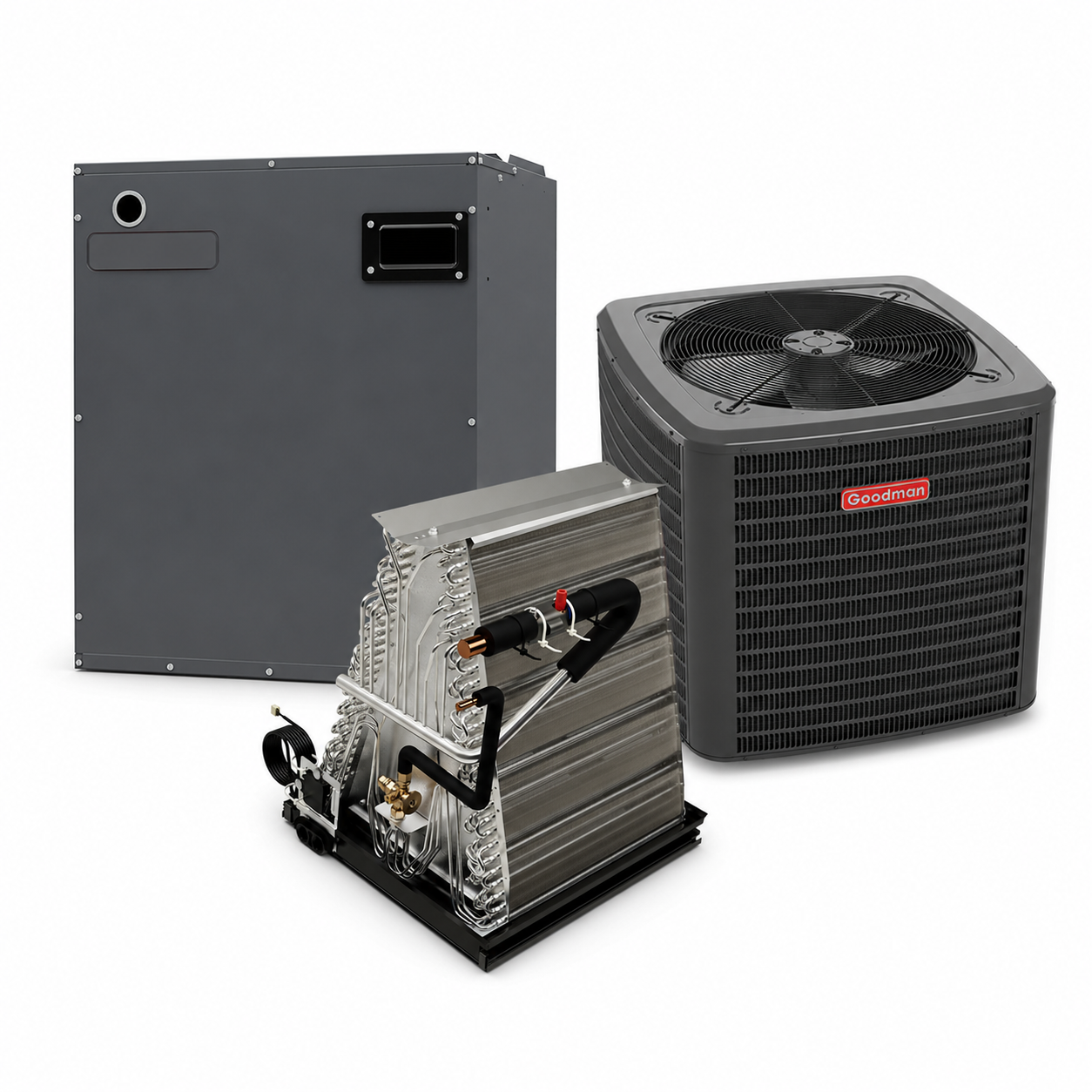

Goodman 3 Ton 15.2 SEER2 Electric Furnace and Heat Pump System - Upflow/Downflow - 20"

SKU: GLZS4MA3610 + CAUTA3626C3 + MBVB12BP1X00

System highlights
AC Type
Heat Pump & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-240V, 208-230V
Looking For
Heat Pump & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1200
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
20
Goodman 3 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,284.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 15.2 SEER2 Electric Furnace and Heat Pump System - Upflow/Downflow - 20"

Product Overview

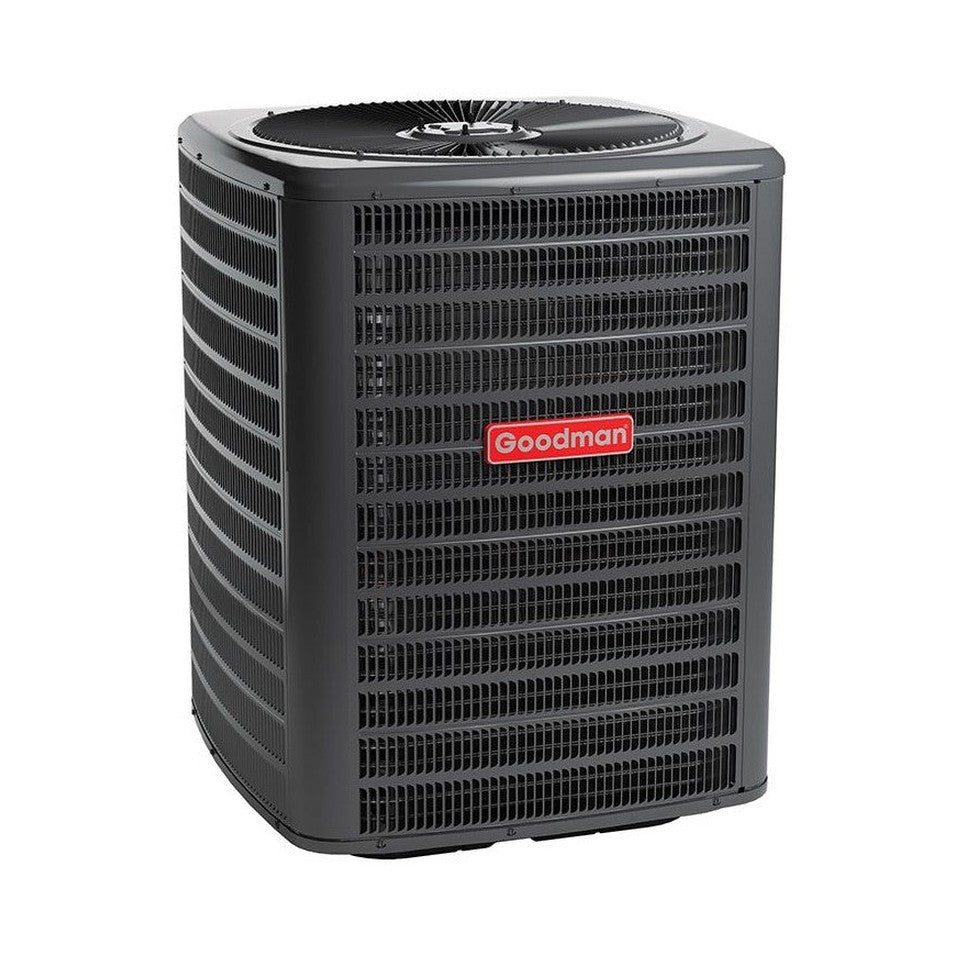

Goodman 3 Ton 14.3 SEER2 Multi-Family Heat Pump Split Condenser R32

The unit features a high-efficiency scroll compressor with Smart-Shift technology for quiet defrosting. It includes an enhanced aluminum fin coil, a single-speed PSC fan motor, and factory-installed components such as a bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy gauge access, and is fully charged for 15 feet of tubing. Additional features include a contactor with a lug connection, ground lug connection, extended-life capacitors, and it is AHRI Certified and ETL Listed.

The unit features a removable grille-style top design that complies with UL 60335-2-40 standards. It is protected by a steel louver coil guard and housed in a heavy-gauge galvanized-steel cabinet with an attractive Architectural Gray powder-paint finish, approved for 500-hour salt-spray exposure. The design includes top and side maintenance access. When properly anchored, the unit meets the 2023 Florida Building Code requirements for hurricane-type winds.

  • High-Efficiency Scroll Compressor for superior performance and energy savings
  • R32 Freon meets the 2025 refrigerant change guidelines, ensuring future compliance and eco-friendly operation
  • Smart-Shift Technology provides quiet defrost cycles, enhancing system reliability and comfort
  • Enhanced Aluminum Fin Coil with 5 mm diameter (1.5T-3.5T) and 7 mm diameter copper tubes (4.0-5.0T) for improved heat transfer and efficiency
  • Single-Speed PSC Condenser Fan Motor ensures consistent, reliable performance
  • Factory-Installed Bi-Flow Filter Drier, Suction-Line Accumulator, Compressor Crankcase Heater, and High-Capacity Muffler for durability, filtration, and noise reduction
  • High- and Low-Pressure Switches for system protection and safe operation
  • Service Valves with Easy Gauge Access for simplified maintenance and faster servicing
  • Fully charged for 15 feet of tubing, reducing installation time and effort
  • Contactor with Lug Connection and Ground Lug for secure electrical connections and added safety
  • Extended-Life Capacitors for long-lasting reliability and enhanced system longevity
  • AHRI Certified and ETL Listed for guaranteed quality assurance and industry compliance
  • Removable Grille-Style Top design, compliant with UL 60335-2-40 standards, for easy access and servicing
  • Steel Louver Coil Guard for superior protection and durability of system components
  • Heavy-Gauge Galvanized-Steel Cabinet with Architectural Gray powder-paint finish, offering 500-hour salt-spray approval for improved weather resistance
  • Top and Side Maintenance Access for easier servicing and convenient maintenance
  • Meets 2023 Florida Building Code for hurricane-type winds when properly anchored, ensuring safety and compliance

Goodman 3 Ton 14.3 SEER2 Multi-Family Heat Pump Split Condenser R32

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman 3 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 CAUTA3626C3

The Goodman CAUTA uncased evaporator coil is built for performance and adaptability, supporting both upflow and downflow applications. With a robust 3.0-ton cooling capacity, this coil features an all-aluminum construction designed to maximize compatibility with R-32 refrigerant. The factory-installed thermal expansion valve (TXV) enhances cooling efficiency, while the 20-inch cabinet width offers installation flexibility in a wide range of residential HVAC systems. Built with UV-resistant components and a rust-resistant thermoplastic drain pan, it ensures durability and long-lasting performance in demanding conditions.

Key Features

  • 3 Ton uncased evaporator coil for upflow/downflow configurations
  • All-aluminum coil construction for corrosion resistance and improved performance
  • Engineered for use with R-32 refrigerant and includes R-32 sensor for coil longevity
  • Factory-installed TXV for precision refrigerant control in cooling systems
  • Foil-faced internal insulation reduces cabinet condensation buildup
  • Thermoplastic drain pan with low water retention and secondary drain connections
  • Drain pan rails allow coil repositioning without compromising strength
  • Standard copper suction line stub for straightforward installation
  • UV-resistant, DecaBDE-free pan material enhances longevity and safety
  • AHRI Certified and ETL Listed for performance and compliance assurance

This coil is ideal for residential installations where high efficiency, modern refrigerant compatibility, and easy servicing are priorities.

Goodman 3 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 CAUTA3626C3

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Benefits (GLZS4MA3610)

  • Meets the 2023 M1 Test Standards

Product Features (GLZS4MA3610)

  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
  • Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contractor with lug connection
  • Ground lug connection
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLZS4MA3610)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).

Technical Specifications - GLZS4MA3610

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZS4M
series name GLZSM4
model efficiency 14.3 SEER2
family description Energy-Efficient Multi-Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 3 Tons
installation type Ducted
communication feature No
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051689725
item stocking unit of measure uom EA
pallet qty 1
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 12.5
energy star certified No
heating capacity nominal 36000 Btu/H
hspf 2 hsvtc 7.5
seer 2 hsvtc 15
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 35 A
max voltage 253 V
min circuit amps 21.5 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 16.4 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 35.5 in
dimensions unit height 35.75 in
dimensions unit width 35-1/2 in
expansion device TXV
sound pressure high cooling 75 dBA
weight unit 208 lb
cooling capacity rated 35000 Btu/H
heating capacity rated 35000 Btu/H
additional refrigerant charge oz ft 0.58 lb
factory std refrigerant charge 83 oz
pipe size gas 1-1/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 37.00 in
dimensions case height 38.50 in
dimensions case width 37.00 in
dimensions distribution unit depth 37 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 37 in
dimensions pallet depth 37.00 in
dimensions pallet height 38.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 37.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 37.00 in
distribution shipping volume unit 52706.5 in³
shipping volume unit 52706.500 in³
truck factor 0.0000
volume case 52706.500 in³
volume distribution shipping unit 52706.5 in³
weight case 223.000 lb
weight distribution shipping unit 223 lb
weight shipping unit 223.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAUTA3626C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valve for cooling applications
  • Standardized copper suction tube stub length
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
  • UV-resistant drain pan

Technical Specifications - CAUTA3626C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAUTA_32
series name CAUTA
family description CAUTA Uncased Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051729391
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Unpainted
cased vs uncased Uncased
dimensions unit depth 21.3 in
dimensions unit height 23.9 in
dimensions unit width 20 in
expansion device TXV
tonnage 3.0
tonnage range 3.0
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.25 in
dimensions case height 28.50 in
dimensions case width 23.50 in
dimensions distribution unit depth 26.25 in
dimensions distribution unit height 28.5 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 61.50 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.25 in
dimensions shipping unit height 28.50 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 17580.9375 in³
shipping volume unit 17580.937 in³
truck factor 0.0000
volume case 17580.937 in³
volume distribution shipping unit 17580.9375 in³
weight case 35.000 lb
weight distribution shipping unit 35 lb
weight shipping unit 35.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB12BP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB12BP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB12BP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692886
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.92
produced in us No
indoor blower fla 3.9 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 17-1/2 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.5 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 29.00 in
dimensions case width 20.00 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 29 in
dimensions distribution unit width 20 in
dimensions pallet depth 54.00 in
dimensions pallet height 62.50 in
dimensions pallet width 41.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 29.00 in
dimensions shipping unit width 20.00 in
distribution shipping volume unit 15080 in³
shipping volume unit 15080.000 in³
truck factor 0.0000
volume case 15080.000 in³
volume distribution shipping unit 15080 in³
weight case 69.000 lb
weight distribution shipping unit 69 lb
weight shipping unit 69.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
