Goodman

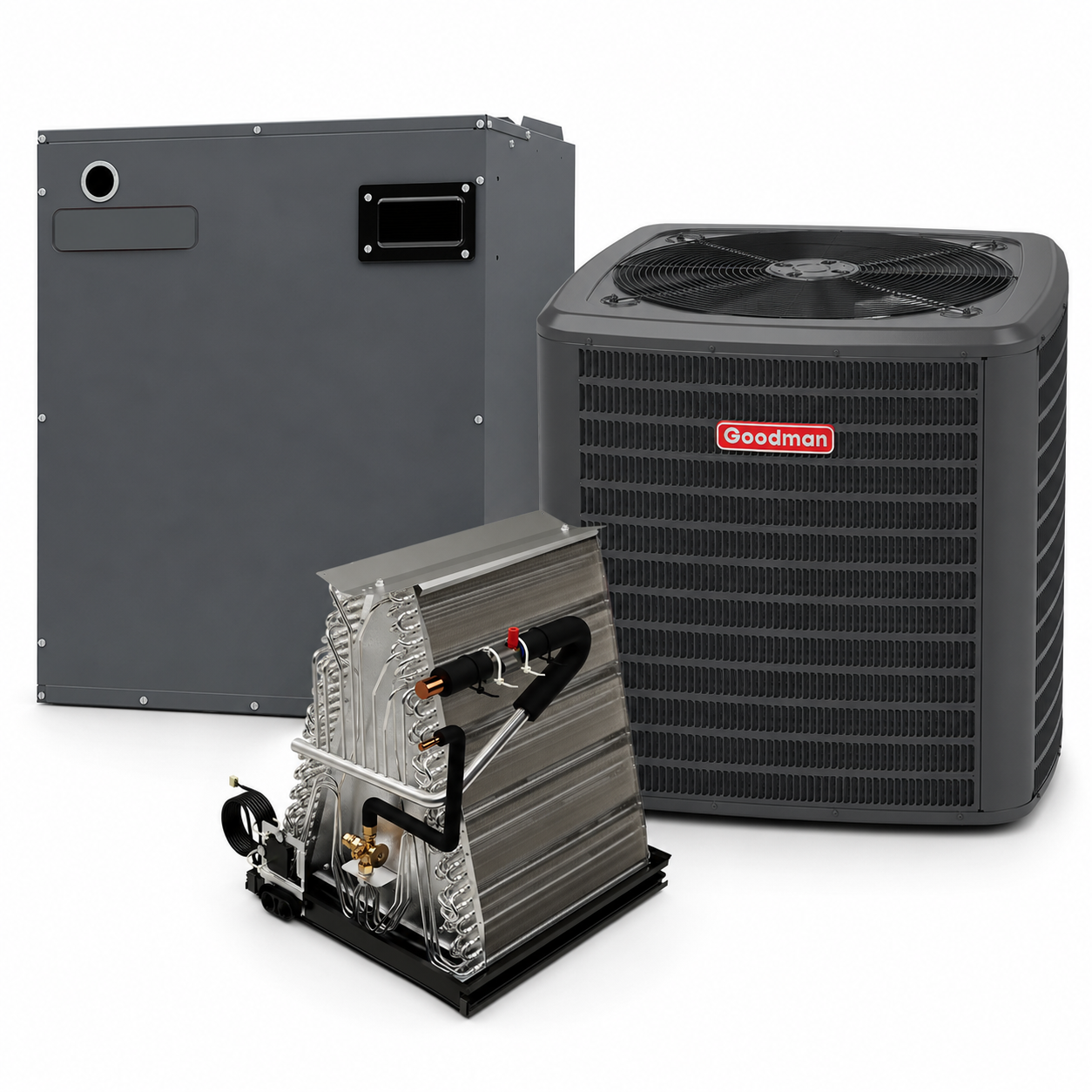

Goodman 3 Ton 15.2 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 20"

SKU: GLXS4MA3610 + CAUTA4230C3 + MBVB16CP1X00

System highlights
AC Type
AC & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
42000 BTU (3.5 TON)
Voltage
208-240V, 208-230V
Looking For
AC & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1600
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
20
Goodman 3.5 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,614.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 15.2 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 20"

Product Overview

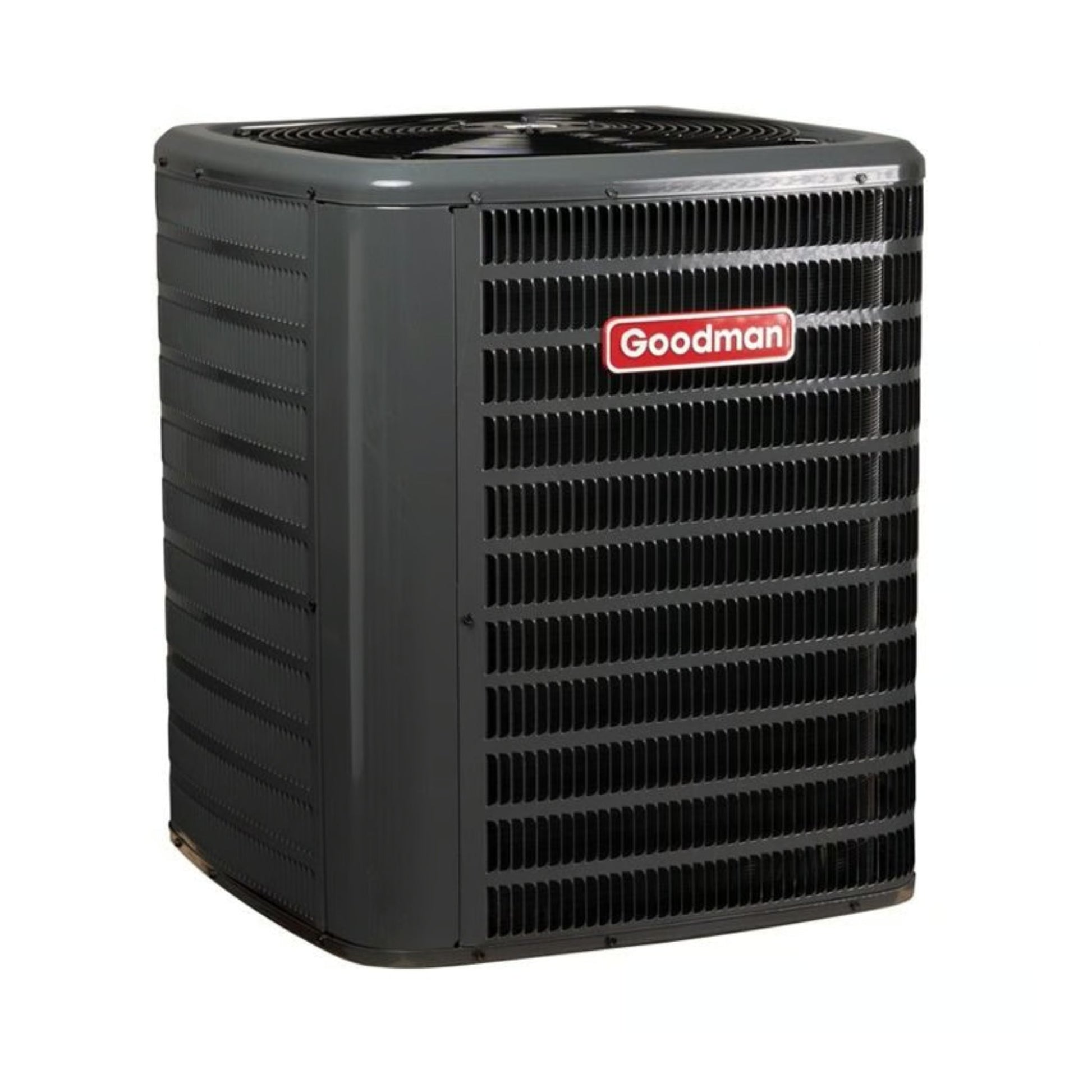

Goodman 3 Ton 14.3 SEER2 Multi-Family Air Conditioner Condenser R32 GLXS4MA3610

The air conditioning unit features a high-efficiency scroll compressor and a factory-installed filter drier. It is fully charged for 15 feet of tubing length and includes a 5mm diameter copper tube with an enhanced aluminum fin coil. The unit is equipped with service valves that have sweat connections and easy-to-access gauge ports, an enclosed contactor, a ground lug connection, and capacitors designed for extended life. It also includes a high-pressure switch and is both AHRI Certified and ETL Listed.

The cabinet is designed with a removable grille-style top that complies with UL 60335-2-40. It is constructed from heavy-gauge galvanized steel and features a venturi to increase airflow velocity. The attractive Architectural Gray powder-paint finish is approved for 500-hour salt-spray exposure. Additional features include a steel louver coil guard, single-panel access to controls with space for field-installed accessories, and compliance with the 2020 Florida Building Code for hurricane-type winds when properly anchored.

Key Features

  • New R32 Freon – Meets 2025 refrigerant change guidelines for eco-friendly and energy-efficient performance
  • High-Efficiency Scroll Compressor – Enhanced cooling efficiency for reduced energy consumption and optimal performance
  • Factory-Installed Filter Drier – Ensures clean and reliable refrigerant flow, reducing the need for extra maintenance
  • Enclosed Contactor with Lug Connection – Reliable and secure electrical connections for long-lasting performance
  • Ground Lug Connection – Ensures safe and secure grounding for operational safety
  • High-Pressure Switch – Protection against system overloads and optimal performance in high-pressure conditions
  • Removable Grille-Style Top Design – Easy maintenance and UL 60335-2-40 compliant for enhanced safety and durability
  • Venturi to Increase Airflow Velocity – Optimized airflow for improved cooling performance and system efficiency
  • Architectural Gray Powder-Coat Finish – Durable finish with 500-hour salt-spray approval, perfect for outdoor conditions
  • Wire Fan Discharge Grille – Provides added protection for the fan and helps maintain smooth airflow
  • Steel Louver Coil Guard – Increased protection for the coil, extending the unit's lifespan and improving reliability
  • Top and Side Maintenance Access – Convenient access points for easy servicing and component checks

Goodman 3 Ton 14.3 SEER2 Multi-Family Air Conditioner Condenser R32 GLXS4MA3610

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman 3.5 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 CAUTA4230C3

The Goodman CAUTA 3.5-ton uncased evaporator coil is engineered for flexible upflow and downflow HVAC installations. Built with a robust all-aluminum coil optimized for R-32 refrigerant, this model ensures long-lasting efficiency and durability. Featuring a factory-installed thermal expansion valve (TXV), this coil supports precise refrigerant metering for enhanced cooling performance. With a 20-inch cabinet width and a UV-resistant, rust-proof thermoplastic drain pan, the coil provides both installation flexibility and superior moisture management.

Key Features

  • 3.5 Ton uncased evaporator coil designed for upflow and downflow systems
  • All-aluminum coil construction for improved heat transfer and corrosion resistance
  • Pre-installed TXV provides precise refrigerant control and optimized efficiency
  • Fully compatible with R-32 refrigerant, including specialized manifolds and sensors
  • Foil-faced insulation minimizes condensation within the cabinet
  • Rust-resistant, low-retention thermoplastic drain pan with secondary drain outlets
  • Drain pan rails simplify coil handling and repositioning during installation or service
  • UV-resistant, DecaBDE-free drain pan enhances longevity and environmental compliance
  • Standardized copper suction tube stub lengths for easier connection
  • Certified by AHRI and listed by ETL for quality assurance

Ideal for residential HVAC systems, this coil delivers durable, high-capacity performance with efficient refrigerant management and flexible installation options.

Goodman 3.5 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 CAUTA4230C3

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS4MA3610)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Cabinet Features (GLXS4MA3610)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Technical Specifications - GLXS4MA3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692121
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 36000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 30 A
min circuit amps 17.75 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 13.44 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 29 in
dimensions unit width 39-1/2 in
sound pressure high cooling 67 dBA
weight unit 67 lb
cooling capacity rated 34600 Btu/H
tonnage 3
additional refrigerant charge oz ft 0.58 lb
factory std refrigerant charge 69 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 42.00 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 42 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 42.00 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 42.00 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 38430 in³
shipping volume unit 38430.000 in³
truck factor 0.0000
volume case 38430.000 in³
volume distribution shipping unit 38430 in³
weight case 185.000 lb
weight distribution shipping unit 185 lb
weight shipping unit 185.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAUTA4230C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valve for cooling applications
  • Standardized copper suction tube stub length
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Technical Specifications - CAUTA4230C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAUTA_32
series name CAUTA
family description CAUTA Uncased Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051729407
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Unpainted
cased vs uncased Uncased
dimensions unit depth 21.3 in
dimensions unit height 27.4 in
dimensions unit width 20 in
expansion device TXV
tonnage 3.5
tonnage range 3.5
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20010.25 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20010.25 in³
weight case 38.000 lb
weight distribution shipping unit 38 lb
weight shipping unit 38.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692909
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.99
produced in us No
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 21 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.75 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 25.5 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 24.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20460.5625 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20460.5625 in³
weight case 72.090 lb
weight distribution shipping unit 72.09 lb
weight shipping unit 72.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
