Goodman 3 Ton 15.2 SEER2 97% AFUE 100,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R32 - Upflow/Horizontal
Product Overview
OVERVIEW
An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.
Features
- All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
- 10-Year Limited Warranty
Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.
OVERVIEW

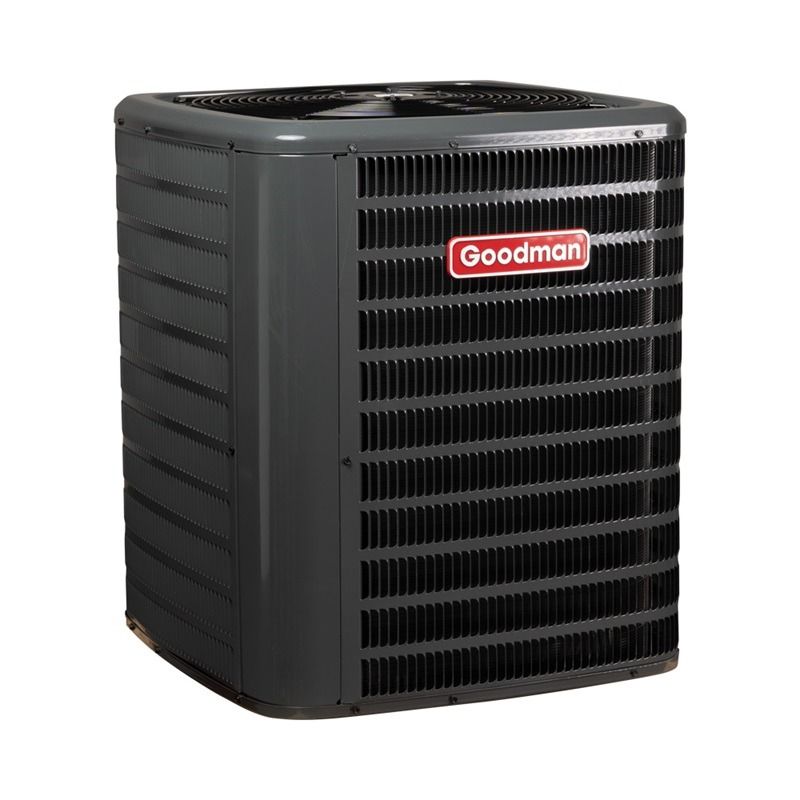

At one of the higher efficiencies on the market, the Goodman GLZS5BA3610 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GLZS5BA3610 is considered a good all-around choice for many applications.
Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Designed to cover a medium house in average climates
- 3 Ton, 15.2 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
3 Ton
The Goodman GLZS5BA3610 heat pump is rated for 3 tons, which is normally enough to cover a medium house in average climates. A heat pump coil or air handler is required for this condenser to function, and some indoor units will be larger in tonnage than this condenser in some bundles to maintain the unit's overall efficiency.
15.2 SEER2
With its high-end 15.2 SEER2 efficiency rating, the GLZS5BA3610 is designed to save you money over the entire life of the unit. 15.2 SEER2 units will save you about 12% more in energy bills over a 14.3 SEER2 condenser, making this upgrade a smart upgrade to save you money over time with a small increase in your initial investment in the condenser.
Efficiency Choices for Every Climate
Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 33% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.
Warranty
The GLZS5BA3610 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet on the GLZS5BA3610 heat pump is designed to be durable in harsh conditions. With its baked-on polyester coat of paint, the unit is approved for up to 500 hours of salt spray. The enhanced durability and paint coat makes the GLZS5BA3610 compliant with 2010 Florida building codes for unit integrity for hurricane-like winds when the unit is properly anchored. For reliability, there is also a built-in bi-flow filter drier that lowers general wear-and-tear on the internals of the unit.
Installation and Maintenance
In order to provide a faster and less expensive installation, the Goodman GLZS5BA3610 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels - one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.
Comfort in Mind
The Goodman company has always promoted enhanced comfort, higher efficiency, and lower cost to all of its units. With SmartShift technology and an enhanced sound insulation structure, the GLZS5BA3610 is whisper-quiet, allowing Goodman to continue to follow its goals in achieving the best comfort levels possible at a low cost.
Why Buy at
is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
OVERVIEW

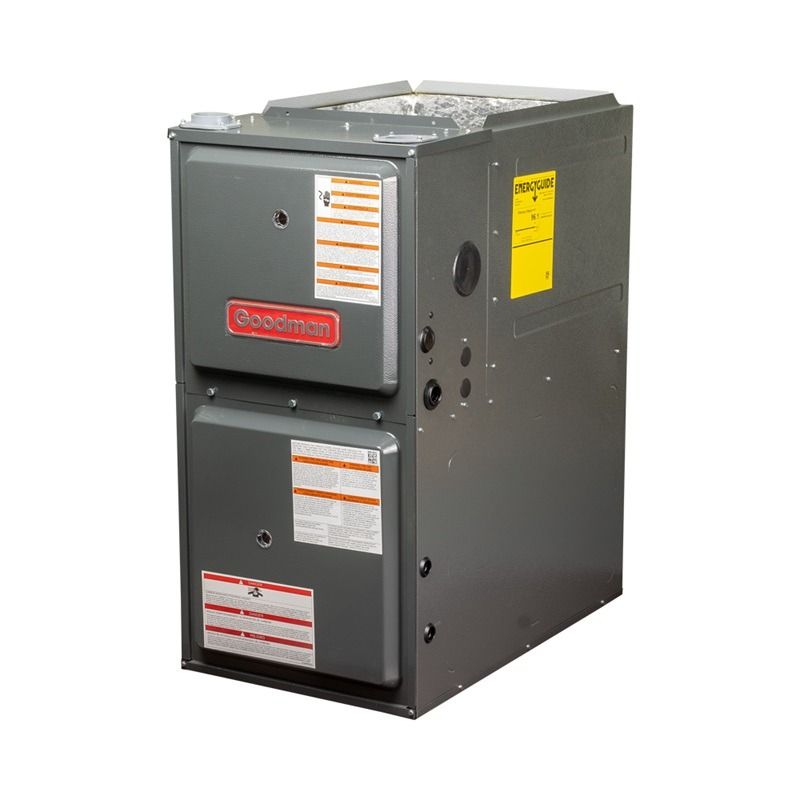

With a 97% efficiency rating, a variable-speed blower motor, and modulating gas valves, the GRVM971005CN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVM971005CN is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 100,000 BTU 97% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU
With an input of 100,000 BTU’s and an efficiency of 97%, the GRVM971005CN has an output of 97,000 BTU’s. This is calculated by taking 100,000 BTU’s times the efficiency of 97%. As such, the GRVM971005CN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
97% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVM971005CN gas furnace is 97% efficient, meaning that a whopping 97% of the gas going into the furnace is used to heat your home, and only 3% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVM971005CN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Modulating Variable Speed Furnace
Goodman manufactured the GRVM971005CN gas furnace to utilize the best burner and blower technologies available. With a modulating gas valve and a variable speed blower motor, the GRVM971005CN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVM971005CN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVM971005CN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Fuel Types
Out of the factory, the GRVM971005CN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVM971005CN gas furnace can be installed in the upflow or horizontal orientations. The modulating gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GRVM971005CN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Features (CAPTA4230C3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
- Vertical application
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pan featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL Listed
Technical Specifications - CAPTA4230C3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPTA_3 |
| series name | CAPTA AlumaFin7™ |
| family description | CAPTA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051688421 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cabinet finish | Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 21 in |
| dimensions unit height | 30 in |
| dimensions unit width | 21 in |
| expansion device | TXV |
| tonnage | 3.5 |
| tonnage range | 2.5;3.5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 32.75 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 32.75 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 70.00 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 32.75 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 20010.25 in³ |
| shipping volume unit | 20010.250 in³ |
| truck factor | 0.0000 |
| volume case | 20010.250 in³ |
| volume distribution shipping unit | 20010.25 in³ |
| weight case | 64.000 lb |
| weight distribution shipping unit | 64 lb |
| weight shipping unit | 64.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Benefits (GLZS5BA3610)
- Meets the 2023 M1 Test Standards
Product Features (GLZS5BA3610)
- High-efficiency scroll compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
- Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
- Single-speed PSC condenser fan motor
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Fully enclosed contactor
- Ground lug connection
- Capacitor with extended life
Cabinet Features (GLZS5BA3610)
- Removable grille style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GLZS5BA3610
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLZS5B |
| series name | GLZS5B |
| model efficiency | 15.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16 SEER2 & 8.2 HSPF2 |
| installation type | Ducted |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051737662 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 12.5 |
| energy star certified | Yes |
| heating capacity nominal | 36000 Btu/H |
| hspf 2 hsvtc | 7.8 |
| hspf ducted | 7.8 |
| seer 2 hsvtc | 15.2 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -20 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 40 A |
| min circuit amps | 24 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 18.4 A |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 39.5 in |
| dimensions unit width | 35-1/2 in |
| expansion device | TXV |
| sound pressure high cooling | 71.1 dBA |
| weight unit | 222 lb |
| heating capacity rated | 35000 Btu/H |
| tonnage | 3 |
| additional refrigerant charge oz ft | 0.58 lb |
| factory std refrigerant charge | 95 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 42.00 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 57498 in³ |
| shipping volume unit | 57498.000 in³ |
| truck factor | 0.0000 |
| volume case | 57498.000 in³ |
| volume distribution shipping unit | 57498 in³ |
| weight case | 229.000 lb |
| weight distribution shipping unit | 235.09 lb |
| weight shipping unit | 229.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GRVM971005CN)
- High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
- Faster condensate water drainagend no unit water leakage;4.uto-configure for each installation
- Capable of using non communicating single-stage thermostats
- Durablend long igniter life
- Self-diagnostic control board with constant memory fault code history output
- Provisions for electronicir cleanernd humidifier
- Energy efficientnd precise comfort
- Lower NOx emission
- Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards.
- Tax Credit
- Easy Connection for EACnd Humidifier
Product Features (GRVM971005CN)
- Heavy-dutyluminized-steel tubular heat exchanger
- Efficientnd quiet variable-speed Blower
- Stainless-steel sloped secondary heat exchanger
- Self-calibrating modulating gas valve
- Integrated communicating ComfortBridge™ technology
- Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Modulating gas valve;11.ll models comply with California 40 ng/J;12.HRI Certified, ETL Listed
- Energy Star
- Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers
Cabinet Features (GRVM971005CN)
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gasnd electrical service
- Cabinetir leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchangernd blower section
- Bottom or side returnirpplications
- Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVM971005CN
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVM97 |
| series name | GRVM97 |
| model efficiency | 0.97 |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051703520 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 97 % |
| cooling capacity nominal | 60000 Btu/H |
| energy star certified | Yes |
| installation configuration | Upflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 35-65 °F |
| temperature rise range low fire | 25-55 °F |
| current type | AC |
| max overcurrent protection | 25 A |
| min circuit amps | 14.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1980 ft³/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 10 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 21 in |
| heat exchanger type | Gas |
| motor speed type | Variable Speed ECM |
| nox burner type | Low NOx |
| number of burners | 5 |
| blower motor horsepower | 1 metric hp |
| high fire input capacity | 100000 Btu |
| high fire output capacity | 97000 |
| low fire input capacity | 50000 |
| low fire output capacity | 48500 |
| gas valve type | Modulating |
| vent diameter | 2 in;3 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 22.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 22 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 44.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 22.00 in |
| distribution shipping volume unit | 25410 in³ |
| shipping volume unit | 25410.000 in³ |
| truck factor | 0.0000 |
| volume case | 25410.000 in³ |
| volume distribution shipping unit | 25410 in³ |
| weight case | 143.000 lb |
| weight distribution shipping unit | 130.09 lb |
| weight shipping unit | 143.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
Submittals
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman 97% AFUE Gas Furnace Variable Speed ECM, Modulating
Leaflets & Manuals
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- CAPTA AlumaFin7™ Evaporator Coil, Upflow/Downflow, 3.5 Ton, R-32
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman Split Heat Pump 15.2 SEER2, Single Stage
- Goodman 97% AFUE Gas Furnace Variable Speed ECM, Modulating
- Goodman 97% AFUE Gas Furnace Variable Speed ECM, Modulating
