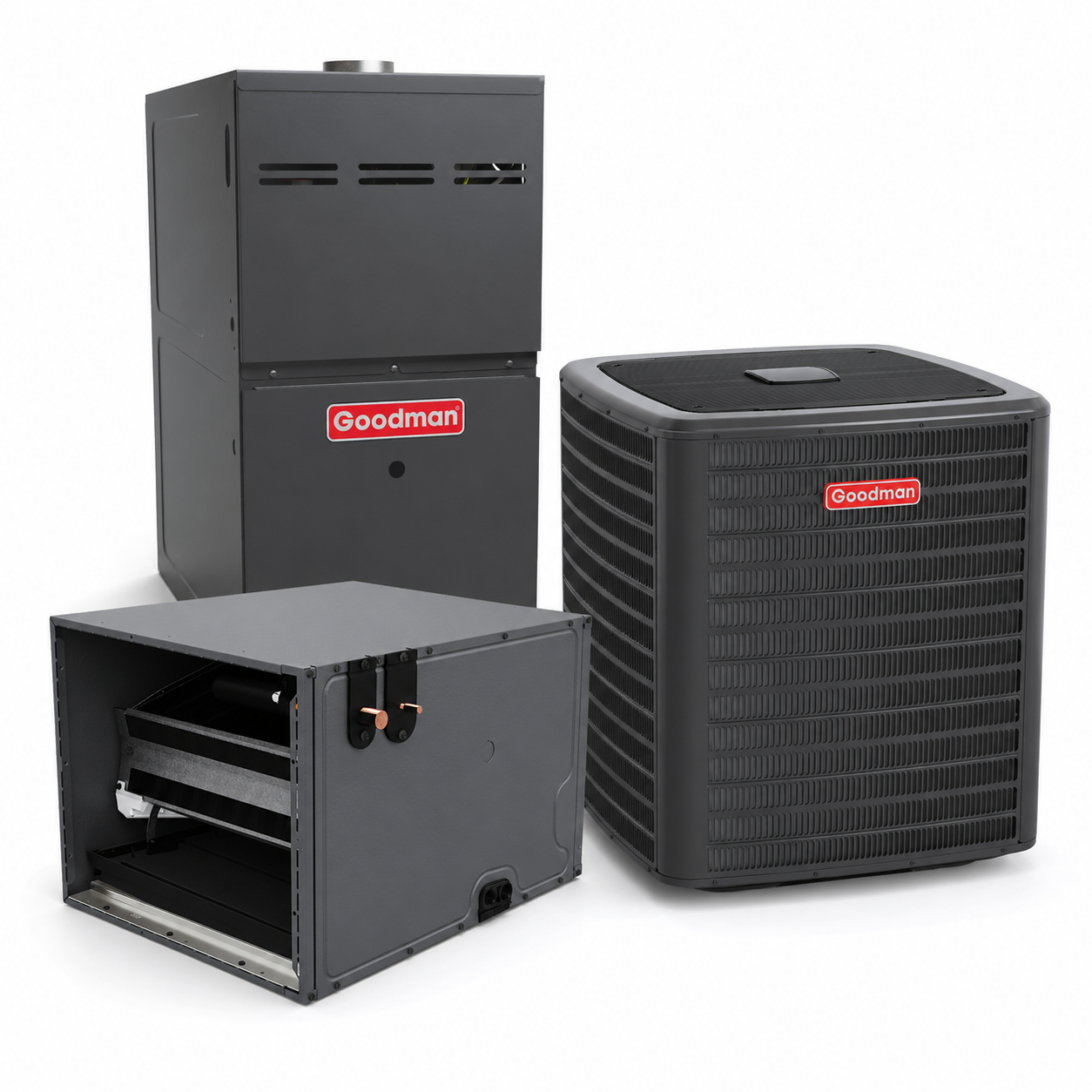

Goodman 3 Ton 15.0 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

OVERVIEW

The Goodman CHPTA3630B3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA3630B3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

• 3 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit

3 Tons

At an output of 3 tons, the Goodman CHPTA3630B3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA3630B3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA3630B3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA3630B3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA3630B3 to live up to the Goodman quality name.

OVERVIEW

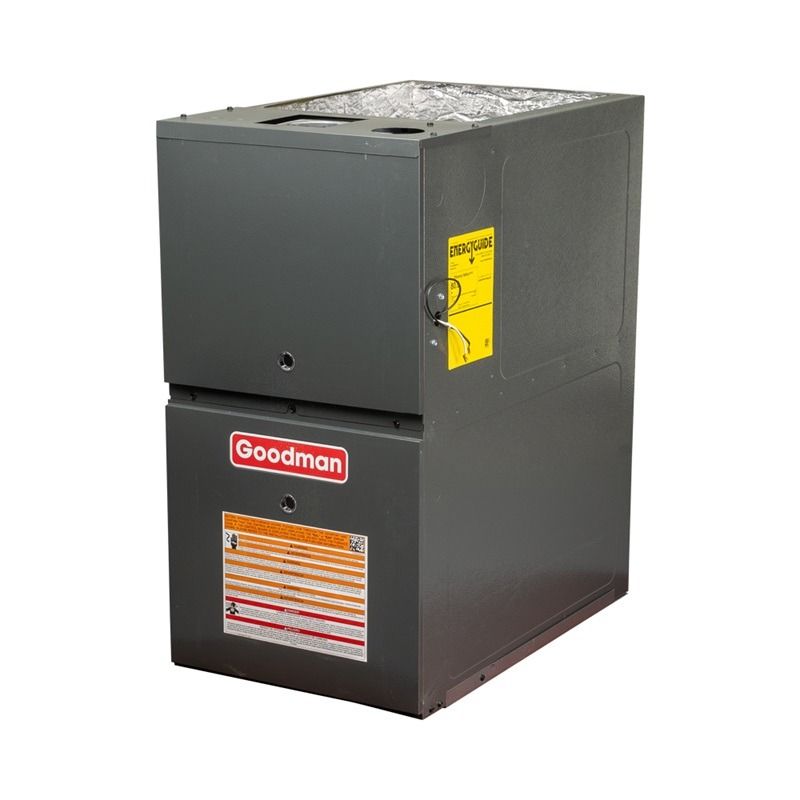

The GRVS800604BU Goodman gas furnace features high-quality construction and efficient operation at a great value. The GRVS800604BU single-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GRVS800604BU.

QUICK FACTS

• This furnace is ideal to heat a medium-sized house (depending on climate)
• 60,000 BTU 80% efficient natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

The GRVS800604BU Goodman gas furnace is 60,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 48,000 BTU’s (60,000 X 80% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small house.

80% Efficiency Rating

The GRVS800604BU Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Ultra-low NOx furnaces are only available in natural gas configurations. If you need a propane furnace, you will need to order the regular version of this furnace and add a propane conversion kit to it. You can find the regular version here: GR9S800604BN

Single Stage Furnace

The GRVS800604BU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GRVS800604BU utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GRVS800604BU model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
