Goodman

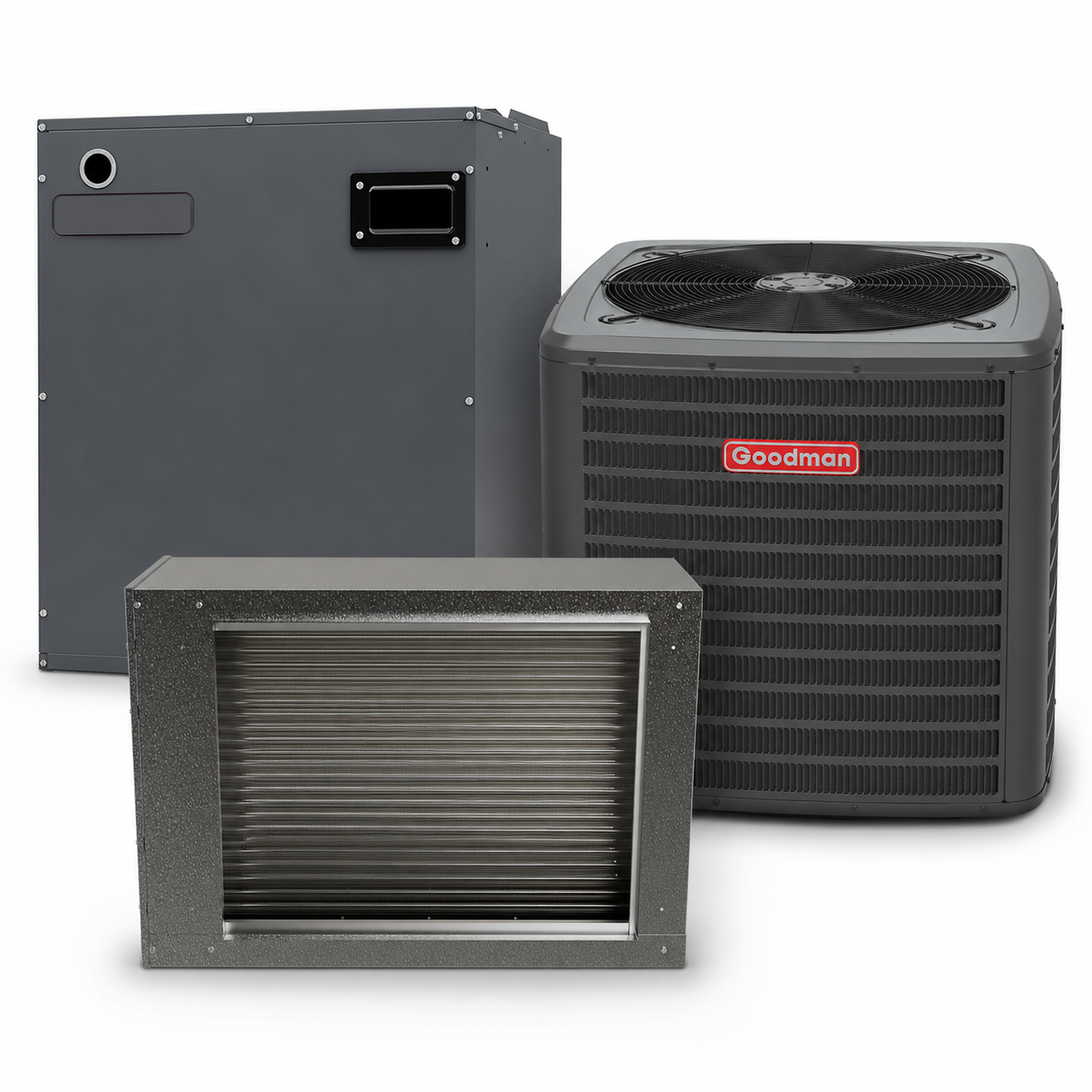

Goodman 3 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System - Horizontal - 39"

SKU: GLXS4BA3610 + CSCT3612L3 + MBVB16CP1X00

System highlights
AC Type
AC & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-230V
Looking For
AC & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Horizontal
Blower Motor
Variable Speed ECM
Maximum CFM
1600
Burner Stages
Two Stages
Coil Style
Slab Coil
Cabinet Width (in)
39
Goodman 3 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,355.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System - Horizontal - 39"

Product Overview

OVERVIEW

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA3610 air conditioner condenser is a popular choice for homeowners around the United States.

QUICK FACTS

  • Ideal size to cover a medium house in ideal climates
  • 3 ton, 14.3 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

3 Ton

The GLXS4BA3610 Goodman condenser is a 3 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.

14.3 SEER2

The GLXS4BA3610 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.

Warranty

The GLXS4BA3610 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The GLXS4BA3610 Goodman AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The GLXS4BA3610 provides peace of mind thanks to its durability and reliability enhancements.

Installation and Maintenance

The Goodman GLXS4BA3610 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS4BA3610 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

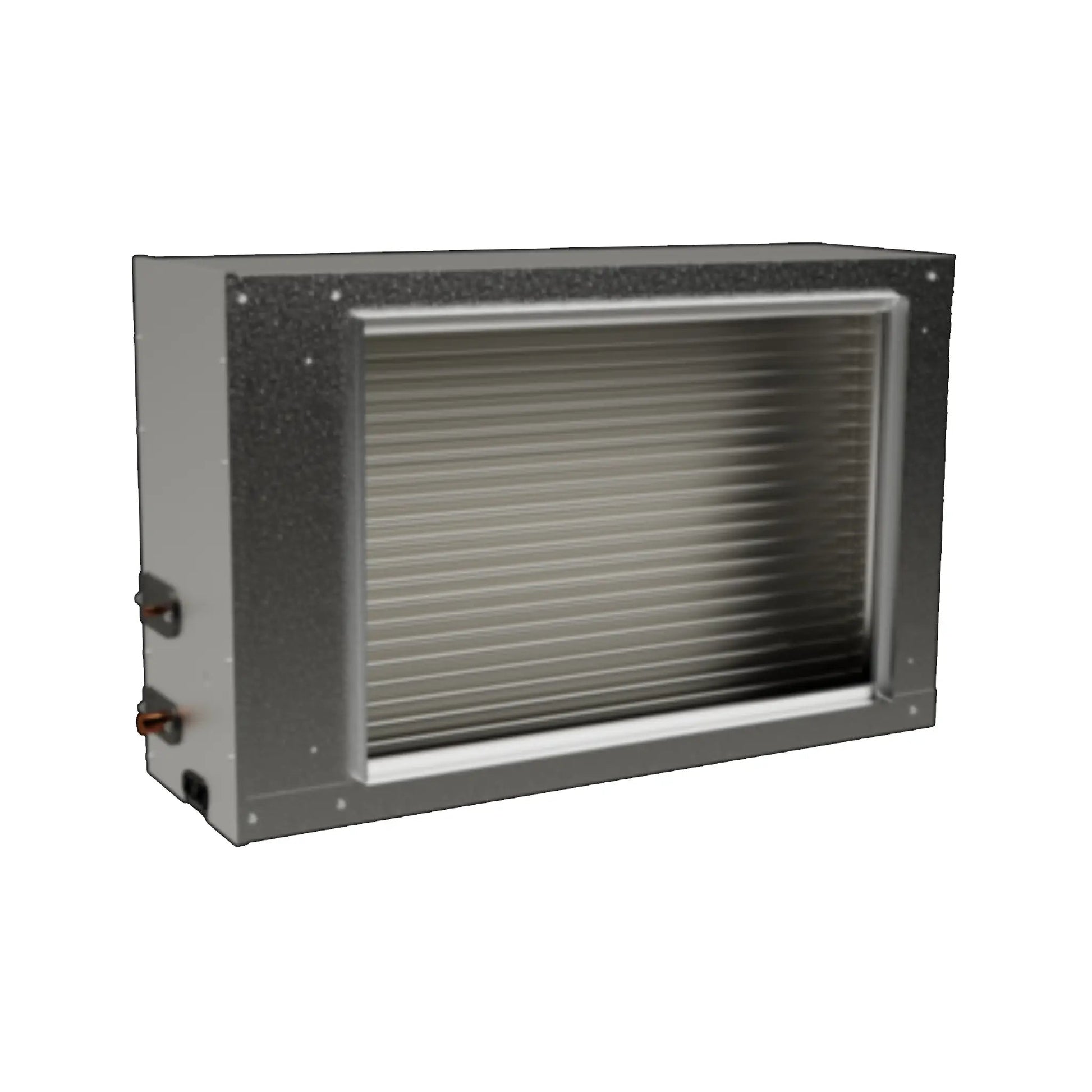

Goodman 3 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT3612L3

The Goodman CSCT3612L3 is a high-capacity evaporator coil designed for larger homes, delivering powerful and efficient cooling performance. Featuring a durable all-aluminum construction and optimized for R-32 refrigerant, this unit provides reliable operation while supporting environmentally friendly HVAC standards. Ideal for new system installations or performance upgrades.

Key Features

  • Nominal Capacity: 2.5–3 tons – Perfect for larger residential cooling applications.
  • Dimensions: 39½" W x 12" D x 25" H – Built to fit standard HVAC configurations.
  • Service Valve: ⅜" Liquid, ⅞" Suction – Industry-standard sizes for easy connection.
  • All-Aluminum Evaporator Coil: Provides excellent corrosion resistance and efficient heat transfer.
  • Optimized for R-32 Refrigerant: Supports low-GWP refrigerant use for environmentally conscious performance.
  • Factory-Installed Thermal Expansion Valve (TXV): Improves cooling control and system efficiency.
  • UV-Resistant Drain Pan: Resists degradation, helping to prevent mold and mildew buildup and maintain indoor air quality.

The CSCT3612L3 is a dependable, eco-friendly evaporator coil solution built for larger homes, delivering long-term cooling efficiency and system compatibility with next-generation refrigerants.

Goodman 3 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT3612L3

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 10 years 10 years

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS4BA3610)

  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLXS4BA3610)

  • Removable grille-style top designcompliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS4BA3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4B
series name GLXS4B
model efficiency 14.3 SEER2
family description Energy-Efficient Classic R-32 Split System Air Conditioner, 14.3 SEER2, 1½ To 5 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051691650
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
cooling capacity nominal 36000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 30 A
min circuit amps 17.75 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 13.44 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 39.5 in
dimensions unit width 29 in
sound pressure high cooling 67 dBA
weight unit 67 lb
cooling capacity rated 34600 Btu/H
tonnage 3
additional refrigerant charge oz ft 0.58 lb
factory std refrigerant charge 69 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 42.00 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 42 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 42.00 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 42.00 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 38430 in³
shipping volume unit 38430.000 in³
truck factor 0.0000
volume case 38430.000 in³
volume distribution shipping unit 38430 in³
weight case 186.000 lb
weight distribution shipping unit 186 lb
weight shipping unit 186.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CSCT3612L3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling applications
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan

Cabinet Features (CSCT3612L3)

  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections

Technical Specifications - CSCT3612L3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CSCT
series name CSCT
family description CSCT Horizontal Slab
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051736801
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us No
cased vs uncased Cased
dimensions unit width 39-1/2 in
expansion device TXV
tonnage 3
tonnage range 3
condensate drain outlet 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 14.00 in
dimensions case height 25.50 in
dimensions case width 41.50 in
dimensions pallet depth 56.00 in
dimensions pallet height 56.00 in
dimensions pallet width 43.00 in
dimensions shipping unit depth 14.00 in
dimensions shipping unit height 25.50 in
dimensions shipping unit width 41.50 in
shipping volume unit 14815.500 in³
truck factor 0.0000
volume case 14815.500 in³
weight case 43.090 lb
weight shipping unit 43.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692909
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.99
produced in us No
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 21 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.75 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 25.5 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 24.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20460.5625 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20460.5625 in³
weight case 72.090 lb
weight distribution shipping unit 72.09 lb
weight shipping unit 72.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
