Goodman

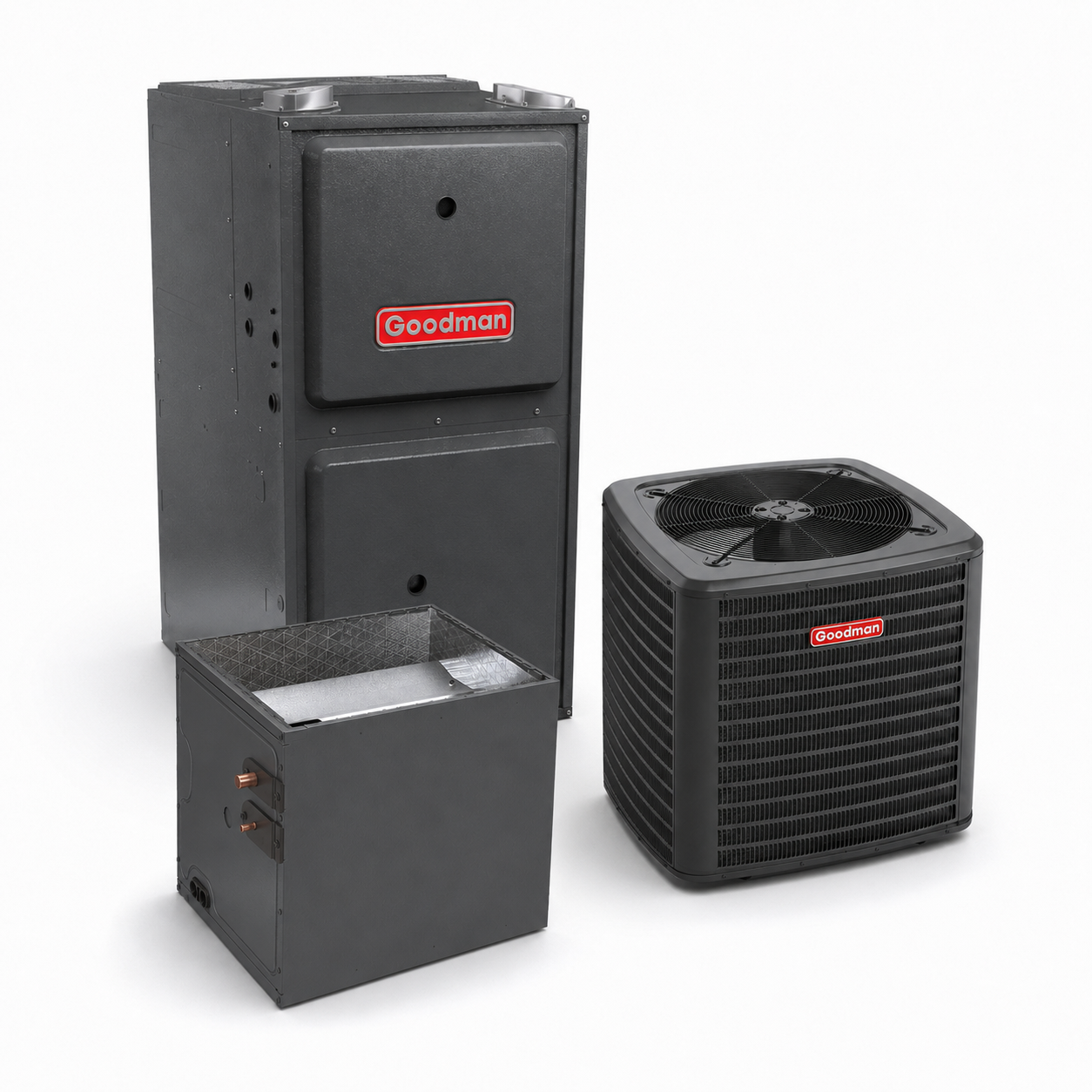

Goodman 3 Ton 14.3 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CAPTA4230D3 + GLXS5BA3610 + GR9T960804CN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
42000 BTU (3.5 TON)
Looking For
AC & Furnace System
SEER2 Rating
16.0
Airflow Direction
Upflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1600
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
80,000 BTU (6.67 Ton)
Furnace Efficiency
96% AFUE
Cabinet Width (in)
24 1/2
! Cabinet might need adjustment for sizing.
Goodman 3.5 Ton 24.5" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$6,387.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3 Ton 14.3 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

OVERVIEW

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA3610 is no exception, with its durability, reliability, and one of the highest efficiencies available.

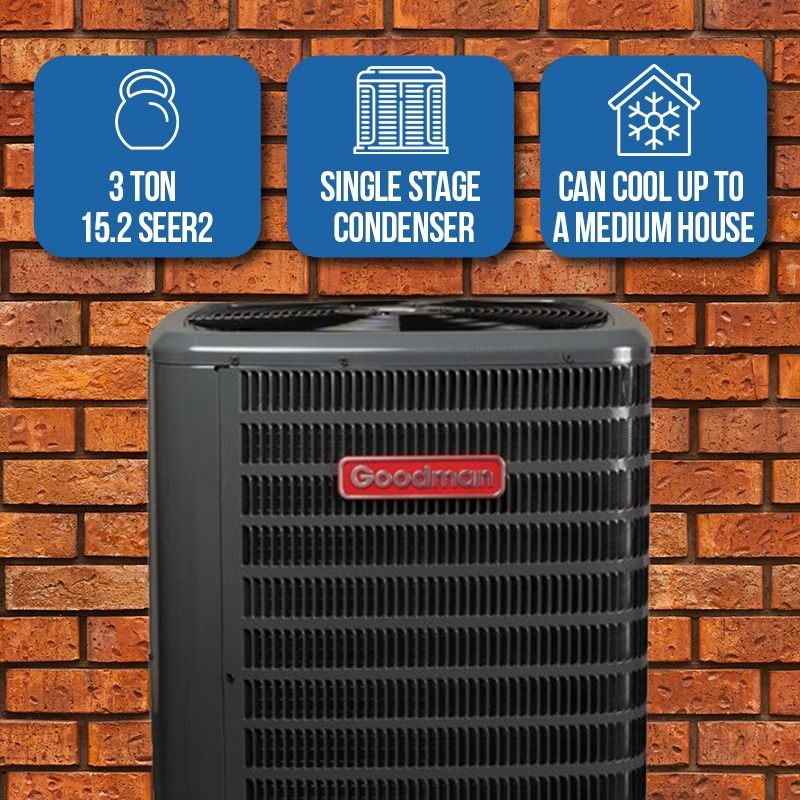

QUICK FACTS

  • Ideal size to cover a medium house in ideal climates
  • 3 ton, 15.2 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

3 Ton

The GLXS5BA3610 AC-only condenser is 3 tons, normally enough to cover up to a medium house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

15.2 SEER2

The GLXS5BA3610 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Warranty

The GLXS5BA3610 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA3610 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GLXS5BA3610's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA3610 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GLXS5BA3610 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

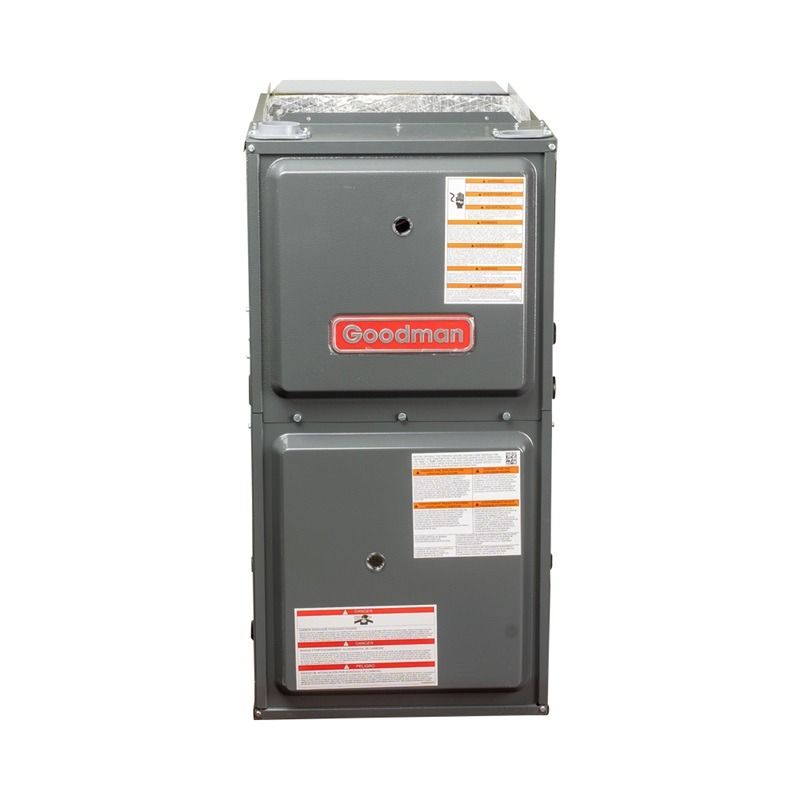

OVERVIEW

As a high-efficiency system, the GR9T960804CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GR9T960804CN is a good way to go if you want to lower your gas bill.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

Heating up to a medium-sized house in normal conditions, the GR9T960804CN Goodman gas furnace has an input of 80,000 BTU's and an output of 76,800 BTU's. The output in this case is determined by taking the input times the efficiency rating.

96% AFUE

The GR9T960804CN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.

Two Stage 9-Speed Furnace

With a two stage burner, the GR9T960804CN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a 9 speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home's comfort needs and provide a slightly higher efficiency.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durability and Reliability

The exterior casing on the GR9T960804CN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GR9T960804CN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GR9T960804CN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.

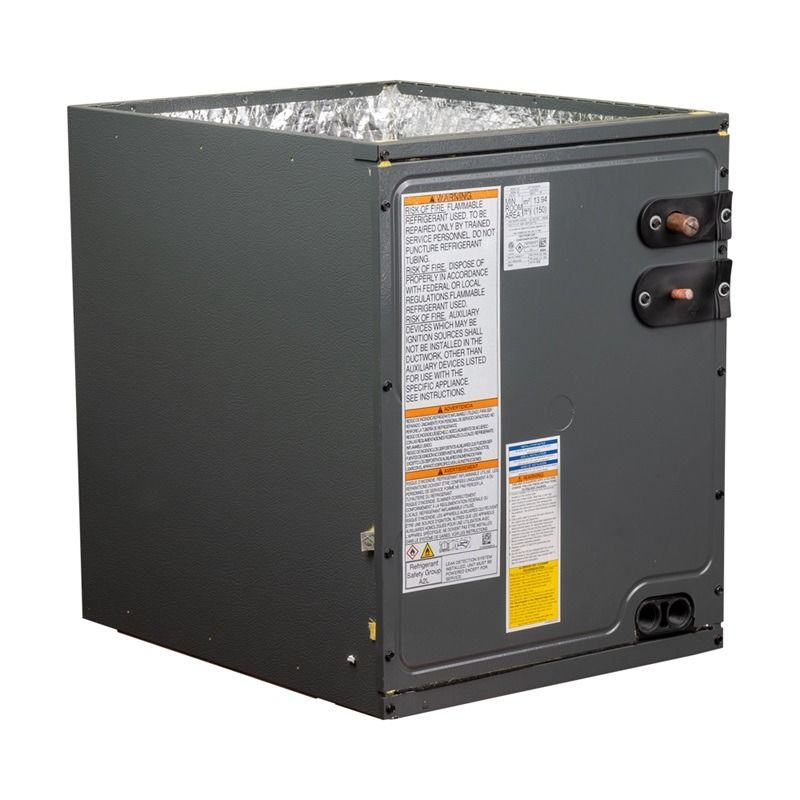

Product Features (CAPTA4230D3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL Listed

Technical Specifications - CAPTA4230D3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688438
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 24-1/2 in
expansion device TXV
tonnage 3.5
tonnage range 2.5;3.5
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.75 in
dimensions case height 32.25 in
dimensions case width 26.00 in
dimensions distribution unit depth 26.75 in
dimensions distribution unit height 32.25 in
dimensions distribution unit width 26 in
dimensions pallet depth 55.00 in
dimensions pallet height 69.00 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 26.75 in
dimensions shipping unit height 32.25 in
dimensions shipping unit width 26.00 in
distribution shipping volume unit 22429.875 in³
shipping volume unit 22429.875 in³
truck factor 0.0000
volume case 22429.875 in³
volume distribution shipping unit 22429.875 in³
weight case 70.000 lb
weight distribution shipping unit 70 lb
weight shipping unit 70.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GLXS5BA3610)

  • High-efficiency scroll compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch

Cabinet Features (GLXS5BA3610)

  • Removable grille-style top designcompliant with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS5BA3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS5
series name GLXS5B
model efficiency 15.2 SEER2
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051735491
item stocking unit of measure uom EA
pallet qty 1
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 72 °F
rated cooling condition room db 80 °F
rated cooling condition room wb 67 °F
compressor rla 13.4 A
max overcurrent protection 30 A
min circuit amps 17.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 35.5 in
dimensions unit height 39.5 in
dimensions unit width 35-1/2 in
sound pressure high cooling 70.6 dBA
tonnage 3
factory std refrigerant charge 88 oz
pipe size gas 7/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 79 ft
standard line set length vertical 50 ft
valve size liquid o d 3/8 in
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 37.00 in
dimensions case height 42.00 in
dimensions case width 37.00 in
dimensions distribution unit depth 37 in
dimensions distribution unit height 42 in
dimensions distribution unit width 37 in
dimensions pallet depth 37.00 in
dimensions pallet height 42.00 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 37.00 in
dimensions shipping unit height 42.00 in
dimensions shipping unit width 37.00 in
distribution shipping volume unit 57498 in³
shipping volume unit 57498.000 in³
truck factor 0.0000
volume case 57498.000 in³
volume distribution shipping unit 57498 in³
weight case 214.000 lb
weight distribution shipping unit 214 lb
weight shipping unit 214.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GR9T960804CN)

  • "1. High reliability and quality2. Faster condensate water drainage and no unit water leakage3. Durable and long igniter life4. Provisions for electronic air cleaner and humidifier5. Quiet and Economical heating6. Energy Efficient and quiet circulation7. Lower NOx emission8. Self-diagnostic control board with constant memory9. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.10. Tax Credit11. Operates on two-stage or single-stage thermostats12. Easy Connection for EAC and Humidifier"

Product Features (GR9T960804CN)

  • "1. Heavy-duty aluminized-steel tubular heat exchanger2. Stainless-steel sloped secondary heat exchanger3. Silicon Nitride igniter4. Color-coded low-voltage terminals5. Two-Stage gas valve6. Multi-speed ECM blower motor with continuous fan speed7. All models comply with California 40 ng/J8. Fault code LED Output9. AHRI Certified - ETL Listed10. Energy Star11. Two-stage gas valve12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"

Cabinet Features (GR9T960804CN)

  • "1. Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gas and electrical service5. Cabinet air leakage (Qleak) less than or equal to 2%6. Fully insulated heat exchanger and blower section7. Bottom or side return air applications8. Heavy-gage steel cabinet with durable finish"

Technical Specifications - GR9T960804CN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GR9T96
series name GR9T96
model efficiency 0.96
family description Two-Stage Multi-Speed ECM Gas Furnace up to 96% AFUE
installation type Ducted
export control classification number eccn EAR99
universal product code upc 663051686748
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 96 %
cooling capacity nominal 48000 Btu/H
installation configuration Upflow/Horizontal
produced in us Yes
temperature rise range high fire 25-55 °F
temperature rise range low fire 25-55 °F
max overcurrent protection 20 A
min circuit amps 11.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1784 ft³/min
air flow rate low heating 1234 ft³/min
dimensions blower diameter 11 in
dimensions blower width 10 in
dimensions unit depth 28-7/8 in
dimensions unit height 34-1/2 in
dimensions unit width 21 in
heat exchanger type Gas
motor speed type Multi Speed ECM
nox burner type Low NOx
weight unit 123 lb
blower motor horsepower 0.75 metric hp
high fire input capacity 80000 Btu
high fire output capacity 77600
low fire input capacity 56000
low fire output capacity 54320
gas valve type Two Stage
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 38.50 in
dimensions case width 22.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 22 in
dimensions pallet depth 60.00 in
dimensions pallet height 38.50 in
dimensions pallet width 44.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 22.00 in
distribution shipping volume unit 25410 in³
shipping volume unit 25410.000 in³
truck factor 0.0000
volume case 25410.000 in³
volume distribution shipping unit 25410 in³
weight case 170.000 lb
weight distribution shipping unit 170 lb
weight shipping unit 170.000 lb
registered parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
