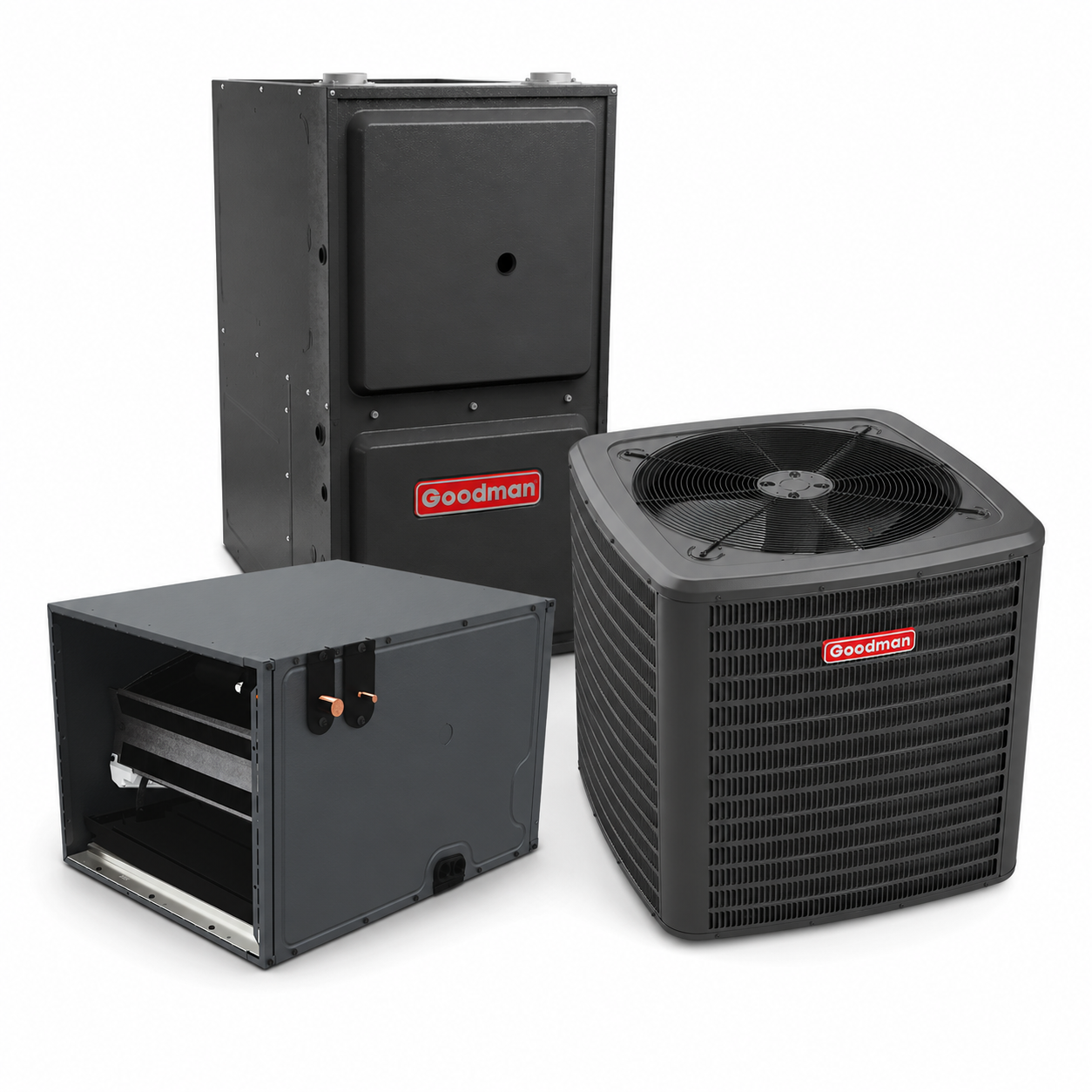

Goodman 3 Ton 14.3 SEER2 92% AFUE 100,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

OVERVIEW

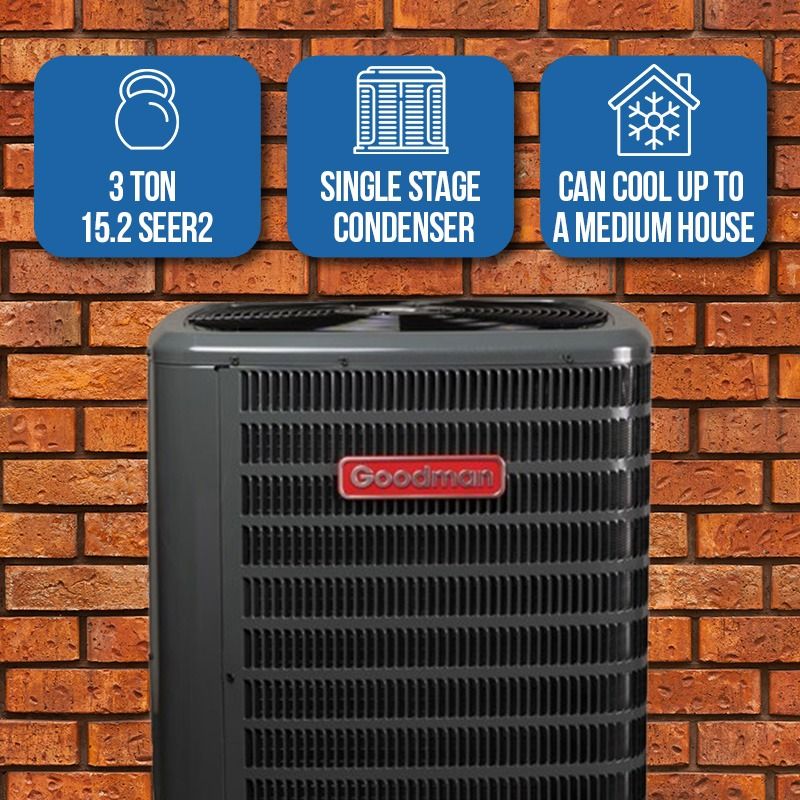

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA3610 is no exception, with its durability, reliability, and one of the highest efficiencies available.

QUICK FACTS

• Ideal size to cover a medium house in ideal climates
• 3 ton, 15.2 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Fully charged for up to 15' of line set
• Low sound output
• Factory-installed filter drier

3 Ton

The GLXS5BA3610 AC-only condenser is 3 tons, normally enough to cover up to a medium house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

15.2 SEER2

The GLXS5BA3610 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Warranty

The GLXS5BA3610 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA3610 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GLXS5BA3610's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA3610 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GLXS5BA3610 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

OVERVIEW

The GR9S921005CN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9S921005CN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9S921005CN.

QUICK FACTS

• This furnace is ideal to heat a medium to large house (depending on climate)
• 100,000 BTU 92% efficient natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

100,000 BTU

The GR9S921005CN Goodman gas furnace is 100,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 92,000 BTU's (100,000 X 92% AFUE) per hour. In ideal climate conditions, this 100,000 BTU furnace is usually used to heat a medium to large house.

92% Efficiency Rating

The GR9S921005CN Goodman gas furnace is 92% efficient, and the standard furnace efficiency on the market today. This means that 92% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 92% furnaces must be vented using plastic/PVC flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Single Stage Furnace

The GR9S921005CN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the GR9S921005CN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GR9S921005CN utilizes a multi-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today's Goodman furnaces feature many different connection options to reduce installation. The GR9S921005CN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
