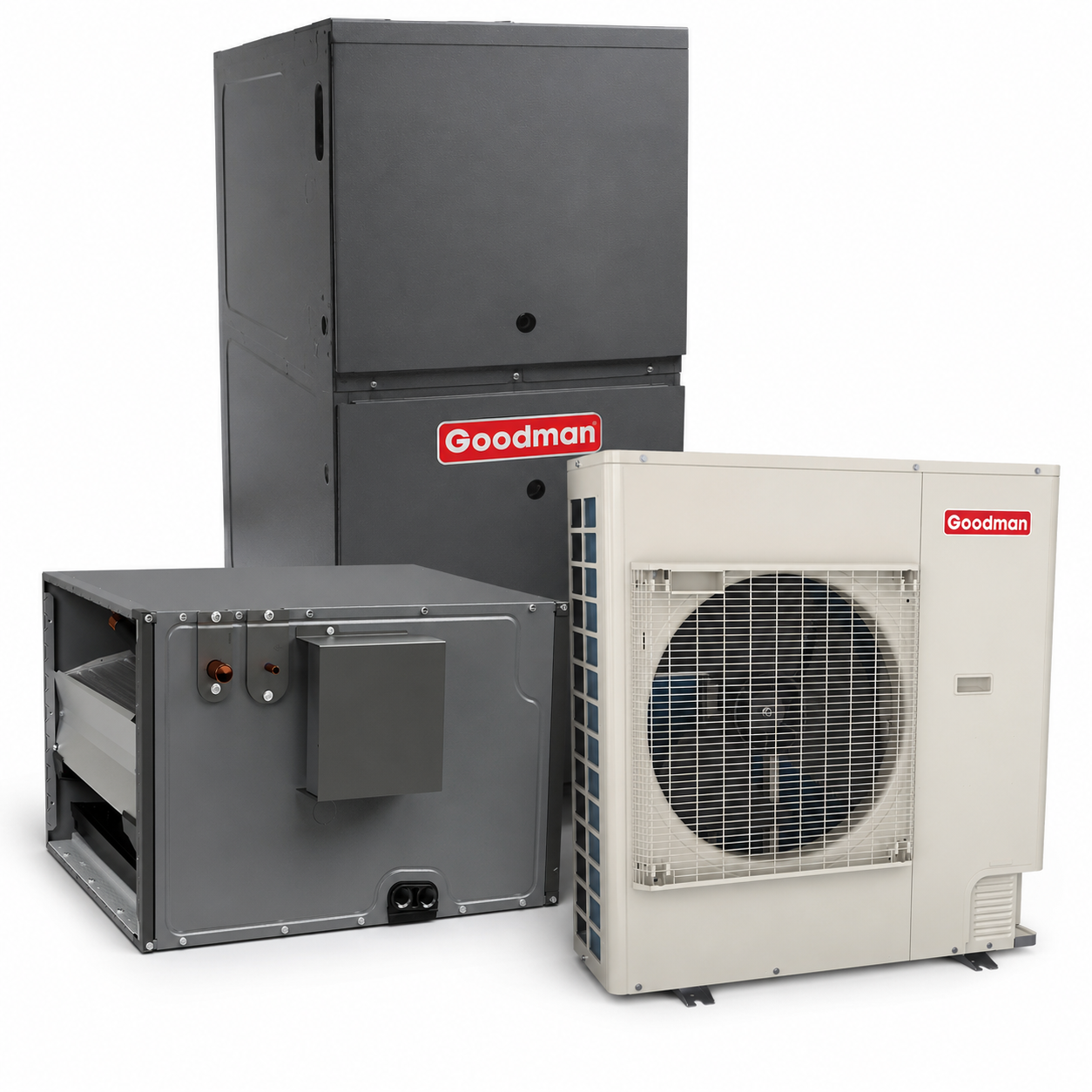

Goodman 3.5 Ton 17.0 SEER2 80% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal
Product Overview
Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3
An air conditioner or heat pump is only as good as its evaporator coil. The Goodman CHPEA series is designed with accessibility, longevity, and value in mind, matching the quality of Goodman’s heating and cooling equipment. This cased A coil is made for horizontal airflow applications, with an all-aluminum construction that improves durability and heat transfer efficiency.
Key Features
- All-Aluminum Evaporator Coil: Reliable design with fins and grooved tubes to maximize surface area and optimize heat transfer.
- Secure Cabinet: Galvanized, embossed, and insulated cabinet that prevents air leakage and ensures long-lasting efficiency.
- Condensate Management: Foil-faced insulation reduces condensate formation, while a UV-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections keeps the system safe and operational.pr
- Optimized for R-32 Refrigerant: Fully compatible with R-32 refrigerant, making it the ideal choice for modern HVAC systems.
- Internal Electronic Expansion Valve (EEV): Factory-installed for simplified installation and precise refrigerant flow management.
- Extended Warranty: 12-year limited parts warranty with online registration within 60 days of installation. Standard 5-year warranty applies if unregistered.
Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 12 Years |

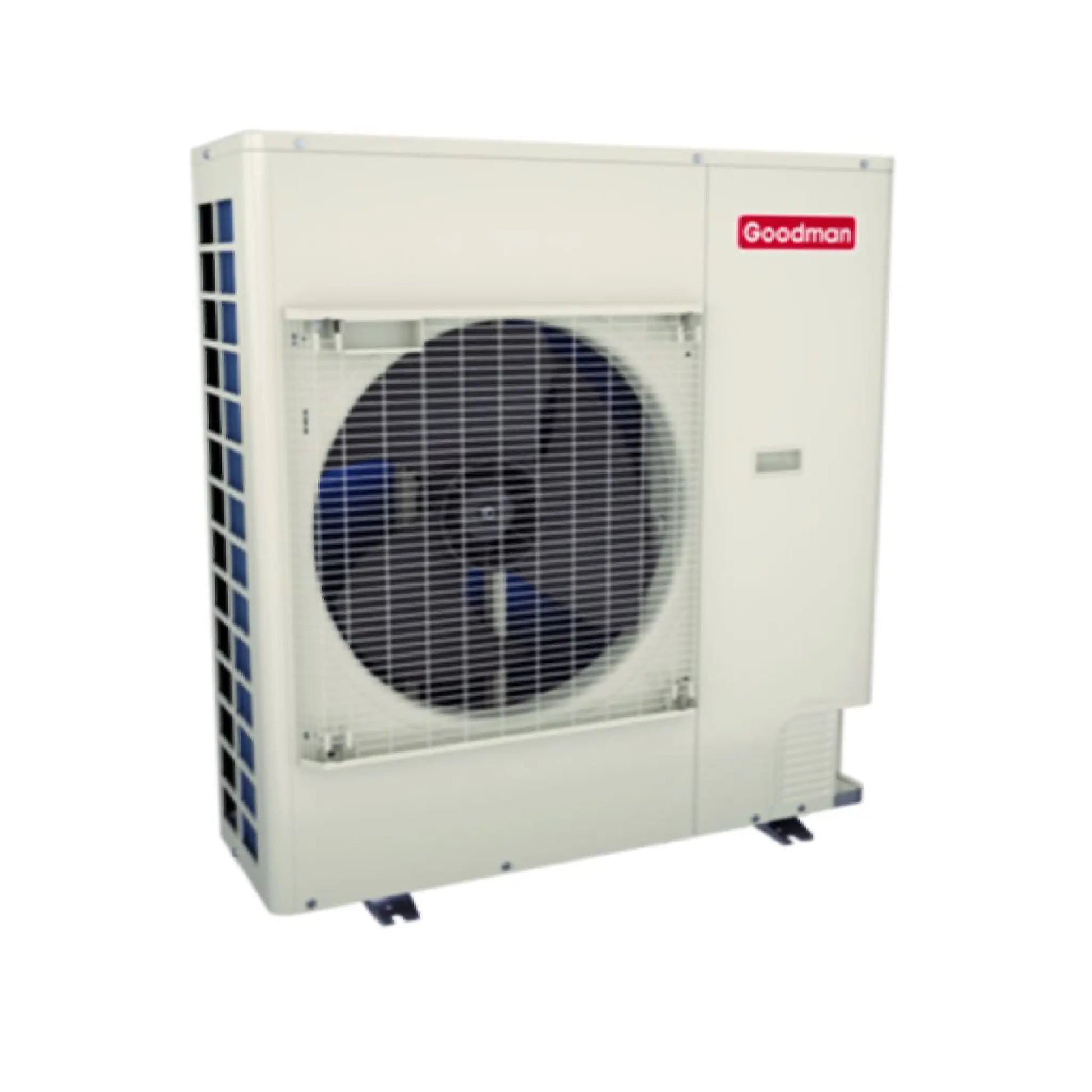

Goodman 3.5 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS4210
This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.
Standard Features
- Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
- Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
- High-density compressor sound blanket for enhanced sound reduction
- Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
- Proprietary control algorithmic logic for optimized system performance and reliability
- Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
- Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
- Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
- Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
- Field-selectable boost mode increases compressor speed during unusually high cooling loads
- Field-installed bi-flow filter drier for enhanced refrigerant system protection
- Integrated coil and ambient temperature sensors for accurate system monitoring
- Suction pressure transducer for improved compressor protection and performance tracking
- Sweat connection service valves with easy access to gauge ports for streamlined maintenance
- AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance
Cabinet & Durability Features
- Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
- Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
- High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
- 500-hour salt spray tested to ensure superior corrosion protection
- Wire fan discharge grille for added safety and structural integrity
- Top and side maintenance access panels for easier installation and serviceability
- When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
- Optional anchor bracket kits available for high-wind and severe weather installations
Goodman 3.5 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS4210
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
OVERVIEW

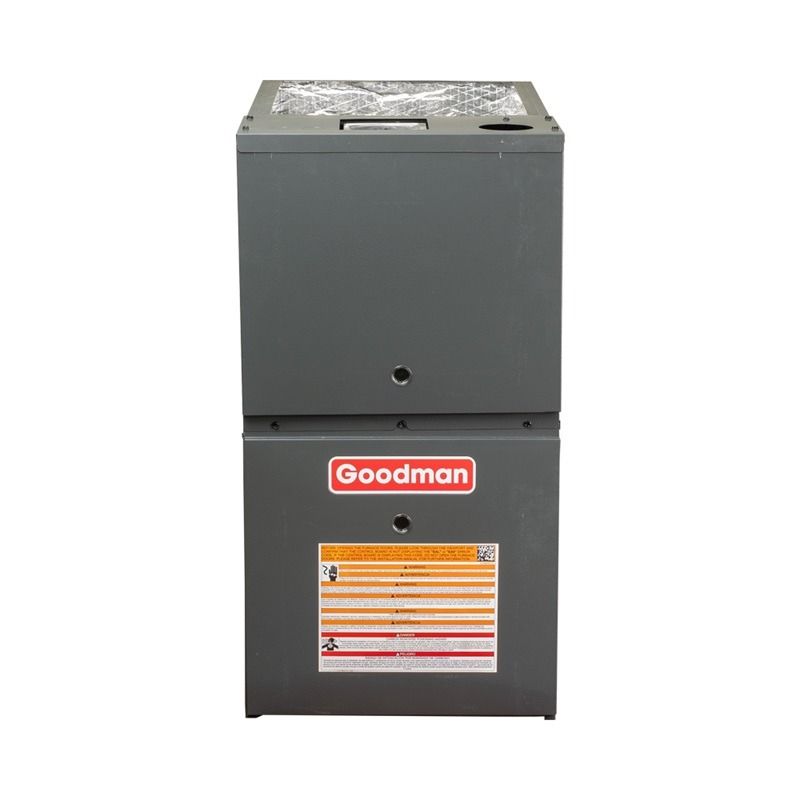

The GRVT800805DN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GRVT800805DN gas furnace.
QUICK FACTS
- This furnace is ideal to heat a small to medium house (in average climate conditions)
- 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
At an input of 80,000 BTU’s, the GRVT800805DN Goodman gas furnace is suitable for up to a small to medium house in an average climate. The output of this furnace is 64,000 BTU’s, which is calculated by the input times the 80% efficiency rating.
80% Efficiency Rating
With the industry standard efficiency of 80% AFUE, the GRVT800805DN Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GRVT800805DN requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.
Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.
Two Stage Variable Speed Furnace
The GRVT800805DN is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.
Warranty
The GRVT800805DN comes standard with Goodman’s 10 year parts warranty and its phenomenal lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online through the manufacturer.
Durability and Reliability
The tubular heat exchanger on the GRVT800805DN is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.
Installation
The GRVT800805DN furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the upflow or horizontal positions, allowing for a broader application potential.
Product Benefits (CHPEA4830D3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CHPEA4830D3)
- All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
- ETL listed
Cabinet Features (CHPEA4830D3)
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Technical Specifications - CHPEA4830D3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CHPEA |
| series name | CHPEA |
| model efficiency | 17 SEER |
| family description | Cased Horizontal "A" with Internal EEV |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051737020 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 48000 Btu/H |
| produced in us | Yes |
| cabinet finish | Galvanized, leather grain-embossed finish, Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 21 in |
| dimensions unit height | 25 in |
| dimensions unit width | 26.5 in |
| expansion device | EEV |
| indoor orifice size | 0.172 in |
| weight unit | 78 lb |
| tonnage | 4 |
| tonnage range | 4.0;5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 1-1/8 in |
| pipe size liquid | 1/4 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 32.50 in |
| dimensions case height | 26.50 in |
| dimensions case width | 26.50 in |
| dimensions distribution unit depth | 32.5 in |
| dimensions distribution unit height | 26.5 in |
| dimensions distribution unit width | 26.5 in |
| dimensions pallet depth | 34.00 in |
| dimensions pallet height | 58.00 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 32.50 in |
| dimensions shipping unit height | 26.50 in |
| dimensions shipping unit width | 26.50 in |
| distribution shipping volume unit | 22823.125 in³ |
| shipping volume unit | 22823.125 in³ |
| truck factor | 0.0000 |
| volume case | 22823.125 in³ |
| volume distribution shipping unit | 22823.125 in³ |
| weight case | 81.000 lb |
| weight distribution shipping unit | 81 lb |
| weight shipping unit | 81.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GXV6SS4210)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two low- voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
- Feild-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
Cabinet Features (GXV6SS4210)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV6SS4210
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV6SS |
| series name | GXV6SS |
| model efficiency | 16.2 SEER2 |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747128 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 9 |
| energy star certified | No |
| seer 2 hsvtc | 17 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 25.4 A |
| max overcurrent protection | 35 A |
| min circuit amps | 31.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 70 dBA |
| weight unit | 163 lb |
| cooling capacity rated | 41000 Btu/H |
| tonnage | 3.5 |
| factory std refrigerant charge | 100 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GRVT800805DN)
- High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
- Capable of using non communicating single-stage thermostats
- Durablend long igniter life
- Quietnd Economical heating
- Operates on single-stage thermostats
Product Features (GRVT800805DN)
- Heavy-dutyluminized-steel tubular heat exchanger
- Efficientnd quiet variable-speed Blower
- ComfortBridge™ Communicating System compatible
- Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
- Silicon Nitride igniter
- Two-Stage gas valve
Cabinet Features (GRVT800805DN)
- Multi-position installation: upflow, horizontal left or right
- Convenient left or right connection for gasnd electrical service
- Cabinetir leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchangernd blower section
- Bottom or side returnirpplications
- Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVT800805DN
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVT80 |
| series name | GRVT80 |
| model efficiency | 0.80 |
| family description | Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051703285 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| afue | 80 % |
| cooling capacity nominal | 60000 Btu/H |
| energy star certified | No |
| installation configuration | Upflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 20-50 °F |
| temperature rise range low fire | 30-60 °F |
| current type | AC |
| max overcurrent protection | 15 A |
| min circuit amps | 10.6 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1760 ft³/min |
| air flow rate low heating | 1175 ft³/min |
| ansi certifed | Yes |
| blower motor rpm | 1200 r/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 10 in |
| dimensions unit depth | 28 in |
| dimensions unit height | 33-3/8 in |
| dimensions unit width | 24-1/2 in |
| etl listed | Yes |
| external static pressure rated | 1 |
| filter size min | 20x25 |
| heat exchanger type | Gas |
| minimum clearances to combustible materials | 1 ft |
| motor speed type | Variable Speed ECM |
| nox burner type | Non NOx Rated |
| number of burners | 4 |
| weight unit | 129 lb |
| blower motor horsepower | 3/4 metric hp |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 64,000 |
| low fire input capacity | 56,000 |
| low fire output capacity | 44,800 |
| gas valve type | Two Stage |
| vent diameter | 4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 35.50 in |
| dimensions case width | 25.50 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 35.5 in |
| dimensions distribution unit width | 25.5 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 35.50 in |
| dimensions pallet width | 51.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 35.50 in |
| dimensions shipping unit width | 25.50 in |
| distribution shipping volume unit | 27157.5 in³ |
| shipping volume unit | 27157.500 in³ |
| truck factor | 0.0000 |
| volume case | 27157.500 in³ |
| volume distribution shipping unit | 27157.5 in³ |
| weight case | 125.000 lb |
| weight distribution shipping unit | 140.09 lb |
| weight shipping unit | 125.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Submittals
Leaflets & Manuals
- CHPEA Evaporator Coil, Horizontal A, 4 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 4 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 4 Ton, R-32
- CHPEA Evaporator Coil, Horizontal A, 4 Ton, R-32
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage
- Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage
- Goodman 80% AFUE Gas Furnace Variable Speed ECM, Two Stage
