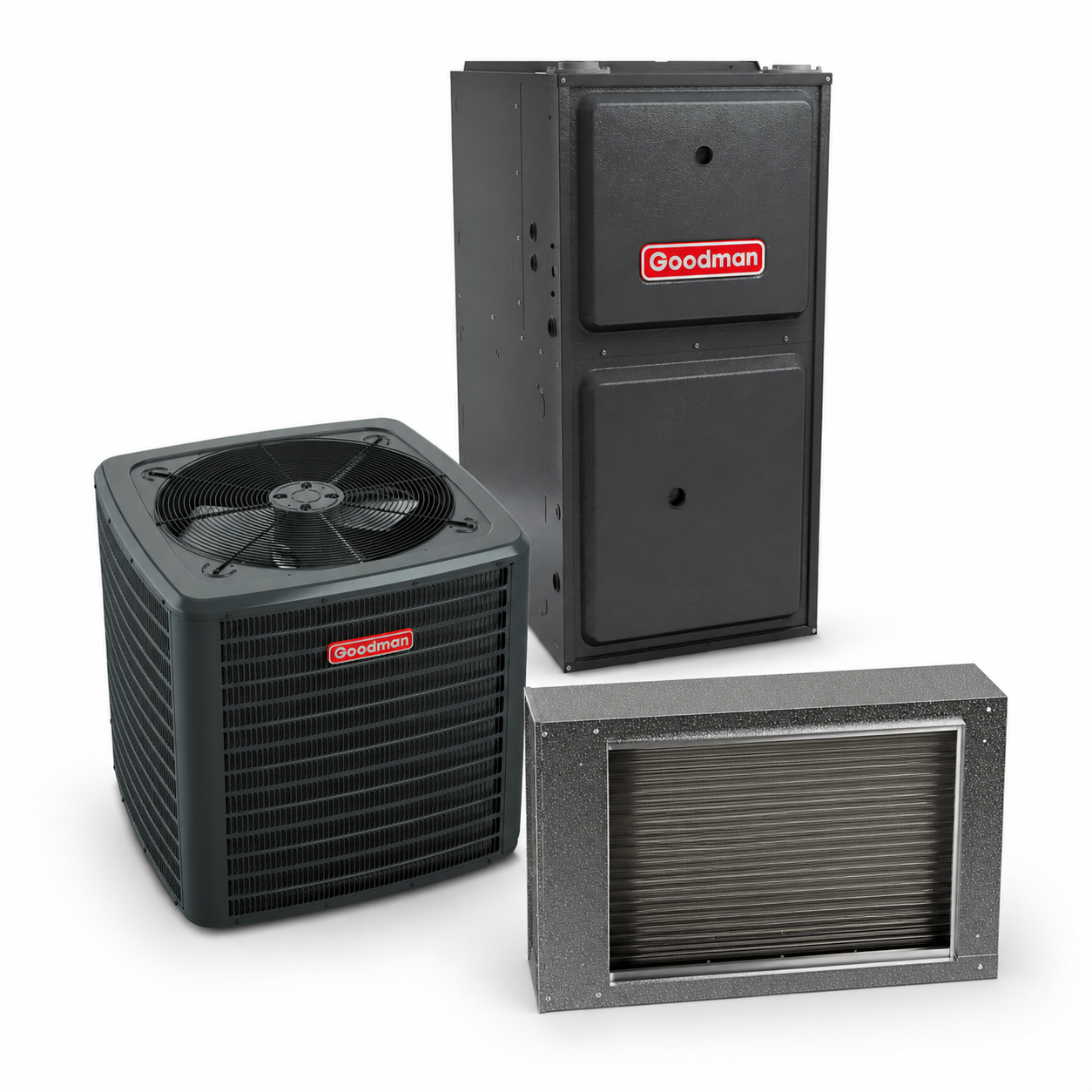

Goodman 3.5 Ton 14.3 SEER2 96% AFUE 120,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal
Product Overview
Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT6012L3

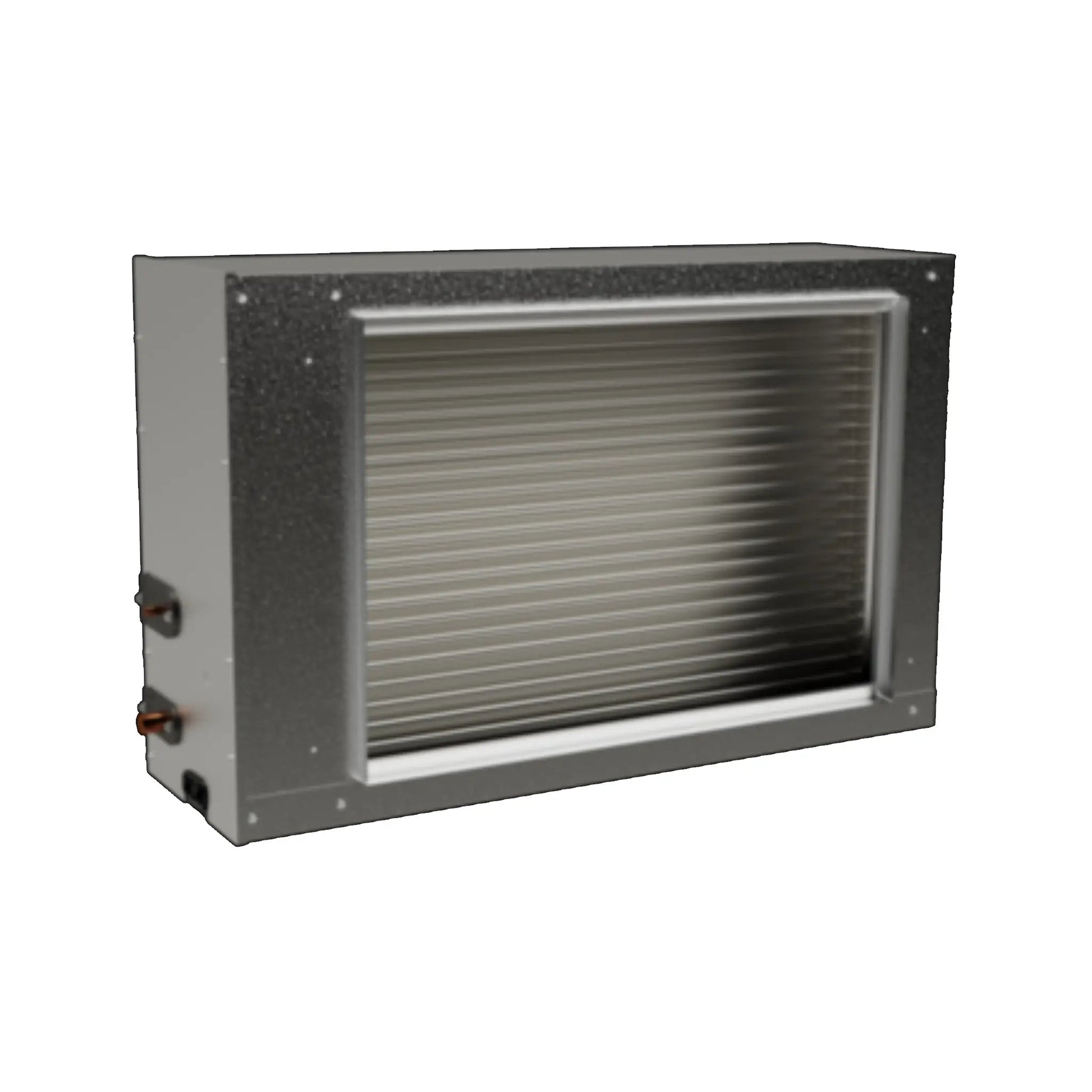

The Goodman CSCT6012L3 is the ultimate evaporator coil for large homes, offering powerful and energy-efficient cooling performance. Built with robust all-aluminum construction and optimized for R-32 refrigerant, this model is designed to meet the demands of high-capacity HVAC systems while maintaining environmental responsibility and long-term durability.
Key Features
- Nominal Capacity: 4–5 tons – Ideal for cooling large residential spaces with high efficiency.
- Dimensions: 39½" W x 12" D x 25" H – Standard size for easy system integration.
- Service Valve: ⅜" Liquid, ⅞" Suction – Compatible with common HVAC service setups.
- All-Aluminum Evaporator Coil: Offers enhanced corrosion resistance and effective heat transfer for long-lasting performance.
- Optimized for R-32 Refrigerant: Delivers efficient operation while meeting low-GWP refrigerant standards.
- Factory-Installed Thermal Expansion Valve (TXV): Provides precise refrigerant control and enhances system reliability.
- UV-Resistant Drain Pan: Protects against mold and mildew growth, supporting clean indoor air quality.
The CSCT6012L3 is the go-to evaporator coil for homeowners and HVAC professionals seeking high-performance cooling solutions for large-scale residential applications, with a focus on efficiency, sustainability, and durability.
Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT6012L3
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 5 years | 10 years | 10 years |
OVERVIEW
The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA4210 air conditioner condenser is a popular choice for homeowners around the United States.
QUICK FACTS
- Ideal size to cover a medium house in ideal climates
- 3.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
3.5 Ton
The GLXS4BA4210 Goodman condenser is a 3.5 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.
14.3 SEER2
The GLXS4BA4210 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.
Warranty
The GLXS4BA4210 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The GLXS4BA4210 Goodman AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The GLXS4BA4210 provides peace of mind thanks to its durability and reliability enhancements.
Installation and Maintenance
The Goodman GLXS4BA4210 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The Goodman brand always has its customer's comfort in mind. The GLXS4BA4210 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.
OVERVIEW
With a 96% efficiency rating, a variable-speed blower motor, and two stage gas valves, the GRVT961205DN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVT961205DN is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 120,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
120,000 BTU
With an input of 120,000 BTU’s and an efficiency of 96%, the GRVT961205DN has an output of 115,320 BTU’s. This is calculated by taking 120,000 BTU’s times the efficiency of 96%. As such, the GRVT961205DN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
96% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVT961205DN gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVT961205DN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Two Stage Variable Speed Furnace
Goodman manufactured the GRVT961205DN gas furnace to utilize the best burner and blower technologies available. With a two stage gas valve and a variable speed blower motor, the GRVT961205DN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVT961205DN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVT961205DN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Fuel Types
Out of the factory, the GRVT961205DN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVT961205DN gas furnace can be installed in the upflow or horizontal orientations. The two stage gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GRVT961205DN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Features (CSCT6012L3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling applications
- Compact and versatile - right or left horizontal position
- Copper sweat connections
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CSCT6012L3)
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Compact and versatile - right or left horizontal position
- Copper sweat connections
Technical Specifications - CSCT6012L3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CSCT |
| series name | CSCT |
| family description | CSCT Horizontal Slab |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051750708 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | Mexico |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | No |
| cabinet finish | Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 12 in |
| dimensions unit height | 25 in |
| dimensions unit width | 39-1/2 in |
| expansion device | TXV |
| tonnage | 5 |
| tonnage range | 5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 14.00 in |
| dimensions case height | 25.50 in |
| dimensions case width | 41.50 in |
| dimensions distribution unit depth | 14 in |
| dimensions distribution unit height | 25.5 in |
| dimensions distribution unit width | 41.5 in |
| dimensions pallet depth | 56.00 in |
| dimensions pallet height | 56.00 in |
| dimensions pallet width | 43.00 in |
| dimensions shipping unit depth | 14.00 in |
| dimensions shipping unit height | 25.50 in |
| dimensions shipping unit width | 41.50 in |
| distribution shipping volume unit | 14815.5 in³ |
| shipping volume unit | 14815.500 in³ |
| truck factor | 0.0000 |
| volume case | 14815.500 in³ |
| volume distribution shipping unit | 14815.5 in³ |
| weight case | 60.090 lb |
| weight distribution shipping unit | 60.09 lb |
| weight shipping unit | 60.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GLXS4BA4210)
- Energy-Efficienct Compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
Cabinet Features (GLXS4BA4210)
- Removable grille-style top designcompliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GLXS4BA4210
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS4B |
| series name | GLXS4B |
| model efficiency | 14.3 SEER2 |
| family description | Energy-Efficient Classic R-32 Split System Air Conditioner, 14.3 SEER2, 1½ To 5 Tons |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051691667 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8085 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 42000 Btu/H |
| eer2 hsvtc | 11.7 |
| energy star certified | No |
| seer 2 hsvtc | 14.3 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| max overcurrent protection | 30 A |
| min circuit amps | 18.95 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 14.4 A |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 35.75 in |
| dimensions unit width | 35-1/2 in |
| sound pressure high cooling | 72 dBA |
| weight unit | 72 lb |
| cooling capacity rated | 40000 Btu/H |
| tonnage | 3.5 |
| additional refrigerant charge oz ft | 0.64 lb |
| factory std refrigerant charge | 82.6 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 52706.5 in³ |
| shipping volume unit | 52706.500 in³ |
| truck factor | 0.0000 |
| volume case | 52706.500 in³ |
| volume distribution shipping unit | 52706.5 in³ |
| weight case | 247.000 lb |
| weight distribution shipping unit | 247 lb |
| weight shipping unit | 247.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GRVT961205DN)
- High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
- Faster condensate water drainagend no unit water leakage
- Durablend long igniter life
- Self-diagnostic control board with constant memory fault code history output
- Provisions for electronicir cleanernd humidifier
- Quietnd Economical heating
- Lower NOx emission
- Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards.
- Tax Credit
- Operates on two-stage or single-stage thermostats
- Easy Connection for EACnd Humidifier
Product Features (GRVT961205DN)
- Heavy-dutyluminized-steel tubular heat exchanger
- Efficientnd quiet variable-speed Blower
- Integrated communicating ComfortBridge™ technology
- Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Two-Stage gas valve;10.ll models comply with California 40 ng/J;11.HRI Certified, ETL Listed
- Energy Star
- Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers
Cabinet Features (GRVT961205DN)
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gasnd electrical service
- Cabinetir leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchangernd blower section
- Bottom or side returnirpplications
- Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVT961205DN
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVT96 |
| series name | GRVT96 |
| model efficiency | 0.96 |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051702943 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 96 % |
| cooling capacity nominal | 60000 Btu/H |
| energy star certified | Yes |
| installation configuration | Upflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 35-65 °F |
| temperature rise range low fire | 35-65 °F |
| current type | AC |
| max overcurrent protection | 20 A |
| min circuit amps | 13.9 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| dimensions blower diameter | 11 in |
| dimensions blower width | 11 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 24-1/2 in |
| heat exchanger type | Gas |
| motor speed type | Variable Speed ECM |
| nox burner type | Low NOx |
| number of burners | 6 |
| blower motor horsepower | 1 metric hp |
| high fire input capacity | 120000 Btu |
| high fire output capacity | 115320 |
| low fire input capacity | 84000 |
| low fire output capacity | 80724 |
| gas valve type | Two Stage |
| vent diameter | 2 in;3 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 25.50 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 25.5 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 51.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 25.50 in |
| distribution shipping volume unit | 29452.5 in³ |
| shipping volume unit | 29452.500 in³ |
| truck factor | 0.0000 |
| volume case | 29452.500 in³ |
| volume distribution shipping unit | 29452.5 in³ |
| weight case | 156.000 lb |
| weight distribution shipping unit | 140.09 lb |
| weight shipping unit | 156.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
Submittals
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- Goodman Split Air Conditioner 14.3 SEER2, Single Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Two Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Two Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Two Stage
Leaflets & Manuals
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- CSCT Evaporator Coil, Horizontal Slab, 5 Ton, R-32
- Goodman Split Air Conditioner 14.3 SEER2, Single Stage
- Goodman Split Air Conditioner 14.3 SEER2, Single Stage
- Goodman Split Air Conditioner 14.3 SEER2, Single Stage
- Goodman Split Air Conditioner 14.3 SEER2, Single Stage
- Goodman Split Air Conditioner 14.3 SEER2, Single Stage
- Goodman 96% AFUE Gas Furnace Variable Speed ECM, Two Stage
