Goodman

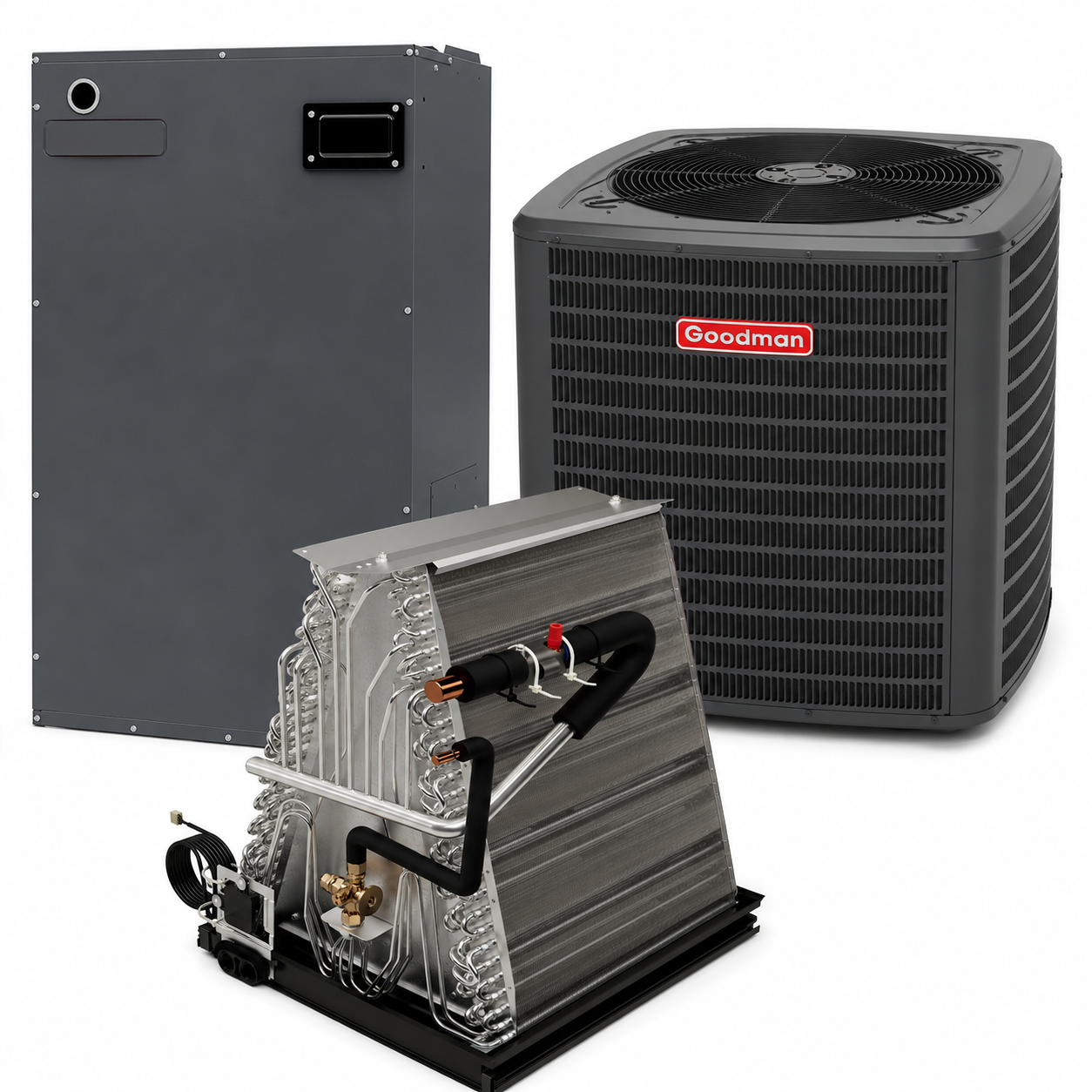

Goodman 3.5 Ton 13.8 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 20"

SKU: GLXS3BN4210 + CAUTA4230C3 + MBVB20DP1X00

System highlights
AC Type
AC & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
42000 BTU VO (3.5 TON)
Indoor Unit
42000 BTU (3.5 TON)
Voltage
208-230V
Looking For
AC & Electrical Furnace System
SEER2 Rating
14.0
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1600
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
20
Goodman 3.5 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,551.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 3.5 Ton 13.8 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 20"

Product Overview

OVERVIEW

The Goodman GLXS3BN4210 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GLXS3BN4210 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

  • Ideal size to cover a medium-sized house
  • 3.5 ton, 13.4 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

3.5 ton

The GLXS3BN4210 condenser is a 3.5 ton AC only unit. In an ideal climate situation, the GLXS3BN4210 can usually cover a medium-sized house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13.4 SEER2

The Goodman GLXS3BN4210 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GLXS3BN4210 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GLXS3BN4210 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GLXS3BN4210 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS3BN4210 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

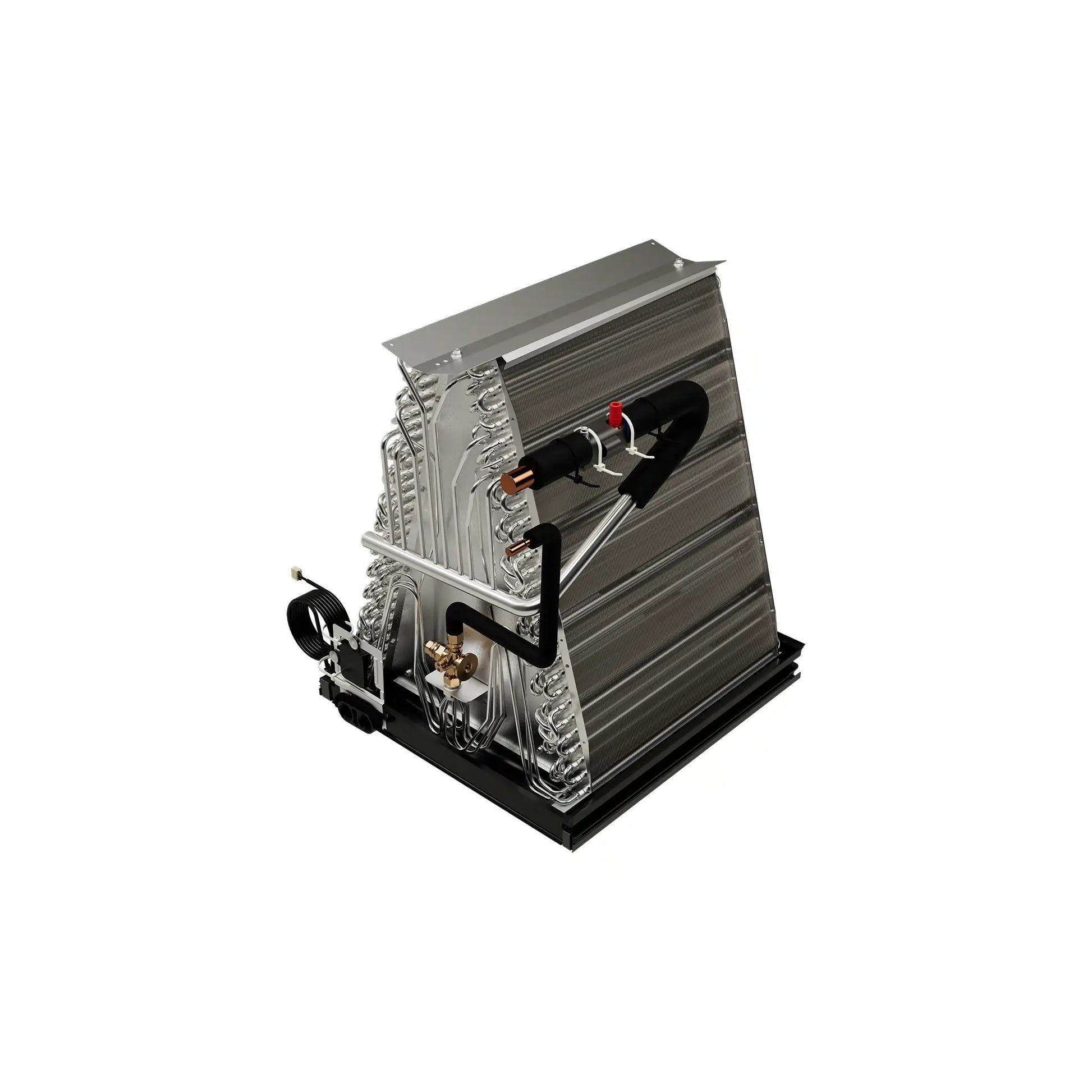

Goodman 3.5 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 CAUTA4230C3

The Goodman CAUTA 3.5-ton uncased evaporator coil is engineered for flexible upflow and downflow HVAC installations. Built with a robust all-aluminum coil optimized for R-32 refrigerant, this model ensures long-lasting efficiency and durability. Featuring a factory-installed thermal expansion valve (TXV), this coil supports precise refrigerant metering for enhanced cooling performance. With a 20-inch cabinet width and a UV-resistant, rust-proof thermoplastic drain pan, the coil provides both installation flexibility and superior moisture management.

Key Features

  • 3.5 Ton uncased evaporator coil designed for upflow and downflow systems
  • All-aluminum coil construction for improved heat transfer and corrosion resistance
  • Pre-installed TXV provides precise refrigerant control and optimized efficiency
  • Fully compatible with R-32 refrigerant, including specialized manifolds and sensors
  • Foil-faced insulation minimizes condensation within the cabinet
  • Rust-resistant, low-retention thermoplastic drain pan with secondary drain outlets
  • Drain pan rails simplify coil handling and repositioning during installation or service
  • UV-resistant, DecaBDE-free drain pan enhances longevity and environmental compliance
  • Standardized copper suction tube stub lengths for easier connection
  • Certified by AHRI and listed by ETL for quality assurance

Ideal for residential HVAC systems, this coil delivers durable, high-capacity performance with efficient refrigerant management and flexible installation options.

Goodman 3.5 Ton Uncased Evaporator Coil Upflow/Downflow TXV Expansion R32 CAUTA4230C3

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS3BN4210)

  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLXS3BN4210)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS3BN4210

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS3B
series name GLXS3B
model efficiency 13.4 SEER2
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051715905
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
cooling capacity nominal 42000 Btu/H
eer2 hsvtc 11.2
energy star certified No
seer 2 hsvtc 13.4
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 30 A
min circuit amps 19.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
rated load amps 14.4 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 35.75 in
dimensions unit width 29 in
sound pressure high cooling 73 dBA
weight unit 180 lb
cooling capacity rated 39500 Btu/H
tonnage 3.5
additional refrigerant charge oz ft 0.58 lb
factory std refrigerant charge 74 oz
pipe size gas 1-1/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 1-1/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 38.50 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 38.50 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 35227.5 in³
shipping volume unit 35227.500 in³
truck factor 0.0000
volume case 35227.500 in³
volume distribution shipping unit 35227.5 in³
weight case 195.000 lb
weight distribution shipping unit 195 lb
weight shipping unit 195.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAUTA4230C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valve for cooling applications
  • Standardized copper suction tube stub length
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
  • UV-resistant drain pan

Technical Specifications - CAUTA4230C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAUTA_32
series name CAUTA
family description CAUTA Uncased Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051729407
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Unpainted
cased vs uncased Uncased
dimensions unit depth 21.3 in
dimensions unit height 27.4 in
dimensions unit width 20 in
expansion device TXV
tonnage 3.5
tonnage range 3.5
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20010.25 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20010.25 in³
weight case 38.000 lb
weight distribution shipping unit 38 lb
weight shipping unit 38.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB20DP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB20DP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB20DP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692923
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.92
produced in us No
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 11 in
dimensions blower width 10 in
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 24-1/2 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.75 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.50 in
dimensions case width 26.00 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 33 in
dimensions distribution unit width 27 in
dimensions pallet depth 55.00 in
dimensions pallet height 69.50 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.50 in
dimensions shipping unit width 26.00 in
distribution shipping volume unit 23166 in³
shipping volume unit 21970.000 in³
truck factor 0.0000
volume case 21970.000 in³
volume distribution shipping unit 23166 in³
weight case 85.000 lb
weight distribution shipping unit 85 lb
weight shipping unit 85.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
