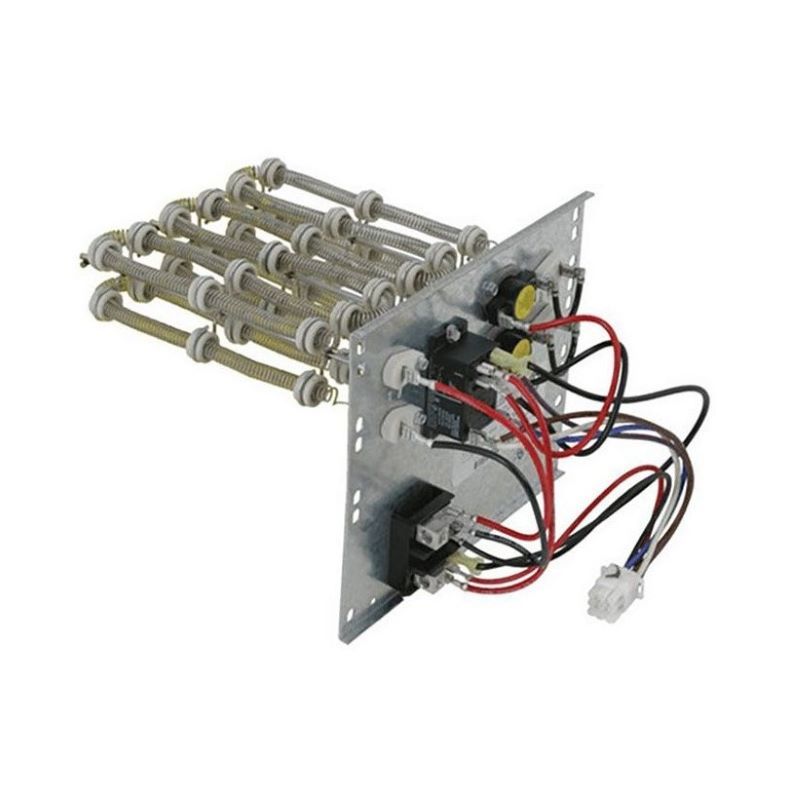

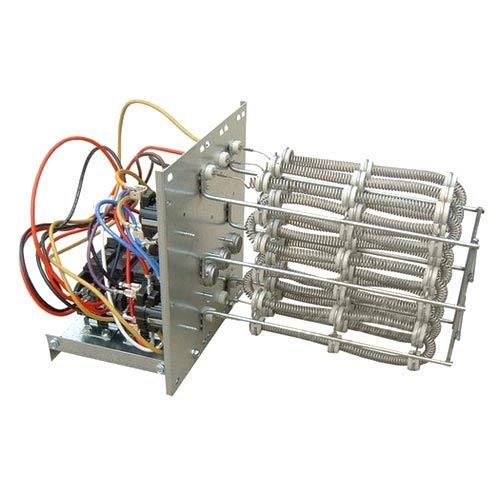

Goodman 20 Kilowatt Electric Strip Heat Kit with Circuit Breaker for Package Unit
Product Overview
This 20kW Goodman Heat Kit can be added to a Goodman package unit to provide winter-time heating capabilities. Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
Technical Specifications - HKTPD201
| sku | HKTPD201 |
|---|---|
| weight (in lbs) | 9.000000 |
| brand/manufacturer | Goodman |
| heating btu | 64,800 |
| electric heat | 20 Kilowatts |
| electrical | 208 / 230 / 240 Volts / 1 Phase |
| phase | Single Phase |
| max breaker size | 49 Amps |
| min. breaker size | 43 Amps |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
