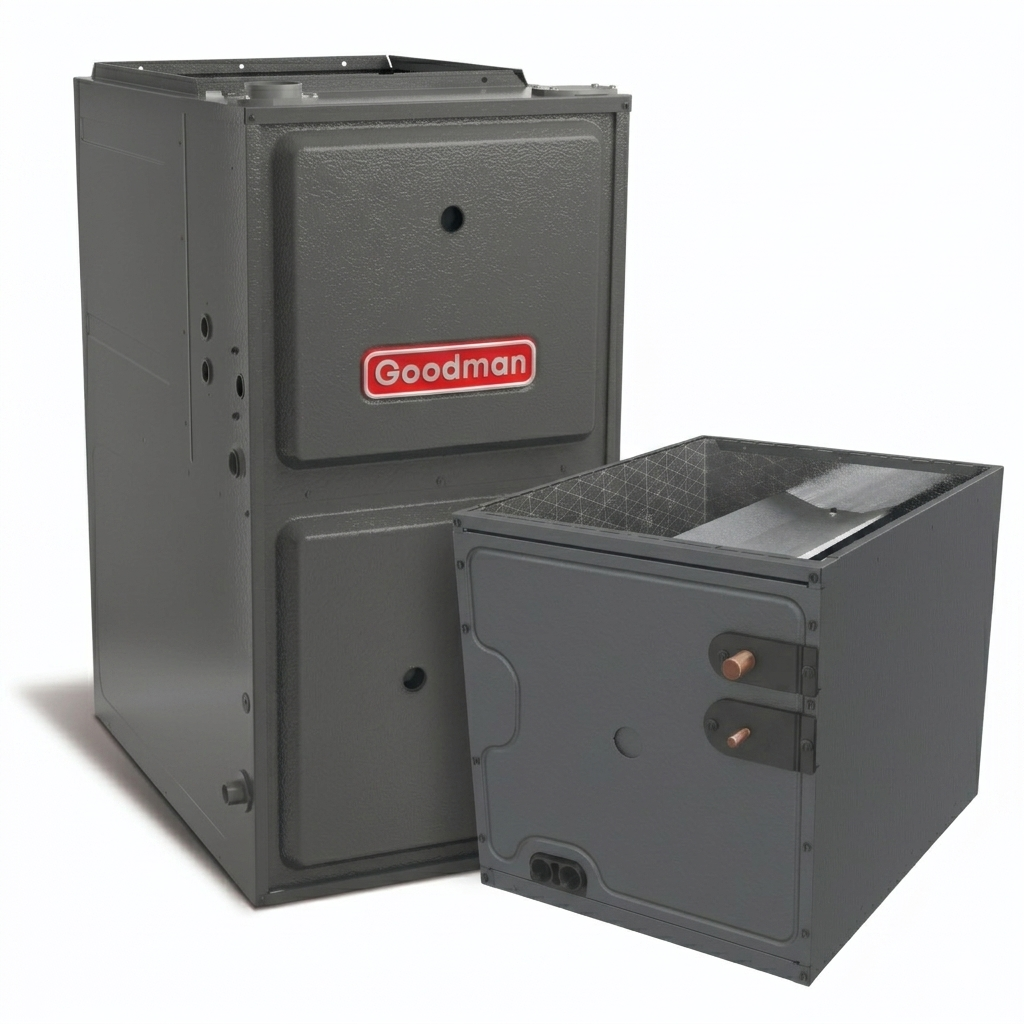

Goodman 2 Ton 96% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

• All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
• 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

OVERVIEW

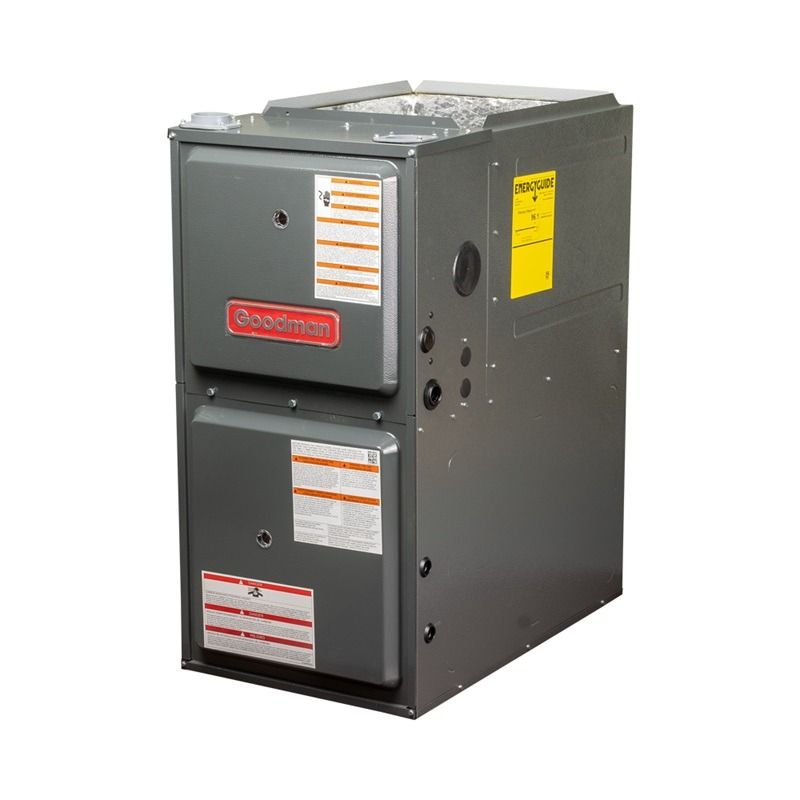

With a 96% efficiency rating, a variable-speed blower motor, and Single stage gas valves, the GRVS960805CU is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVS960805CU is an excellent choice, offering one of the best efficiency levels available on the market.

QUICK FACTS

• Ideal to heat a small to medium house (in an ideal climate)
• 80,000 BTU 96% AFUE modulating variable speed natural gas furnace
• Requires plastic/PVC flue venting
• Can be installed in the upflow or horizontal orientation
• Innovative design for electrical efficiency, safety, and lower sound output

Ultra-Low NOx Compliant

In California, many counties have a lower NOx emission requirement than the rest of the United States. The GRVS960805CU Goodman gas furnace is California Ultra-Low NOx compliant. With a built-in low emission filter and special venting system, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.

Ultra-Low NOx furnaces are required for gas furnace installations in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. If you have any questions, please contact us.

80,000 BTU

With an input of 80,000 BTU’s and an efficiency of 96%, the GRVS960805CU has an output of 76,880 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 96%. As such, the GRVS960805CU Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.

96% AFUE

With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVS960805CU gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVS960805CU is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.

Single Stage Furnace

The GRVS960805CU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Warranty

The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.

Durability and Reliability

Not stopping at an enhanced functionality, Goodman designed the GRVS960805CU with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVS960805CU is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.

Installation and Maintenance

For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVS960805CU gas furnace can be installed in the upflow or horizontal orientations. Moreover, the GRVS960805CU is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
