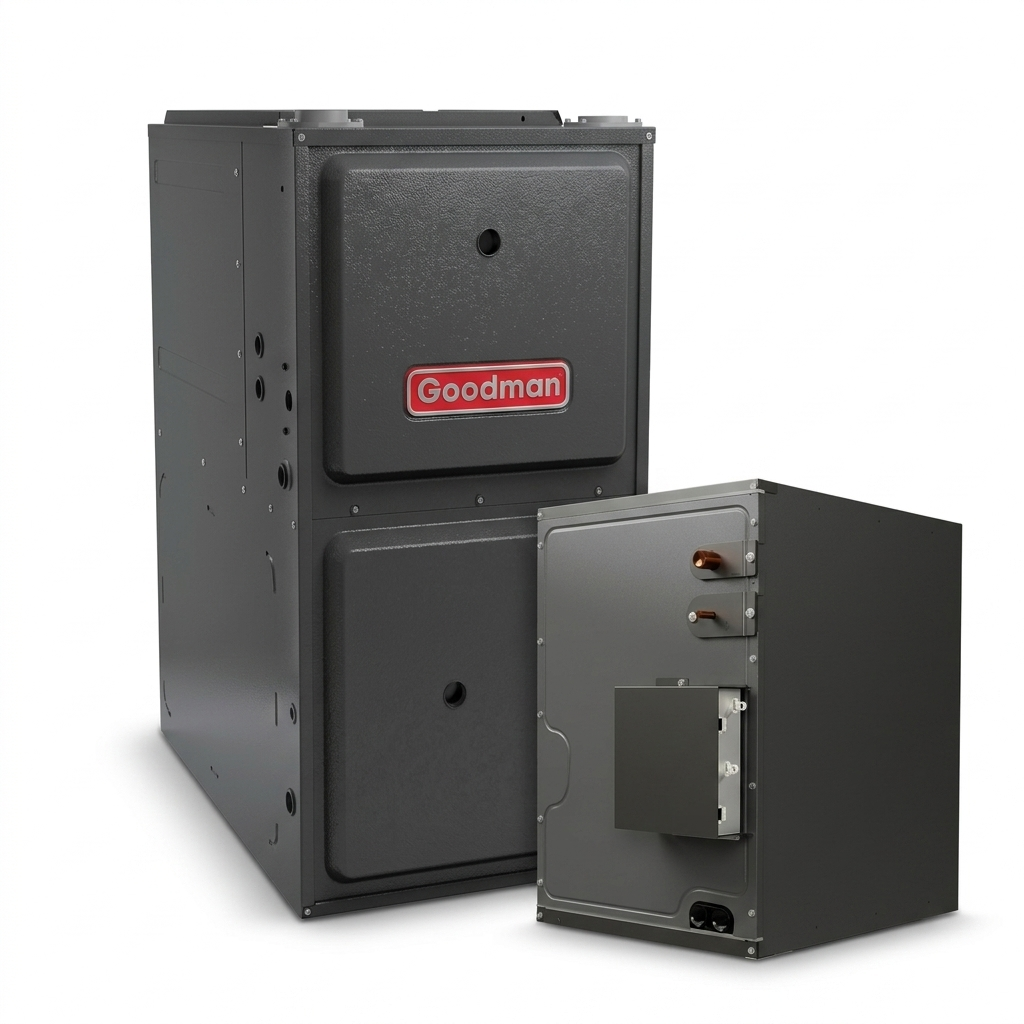

Goodman 2 Ton 96% AFUE Furnace and Coil System - R32 - Upflow/Horizontal
Product Overview
Goodman 2 Ton Evaporator Coil 21" Cabinet EEV Expansion Upflow/Downflow CAPEA2418C3
The Goodman CAPEA2418C3 is a versatile cased evaporator coil engineered for both upflow and downflow installations. Designed for modern R-32 refrigerant systems, this indoor coil features a factory-installed Electronic Expansion Valve (EEV) for enhanced refrigerant control and compatibility with advanced communicating HVAC systems. With a compact 21" depth, it's ideal for tight attic spaces and applications requiring flexible installation without sacrificing performance or efficiency.
Product Features:
- All-Aluminum Evaporator Coil – Built for durability and optimal heat transfer, reducing corrosion and increasing coil longevity.
- R-32 Refrigerant Optimization – Engineered with specialized circuits and manifolds to maximize performance with environmentally friendly R-32 refrigerant.
- Integrated R-32 Sensor – Designed to last the life of the coil and ensure optimal refrigerant management throughout system operation.
- Factory-Installed Electronic Expansion Valve (EEV) – Provides precision refrigerant control and supports compatibility with Daikin One+ smart thermostats and Daikin communicating equipment.
- Upflow & Downflow Configuration – Offers flexible installation options in a wide range of home HVAC setups.
- Seven-Millimeter Coil Tubing – Improves overall system efficiency and performance in both cooling and heat pump applications.
- Fault Recall Memory – Stores the six most recent system faults for simplified diagnostics and service.
- Standardized Copper Suction Tube Stub Length – Ensures easier installation across different system configurations.
- 21-Inch Depth – Compact design allows for easier access during attic or tight-space installations.
- Foil-Faced Internal Insulation – Helps reduce cabinet condensation, improves efficiency, and protects internal components.
- Galvanized, Leather Grain-Embossed Finish – Rugged exterior provides lasting protection and resists wear and corrosion.
- Rust-Resistant Thermoplastic Drain Pan – Low water-retention design helps prevent microbial growth and corrosion over time.
- DecaBDE-Free, UV-Resistant Drain Pan – Environmentally conscious and built for long-term UV exposure without degradation.
- Drain Pan Rails – Allow for easy removal and repositioning of the coil without compromising structural integrity.
- AHRI Certified & ETL Listed – Meets strict efficiency and safety standards for trusted performance and compliance.
Advanced Control & Compatibility:
With its built-in electronic expansion valve (EEV), the CAPEA2418C3 supports advanced system communication and control, making it an ideal match for Daikin One+ smart thermostats and other Daikin communicating HVAC equipment. This advanced compatibility ensures better system performance, precision diagnostics, and maximum energy efficiency.
Goodman 2 Ton Evaporator Coil 21" Cabinet EEV Expansion Upflow/Downflow CAPEA2418C3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
OVERVIEW
With a 96% efficiency rating, a variable-speed blower motor, and two stage gas valves, the GRVT960403BN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVT960403BN is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 40,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
With an input of 40,000 BTU’s and an efficiency of 96%, the GRVT960403BN has an output of 38,440 BTU’s. This is calculated by taking 40,000 BTU’s times the efficiency of 96%. As such, the GRVT960403BN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
96% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVT960403BN gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVT960403BN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Two Stage Variable Speed Furnace
Goodman manufactured the GRVT960403BN gas furnace to utilize the best burner and blower technologies available. With a two stage gas valve and a variable speed blower motor, the GRVT960403BN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVT960403BN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVT960403BN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Fuel Types
Out of the factory, the GRVT960403BN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVT960403BN gas furnace can be installed in the upflow or horizontal orientations. The two stage gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GRVT960403BN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Benefits (CAPEA2418C3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CAPEA2418C3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CAPEA2418C3)
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA2418C3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| model efficiency | 17 SEER |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731431 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 24000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 18 in |
| dimensions unit width | 21 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 47 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.25 in |
| dimensions case height | 20.75 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26.25 in |
| dimensions distribution unit height | 20.75 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 66.75 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.25 in |
| dimensions shipping unit height | 20.75 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 12800.15625 in³ |
| shipping volume unit | 12800.156 in³ |
| truck factor | 0.0000 |
| volume case | 12800.156 in³ |
| volume distribution shipping unit | 12800.15625 in³ |
| weight case | 49.000 lb |
| weight distribution shipping unit | 51.09 lb |
| weight shipping unit | 49.000 lb |
Product Benefits (GRVT960403BN)
- High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
- Faster condensate water drainagend no unit water leakage
- Durablend long igniter life
- Self-diagnostic control board with constant memory fault code history output
- Provisions for electronicir cleanernd humidifier
- Quietnd Economical heating
- Lower NOx emission
- Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards.
- Tax Credit
- Operates on two-stage or single-stage thermostats
- Easy Connection for EACnd Humidifier
Product Features (GRVT960403BN)
- Heavy-dutyluminized-steel tubular heat exchanger
- Efficientnd quiet variable-speed Blower
- Integrated communicating ComfortBridge™ technology
- Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Two-Stage gas valve;10.ll models comply with California 40 ng/J;11.HRI Certified, ETL Listed
- Energy Star
- Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers
Cabinet Features (GRVT960403BN)
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gasnd electrical service
- Cabinetir leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchangernd blower section
- Bottom or side returnirpplications
- Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVT960403BN
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVT96 |
| series name | GRVT96 |
| model efficiency | 0.96 |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051702844 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 96 % |
| cooling capacity nominal | 36000 Btu/H |
| energy star certified | Yes |
| installation configuration | Upflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 20-50 °F |
| temperature rise range low fire | 20-50 °F |
| current type | AC |
| max overcurrent protection | 15 A |
| min circuit amps | 7.6 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1078 ft³/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 17-1/2 in |
| heat exchanger type | Gas |
| motor speed type | Variable Speed ECM |
| nox burner type | Low NOx |
| number of burners | 2 |
| blower motor horsepower | 1/2 metric hp |
| high fire input capacity | 40000 Btu |
| high fire output capacity | 39000 |
| low fire input capacity | 28000 |
| low fire output capacity | 27300 |
| gas valve type | Two Stage |
| vent diameter | 2 in;3 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 18.5 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 21367.5 in³ |
| shipping volume unit | 21367.500 in³ |
| truck factor | 0.0000 |
| volume case | 21367.500 in³ |
| volume distribution shipping unit | 21367.5 in³ |
| weight case | 115.000 lb |
| weight distribution shipping unit | 125.09 lb |
| weight shipping unit | 115.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
