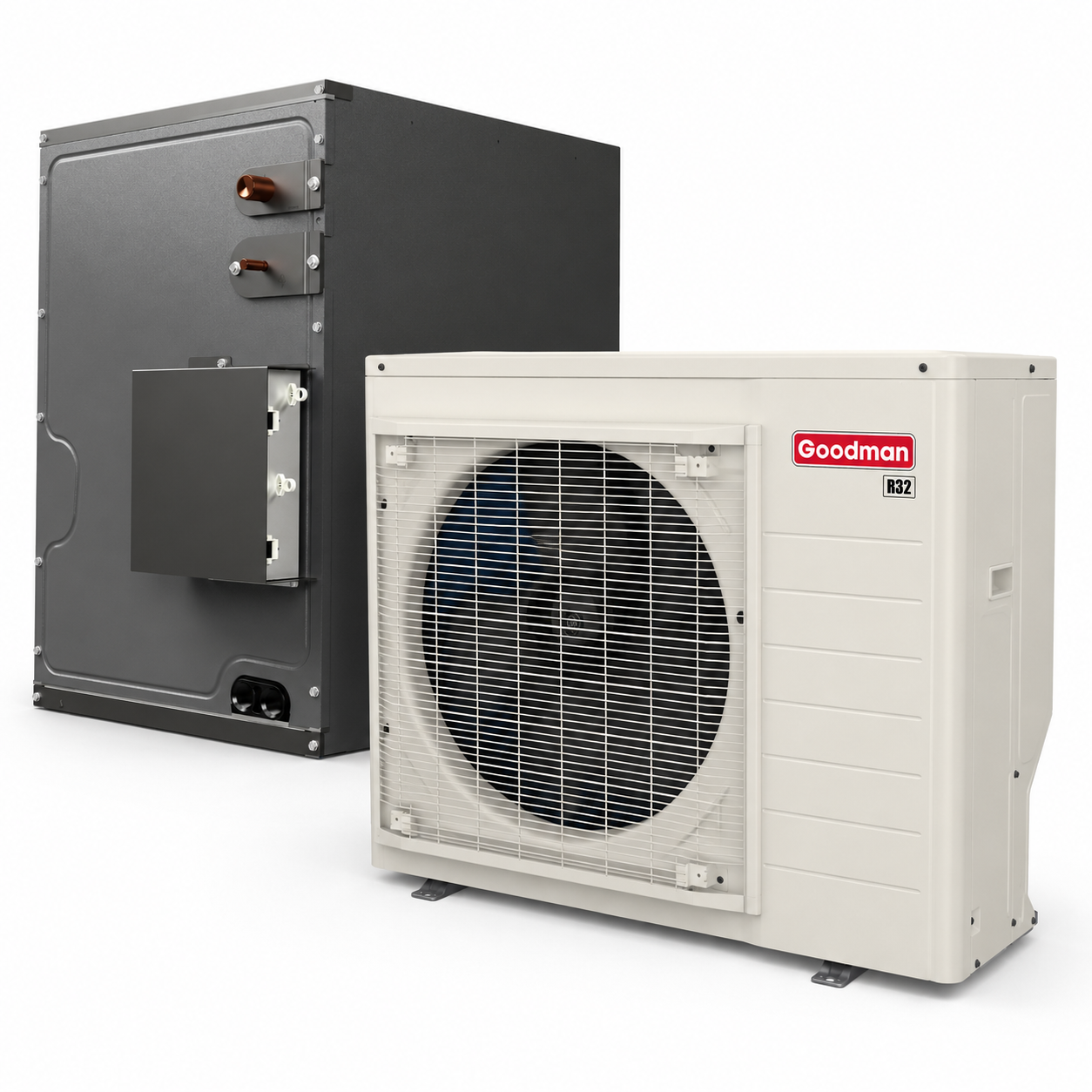

Goodman 2 Ton 19.0 SEER2 Central Air Conditioner Split with 20' inch Upflow/Downflow Cased Coil- R32
Product Overview
Goodman 3 Ton Evaporator Coil EEV Expansion 17.5" Cabinet Upflow/Downflow CAPEA3626B3
The Goodman CAPEA3626B3 is a 3-ton cased evaporator coil engineered for use in split system air conditioners and heat pumps. Designed for both upflow and downflow installations, this A coil provides reliable cooling performance and exceptional heat transfer with its all-aluminum construction. It features a factory-installed thermal expansion valve (TXV) for consistent refrigerant flow and optimized system performance. The coil's cabinet includes a durable galvanized steel finish with a leather grain-embossed texture and foil-faced insulation to reduce cabinet condensation.
Key Features
- 3 Ton Cooling Capacity (36,000 BTU)
- All-Aluminum Coil Enhances Corrosion Resistance and Efficiency
- Factory-Installed TXV for Controlled and Efficient Refrigerant Flow
- Supports Both Upflow and Downflow Installation Configurations
- Thermoplastic Drain Pan for Long-Lasting Moisture Management
- Foil-Faced Insulation Reduces Internal Cabinet Condensation
- Galvanized Cabinet with Leather Grain-Embossed Finish
- Single Front Access Panel for Easier Servicing
- Compact 17.5" Wide Cabinet for Tight Installations
- AHRI Certified, ETL Listed, and ISO Certified
Perfect for residential applications requiring reliability, energy efficiency, and simplified maintenance, this coil is a strong choice for both new installations and system replacements using R-32 refrigerant.
Goodman 3 Ton Evaporator Coil EEV Expansion 17.5" Cabinet Upflow/Downflow CAPEA3626B3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Details

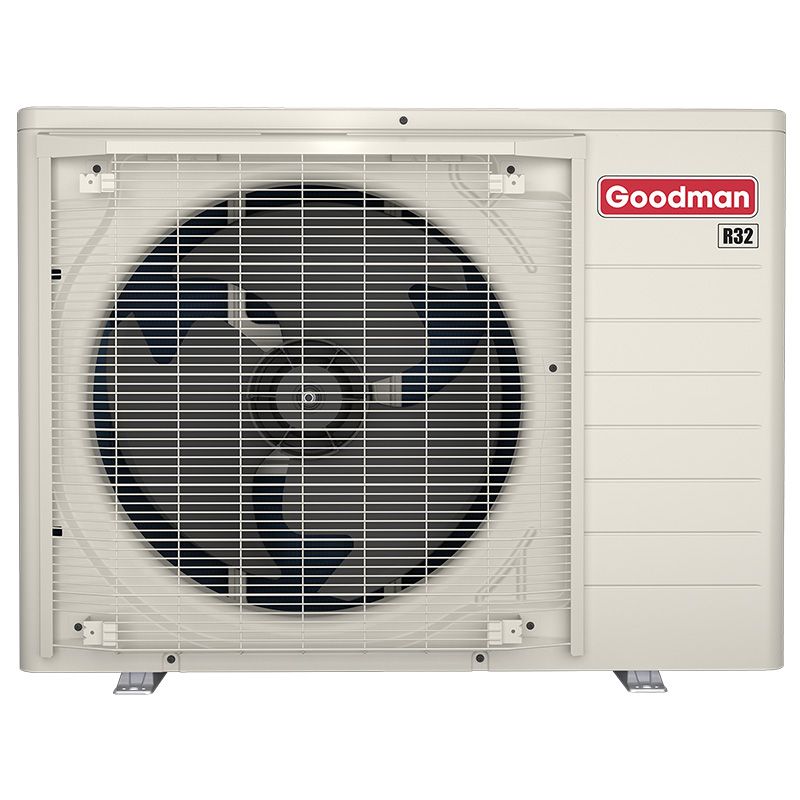

Goodman 2 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
Quiet, Energy-Efficient Cooling with Inverter Technology
The Goodman GXV9SA2410 delivers efficient, dependable cooling for smaller homes using advanced variable-speed inverter technology. It continuously adjusts output to maintain consistent comfort, reduce humidity, and lower energy usage. Its compact side-discharge design allows for flexible installation, while R-32 refrigerant supports improved efficiency with reduced environmental impact.
- Up to 19 SEER2 energy efficiency
- Variable-speed inverter compressor for precise comfort
- Quiet operation with sound-reducing design
- Side-discharge cabinet for space-saving installation
- Uses environmentally friendly R-32 refrigerant
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
Product Benefits (CAPEA3626B3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CAPEA3626B3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CAPEA3626B3)
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA3626B3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| model efficiency | 17 SEER |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731462 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 36000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 26 in |
| dimensions unit width | 20 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 55 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.25 in |
| dimensions case height | 28.50 in |
| dimensions case width | 20.00 in |
| dimensions distribution unit depth | 26.25 in |
| dimensions distribution unit height | 28.5 in |
| dimensions distribution unit width | 20 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 61.50 in |
| dimensions pallet width | 41.00 in |
| dimensions shipping unit depth | 26.25 in |
| dimensions shipping unit height | 28.50 in |
| dimensions shipping unit width | 20.00 in |
| distribution shipping volume unit | 14962.5 in³ |
| shipping volume unit | 14962.500 in³ |
| truck factor | 0.0000 |
| volume case | 14962.500 in³ |
| volume distribution shipping unit | 14962.5 in³ |
| weight case | 57.000 lb |
| weight distribution shipping unit | 57 lb |
| weight shipping unit | 57.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GXV9SA2410)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostatand other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segment
- LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves witheasy access to gauge ports
Cabinet Features (GXV9SA2410)
- Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV9SA2410
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV9SA |
| series name | GXV9S |
| model efficiency | 19.2 SEER2 |
| communication feature | Yes |
| communication feature type | Goodman GTST Smart Thermostat |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747104 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 11 |
| energy star certified | No |
| seer 2 hsvtc | 19 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 17.6 A |
| max overcurrent protection | 25 A |
| min circuit amps | 22.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 66 dBA |
| weight unit | 129 lb |
| cooling capacity rated | 23200 Btu/H |
| factory std refrigerant charge | 76 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
