Goodman

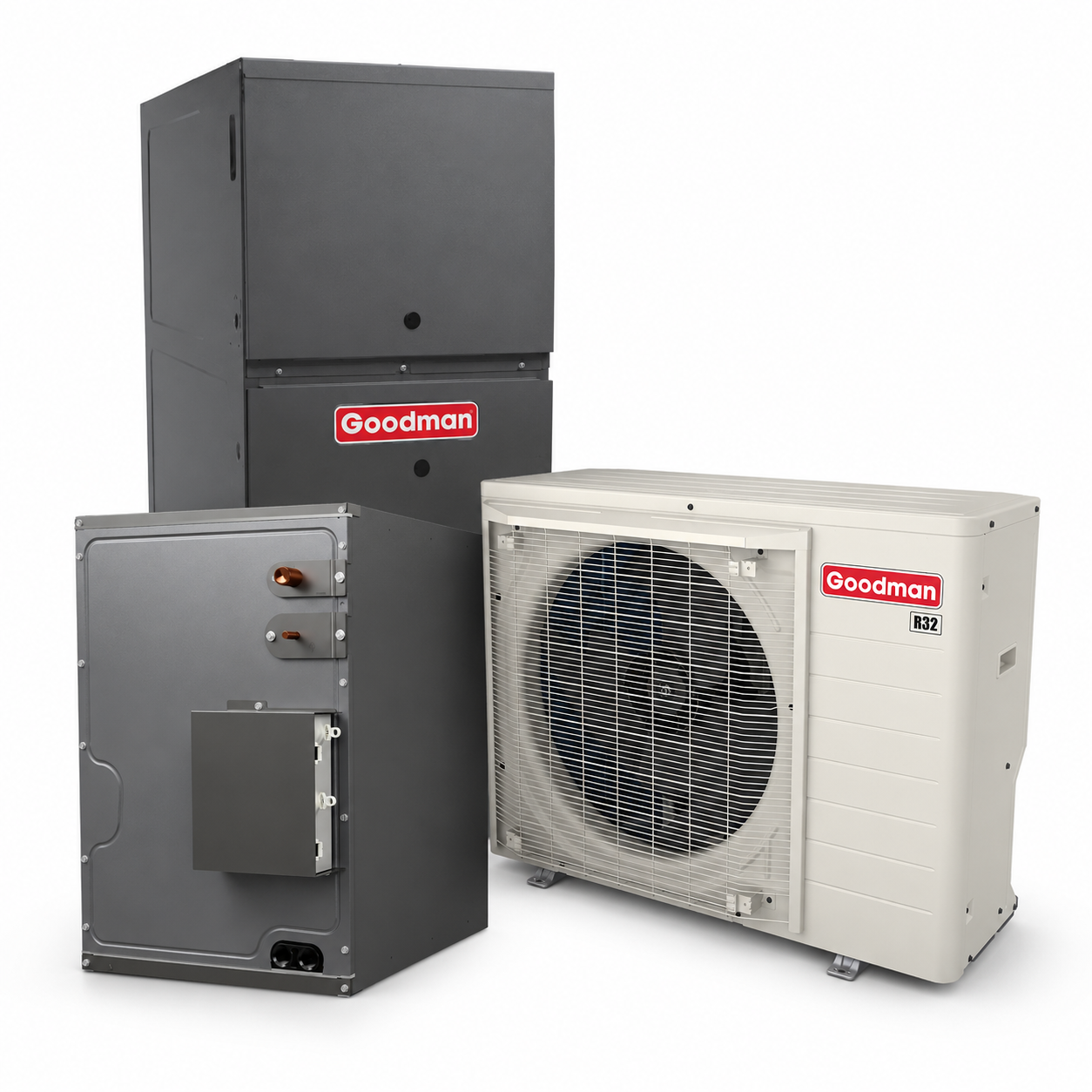

Goodman 2 Ton 19.0 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CAPEA3022B3 + GXV9SA2410 + GRVT800604BN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Looking For
AC & Furnace System
SEER2 Rating
18.6
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
1600
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
20
! Cabinet might need adjustment for sizing.
Goodman 3 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$8,277.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2 Ton 19.0 SEER2 80% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

Goodman 3 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA3022B3

The Goodman CAPEA3022B3 is a versatile cased evaporator coil engineered for both upflow and downflow installations. Designed for modern R-32 refrigerant systems, this indoor coil features a factory-installed Electronic Expansion Valve (EEV) for enhanced refrigerant control and compatibility with advanced communicating HVAC systems. With a compact 21" depth, it's ideal for tight attic spaces and applications requiring flexible installation without sacrificing performance or efficiency.

Product Features:

  • All-Aluminum Evaporator Coil – Built for durability and optimal heat transfer, reducing corrosion and increasing coil longevity.
  • R-32 Refrigerant Optimization – Engineered with specialized circuits and manifolds to maximize performance with environmentally friendly R-32 refrigerant.
  • Integrated R-32 Sensor – Designed to last the life of the coil and ensure optimal refrigerant management throughout system operation.
  • Factory-Installed Electronic Expansion Valve (EEV) – Provides precision refrigerant control and supports compatibility with Daikin One+ smart thermostats and Daikin communicating equipment.
  • Upflow & Downflow Configuration – Offers flexible installation options in a wide range of home HVAC setups.
  • Seven-Millimeter Coil Tubing – Improves overall system efficiency and performance in both cooling and heat pump applications.
  • Fault Recall Memory – Stores the six most recent system faults for simplified diagnostics and service.
  • Standardized Copper Suction Tube Stub Length – Ensures easier installation across different system configurations.
  • 21-Inch Depth – Compact design allows for easier access during attic or tight-space installations.
  • Foil-Faced Internal Insulation – Helps reduce cabinet condensation, improves efficiency, and protects internal components.
  • Galvanized, Leather Grain-Embossed Finish – Rugged exterior provides lasting protection and resists wear and corrosion.
  • Rust-Resistant Thermoplastic Drain Pan – Low water-retention design helps prevent microbial growth and corrosion over time.
  • DecaBDE-Free, UV-Resistant Drain Pan – Environmentally conscious and built for long-term UV exposure without degradation.
  • Drain Pan Rails – Allow for easy removal and repositioning of the coil without compromising structural integrity.
  • AHRI Certified & ETL Listed – Meets strict efficiency and safety standards for trusted performance and compliance.

Advanced Control & Compatibility:

With its built-in electronic expansion valve (EEV), the CAPEA3022B3 supports advanced system communication and control, making it an ideal match for Daikin One+ smart thermostats and other Daikin communicating HVAC equipment. This advanced compatibility ensures better system performance, precision diagnostics, and maximum energy efficiency.

Goodman 3 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA3022B3

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years

Product Details

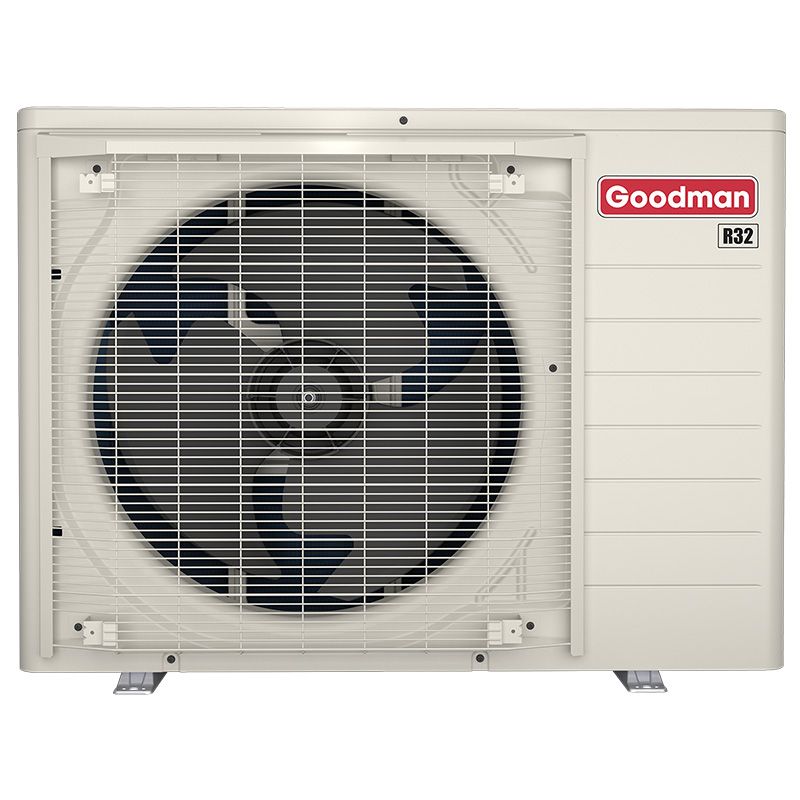

Goodman 2 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

Quiet, Energy-Efficient Cooling with Inverter Technology

The Goodman GXV9SA2410 delivers efficient, dependable cooling for smaller homes using advanced variable-speed inverter technology. It continuously adjusts output to maintain consistent comfort, reduce humidity, and lower energy usage. Its compact side-discharge design allows for flexible installation, while R-32 refrigerant supports improved efficiency with reduced environmental impact.

  • Up to 19 SEER2 energy efficiency
  • Variable-speed inverter compressor for precise comfort
  • Quiet operation with sound-reducing design
  • Side-discharge cabinet for space-saving installation
  • Uses environmentally friendly R-32 refrigerant

Why Choose This AC Condenser?

  • Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
  • More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
  • Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
  • Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
  • Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

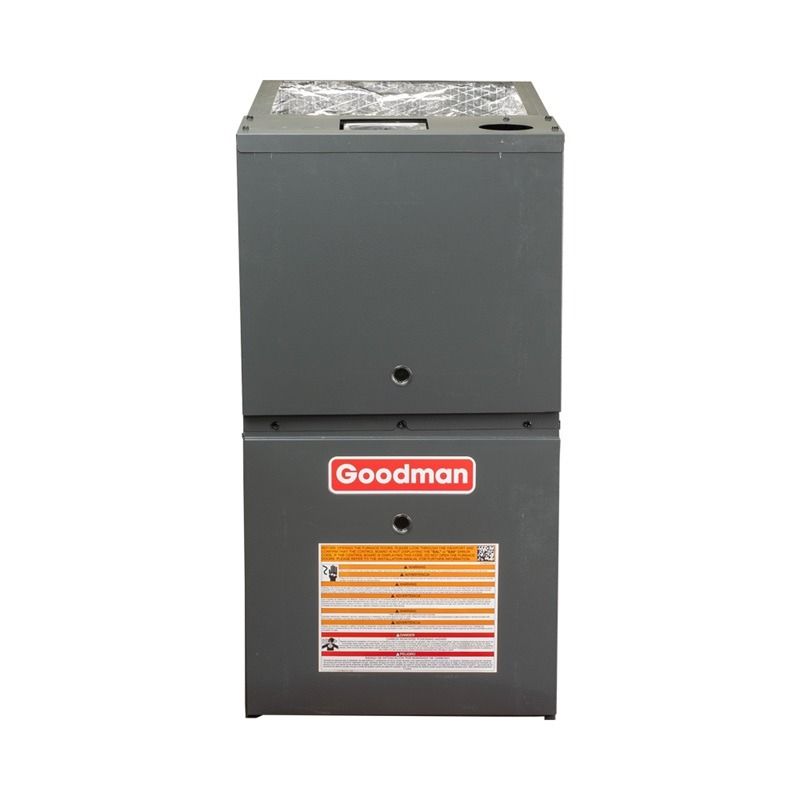

OVERVIEW

The GRVT800604BN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GRVT800604BN gas furnace.

QUICK FACTS

  • This furnace is ideal to heat a small to medium house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

At an input of 60,000 BTU’s, the GRVT800604BN Goodman gas furnace is suitable for up to a small to medium house in an average climate. The output of this furnace is 48,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GRVT800604BN Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GRVT800604BN requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Two Stage Variable Speed Furnace

The GRVT800604BN is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Warranty

The GRVT800604BN comes standard with Goodman’s 10 year parts warranty and its phenomenal lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

The tubular heat exchanger on the GRVT800604BN is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GRVT800604BN furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the upflow or horizontal positions, allowing for a broader application potential.

Product Benefits (CAPEA3022B3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CAPEA3022B3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CAPEA3022B3)

  • Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CAPEA3022B3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPEA_32
series name CAPEA
model efficiency 17 SEER
family description CAPEA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051731448
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 30000 Btu/H
produced in us Yes
cabinet finish Painted
dimensions unit depth 21 in
dimensions unit height 21 in
dimensions unit width 20 in
expansion device EEV
indoor orifice size 0.157 in
weight unit 50 lb
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 24.50 in
dimensions case width 20.00 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 24.5 in
dimensions distribution unit width 20 in
dimensions pallet depth 54.00 in
dimensions pallet height 78.00 in
dimensions pallet width 41.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 24.50 in
dimensions shipping unit width 20.00 in
distribution shipping volume unit 12740 in³
shipping volume unit 12740.000 in³
truck factor 0.0000
volume case 12740.000 in³
volume distribution shipping unit 12740 in³
weight case 52.000 lb
weight distribution shipping unit 42.09 lb
weight shipping unit 52.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GXV9SA2410)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports

Cabinet Features (GXV9SA2410)

  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV9SA2410

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV9SA
series name GXV9S
model efficiency 19.2 SEER2
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
universal product code upc 663051747104
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 11
energy star certified No
seer 2 hsvtc 19
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 17.6 A
max overcurrent protection 25 A
min circuit amps 22.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 13.75 in
dimensions unit height 27.375 in
dimensions unit width 36-5/8 in
expansion device EEV
sound pressure high cooling 66 dBA
weight unit 129 lb
cooling capacity rated 23200 Btu/H
factory std refrigerant charge 76 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.50 in
dimensions case height 30.00 in
dimensions case width 39.00 in
dimensions distribution unit depth 17.5 in
dimensions distribution unit height 30 in
dimensions distribution unit width 39 in
dimensions pallet depth 35.50 in
dimensions pallet height 64.50 in
dimensions pallet width 39.00 in
dimensions shipping unit depth 17.50 in
dimensions shipping unit height 30.00 in
dimensions shipping unit width 39.00 in
distribution shipping volume unit 20475 in³
shipping volume unit 20475.000 in³
truck factor 0.0000
volume case 20475.000 in³
volume distribution shipping unit 20475 in³
weight case 136.090 lb
weight distribution shipping unit 136.09 lb
weight shipping unit 136.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVT800604BN)

  • High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
  • Capable of using non communicating single-stage thermostats
  • Durablend long igniter life
  • Quietnd Economical heating
  • Operates on single-stage thermostats

Product Features (GRVT800604BN)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Efficientnd quiet variable-speed Blower
  • ComfortBridge™ Communicating System compatible
  • Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
  • Silicon Nitride igniter
  • Two-Stage gas valve

Cabinet Features (GRVT800604BN)

  • Multi-position installation: upflow, horizontal left or right
  • Convenient left or right connection for gasnd electrical service
  • Cabinetir leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchangernd blower section
  • Bottom or side returnirpplications
  • Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVT800604BN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVT80
series name GRVT80
model efficiency 0.80
family description Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051703216
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 48000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 20-50 °F
temperature rise range low fire 20-50 °F
current type AC
max overcurrent protection 15 A
min circuit amps 10.6 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1760 ft³/min
air flow rate low heating 890 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 17-1/2 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 16X25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Non NOx Rated
number of burners 3
weight unit 107 lb
blower motor horsepower 3/4 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48,000
low fire input capacity 42,000
low fire output capacity 33,600
gas valve type Two Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 19702.5 in³
shipping volume unit 19702.500 in³
truck factor 0.0000
volume case 19702.500 in³
volume distribution shipping unit 19702.5 in³
weight case 106.000 lb
weight distribution shipping unit 110.09 lb
weight shipping unit 106.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
