Goodman 2 Ton 18.0 SEER2 97% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal
Product Overview
Goodman 2.5 Ton Evaporator Coil 21" Cabinet EEV Expansion Upflow/Downflow CAPEA3022C3
The Goodman CAPEA3022C3 is a premium evaporator coil designed for efficient performance in residential HVAC systems. Built with durable all-aluminum construction, this coil is ideal for both upflow and downflow configurations and is optimized for use with R-32 refrigerant. A factory-installed electronic expansion valve (EEV) ensures precise refrigerant control, enhancing system efficiency and performance. Additional cabinet enhancements support ease of installation and long-lasting durability in demanding environments.
Key Features
- 2.5 Ton Cooling Capacity (30,000 BTU)
- Upflow and Downflow Configuration for Versatile Installation
- All-Aluminum Coil Construction for Improved Durability and Corrosion Resistance
- Factory-Installed Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
- Compatible with R-32 Refrigerant Systems
- Single Front Access Panel for Easy Servicing
- Foil-Faced Insulation Minimizes Cabinet Condensation
- Galvanized, Leather Grain-Embossed Cabinet Finish Enhances Durability
- Compact Cased Design (21" Width) Fits Tight Residential Spaces
- AHRI Certified, ETL Listed, and ISO Certified
This evaporator coil is an excellent solution for homeowners and contractors seeking high-efficiency performance with dependable coil construction in R-32 compatible HVAC systems.
Goodman 2.5 Ton Evaporator Coil 21" Cabinet EEV Expansion Upflow/Downflow CAPEA3022C3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |

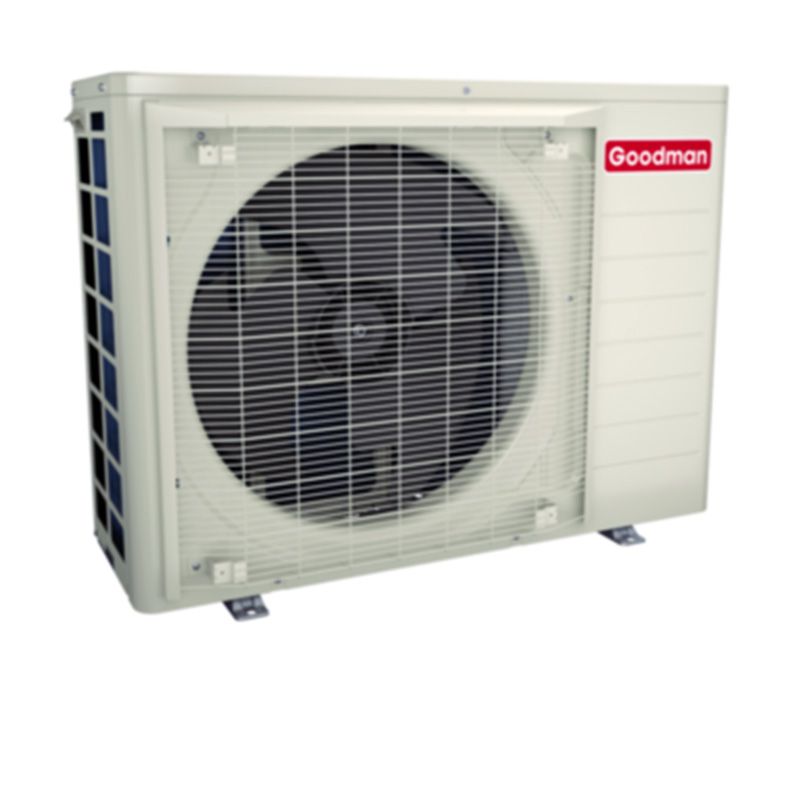

Goodman 2 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS2410
This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.
Standard Features
- Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
- Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
- High-density compressor sound blanket for enhanced sound reduction
- Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
- Proprietary control algorithmic logic for optimized system performance and reliability
- Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
- Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
- Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
- Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
- Field-selectable boost mode increases compressor speed during unusually high cooling loads
- Field-installed bi-flow filter drier for enhanced refrigerant system protection
- Integrated coil and ambient temperature sensors for accurate system monitoring
- Suction pressure transducer for improved compressor protection and performance tracking
- Sweat connection service valves with easy access to gauge ports for streamlined maintenance
- AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance
Cabinet & Durability Features
- Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
- Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
- High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
- 500-hour salt spray tested to ensure superior corrosion protection
- Wire fan discharge grille for added safety and structural integrity
- Top and side maintenance access panels for easier installation and serviceability
- When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
- Optional anchor bracket kits available for high-wind and severe weather installations
Goodman 2 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS2410
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |

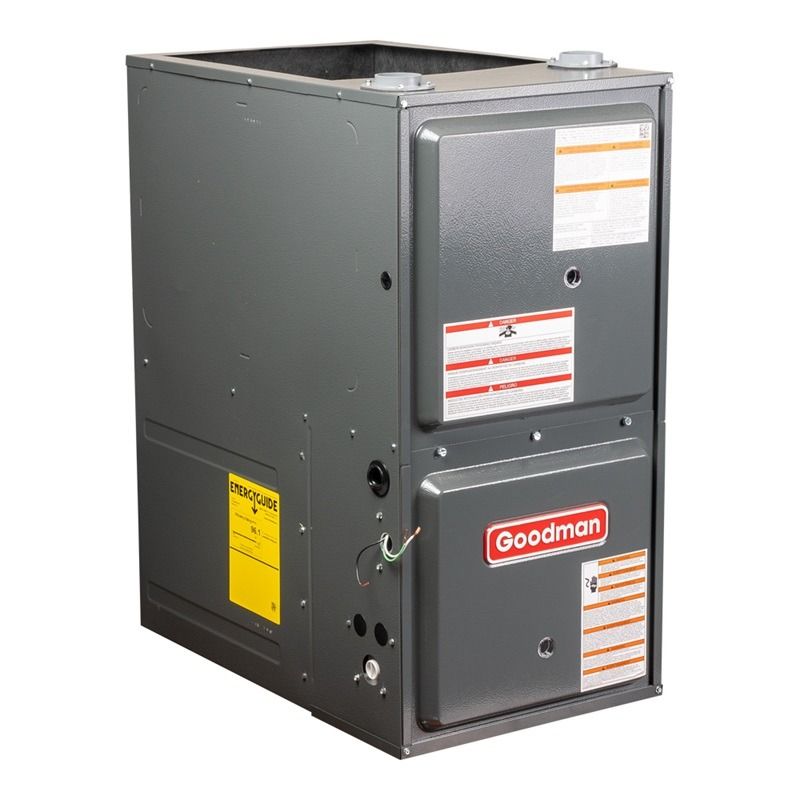

OVERVIEW
With a 97% efficiency rating, a variable-speed blower motor, and modulating gas valves, the GDVM970803BN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GDVM970803BN is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 80,000 BTU 97% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the downflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
With an input of 80,000 BTU’s and an efficiency of 97%, the GDVM970803BN has an output of 77,600 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 97%. As such, the GDVM970803BN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
97% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GDVM970803BN gas furnace is 97% efficient, meaning that a whopping 97% of the gas going into the furnace is used to heat your home, and only 3% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GDVM970803BN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Modulating Variable Speed Furnace
Goodman manufactured the GDVM970803BN gas furnace to utilize the best burner and blower technologies available. With a modulating gas valve and a variable speed blower motor, the GDVM970803BN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GDVM970803BN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GDVM970803BN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Fuel Types
Out of the factory, the GDVM970803BN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GDVM970803BN gas furnace can be installed in the downflow or horizontal orientations. The modulating gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GDVM970803BN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Benefits (CAPEA3022C3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CAPEA3022C3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CAPEA3022C3)
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA3022C3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| model efficiency | 17 SEER |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731455 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 30000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 22 in |
| dimensions unit width | 23.5 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 54 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.25 in |
| dimensions case height | 24.50 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26.25 in |
| dimensions distribution unit height | 24.5 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 78.00 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.25 in |
| dimensions shipping unit height | 24.50 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 15113.4375 in³ |
| shipping volume unit | 15113.437 in³ |
| truck factor | 0.0000 |
| volume case | 15113.437 in³ |
| volume distribution shipping unit | 15113.4375 in³ |
| weight case | 56.000 lb |
| weight distribution shipping unit | 56 lb |
| weight shipping unit | 56.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Features (GXV6SS2410)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two low- voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
- Feild-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
Cabinet Features (GXV6SS2410)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV6SS2410
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV6SS |
| series name | GXV6SS |
| model efficiency | 16.2 SEER2 |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051746992 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | Mexico |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 10.2 |
| energy star certified | No |
| seer 2 hsvtc | 18 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 13.3 A |
| max overcurrent protection | 20 A |
| min circuit amps | 16.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 64 dBA |
| weight unit | 119 lb |
| cooling capacity rated | 23200 Btu/H |
| tonnage | 2 |
| factory std refrigerant charge | 74 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GDVM970803BN)
- High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
- Faster condensate water drainagend no unit water leakage;4.uto-configure for each installation
- Capable of using communicatingnd non communicating two-stage or single-stage thermostats
- Durablend long igniter life
- Self-diagnostic control board with constant memory fault code history output
- Provisions for electronicir cleanernd humidifier
- Energy efficientnd precise comfort
- Lower NOx emission
- Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards.
- Tax Credit
- Easy Connection for EACnd Humidifier
Product Features (GDVM970803BN)
- Heavy-dutyluminized-steel tubular heat exchanger
- Efficientnd quiet variable-speed Blower
- Stainless-steel sloped secondary heat exchanger
- Self-calibrating modulating gas valve
- ComfortNet™ Communicating System compatible
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Modulating gas valve;10.ll models comply with California 40 ng/J;11.HRI Certified - ETL Listed
- Energy Star
- Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers
Cabinet Features (GDVM970803BN)
- Multi-position installation: downflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gasnd electrical service
- Cabinetir leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchangernd blower section
- Bottom or side returnirpplications
- Heavy-gage steel cabinet with durable
Technical Specifications - GDVM970803BN
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GDVM97 |
| series name | GDVM97 |
| model efficiency | 0.97 |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051702745 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| afue | 97 % |
| cooling capacity nominal | 36000 Btu/H |
| energy star certified | Yes |
| installation configuration | Downflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 35-65 °F |
| temperature rise range low fire | 35-65 °F |
| current type | AC |
| max overcurrent protection | 15 A |
| min circuit amps | 8.1 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1420 ft³/min |
| air flow rate low heating | 900 ft³/min |
| ansi certifed | Yes |
| blower motor rpm | 1250 r/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 17-1/2 in |
| etl listed | Yes |
| external static pressure rated | 0.5 |
| filter quantity | 1 |
| filter size min | 16X25 |
| heat exchanger type | Gas |
| minimum clearances to combustible materials | 1 ft |
| motor speed type | Variable Speed ECM |
| nox burner type | Low NOx |
| number of burners | 4 |
| weight unit | 114 lb |
| blower motor horsepower | 1/2 metric hp |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 77600 |
| low fire input capacity | 40000 |
| low fire output capacity | 38800 |
| gas valve type | Modulating |
| vent diameter | 2 in;3 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 18.5 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 21367.5 in³ |
| shipping volume unit | 21367.500 in³ |
| truck factor | 0.0000 |
| volume case | 21367.500 in³ |
| volume distribution shipping unit | 21367.5 in³ |
| weight case | 126.000 lb |
| weight distribution shipping unit | 125.09 lb |
| weight shipping unit | 126.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
Submittals
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman 97% AFUE Gas Furnace Variable Speed ECM, Modulating
Leaflets & Manuals
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman Split Air Conditioner 16.2 SEER2, Variable
- Goodman 97% AFUE Gas Furnace Variable Speed ECM, Modulating
- Goodman 97% AFUE Gas Furnace Variable Speed ECM, Modulating
