Product Overview
OVERVIEW

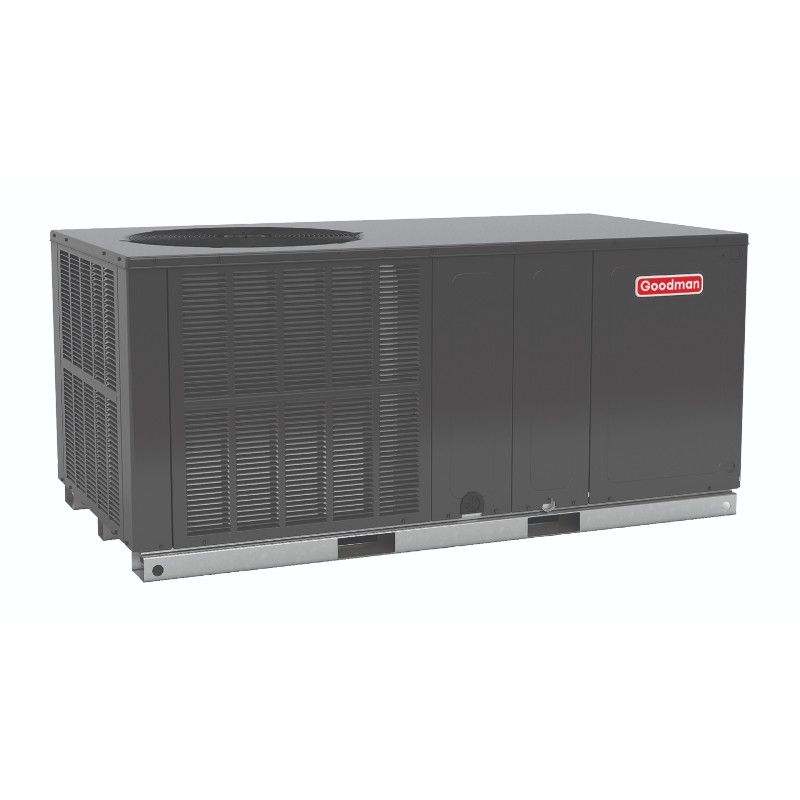

With its quiet horizontal discharge and ready-to-install pre-charged R32 refrigerant system, the Goodman GPHH52431 heat pump packaged unit serves as an affordable all-in-one heating and cooling solution. At a 15 SEER2 efficiency rating with proven reliability, the GPHH52431 delivers superior comfort and value true to the Goodman brand.
Utilizing advanced technology, the Goodman heat pump system efficiently transfers heat between indoors and outdoors for year-round heating and cooling in one unit. Its straightforward installation ensures convenience and cost savings, ideal for energy-efficient, hassle-free solutions.
QUICK FACTS
- Can cover a small house in average climates
- 2 ton, 15 SEER2 heat pump packaged unit
- Horizontal discharge
- Fully charged
- Low sound output
2 Ton
The Goodman GPHH52431 heat pump packaged unit is rated for 2 tons. This size generally suits small houses in many climates. Note that heating cuts out at 30°F. For heating below this temperature, a backup heating kit is required, as a field-installable accessory provided at an additional cost.
15 SEER2
At 15 SEER2, the Goodman GPHH52431 meets and exceeds basic market standards, installable nationwide. It offers about 12% more efficiency than a 13.4 SEER2 unit for greater savings.
Warranty
Goodman offers a 10 year parts warranty on the GPHH52431 heat pump packaged unit when its installation follows state and local codes of the installation address and when the unit is registered online through the manufacturer.
Durability and Reliability
The GPHH52431 boasts a heavy-gauge galvanized-steel cabinet with Architectural Gray powder-paint and louvered coil protection for durability. Reliability stems from a high-efficiency scroll compressor, totally enclosed permanently lubricated condenser fan motor, and multi-speed ECM blower, minimizing maintenance.
Installation and Maintenance
All Goodman packaged units come fully charged and tested as the factory standard, lowering heat pump installation costs since additional refrigerant is not required. On the GPHH52431 heat pump, the unit is designed to function in any non-rooftop packaged unit application, such as for mobile and standard homes, warehouses, and other spaces where an indoor furnace or air handler is not ideal, making it a versatile unit for any application. Moreover, the fully-insulated blower compartment has convenient access panels for easier maintenance.
Comfort in Mind
Goodman focuses on top comfort at fair prices with quiet, efficient, dependable units. The GPHH52431 meets these standards.


Packaged Unit Buyers Guide
- How packaged units work for residential and commercial use
- The different types of packaged units
- Figuring out the right size unit for your needs
- The importance of a custom curb adapter
- And much more!
Product Benefits
- Meets the 2023 M1 Test Standards
Product Features
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified
- ETL Listed
Cabinet Features
- Heavy-gauge galvanized-steel cabinet
- Compressor sound blanket
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Attractive Nickel Gray powder-paint finish
- Fully insulated blower compartment has convenient access panels
- Louvered condenser coil protection
- One footprint, three heights
Technical Specifications - GPHH52431
| sku | GPHH52431 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Packaged Heat Pump |
| system family | Unitary Packaged System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GPHH5_32 |
| short description | Goodman Packaged Heat Pump 15.2 SEER2, Single Stage, Horizontal, 2 Ton |
| family description | High-Efficiency Packaged Heat Pump Up to 15.2 SEER2/ 6.7 HSPF2 |
| product description | 2.0t h-pkgd 15.2 seer2 hp |
| cooling btu | 23,600 |
| heating btu | 24,000 |
| seer2 | 15.2 |
| decibel level (dba) | 76 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 18.03 A |
| tonnage | 2 |
| btu/tonnage | 23,600 BTU/2 Ton |
| height | 30 in |
| width | 66 in |
| weight | 350 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Packaged Heat Pump |
| model efficiency | 15.2 SEER2 |
| installation type | Ducted |
| communication feature | No |
| doe regional compliance | Southwest;Southeast;North |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051741034 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| cooling capacity nominal | 23600 Btu/H |
| cop17 hsvtc | 2.5 |
| cop47 hsvtc | 4.0 |
| eer hsvtc | 11.2 |
| eer2 hsvtc | 11.2 |
| energy star certified | No |
| heating capacity nominal | 24000 Btu/H |
| hspf hsvtc | 7.0 |
| hspf 2 hsvtc | 7.0 |
| seer hsvtc | 15.0 |
| seer 2 hsvtc | 15.0 |
| installation configuration | Horizontal |
| produced in us | No |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated cooling condition room wb | 67 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| rated heating condition room wb | 60 °F |
| compressor lra | 56.5 A |
| compressor rla | 10.62 A |
| electric heat range | 9.5 kW |
| evap motor rla | 3.8 A |
| indoor blower fla | 3.8 A |
| max overcurrent protection | 25 A |
| max voltage | 253 V |
| min circuit amps | 18.03 A |
| min voltage | 197 V |
| outdoor fan fla | 0.95 A |
| outdoor fan lra | 2 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208-230 V |
| total unit amps | 15.4 A |
| air flow rate high cooling | 875 ft³/min |
| air flow rate high heating | 875 ft³/min |
| compressor stages | Single Stage |
| condenser coil metal type | Copper |
| condenser coil rows | 2 |
| condenser fan blade count | 3 |
| condenser fan diameter | 22 in |
| condenser fan rpm | 810 r/min |
| condenser fin density fins per inch | 16 |
| dimensions blower diameter | 10 in |
| dimensions blower width | 8 in |
| dimensions evap wheel diameter | 10 in |
| dimensions evap wheel width | 8 in |
| dimensions unit height | 30 in |
| dimensions unit width | 66 in |
| energy source | Electric |
| etl listed | Yes |
| evap coil metal type | Aluminum |
| evap coil rows | 4 |
| evap fin density fins per inch | 14 |
| evap motor rpm | 1050 r/min |
| expansion device | TXV |
| external static pressure rated | 0.8 |
| heat exchanger type | Air Cooled |
| motor speed type | Multi Speed ECM |
| number of speeds | 5 |
| sound pressure high cooling | 76 dBA |
| weight unit | 350 lb |
| blower motor horsepower | 1/2 metric hp |
| condenser fan horsepower | 1/6 metric hp |
| cooling capacity rated | 23600 Btu/H |
| cooling capacity sensible | 18408 Btu/H |
| evap motor horsepower | 1/2 metric hp |
| heating capacity rated | 24000 Btu/H |
| sensible heat ratio s t | 0.78 |
| factory std refrigerant charge | 98 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 68.00 in |
| dimensions case height | 31.00 in |
| dimensions case width | 35.00 in |
| dimensions distribution unit depth | 1 in |
| dimensions distribution unit height | 1 in |
| dimensions distribution unit width | 1 in |
| dimensions pallet depth | 68.00 in |
| dimensions pallet height | 31.00 in |
| dimensions pallet width | 35.00 in |
| dimensions shipping unit depth | 68.00 in |
| dimensions shipping unit height | 31.00 in |
| dimensions shipping unit width | 35.00 in |
| distribution shipping volume unit | 1 in³ |
| shipping volume unit | 73780.000 in³ |
| truck factor | 0.0000 |
| volume case | 73780.000 in³ |
| volume distribution shipping unit | 1 in³ |
| weight case | 343.000 lb |
| weight distribution shipping unit | 1 lb |
| weight shipping unit | 343.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
