Goodman

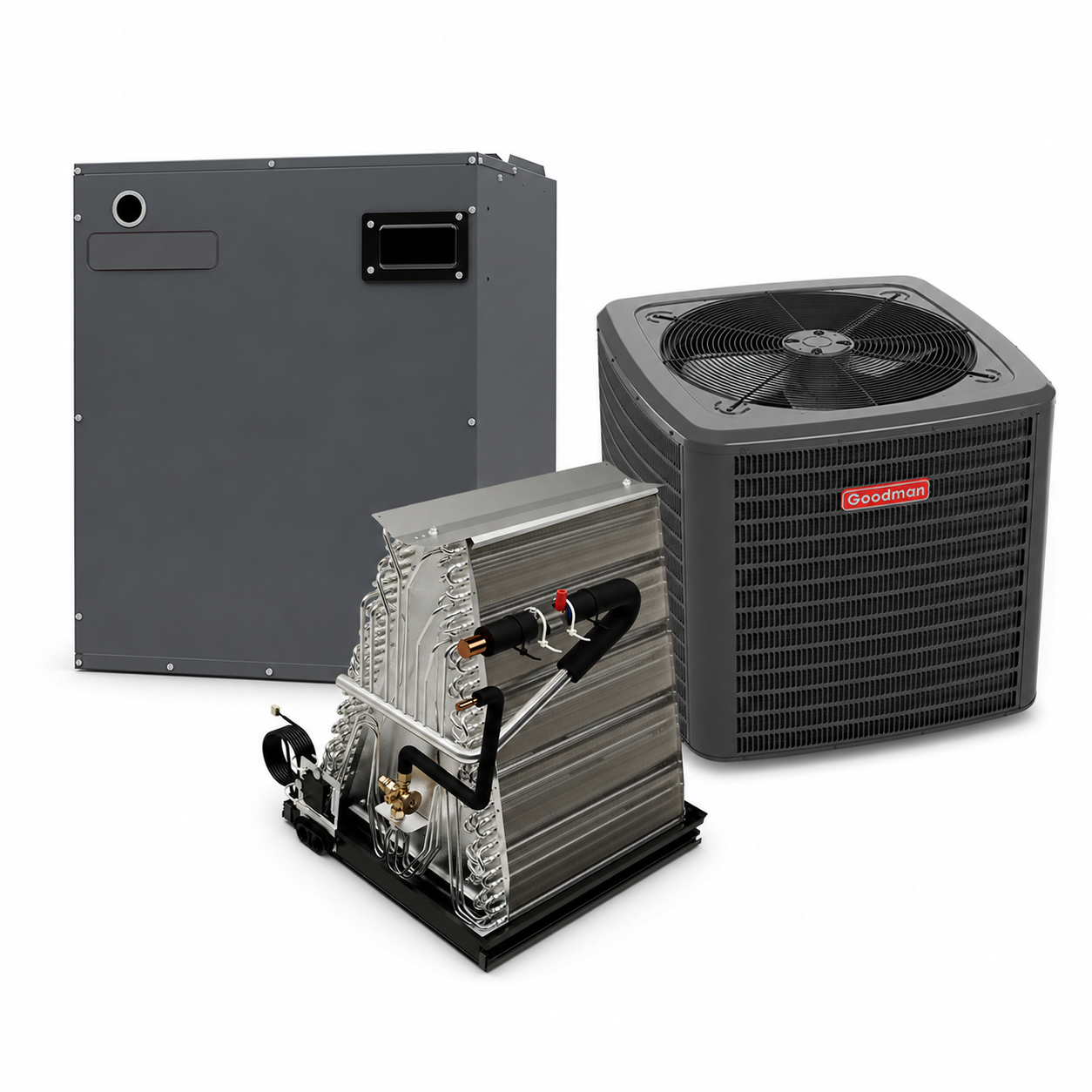

Goodman 2 Ton 15.2 SEER2 Electric Furnace and Heat Pump System - Upflow/Downflow - 16"

SKU: GLZS5BA2410 + CAUTA2422A3 + MBVB12BP1X00

System highlights
AC Type
Heat Pump & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
24000 BTU (2.0 TON)
Voltage
208-230V
Looking For
Heat Pump & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1200
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
16
Goodman 2 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,842.00
Shipping calculated at checkout.
Quantity
View full details
Goodman
Goodman 2 Ton 15.2 SEER2 Electric Furnace and Heat Pump System - Upflow/Downflow - 16"

Product Overview

OVERVIEW

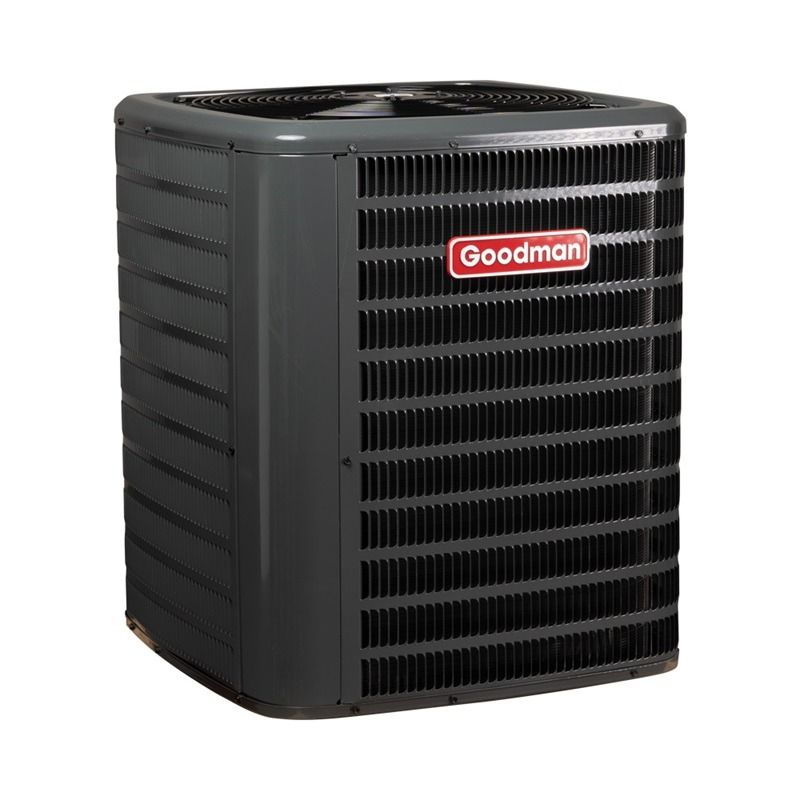

At one of the higher efficiencies on the market, the Goodman GLZS5BA2410 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GLZS5BA2410 is considered a good all-around choice for many applications.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Designed to cover a smaller house in average climates
  • 2 Ton, 15.2 SEER2 heat pump condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

2 Ton

The Goodman GLZS5BA2410 heat pump is rated for 2 tons, which is normally enough to cover a smaller house in average climates. A heat pump coil or air handler is required for this condenser to function, and some indoor units will be larger in tonnage than this condenser in some bundles to maintain the unit's overall efficiency.

15.2 SEER2

With its high-end 15.2 SEER2 efficiency rating, the GLZS5BA2410 is designed to save you money over the entire life of the unit. 15.2 SEER2 units will save you about 12% more in energy bills over a 14.3 SEER2 condenser, making this upgrade a smart upgrade to save you money over time with a small increase in your initial investment in the condenser.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 31% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.

Warranty

The GLZS5BA2410 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet on the GLZS5BA2410 heat pump is designed to be durable in harsh conditions. With its baked-on polyester coat of paint, the unit is approved for up to 500 hours of salt spray. The enhanced durability and paint coat makes the GLZS5BA2410 compliant with 2010 Florida building codes for unit integrity for hurricane-like winds when the unit is properly anchored. For reliability, there is also a built-in bi-flow filter drier that lowers general wear-and-tear on the internals of the unit.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GLZS5BA2410 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels - one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.

Comfort in Mind

The Goodman company has always promoted enhanced comfort, higher efficiency, and lower cost to all of its units. With SmartShift technology and an enhanced sound insulation structure, the GLZS5BA2410 is whisper-quiet, allowing Goodman to continue to follow its goals in achieving the best comfort levels possible at a low cost.

Why Buy at

is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

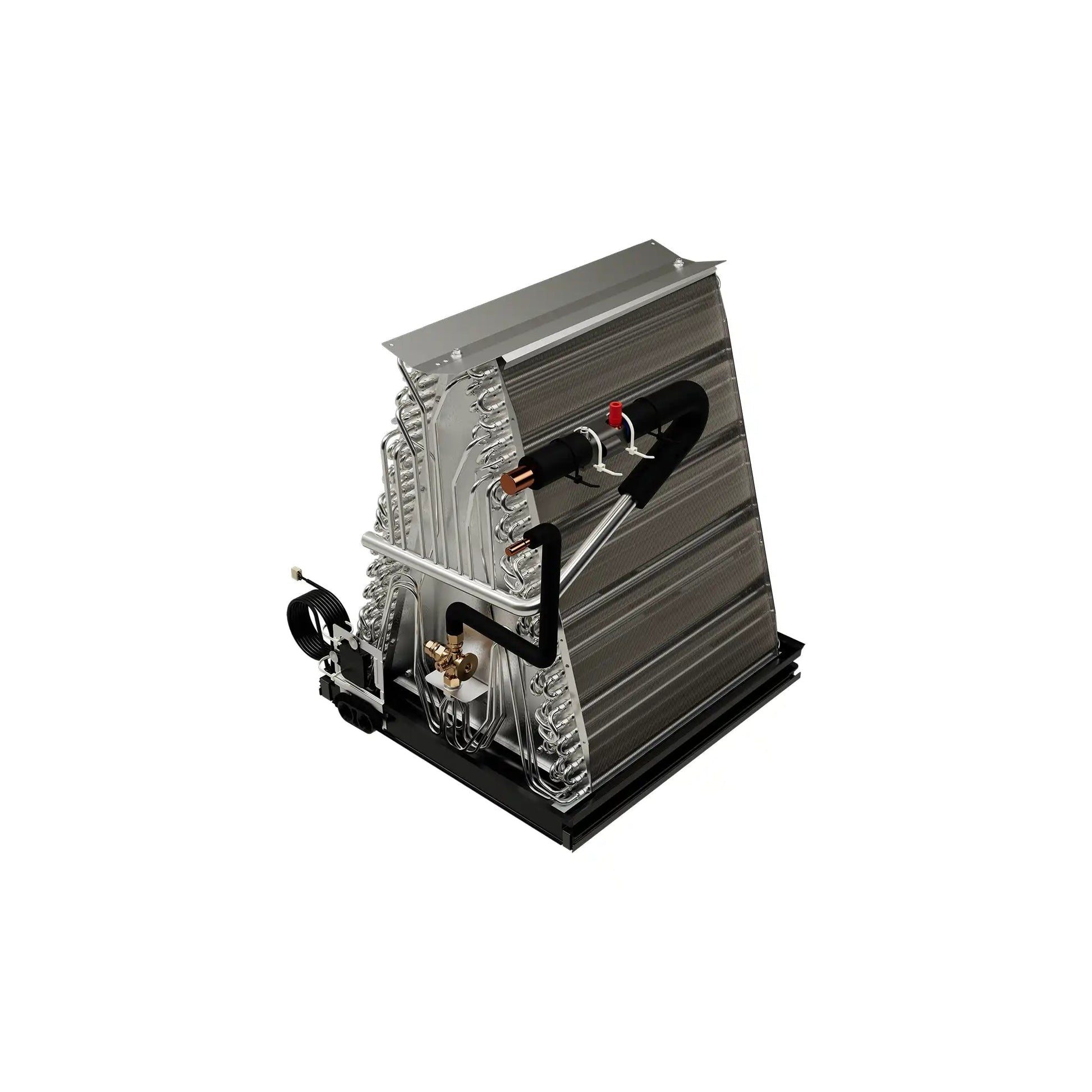

Goodman 2 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow CAUTA2422A3

The Goodman CAUTA2422A3 Evaporator Coil is designed to deliver reliable, energy-efficient performance in residential HVAC systems utilizing R-32 refrigerant. Built with an all-aluminum coil, this unit offers superior corrosion resistance and heat transfer capability. It features a factory-installed thermal expansion valve to optimize cooling, and its compact uncased design allows for flexible installation in upflow and downflow applications. With a foil-faced insulated cabinet to reduce condensation and a rust-resistant drain pan with low water retention, this coil is engineered for longevity and ease of service. Ideal for applications requiring compact yet powerful cooling coil components.

Key Features

  • All-aluminum coil construction for long-lasting corrosion resistance
  • Compatible with R-32 refrigerant systems, including optimized circuits
  • Integrated R-32 sensor designed for the life of the unit
  • Factory-installed TXV enhances cooling performance and efficiency
  • Standard copper suction line for installation uniformity
  • Foil-faced internal insulation helps minimize cabinet condensation
  • Durable thermoplastic drain pan with low water-retention design
  • DecaBDE-free drain pan includes secondary drain connections
  • Drain pan rails for easy removal and repositioning of coil
  • UV-resistant drain pan material for extended durability
  • AHRI certified and ETL listed for compliance and performance

This coil is ideal for homeowners and contractors looking for an environmentally friendly, efficient solution for upflow or downflow applications with mini-split systems and air conditioners using R-32 refrigerant.


Goodman 2 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow CAUTA2422A3

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Benefits (GLZS5BA2410)

  • Meets the 2023 M1 Test Standards

Product Features (GLZS5BA2410)

  • High-efficiency scroll compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
  • Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
  • Single-speed PSC condenser fan motor
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contactor
  • Ground lug connection
  • Capacitor with extended life
  • AHRI Certified
  • ETL Listed

Cabinet Features (GLZS5BA2410)

  • Removable grille style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLZS5BA2410

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZS5B
series name GLZS5B
model efficiency 15.2 SEER2
family description High-Effciency, Communication, Split System Heat Pump Up to 16 SEER2 & 8.2 HSPF2
installation type Ducted
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051737648
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 12.5
energy star certified Yes
heating capacity nominal 24000 Btu/H
hspf 2 hsvtc 7.8
hspf ducted 7.8
seer 2 hsvtc 15.2
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 25 A
min circuit amps 15.2 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
rated load amps 11.4 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 29 in
dimensions unit height 39.5 in
dimensions unit width 29 in
expansion device TXV
sound pressure high cooling 73 dBA
weight unit 171 lb
heating capacity rated 23000 Btu/H
tonnage 2
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 83 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 42.00 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 42 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 42.00 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 42.00 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 38430 in³
shipping volume unit 38430.000 in³
truck factor 0.0000
volume case 38430.000 in³
volume distribution shipping unit 38430 in³
weight case 183.000 lb
weight distribution shipping unit 192.09 lb
weight shipping unit 183.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAUTA2422A3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valve for cooling applications
  • Standardized copper suction tube stub length
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
  • UV-resistant drain pan

Technical Specifications - CAUTA2422A3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAUTA_32
series name CAUTA
family description CAUTA Uncased Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051729308
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Unpainted
cased vs uncased Uncased
dimensions unit depth 21.3 in
dimensions unit height 18.3 in
dimensions unit width 16-1/2 in
expansion device TXV
tonnage 2.0
tonnage range 2.0
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 24.75 in
dimensions case width 16.25 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 24.75 in
dimensions distribution unit width 16.25 in
dimensions pallet depth 54.00 in
dimensions pallet height 54.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 24.75 in
dimensions shipping unit width 16.25 in
distribution shipping volume unit 10456.875 in³
shipping volume unit 10456.875 in³
truck factor 0.0000
volume case 10456.875 in³
volume distribution shipping unit 10456.875 in³
weight case 25.000 lb
weight distribution shipping unit 25 lb
weight shipping unit 25.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB12BP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB12BP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB12BP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692886
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.92
produced in us No
indoor blower fla 3.9 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 26 in
dimensions unit width 17-1/2 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.5 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 29.00 in
dimensions case width 20.00 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 29 in
dimensions distribution unit width 20 in
dimensions pallet depth 54.00 in
dimensions pallet height 62.50 in
dimensions pallet width 41.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 29.00 in
dimensions shipping unit width 20.00 in
distribution shipping volume unit 15080 in³
shipping volume unit 15080.000 in³
truck factor 0.0000
volume case 15080.000 in³
volume distribution shipping unit 15080 in³
weight case 69.000 lb
weight distribution shipping unit 69 lb
weight shipping unit 69.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
