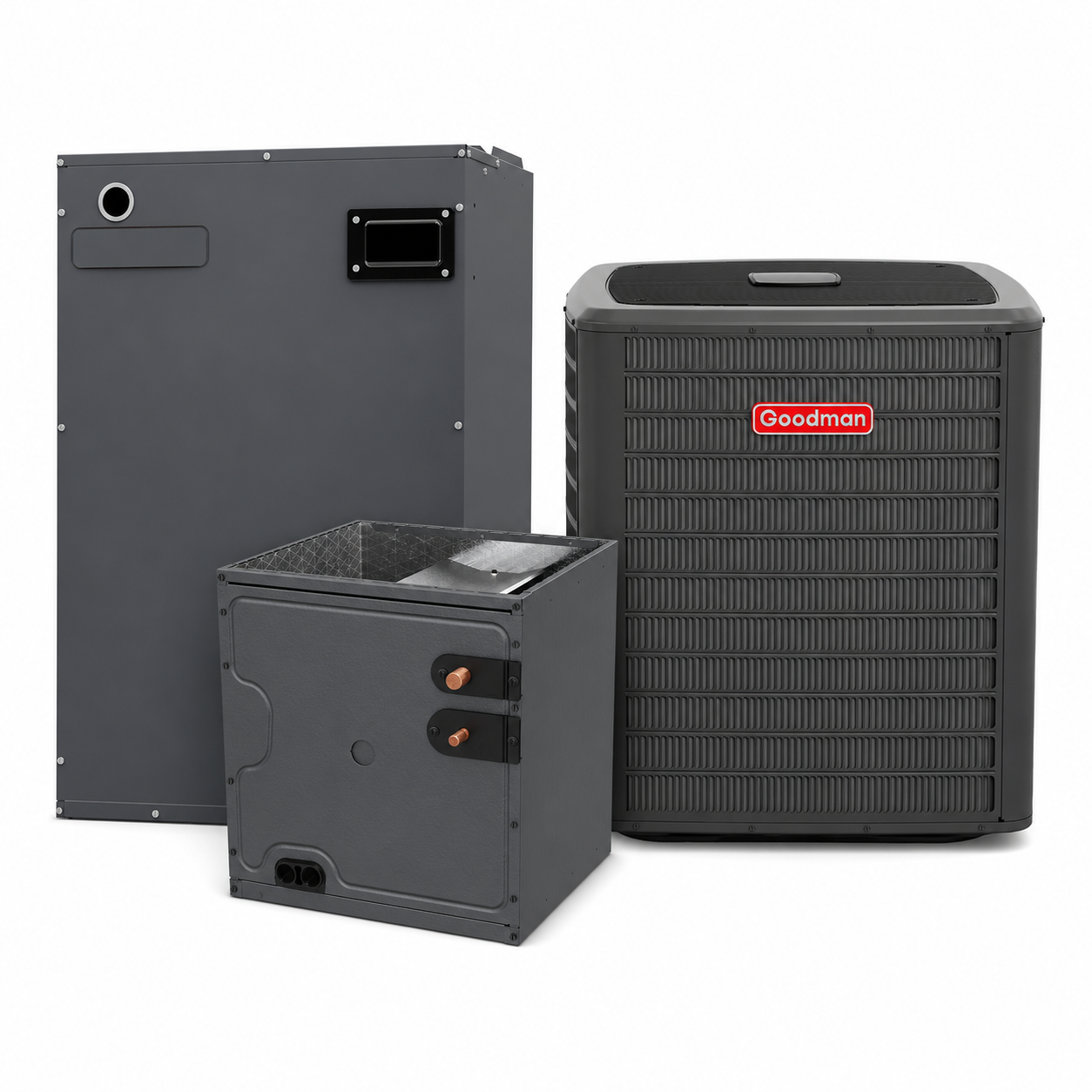

Goodman 2 Ton 15.2 SEER2 Electric Furnace and Air Conditioner System -

Product Overview

OVERVIEW

Built with a superior design, Goodman manufactured the GLXT7CA2410 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GLXT7CA2410 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.

QUICK FACTS

Ideal size to cover a smaller house in ideal climates
2 Ton, 17.2 SEER2 AC-only condenser
R32: Complies with Clean Air Act New Refrigerant Requirements
Two Stage
Lowest possible sound output
Fully charged for up to 15' of line set
Factory-installed filter drier

2 Ton

The Goodman GLXT7CA2410 air conditioning condenser is rated for 2 tons, which can cover up to a small house in an ideal climate. In order to maintain the unit's efficiency, this condenser may be paired with a higher-tonnage coil.

17.2 SEER2

The Goodman GLXT7CA condenser series is designed to be the most efficient AC series in Goodman's lineup. Specifically, the GLXT7CA2410 is 17.2 SEER2, the highest efficiency rating offered by Goodman. This unit will save you the most money when it comes to your energy bills, at a whopping approximate of 25% more efficient than the 13.4 SEER2 industry standard minimum.

Superior Comfort with Two Stages

The GLXT7CA2410 condenser is designed to be one of the quietest and most stable temperature output condensers made by Goodman today. With its two stage Copeland UltraTech scroll compressor, temperature stability is at its peak, allowing the condenser to only use the highest output when needed, and using the lower output more often to prevent overshooting the desired temperature and lowering the amount of time that the fan is at its loudest. Further enhancing comfort, the two stage compressor also allows for a better dehumidification of your home. Moreover, the cabinet is insulated and the compressor has a built-in foam compressor sound blanket, further decreasing the unit's sound output.

Warranty

With Goodman's standard 10 year parts warranty, the GLXT7CA2410 provides a peace of mind in the rare occurrence that something goes wrong on your unit. On top of this, Goodman also offers an astounding lifetime warranty on the unit's compressor when it is paired with a new coil or air handler that is a Goodman-certified configuration. All of Goodman's warranties require a professional installation that follows your state and local codes and an online registration within 60 days of your installation through the manufacturer.

Durability and Reliability

With its durable galvanized-steel cabinet and its painted finish that is approved for 500 hours of salt spray, the GLXT7CA2410 condenser stands up to Goodman's high durability standards. The durable design of the cabinet also makes it 2010 Florida building code integrity requirements for hurricane-type winds compliant when it is properly anchored.

Installation and Maintenance

With its compact footprint and rust-resistant coated screws, the GLXT7CA2410 is designed to be suitable in almost any installation location. For easier installation, Goodman designed the gauge ports and service valves to be easily accessible and with sweat connections. The cabinet has a maintenance access panel on both the top and the side of the unit. All of this allows you to keep money in your pocket and have a lower resolution time if a rare system issue occurs, providing comfort with a peace of mind.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

Vertical or Horizontal Installation: Flexible design to fit any space requirement.
Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
Field-Installed Heat Strips: Customizable heating options for added comfort.
Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXT7CA2410)

Two-Stage Copeland Ultra-Tech scroll compressor
Quiet two-speed ECM outdoor fan motor
Integrated communicating ComfortBridge™ Technology
Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
Copeland® ComfortAlert™ built in diagnostics
Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
Color-coded terminal strip for non-communicating set-up
Only two low-voltage wires required in communication mode
Factory-installed filter drier
Factory-installed transformer
Factory-installed high and low-pressure switches
High-density foam compressor sound blanket
Fully charged for 15’ of tubing length
Ambient temperature sensors
Ground lug connection
AHRI Certified - ETL Listed

Cabinet Features (GLXT7CA2410)

Removable grille-style top design compliant with UL 60335-2-40
Venturi for increased velocity of airflow
Heavy-gauge galvanized steel cabinet
Baked-on powder-paint finish with 500-hour salt-spray approval
Steel louver coil guard with rust-resistant screws.
Top and side maintenance access
Single-panel access to controls with space for field-installed accessories
Service valves with sweat connections and easy-access gauge ports
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds(Anchor bracket kits available.)

Technical Specifications - GLXT7CA2410

product category	Unitary
product class pim	Split Air Conditioner
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Outdoor
market type	Residential-Single Family
product family	GLXT7C
series name	GLXT7C
model efficiency	17.2 SEER2
export control classification number eccn	EAR99
universal product code upc	663051743915
item stocking unit of measure uom	EA
pallet qty	1
country of origin	USA
us hts code	8415.90.8065
canadian hts code	8415.90.90.00
eer2 hsvtc	12.2
energy star certified	No
seer 2 hsvtc	15.2
produced in us	Yes
cooling operation range std max	125 °F
cooling operation range std min	55 °F
rated cooling condition ambient db	95 °F
rated cooling condition ambient wb	75 °F
fan compressor drive input	9.9 A
max overcurrent protection	20 A
min circuit amps	15 A
power frequency	60 Hz
power phase	1 Ph
power voltage	208/230 V
compressor stages	Two Stage
compressor type	Scroll
dimensions unit depth	35.5 in
dimensions unit height	39.5 in
dimensions unit width	35-1/2 in
expansion device	TXV
sound pressure high cooling	69 dBA
weight unit	214 lb
cooling capacity rated	24000 Btu/H
tonnage	2
factory std refrigerant charge	104 oz
pipe size gas	3/4 in
pipe size liquid	3/8 in
refrigerant pre charged line length	15 ft
refrigerant type	R-32
standard line set length max	200 ft
standard line set length vertical	79 ft
valve size suction o d	3/4 in
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	37.00 in
dimensions case height	42.00 in
dimensions case width	37.00 in
dimensions distribution unit depth	37 in
dimensions distribution unit height	42 in
dimensions distribution unit width	37 in
dimensions pallet depth	37.00 in
dimensions pallet height	42.00 in
dimensions pallet width	37.00 in
dimensions shipping unit depth	37.00 in
dimensions shipping unit height	42.00 in
dimensions shipping unit width	37.00 in
distribution shipping volume unit	57498 in³
shipping volume unit	57498.000 in³
truck factor	0.0000
volume case	57498.000 in³
volume distribution shipping unit	57498 in³
weight case	226.000 lb
weight distribution shipping unit	226 lb
weight shipping unit	226.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential	COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS

Product Features (CAPTA2422A3)

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Vertical application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified
ETL Listed

Technical Specifications - CAPTA2422A3

product category	Unitary
product class pim	Coil
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CAPTA_3
series name	CAPTA AlumaFin7™
family description	CAPTA AlumaFin7™ Evaporator Coil
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051688322
item stocking unit of measure uom	EA
pallet qty	12
country of origin	USA
us hts code	8415.90.8025
canadian hts code	8415.90.90.00
produced in us	Yes
cabinet finish	Painted
cased vs uncased	Cased
dimensions unit depth	21 in
dimensions unit height	22 in
dimensions unit width	14 in
expansion device	TXV
tonnage	2.0
tonnage range	1.5;2
condensate drain outlet	3/4 in
pipe size gas	3/4 in
pipe size liquid	3/8 in
refrigerant type	R-32
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.00 in
dimensions case height	24.75 in
dimensions case width	16.25 in
dimensions distribution unit depth	26 in
dimensions distribution unit height	24.75 in
dimensions distribution unit width	16.25 in
dimensions pallet depth	54.00 in
dimensions pallet height	54.00 in
dimensions pallet width	50.00 in
dimensions shipping unit depth	26.00 in
dimensions shipping unit height	24.75 in
dimensions shipping unit width	16.25 in
distribution shipping volume unit	10456.875 in³
shipping volume unit	10456.875 in³
truck factor	0.0000
volume case	10456.875 in³
volume distribution shipping unit	10456.875 in³
weight case	43.000 lb
weight distribution shipping unit	43 lb
weight shipping unit	43.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family	10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential	10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential	5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

Variable-speed ECM blower motor
Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
Advanced configuration of the airflow and tonnage in communicating mode
Provides constant CFM over a wide range of static pressure conditions independent of duct system
CFM indicator
Provides adjustable low CFM for efficient fan-only operation
Improved humidity and comfort control
Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
Blower section usable as electric heater
Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category	Unitary
product class pim	Air Handler
system family	Unitary Split System
function category	Air Handler
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	MBVB
series name	Modular Blower
communication feature	Yes
communication feature type	ComfortBridge Technology compatible
export control classification number eccn	EAR99
universal product code upc	663051692909
item stocking unit of measure uom	EA
pallet qty	8
country of origin	Mexico
us hts code	8414.59.6560
canadian hts code	8414.59.00.99
produced in us	No
indoor blower fla	5.2 A
max overcurrent protection	15/15 A
max voltage	253 V
min voltage	197 V
power frequency	60 Hz
power voltage	208/230 V
dimensions blower diameter	10 in
dimensions blower width	8 in
dimensions unit depth	21 in
dimensions unit height	30 in
dimensions unit width	21 in
motor speed type	Fixed Speed ECM
blower motor horsepower	0.75 metric hp
tonnage range	1.5;5
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.00 in
dimensions case height	32.75 in
dimensions case width	23.50 in
dimensions distribution unit depth	25.5 in
dimensions distribution unit height	32.75 in
dimensions distribution unit width	24.5 in
dimensions pallet depth	54.00 in
dimensions pallet height	70.00 in
dimensions pallet width	50.00 in
dimensions shipping unit depth	26.00 in
dimensions shipping unit height	32.75 in
dimensions shipping unit width	23.50 in
distribution shipping volume unit	20460.5625 in³
shipping volume unit	20010.250 in³
truck factor	0.0000
volume case	20010.250 in³
volume distribution shipping unit	20460.5625 in³
weight case	72.090 lb
weight distribution shipping unit	72.09 lb
weight shipping unit	72.090 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
