Goodman

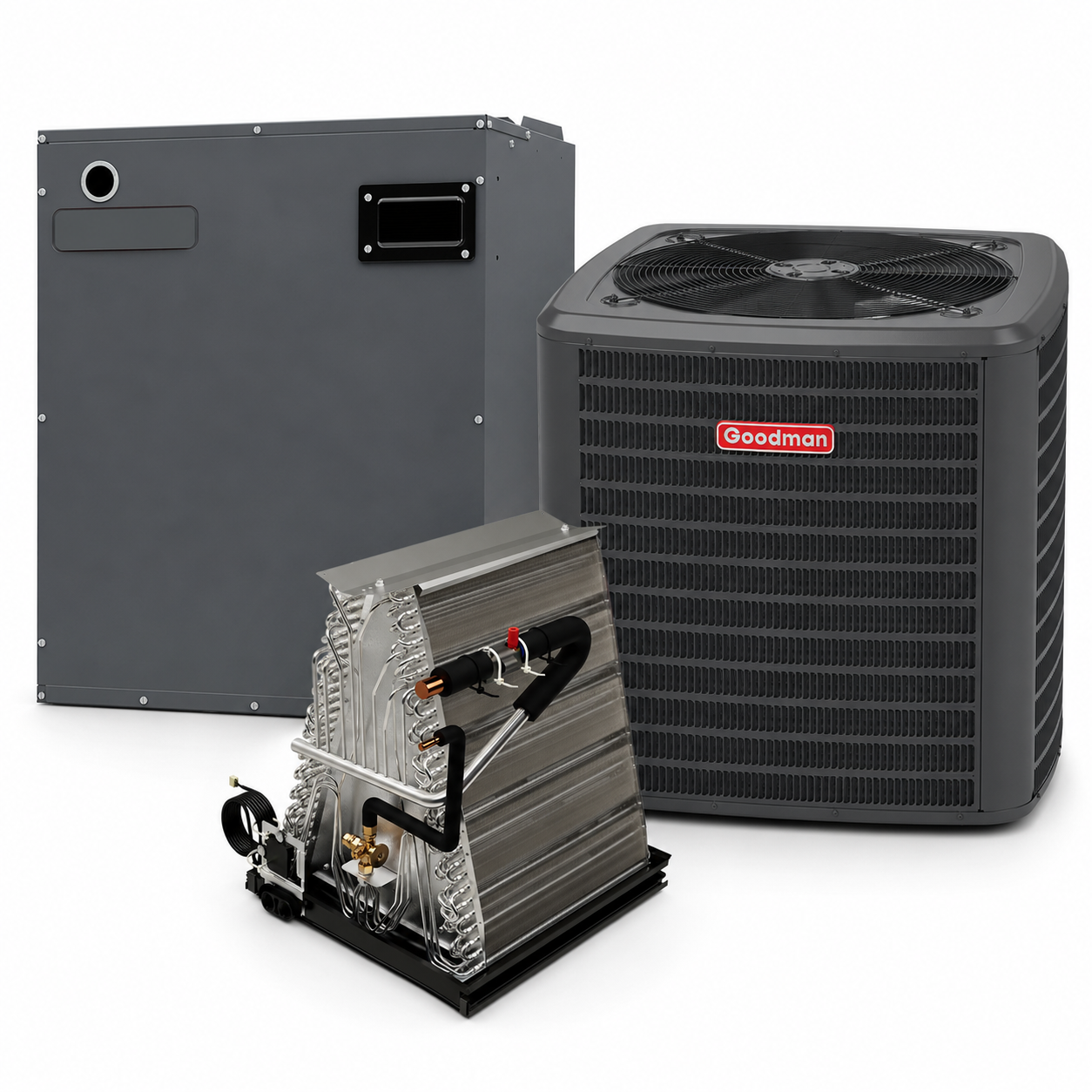

Goodman 2 Ton 15.2 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 13"

SKU: GLXS4MA2410 + CAUTA3022A3 + MBVB16CP1X00

System highlights
AC Type
AC & Electrical Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
30000 BTU (2.5 TON)
Voltage
208-240V, 208-230V
Looking For
AC & Electrical Furnace System
SEER2 Rating
15.2
Airflow Direction
Upflow, Downflow
Blower Motor
Variable Speed ECM
Maximum CFM
1600
Burner Stages
Two Stages
Coil Style
A-Coil
Cabinet Width (in)
13
Goodman 2.5 Ton Evaporator Coil Uncased TXV 13" Cabinet Upflow/Downflow R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,176.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2 Ton 15.2 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 13"

Product Overview

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410

The Goodman GLXS4MA2410 2 Ton Air Conditioner Condenser is engineered for durability, energy efficiency, and compliance with the latest refrigerant standards. Designed for multi-family applications, this outdoor condensing unit utilizes environmentally friendly R32 refrigerant and a high-efficiency scroll compressor to deliver reliable cooling performance while meeting 2025 refrigerant guidelines.

Built with heavy-gauge galvanized steel and a powder-coated finish tested for 500-hour salt-spray durability, this unit is AHRI Certified, ETL Listed, and compliant with Florida Building Code wind-load requirements when properly installed. Ideal for residential and light commercial installations, the GLXS4MA2410 is a smart solution for energy-conscious builders and property owners.

Key Features

  • 2 Ton Cooling Capacity – Designed for optimal performance in small to medium-sized multi-family dwellings
  • 14.3 SEER2 Efficiency Rating – Offers improved seasonal energy efficiency and lower utility costs
  • R32 Refrigerant – Environmentally friendly refrigerant compliant with 2025 EPA regulations for reduced global warming potential
  • High-Efficiency Scroll Compressor – Delivers reliable, quiet performance with improved energy savings
  • Factory-Installed Filter Drier – Protects the refrigeration system from moisture and contaminants
  • Fully Charged for 15’ Line Set – Pre-charged with R32 refrigerant to simplify installation and reduce labor time
  • 5mm Copper Tube / Enhanced Aluminum Fin Coil – Promotes superior heat transfer and long-term system durability
  • Service Valves with Sweat Connections – Easy-access gauge ports simplify maintenance and service tasks
  • High-Pressure Switch – Enhances safety by protecting against abnormal system pressure levels
  • Ground Lug Connection – Simplifies grounding during installation for added safety compliance
  • Enclosed Contactor – Helps prevent debris and moisture exposure for longer component life
  • Removable Grille-Style Top – Allows easy access for coil cleaning and is UL 60335-2-40 compliant
  • Venturi-Enhanced Airflow – Designed to increase airflow velocity and improve system efficiency
  • Architectural Gray Powder-Coated Finish – Weather-resistant finish tested for 500-hour salt spray exposure
  • Steel Louver Coil Guard – Protects the coil from debris and physical damage
  • Top and Side Maintenance Access – Simplifies service and diagnostics
  • Single-Panel Control Access – Includes space for field-installed accessories for flexible setup
  • Florida Building Code Compliant (2023) – Meets requirements for hurricane-type winds when properly anchored
  • AHRI Certified & ETL Listed – Verifies quality, performance, and regulatory compliance

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

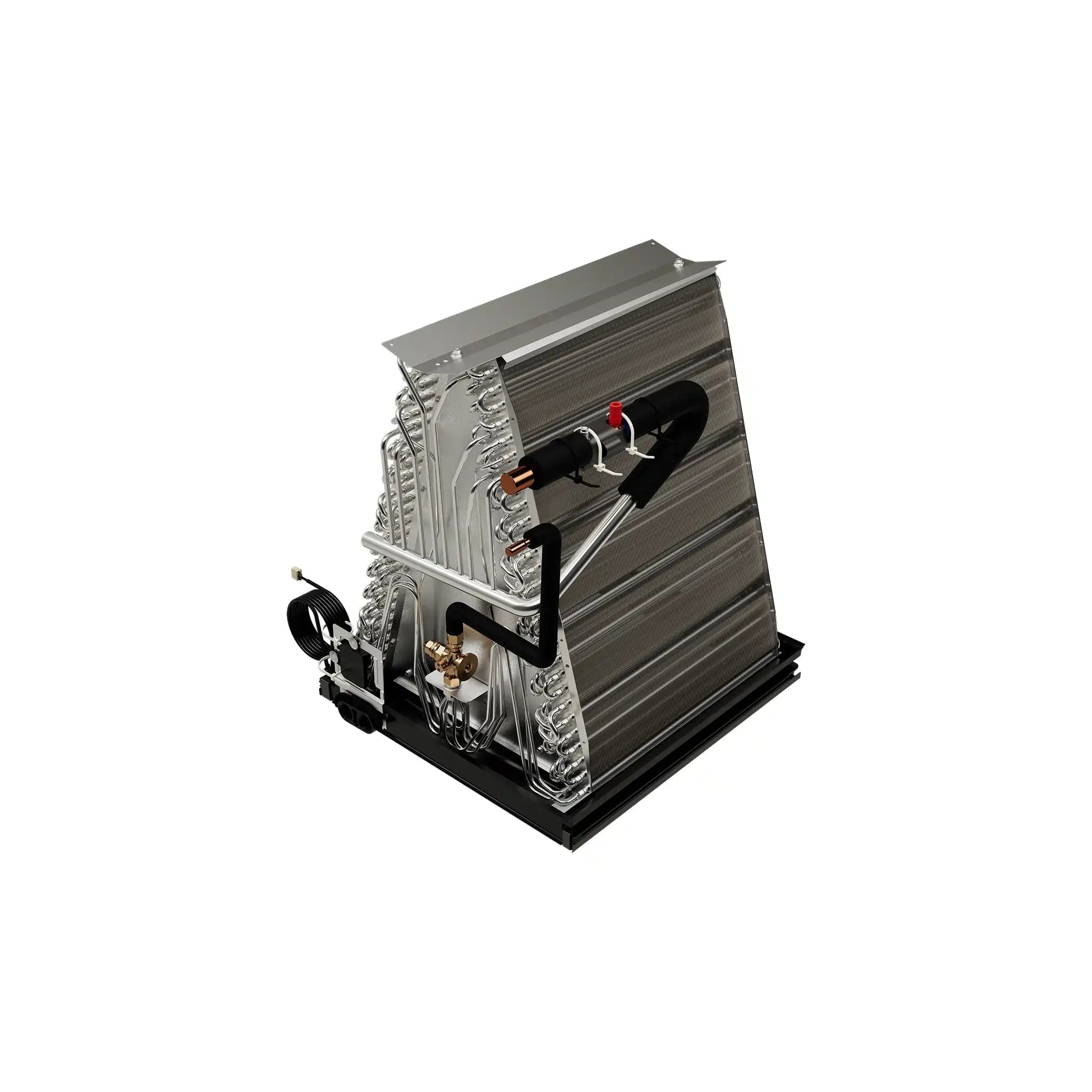

Goodman 2.5 Ton Evaporator Coil Uncased TXV 13" Cabinet Upflow/Downflow CAUTA3022A3

The Goodman CAUTA3022A3 2.5 Ton Uncased Evaporator Coil delivers efficient and durable performance for HVAC systems using R-32 refrigerant. Designed for upflow and downflow installations, this coil features a factory-installed TXV and an all-aluminum construction that resists corrosion and enhances heat transfer. It includes a standardized copper suction tube stub, a UV-resistant drain pan, and foil-faced insulation to minimize cabinet condensation. Certified by AHRI and ETL listed, this coil is a compact, dependable solution for cooling systems.

Key Features

  • All-aluminum evaporator coil enhances durability and performance
  • Fully optimized for R-32 refrigerant including internal manifolds
  • Integrated R-32 sensor designed to last the coil’s service life
  • Factory-installed TXV ensures optimal cooling efficiency
  • Foil-faced insulation helps reduce internal cabinet condensation
  • Standardized copper suction tube stub for uniform installation
  • Low water-retention, rust-resistant thermoplastic drain pan
  • Drain pan features UV resistance and secondary drain connections
  • Drain rails allow coil repositioning without damaging structural integrity
  • ETL listed and AHRI certified for safety and reliability

This coil is ideal for replacing older systems or installing new units with R-32 refrigerant, especially where space-saving and upflow/downflow configurations are required.

Goodman 2.5 Ton Evaporator Coil Uncased TXV 13" Cabinet Upflow/Downflow CAUTA3022A3

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

  • Vertical or Horizontal Installation: Flexible design to fit any space requirement.
  • Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
  • Field-Installed Heat Strips: Customizable heating options for added comfort.
  • Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS4MA2410)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Cabinet Features (GLXS4MA2410)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Technical Specifications - GLXS4MA2410

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692107
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 24000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 13.5 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 10.24 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 26 in
dimensions unit width 32-1/2 in
sound pressure high cooling 69 dBA
weight unit 69 lb
cooling capacity rated 23600 Btu/H
tonnage 2
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 58 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 34.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 34.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 34.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 34.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 26090.625 in³
shipping volume unit 26090.625 in³
truck factor 0.0000
volume case 26090.625 in³
volume distribution shipping unit 26090.625 in³
weight case 145.000 lb
weight distribution shipping unit 145 lb
weight shipping unit 145.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (CAUTA3022A3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valve for cooling applications
  • Standardized copper suction tube stub length
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Technical Specifications - CAUTA3022A3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAUTA_32
series name CAUTA
family description CAUTA Uncased Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051729339
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Unpainted
cased vs uncased Uncased
dimensions unit depth 21.3 in
dimensions unit height 18.3 in
dimensions unit width 13 in
expansion device TXV
tonnage 2.5
tonnage range 2.5
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 24.75 in
dimensions case width 16.25 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 24.75 in
dimensions distribution unit width 16.25 in
dimensions pallet depth 54.00 in
dimensions pallet height 54.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 24.75 in
dimensions shipping unit width 16.25 in
distribution shipping volume unit 10456.875 in³
shipping volume unit 10456.875 in³
truck factor 0.0000
volume case 10456.875 in³
volume distribution shipping unit 10456.875 in³
weight case 25.000 lb
weight distribution shipping unit 25 lb
weight shipping unit 25.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
  • Blower section usable as electric heater
  • Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

  • Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family MBVB
series name Modular Blower
communication feature Yes
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051692909
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8414.59.6560
canadian hts code 8414.59.00.99
produced in us No
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min voltage 197 V
power frequency 60 Hz
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 21 in
motor speed type Fixed Speed ECM
blower motor horsepower 0.75 metric hp
tonnage range 1.5;5
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 25.5 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 24.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20460.5625 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20460.5625 in³
weight case 72.090 lb
weight distribution shipping unit 72.09 lb
weight shipping unit 72.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
