Goodman

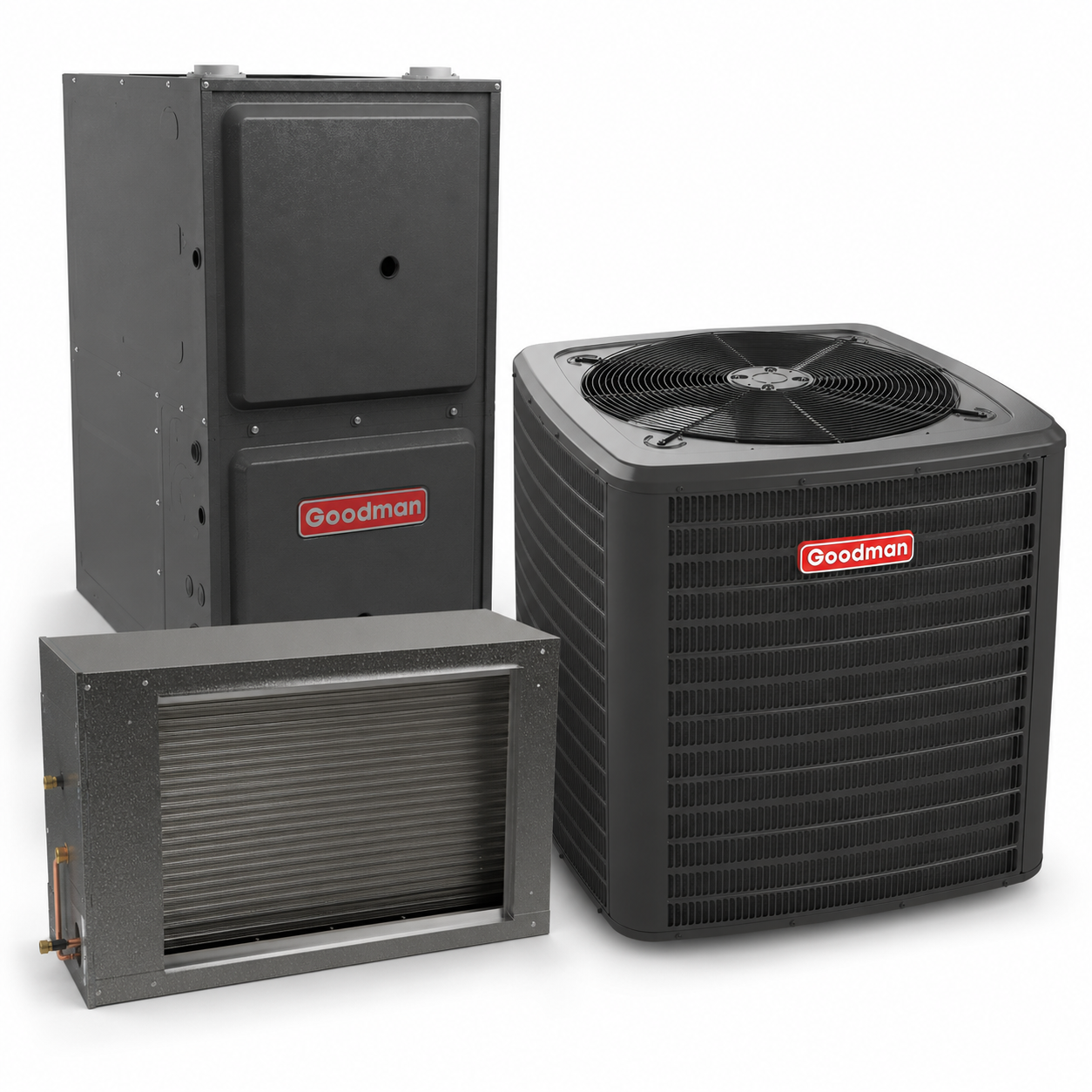

Goodman 2 Ton 14.5 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

SKU: CSCT3012M3 + GLXS4MA2410 + GD9S960603BN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
30000 BTU (2.5 TON)
Looking For
AC & Furnace System
SEER2 Rating
14.5
Airflow Direction
Downflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1200
Fuel Type
Natural Gas, Propane
Burner Stages
Single Stage
Coil Style
Slab Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
96% AFUE
Cabinet Width (in)
25
! Cabinet might need adjustment for sizing.
Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$4,900.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2 Ton 14.5 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

Product Overview

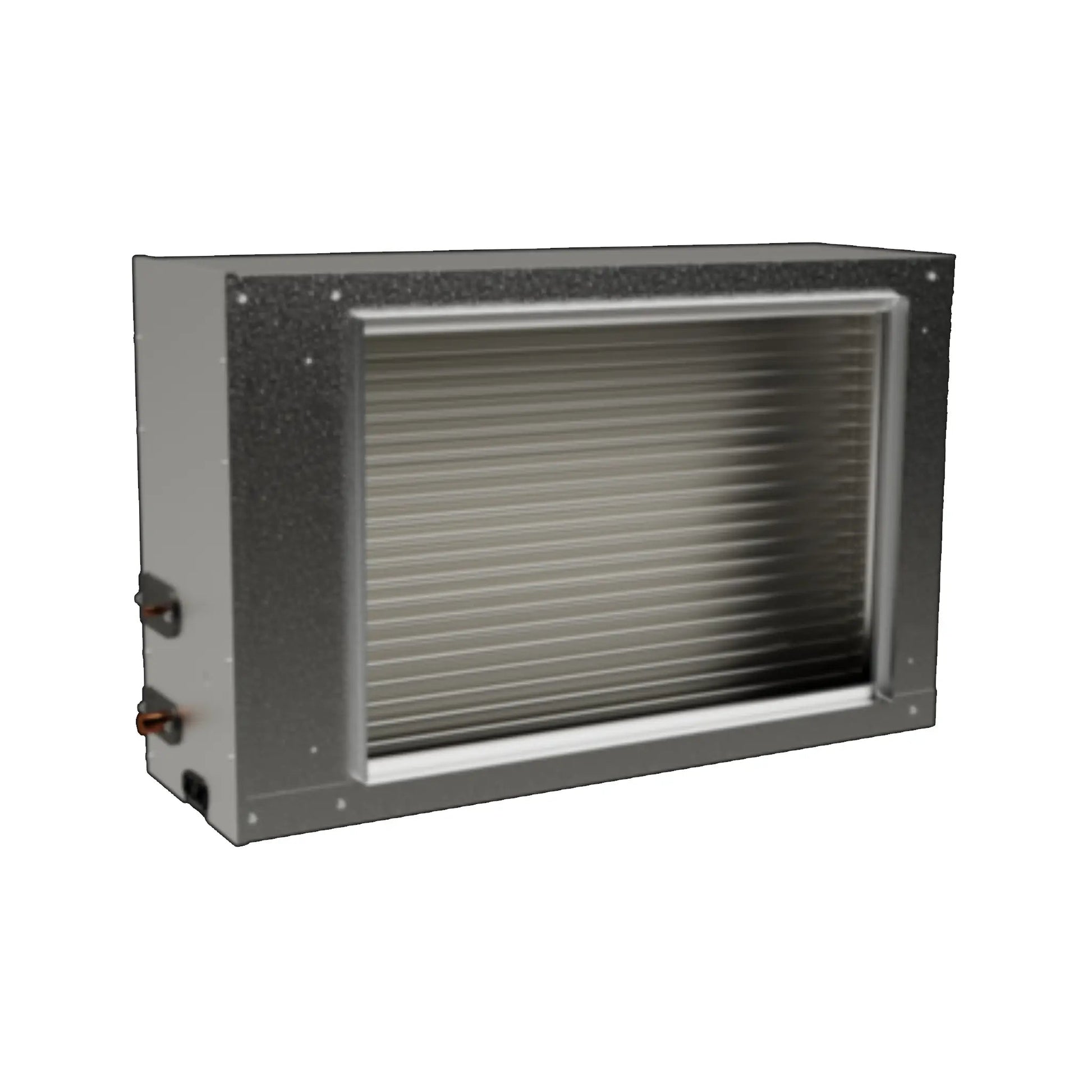

Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3

The Goodman CSCT3012M3 is an ideal evaporator coil for medium-sized homes, delivering dependable and efficient cooling performance. With a durable all-aluminum construction and full compatibility with R-32 refrigerant, this unit is both long-lasting and environmentally conscious—making it a smart solution for modern HVAC systems.

Features and Benefits:

  • Nominal Capacity: 2–2.5 tons – Suitable for medium-sized residential applications.
  • Dimensions: 33½" W x 12" D x 25" H – Compact size allows flexible installation.
  • Service Valve: ⅜" Liquid, ⅞" Suction – Standard connection sizes for quick setup.
  • All-Aluminum Evaporator Coil: Provides long-lasting durability and efficient heat transfer, reducing corrosion risks.
  • Optimized for R-32 Refrigerant: Delivers energy-efficient cooling while supporting low-GWP refrigerant compliance.
  • Factory-Installed Thermal Expansion Valve (TXV): Enhances performance and cooling accuracy.
  • UV-Resistant Drain Pan: Helps prevent mold and mildew growth, promoting cleaner and healthier indoor air quality.

This coil is a dependable upgrade or replacement component for HVAC systems using R-32 refrigerant, combining compact design with performance-enhancing features for long-term value.

Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 10 years 10 years

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410

The Goodman GLXS4MA2410 2 Ton Air Conditioner Condenser is engineered for durability, energy efficiency, and compliance with the latest refrigerant standards. Designed for multi-family applications, this outdoor condensing unit utilizes environmentally friendly R32 refrigerant and a high-efficiency scroll compressor to deliver reliable cooling performance while meeting 2025 refrigerant guidelines.

Built with heavy-gauge galvanized steel and a powder-coated finish tested for 500-hour salt-spray durability, this unit is AHRI Certified, ETL Listed, and compliant with Florida Building Code wind-load requirements when properly installed. Ideal for residential and light commercial installations, the GLXS4MA2410 is a smart solution for energy-conscious builders and property owners.

Key Features

  • 2 Ton Cooling Capacity – Designed for optimal performance in small to medium-sized multi-family dwellings
  • 14.3 SEER2 Efficiency Rating – Offers improved seasonal energy efficiency and lower utility costs
  • R32 Refrigerant – Environmentally friendly refrigerant compliant with 2025 EPA regulations for reduced global warming potential
  • High-Efficiency Scroll Compressor – Delivers reliable, quiet performance with improved energy savings
  • Factory-Installed Filter Drier – Protects the refrigeration system from moisture and contaminants
  • Fully Charged for 15’ Line Set – Pre-charged with R32 refrigerant to simplify installation and reduce labor time
  • 5mm Copper Tube / Enhanced Aluminum Fin Coil – Promotes superior heat transfer and long-term system durability
  • Service Valves with Sweat Connections – Easy-access gauge ports simplify maintenance and service tasks
  • High-Pressure Switch – Enhances safety by protecting against abnormal system pressure levels
  • Ground Lug Connection – Simplifies grounding during installation for added safety compliance
  • Enclosed Contactor – Helps prevent debris and moisture exposure for longer component life
  • Removable Grille-Style Top – Allows easy access for coil cleaning and is UL 60335-2-40 compliant
  • Venturi-Enhanced Airflow – Designed to increase airflow velocity and improve system efficiency
  • Architectural Gray Powder-Coated Finish – Weather-resistant finish tested for 500-hour salt spray exposure
  • Steel Louver Coil Guard – Protects the coil from debris and physical damage
  • Top and Side Maintenance Access – Simplifies service and diagnostics
  • Single-Panel Control Access – Includes space for field-installed accessories for flexible setup
  • Florida Building Code Compliant (2023) – Meets requirements for hurricane-type winds when properly anchored
  • AHRI Certified & ETL Listed – Verifies quality, performance, and regulatory compliance

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

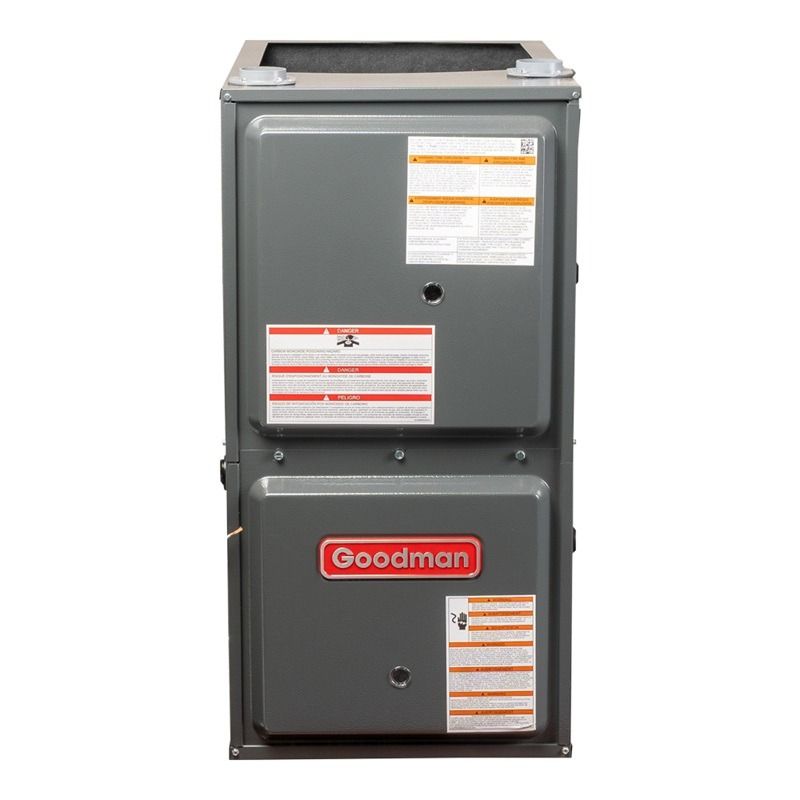

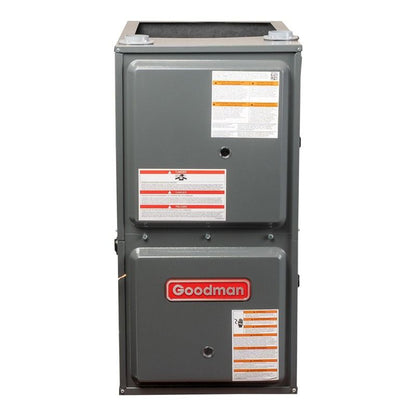

OVERVIEW

If you're looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman's GD9S960603BN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GD9S960603BN single-stage, 9-speed furnace is a great value designed for many applications.

QUICK FACTS

  • This furnace is ideal to heat a small to medium house (depending on climate)
  • 60,000 BTU 96% efficient natural gas furnace
  • Requires plastic/pvc flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

The GD9S960603BN Goodman gas furnace is suitable in output for a small to medium house in ideal climate conditions. The 60,000 BTU count is the input per hour of the furnace, and the output is 57,600 BTU's (60,000 x 96% AFUE) per hour.

96% Efficiency Rating

The GD9S960603BN Goodman gas furnace has a 96% efficiency rating. This means that only 4% of the fuel going into the furnace is used up in normal furnace operations and not used to heat your home. The remaining 96% of the inputted fuel is used to heat your home. 96% efficient furnaces is one of the highest efficiencies of natural gas furnaces available for purchase with today's technology. Please note that 96% efficient furnaces such as this one require plastic/pvc flue venting, and 80% efficient furnaces require metal flue venting.

Single Stage Furnace

A single stage furnace operates using the same amount of energy every time is turns on. The GD9S960603BN Goodman gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.

Natural Gas or LP Furnace

From the factory, the GD9S960603BN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

The GD9S960603BN utilizes a 9-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

Instead of a standing pilot light, the GD9S960603BN has a newer, more efficient hot surface igniter. Hot surface igniters are much more efficient and safer than standard standing pilot lights.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace's basic operation.

Heavy Gauge Steel Cabinet

The GD9S960603BN Goodman gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace's design allows for a more protected interior, and less air leakage from the furnace's operation, resulting in a more quiet operation while still decreasing operation costs.

Ease of Installation

From enhanced operation to efficiency, the Goodman gas furnaces have a lot to offer. However, Goodman's features don't stop at quality of unit. The GD9S960603BN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.

Product Features (CSCT3012M3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling applications
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CSCT3012M3)

  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections

Technical Specifications - CSCT3012M3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CSCT
series name CSCT
family description CSCT Horizontal Slab
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051736795
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us No
cased vs uncased Cased
dimensions unit width 25-1/2 in
expansion device TXV
tonnage 2.5
tonnage range 2.5
condensate drain outlet 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 14.00 in
dimensions case height 25.50 in
dimensions case width 35.50 in
dimensions pallet depth 56.00 in
dimensions pallet height 56.00 in
dimensions pallet width 43.00 in
dimensions shipping unit depth 14.00 in
dimensions shipping unit height 25.50 in
dimensions shipping unit width 35.50 in
shipping volume unit 12673.500 in³
truck factor 0.0000
volume case 12673.500 in³
weight case 52.090 lb
weight shipping unit 52.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GLXS4MA2410)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Cabinet Features (GLXS4MA2410)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Technical Specifications - GLXS4MA2410

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692107
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 24000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 13.5 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 10.24 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 26 in
dimensions unit width 32-1/2 in
sound pressure high cooling 69 dBA
weight unit 69 lb
cooling capacity rated 23600 Btu/H
tonnage 2
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 58 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 34.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 34.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 34.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 34.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 26090.625 in³
shipping volume unit 26090.625 in³
truck factor 0.0000
volume case 26090.625 in³
volume distribution shipping unit 26090.625 in³
weight case 145.000 lb
weight distribution shipping unit 145 lb
weight shipping unit 145.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GD9S960603BN)

  • High reliabilitynd quality
  • Faster condensate water drainagend no unit water leakage
  • Durablend long igniter life
  • Provisions for electronicir cleanernd humidifier
  • Energy Efficientnd quiet circulation
  • Lower NOx emission
  • Self-diagnostic control board with constant memory
  • Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards
  • Operates on two-stage or single-stage thermostats
  • Easy Connection for EACnd Humidifier

Product Features (GD9S960603BN)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board with constant memory fault code history output to LED
  • All models comply with California 40 ng/J Low NOx emissions standard
  • Can no longer be installed in California’s South Coastir Quality Management District (SCAQMD) on orfter October 1, 2019

Technical Specifications - GD9S960603BN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GD9S96
model efficiency 0.96
family description Single Stage Multi-Speed ECM Downflow Gas Furnace Up to 96% AFUE
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051686106
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 96 %
cooling capacity nominal 36000 Btu/H
installation configuration Downflow/Horizontal
produced in us Yes
temperature rise range high fire 35-65 °F
max overcurrent protection 15 A
min circuit amps 10.1 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1309.4 ft³/min
dimensions blower diameter 11 in
dimensions blower width 8 in
dimensions unit depth 28-7/8 in
dimensions unit height 34-1/2 in
dimensions unit width 17-1/2 in
heat exchanger type Gas
motor speed type Multi Speed ECM
nox burner type Low NOx
weight unit 116 lb
blower motor horsepower 0.5 metric hp
high fire input capacity 60000 Btu
high fire output capacity 57660
gas valve type Single Stage
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 38.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 38.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 21367.5 in³
shipping volume unit 21367.500 in³
truck factor 0.0000
volume case 21367.500 in³
volume distribution shipping unit 21367.5 in³
weight case 121.000 lb
weight distribution shipping unit 121 lb
weight shipping unit 121.000 lb
registered parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
