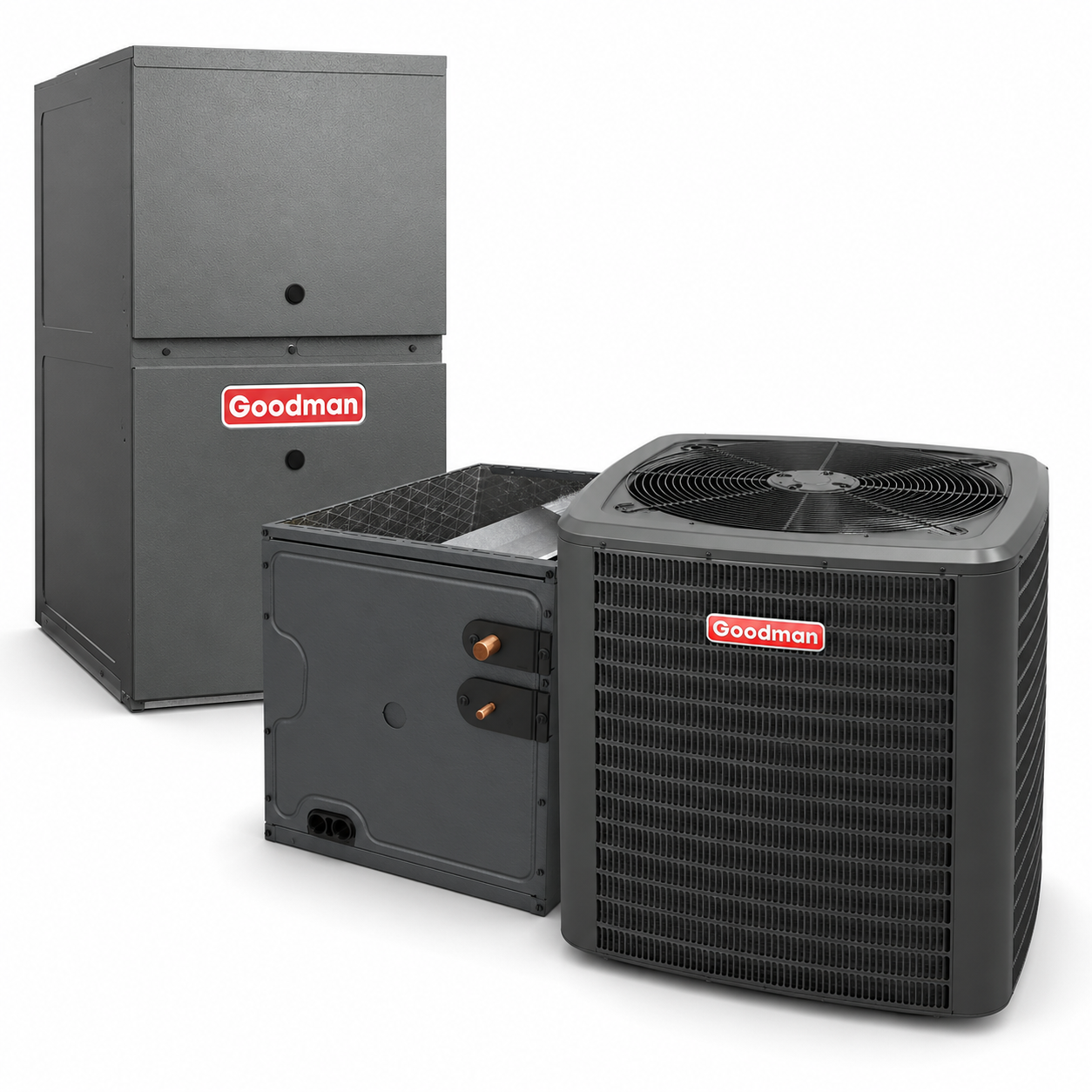

Goodman 2 Ton 14.5 SEER2 80% AFUE 80,000 BTU Furnace and High Efficiency Heat Pump System | Inverter - R32 - Upflow/Horizontal

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

• All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
• 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

OVERVIEW

The GR9S800804BN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9S800804BN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9S800804BN.

QUICK FACTS

• This furnace is ideal to heat a medium-sized house (depending on climate)
• 80,000 BTU 80% efficient natural gas furnace
• Requires metal flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

The GR9S800804BN Goodman gas furnace is 80,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU’s (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium-size house.

80% Efficiency Rating

The GR9S800804BN Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/pvc venting.

Single Stage Furnace

The GR9S800804BN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the GR9S800804BN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GR9S800804BN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GR9S800804BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
