Goodman

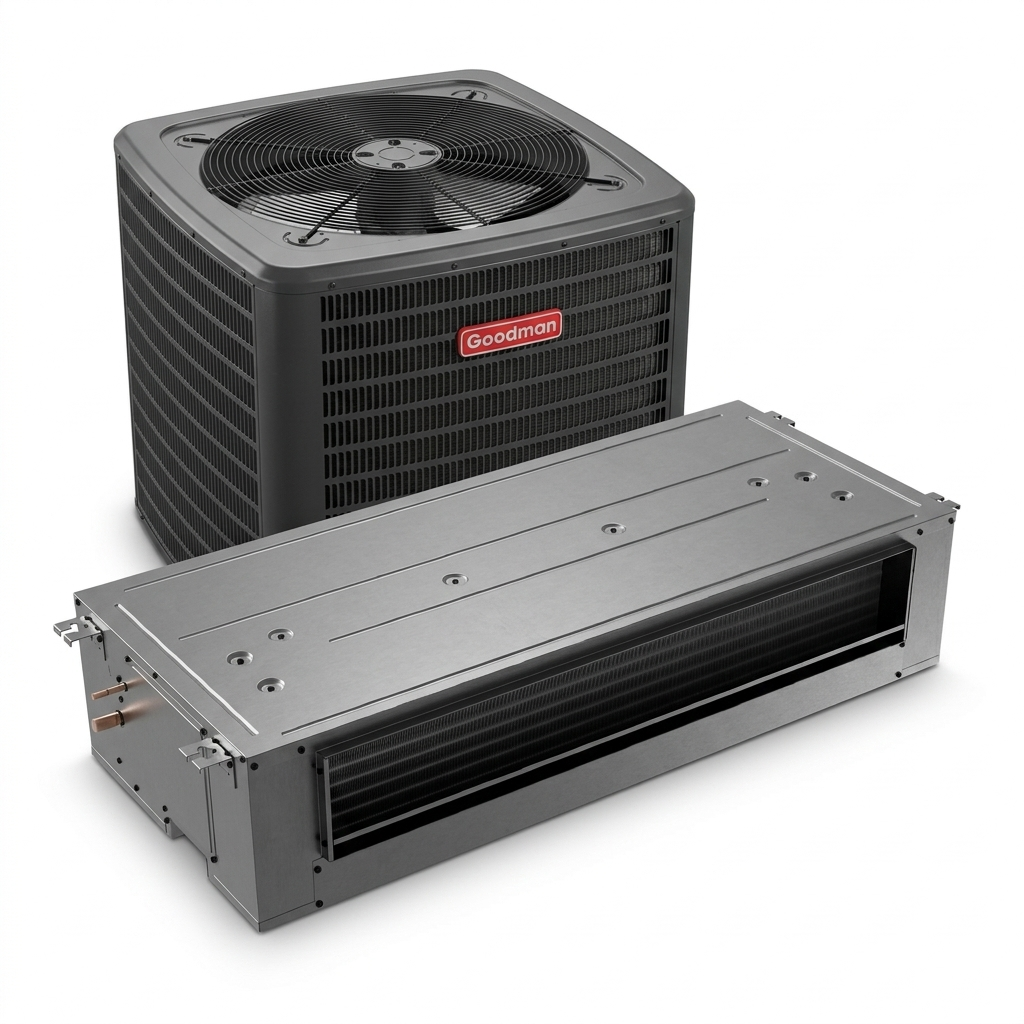

Goodman 2 Ton 14.3 SEER2 R32 Heat Pump System w/ 10kW Heat - R454B Inverter - Ceiling-Mounted

SKU: ACST24LU1310 + GLZS4BA2410

System highlights
AC Type
Slim Duct
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
24000 BTU (2.0 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
1000-1500
SEER2 Rating
14.3
Electric Heat
10 Kilowatt

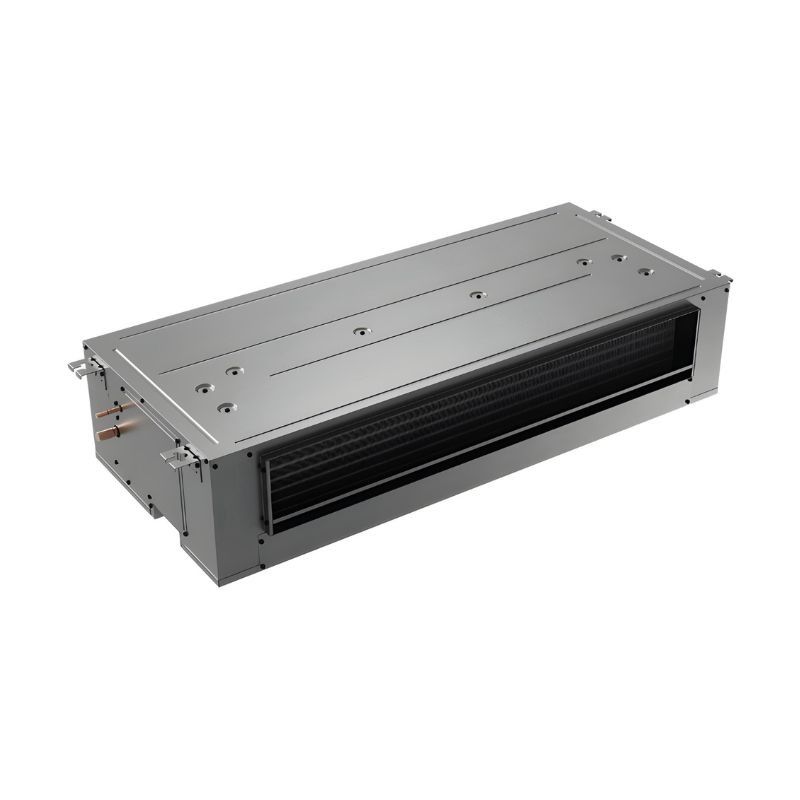

Goodman 2 Ton Ceiling Mount Air Handler with 10kW Heat - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,419.00
Shipping calculated at checkout.
Quantity
View full details
Goodman
Goodman 2 Ton 14.3 SEER2 R32 Heat Pump System w/ 10kW Heat - R454B Inverter - Ceiling-Mounted

Product Overview

Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACST series Ceiling Mounted Air Handler is designed for use with R-32 refrigerant and intended for homes where a traditional air handler will not fit.

Features

  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified; ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • 10 Year Parts Limited Warranty with online registration

OVERVIEW

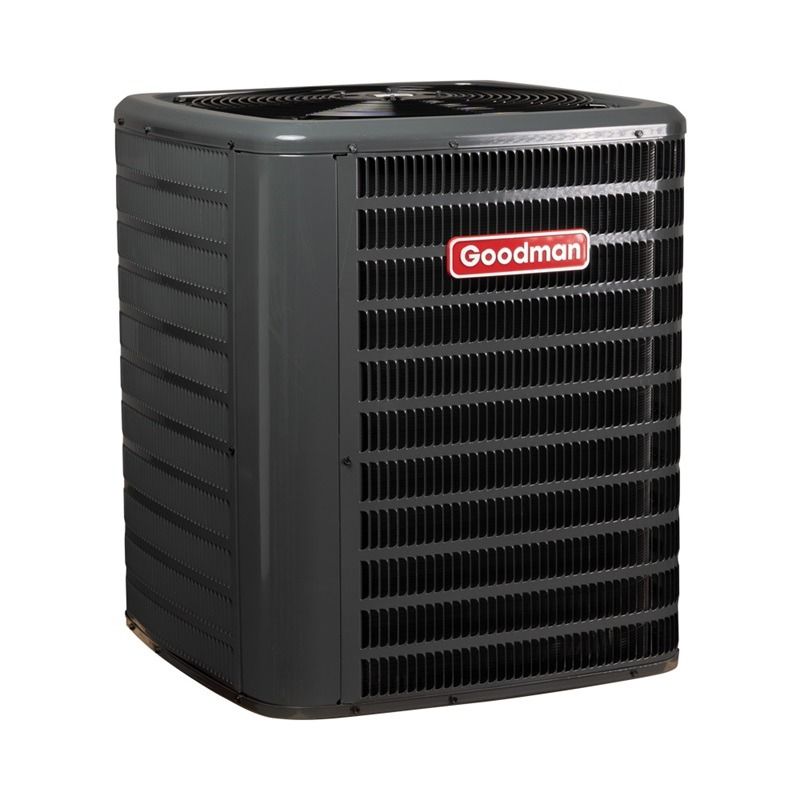

The Goodman GLZS4BA2410 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GLZS4BA2410 is manufactured with high-quality materials to provide a superior comfort in your home.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Ideal size to cover a smaller house in ideal climates
  • 2 ton, 14.3 SEER2 heat pump condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

2 Ton

The Goodman GLZS4BA2410 heat pump has a capacity of 2 tons. In an ideal climate, this tonnage will normally cover up to a small house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14.3 SEER2

At 14.3 SEER2, the GLZS4BA2410 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0�F, this heat pump operates at 35% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.

Warranty

The GLZS4BA2410 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GLZS4BA2410 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GLZS4BA2410 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GLZS4BA2410 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

Why Buy at

is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

Product Benefits (ACST24LU1310)

  • Factory installed TXV for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified
  • Suitable for both front and bottom return
  • Factory installed casing
  • UL 2-40 cerified
  • ETL Listed
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access

Product Features (ACST24LU1310)

  • Factory installed TXV for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified
  • Suitable for both front and bottom return
  • Factory installed casing
  • UL 2-40 cerified
  • ETL Listed
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features (ACST24LU1310)

  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • Suitable for both front and bottom return
  • Factory installed casing

Technical Specifications - ACST24LU1310

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family ACST
series name ACST
family description Ceiling mount Air HAndler
installation type Ducted Ceiling Mounted
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051719521
item stocking unit of measure uom EA
pallet qty 8
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 24000 Btu/H
produced in us No
indoor blower fla 2 A
max overcurrent protection 50/60 A
max voltage 253 V
min circuit amps 47.6/54.6 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 6.7 in
dimensions blower width 8.06 in
dimensions unit depth 22.2 in
dimensions unit height 11 in
dimensions unit width 54-1/5 in
evap coil face area ft 2.34
evap motor rpm 1550 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 97 lb
blower motor horsepower 1/4 metric hp
tonnage 2
tonnage range 2
factory std refrigerant charge 0 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 51.50 in
dimensions case height 10.00 in
dimensions case width 23.00 in
dimensions distribution unit depth 51.5 in
dimensions distribution unit height 10 in
dimensions distribution unit width 23 in
dimensions pallet depth 52.00 in
dimensions pallet height 45.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 51.50 in
dimensions shipping unit height 10.00 in
dimensions shipping unit width 23.00 in
distribution shipping volume unit 11845 in�
shipping volume unit 11845.000 in�
truck factor 0.0000
volume case 11845.000 in�
volume distribution shipping unit 11845 in�
weight case 85.090 lb
weight distribution shipping unit 85.09 lb
weight shipping unit 85.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GLZS4BA2410)

  • Meets the 2023 M1 Test Standards

Product Features (GLZS4BA2410)

  • High-Efficiency Compressor
  • SmartShift technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
  • Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
  • High and low-pressure switches
  • Fully charged for 15' of tubing length
  • Service valves with sweat connections and easy-to-access gauge ports
  • Fully enclosed contactor with lug connection
  • Ground lug connection
  • Single-speed PSC condenser fan motor
  • Capacitor with extended life

Cabinet Features (GLZS4BA2410)

  • Removable grille style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

Technical Specifications - GLZS4BA2410

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZS4B
series name GLZS4B
model efficiency 14.3 SEER2
family description Energy-Efficient Standard Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 5Tons
installation type Ducted
communication feature No
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051689633
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
eer2 hsvtc 12.5
energy star certified No
heating capacity nominal 24000 Btu/H
hspf 2 hsvtc 7.5
seer 2 hsvtc 15.2
produced in us Yes
cooling operation range std max 125 �F
cooling operation range std min 55 �F
heating operation range std max 70 �F
heating operation range std min -20 �F
rated cooling condition ambient db 95 �F
rated cooling condition ambient wb 75 �F
rated heating condition ambient db 47 �F
rated heating condition ambient wb 43 �F
max overcurrent protection 15 A
min circuit amps 11.2 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 8.2 A
compressor stages Single Stage
compressor type Rotary
dimensions unit depth 29 in
dimensions unit height 32.5 in
dimensions unit width 29 in
expansion device TXV
sound pressure high cooling 74 dBA
weight unit 160 lb
cooling capacity rated 23600 Btu/H
heating capacity rated 22000 Btu/H
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 70 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.50 in
dimensions case height 34.50 in
dimensions case width 30.00 in
dimensions distribution unit depth 30.5 in
dimensions distribution unit height 34.5 in
dimensions distribution unit width 30 in
dimensions pallet depth 30.50 in
dimensions pallet height 34.50 in
dimensions pallet width 60.00 in
dimensions shipping unit depth 30.50 in
dimensions shipping unit height 34.50 in
dimensions shipping unit width 30.00 in
distribution shipping volume unit 31567.5 in�
shipping volume unit 31567.500 in�
truck factor 0.0000
volume case 31567.500 in�
volume distribution shipping unit 31567.5 in�
weight case 166.000 lb
weight distribution shipping unit 166 lb
weight shipping unit 166.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
