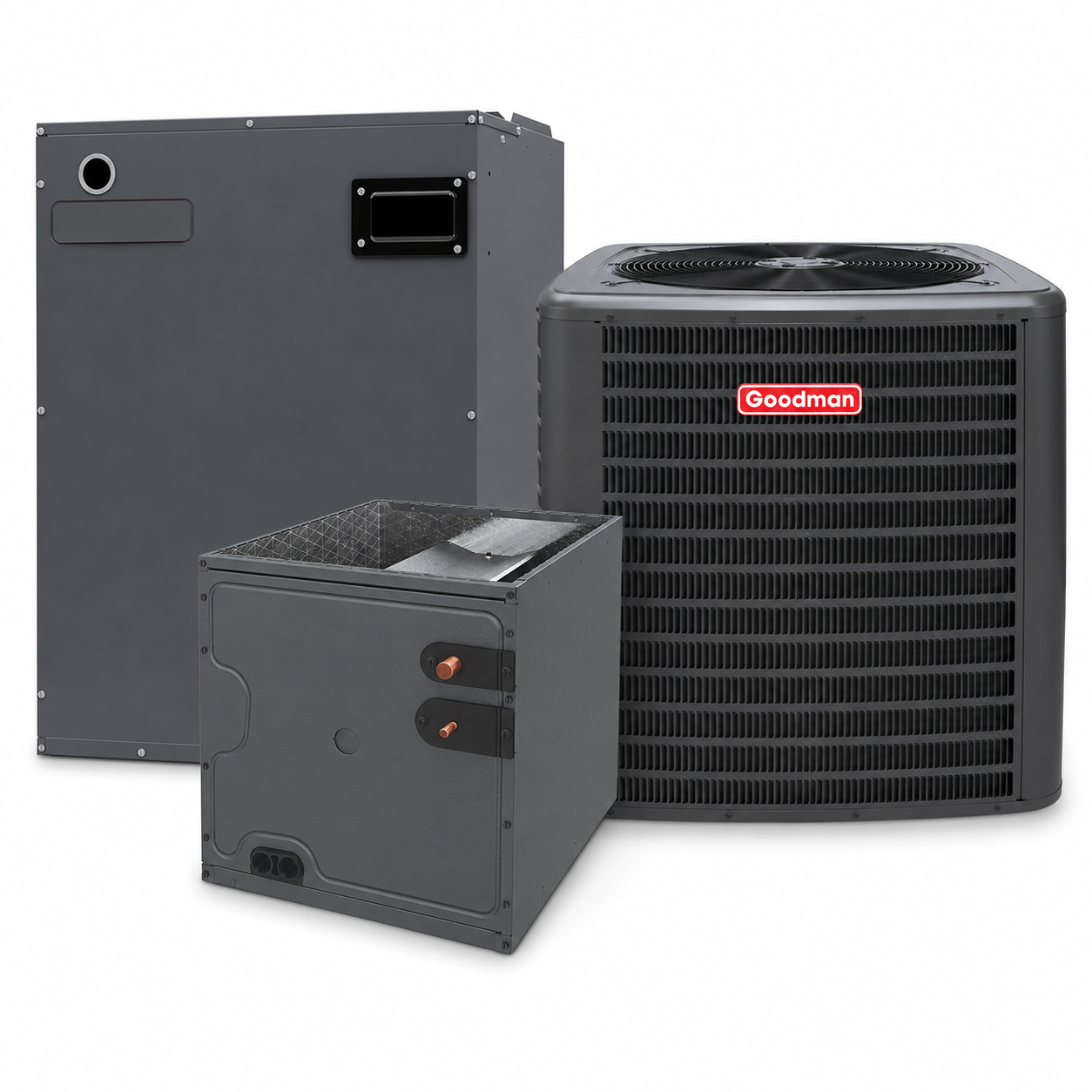

Goodman 2 Ton 14.3 SEER2 Electric Furnace and Air Conditioner System -

Product Overview

OVERVIEW

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GLXS5BA2410 is no exception, with its durability, reliability, and one of the highest efficiencies available.

QUICK FACTS

Ideal size to cover a smaller house in ideal climates
2 ton, 15.2 SEER2 AC-only condenser
R32: Complies with Clean Air Act New Refrigerant Requirements
Fully charged for up to 15' of line set
Low sound output
Factory-installed filter drier

2 Ton

The GLXS5BA2410 AC-only condenser is 2 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

15.2 SEER2

The GLXS5BA2410 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Warranty

The GLXS5BA2410 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GLXS5BA2410 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GLXS5BA2410's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GLXS5BA2410 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GLXS5BA2410 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Variable-Speed Air Handler with ComfortBridge Technology – MBVB Series

Upgrade your home’s comfort with the MBVB Series Variable-Speed Air Handler, featuring advanced ComfortBridge Technology. Engineered for efficiency and reliability, this air handler delivers precise temperature control and enhanced airflow for a consistently comfortable environment. With its sleek design and cutting-edge technology, the MBVB Series ensures energy savings while keeping your home cozy year-round.

Perfect for modern homes seeking superior performance and innovative climate solutions.

Features

Vertical or Horizontal Installation: Flexible design to fit any space requirement.
Variable-Speed Motor: Ensures efficient, quiet, and consistent airflow.
Field-Installed Heat Strips: Customizable heating options for added comfort.
Blower Section Usable as Electric Heater: Versatile functionality to meet your heating needs.

Product Features (GLXS5BA2410)

High-efficiency scroll compressor
Factory-installed filter drier
Fully charged for 15’ of tubing length
Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
Service valves with sweat connectionsand easy-to-access gauge ports
Enclosed contactor with lug connection
Ground lug connection
High-pressure switch
AHRI Certified
ETL Listed

Cabinet Features (GLXS5BA2410)

Removable grille-style top designcompliant with UL 60335-2-40
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Steel louver coil guard
Single-panel access to controls with spaceprovided for field-installed accessories
When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS5BA2410

product category	Unitary
product class pim	Split Air Conditioner
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Outdoor
market type	Residential-Single Family
product family	GLXS5
series name	GLXS5B
model efficiency	15.2 SEER2
communication feature	No
communication feature type	Non-Communicating
export control classification number eccn	EAR99
universal product code upc	663051735477
item stocking unit of measure uom	EA
pallet qty	2
country of origin	USA
us hts code	8415.90.8065
canadian hts code	8415.90.90.00
produced in us	Yes
cooling operation range std max	115 °F
cooling operation range std min	55 °F
rated cooling condition ambient db	95 °F
rated cooling condition ambient wb	72 °F
rated cooling condition room db	80 °F
rated cooling condition room wb	67 °F
compressor rla	10.2 A
max overcurrent protection	20 A
min circuit amps	13.8 A
power frequency	60 Hz
power phase	1 Ph
power voltage	208/230 V
compressor stages	Single Stage
compressor type	Scroll
dimensions unit depth	29 in
dimensions unit height	32 in
dimensions unit width	29 in
sound pressure high cooling	68.8 dBA
tonnage	2
factory std refrigerant charge	65 oz
pipe size gas	3/4 in
refrigerant pre charged line length	15 ft
refrigerant type	R-32
standard line set length max	79 ft
standard line set length vertical	50 ft
valve size liquid o d	3/8 in
valve size suction o d	3/4 in
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	30.50 in
dimensions case height	34.50 in
dimensions case width	30.00 in
dimensions distribution unit depth	30.5 in
dimensions distribution unit height	34.5 in
dimensions distribution unit width	30 in
dimensions pallet depth	30.50 in
dimensions pallet height	34.50 in
dimensions pallet width	60.00 in
dimensions shipping unit depth	30.50 in
dimensions shipping unit height	34.50 in
dimensions shipping unit width	30.00 in
distribution shipping volume unit	31567.5 in³
shipping volume unit	31567.500 in³
truck factor	0.0000
volume case	31567.500 in³
volume distribution shipping unit	31567.5 in³
weight case	159.000 lb
weight distribution shipping unit	159 lb
weight shipping unit	159.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS

Product Features (CAPTA3026B3)

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Vertical application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan

Technical Specifications - CAPTA3026B3

product category	Unitary
product class pim	Coil
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CAPTA_3
series name	CAPTA AlumaFin7™
family description	CAPTA AlumaFin7™ Evaporator Coil
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051688384
item stocking unit of measure uom	EA
pallet qty	8
country of origin	USA
us hts code	8415.90.8025
canadian hts code	8415.90.90.00
produced in us	Yes
cabinet finish	Painted
cased vs uncased	Cased
dimensions unit depth	21 in
dimensions unit height	26 in
dimensions unit width	17-1/2 in
expansion device	TXV
tonnage	2.5
tonnage range	2.0;2.5
condensate drain outlet	3/4 in
pipe size gas	7/8 in
pipe size liquid	3/8 in
refrigerant type	R-32
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.25 in
dimensions case height	28.50 in
dimensions case width	20.00 in
dimensions distribution unit depth	26.25 in
dimensions distribution unit height	28.5 in
dimensions distribution unit width	20 in
dimensions pallet depth	54.00 in
dimensions pallet height	61.50 in
dimensions pallet width	41.00 in
dimensions shipping unit depth	26.25 in
dimensions shipping unit height	28.50 in
dimensions shipping unit width	20.00 in
distribution shipping volume unit	14962.5 in³
shipping volume unit	14962.500 in³
truck factor	0.0000
volume case	14962.500 in³
volume distribution shipping unit	14962.5 in³
weight case	52.000 lb
weight distribution shipping unit	52 lb
weight shipping unit	52.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family	10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential	10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential	5 YEARS UNIT REPLACEMENT

Product Features (MBVB16CP1X00)

Variable-speed ECM blower motor
Integrated communicating ComfortBridge™ technology
Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
Advanced configuration of the airflow and tonnage in communicating mode
Provides constant CFM over a wide range of static pressure conditions independent of duct system
CFM indicator
Provides adjustable low CFM for efficient fan-only operation
Improved humidity and comfort control
Built-in compatibility with multi-stage heat pump and cooling applications;10. 3 kW – 21 kW electric heat kits
Blower section usable as electric heater
Compatible with both R410A and R32 (use integration kit)

Cabinet Features (MBVB16CP1X00)

Horizontal or vertical configuration capabilities;2. 21" depth for easier attic access
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Technical Specifications - MBVB16CP1X00

product category	Unitary
product class pim	Air Handler
system family	Unitary Split System
function category	Air Handler
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	MBVB
series name	Modular Blower
communication feature	Yes
communication feature type	ComfortBridge Technology compatible
export control classification number eccn	EAR99
universal product code upc	663051692909
item stocking unit of measure uom	EA
pallet qty	8
country of origin	Mexico
us hts code	8414.59.6560
canadian hts code	8414.59.00.99
produced in us	No
indoor blower fla	5.2 A
max overcurrent protection	15/15 A
max voltage	253 V
min voltage	197 V
power frequency	60 Hz
power voltage	208/230 V
dimensions blower diameter	10 in
dimensions blower width	8 in
dimensions unit depth	21 in
dimensions unit height	30 in
dimensions unit width	21 in
motor speed type	Fixed Speed ECM
blower motor horsepower	0.75 metric hp
tonnage range	1.5;5
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	26.00 in
dimensions case height	32.75 in
dimensions case width	23.50 in
dimensions distribution unit depth	25.5 in
dimensions distribution unit height	32.75 in
dimensions distribution unit width	24.5 in
dimensions pallet depth	54.00 in
dimensions pallet height	70.00 in
dimensions pallet width	50.00 in
dimensions shipping unit depth	26.00 in
dimensions shipping unit height	32.75 in
dimensions shipping unit width	23.50 in
distribution shipping volume unit	20460.5625 in³
shipping volume unit	20010.250 in³
truck factor	0.0000
volume case	20010.250 in³
volume distribution shipping unit	20460.5625 in³
weight case	72.090 lb
weight distribution shipping unit	72.09 lb
weight shipping unit	72.090 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
