Goodman

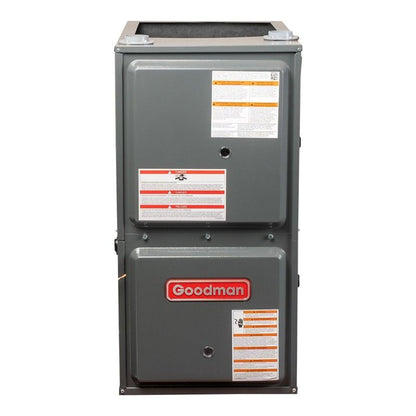

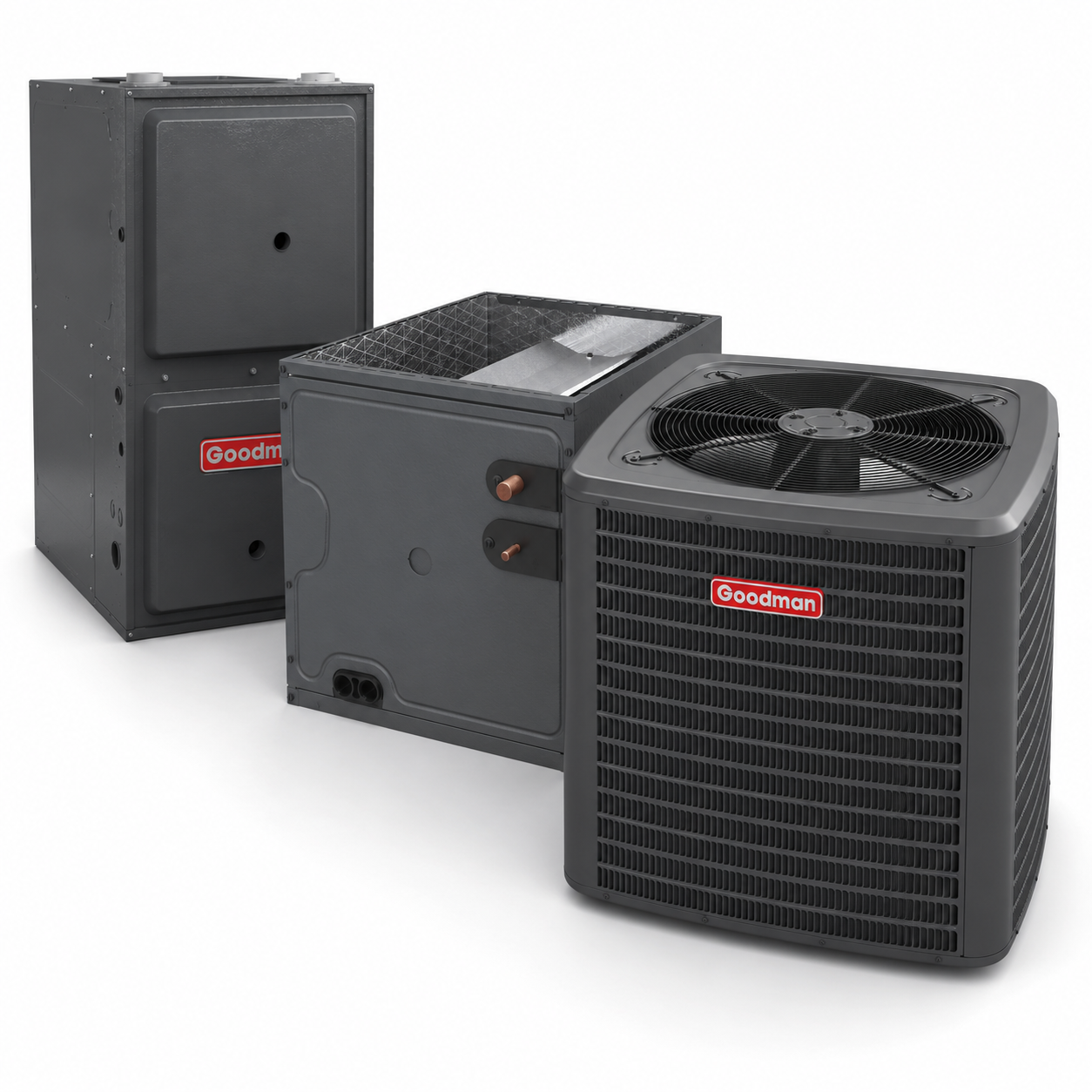

Goodman 2 Ton 14.3 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

SKU: CAPTA3022C3 + GLXS4MA2410 + GD9T960603BN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
30000 BTU (2.5 TON)
Looking For
AC & Furnace System
SEER2 Rating
14.5
Airflow Direction
Downflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1200
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
96% AFUE
Cabinet Width (in)
21
! Cabinet might need adjustment for sizing.
Goodman 2.5 Ton 21" Width Upflow/Downflow Cased Evaporator Coil - TXV - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,381.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2 Ton 14.3 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

Product Overview

OVERVIEW

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Why Goodman? Goodman is focused on providing high-quality products at an affordable price and protecting them with one of the best warranties in the industry. This has led to Goodman being a leading unit manufacturer of residential and light commercial heating and air conditioning products and systems in North America. Goodman creates products that are engineered for reliable long life, using the best components with some of the lowest failures rates in the industry.

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410

The Goodman GLXS4MA2410 2 Ton Air Conditioner Condenser is engineered for durability, energy efficiency, and compliance with the latest refrigerant standards. Designed for multi-family applications, this outdoor condensing unit utilizes environmentally friendly R32 refrigerant and a high-efficiency scroll compressor to deliver reliable cooling performance while meeting 2025 refrigerant guidelines.

Built with heavy-gauge galvanized steel and a powder-coated finish tested for 500-hour salt-spray durability, this unit is AHRI Certified, ETL Listed, and compliant with Florida Building Code wind-load requirements when properly installed. Ideal for residential and light commercial installations, the GLXS4MA2410 is a smart solution for energy-conscious builders and property owners.

Key Features

  • 2 Ton Cooling Capacity – Designed for optimal performance in small to medium-sized multi-family dwellings
  • 14.3 SEER2 Efficiency Rating – Offers improved seasonal energy efficiency and lower utility costs
  • R32 Refrigerant – Environmentally friendly refrigerant compliant with 2025 EPA regulations for reduced global warming potential
  • High-Efficiency Scroll Compressor – Delivers reliable, quiet performance with improved energy savings
  • Factory-Installed Filter Drier – Protects the refrigeration system from moisture and contaminants
  • Fully Charged for 15’ Line Set – Pre-charged with R32 refrigerant to simplify installation and reduce labor time
  • 5mm Copper Tube / Enhanced Aluminum Fin Coil – Promotes superior heat transfer and long-term system durability
  • Service Valves with Sweat Connections – Easy-access gauge ports simplify maintenance and service tasks
  • High-Pressure Switch – Enhances safety by protecting against abnormal system pressure levels
  • Ground Lug Connection – Simplifies grounding during installation for added safety compliance
  • Enclosed Contactor – Helps prevent debris and moisture exposure for longer component life
  • Removable Grille-Style Top – Allows easy access for coil cleaning and is UL 60335-2-40 compliant
  • Venturi-Enhanced Airflow – Designed to increase airflow velocity and improve system efficiency
  • Architectural Gray Powder-Coated Finish – Weather-resistant finish tested for 500-hour salt spray exposure
  • Steel Louver Coil Guard – Protects the coil from debris and physical damage
  • Top and Side Maintenance Access – Simplifies service and diagnostics
  • Single-Panel Control Access – Includes space for field-installed accessories for flexible setup
  • Florida Building Code Compliant (2023) – Meets requirements for hurricane-type winds when properly anchored
  • AHRI Certified & ETL Listed – Verifies quality, performance, and regulatory compliance

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

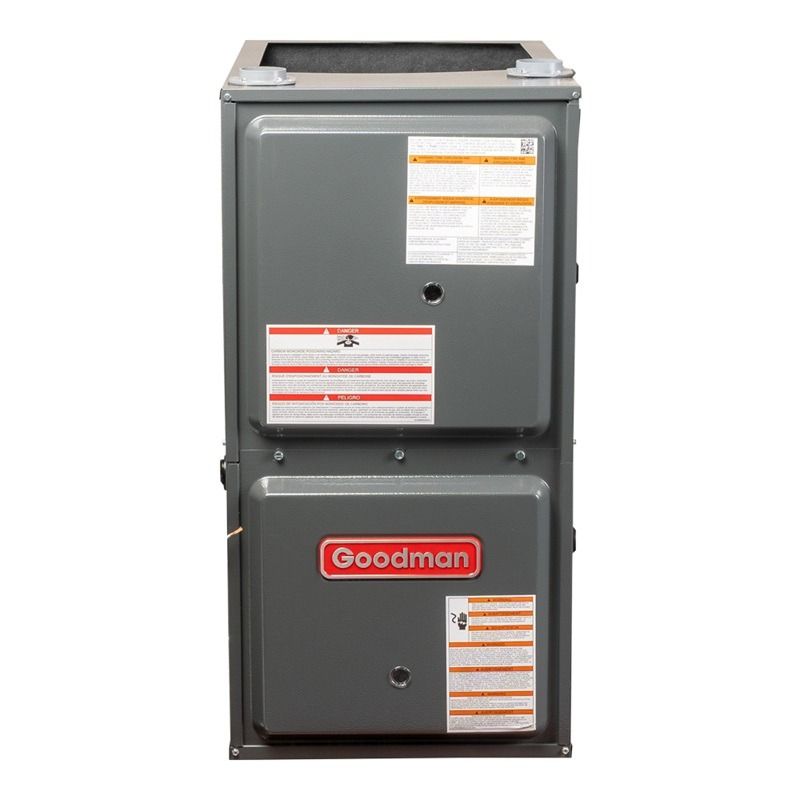

OVERVIEW

The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GD9T960603BN gas furnace is no exception to Goodman's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

QUICK FACTS

  • This furnace is ideal to heat a small to medium house (depending on climate)
  • 60,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

Heating up to a small to medium house in average environmental conditions, the GD9T960603BN Goodman furnace has an input of 60,000 BTU's and an output of 57,600 BTU's (input X efficiency rating = output).

96% AFUE

The GD9T960603BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.

Two Stage 9-Speed Furnace

With a two stage burner, the GD9T960603BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.

Warranty

With installation that follows your state and local codes, the GD9T960603BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through Goodman.

Durability and Reliability

The outer casing on the GD9T960603BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GD9T960603BN Goodman furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GCEC960603BN comes with natural gas valves built in. However, increasing its installation potential, the GD9T960603BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.

Product Features (CAPTA3022C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Standardized copper suction tube stub length
  • Check flowrator for cooling and heat pump applications
  • Vertical application
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pan featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL Listed

Technical Specifications - CAPTA3022C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPTA_3
series name CAPTA AlumaFin7™
family description CAPTA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051688377
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 21 in
dimensions unit height 22 in
dimensions unit width 21 in
expansion device TXV
tonnage 2.5
tonnage range 2.0;2.5
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.25 in
dimensions case height 24.50 in
dimensions case width 23.50 in
dimensions distribution unit depth 26.25 in
dimensions distribution unit height 24.5 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 78.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.25 in
dimensions shipping unit height 24.50 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 15113.4375 in³
shipping volume unit 15113.437 in³
truck factor 0.0000
volume case 15113.437 in³
volume distribution shipping unit 15113.4375 in³
weight case 50.000 lb
weight distribution shipping unit 50 lb
weight shipping unit 50.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GLXS4MA2410)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Cabinet Features (GLXS4MA2410)

  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed

Technical Specifications - GLXS4MA2410

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXS4M
series name GLXS4M
model efficiency 14.3 SEER2
family description ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
universal product code upc 663051692107
item stocking unit of measure uom EA
pallet qty 2
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 24000 Btu/H
eer2 hsvtc 11.7
energy star certified No
seer 2 hsvtc 14.3
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
max overcurrent protection 15 A
min circuit amps 13.5 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 10.24 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 26 in
dimensions unit height 26 in
dimensions unit width 32-1/2 in
sound pressure high cooling 69 dBA
weight unit 69 lb
cooling capacity rated 23600 Btu/H
tonnage 2
additional refrigerant charge oz ft 0.55 lb
factory std refrigerant charge 58 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.50 in
dimensions case height 34.50 in
dimensions case width 27.50 in
dimensions distribution unit depth 27.5 in
dimensions distribution unit height 34.5 in
dimensions distribution unit width 27.5 in
dimensions pallet depth 27.50 in
dimensions pallet height 34.50 in
dimensions pallet width 55.00 in
dimensions shipping unit depth 27.50 in
dimensions shipping unit height 34.50 in
dimensions shipping unit width 27.50 in
distribution shipping volume unit 26090.625 in³
shipping volume unit 26090.625 in³
truck factor 0.0000
volume case 26090.625 in³
volume distribution shipping unit 26090.625 in³
weight case 145.000 lb
weight distribution shipping unit 145 lb
weight shipping unit 145.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GD9T960603BN)

  • "1. High reliability and quality2. Faster condensate water drainage and no unit water leakage3. Durable and long igniter life4. Provisions for electronic air cleaner and humidifier5. Energy Efficient and quiet circulation6. Lower NOx emission7. Self-diagnostic control board with constant memory8. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards9. Operates on two-stage or single-stage thermostats10. Easy Connection for EAC and Humidifier"

Product Features (GD9T960603BN)

  • "1. Heavy-duty aluminized-steel tubular heat exchanger2. Stainless-steel sloped secondary heat exchanger3. Silicon Nitride igniter4. Color-coded low-voltage terminals 5. Multi-speed ECM blower motor with continuous fan speed6. All models comply with California 40 ng/J 7. Fault code LED Output8. AHRI Certified and ETL Listed9. Two-stage gas valve10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"

Technical Specifications - GD9T960603BN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GD9T96
series name GD9T96
model efficiency 0.96
family description Two Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051686670
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 96 %
cooling capacity nominal 36000 Btu/H
installation configuration Downflow/Horizontal
produced in us Yes
temperature rise range high fire 25-55 °F
temperature rise range low fire 20-50 °F
max overcurrent protection 15 A
min circuit amps 7.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1289 ft³/min
air flow rate low heating 1118 ft³/min
dimensions blower diameter 11 in
dimensions blower width 8 in
dimensions unit depth 28-7/8 in
dimensions unit height 34-1/2 in
dimensions unit width 17-1/2 in
heat exchanger type Gas
motor speed type Multi Speed ECM
nox burner type Low NOx
weight unit 115 lb
blower motor horsepower 0.5 metric hp
high fire input capacity 60000 Btu
high fire output capacity 58200
low fire input capacity 42000
low fire output capacity 40740
gas valve type Two Stage
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 38.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 38.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 21367.5 in³
shipping volume unit 21367.500 in³
truck factor 0.0000
volume case 21367.500 in³
volume distribution shipping unit 21367.5 in³
weight case 120.000 lb
weight distribution shipping unit 120 lb
weight shipping unit 120.000 lb
registered parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
