Goodman

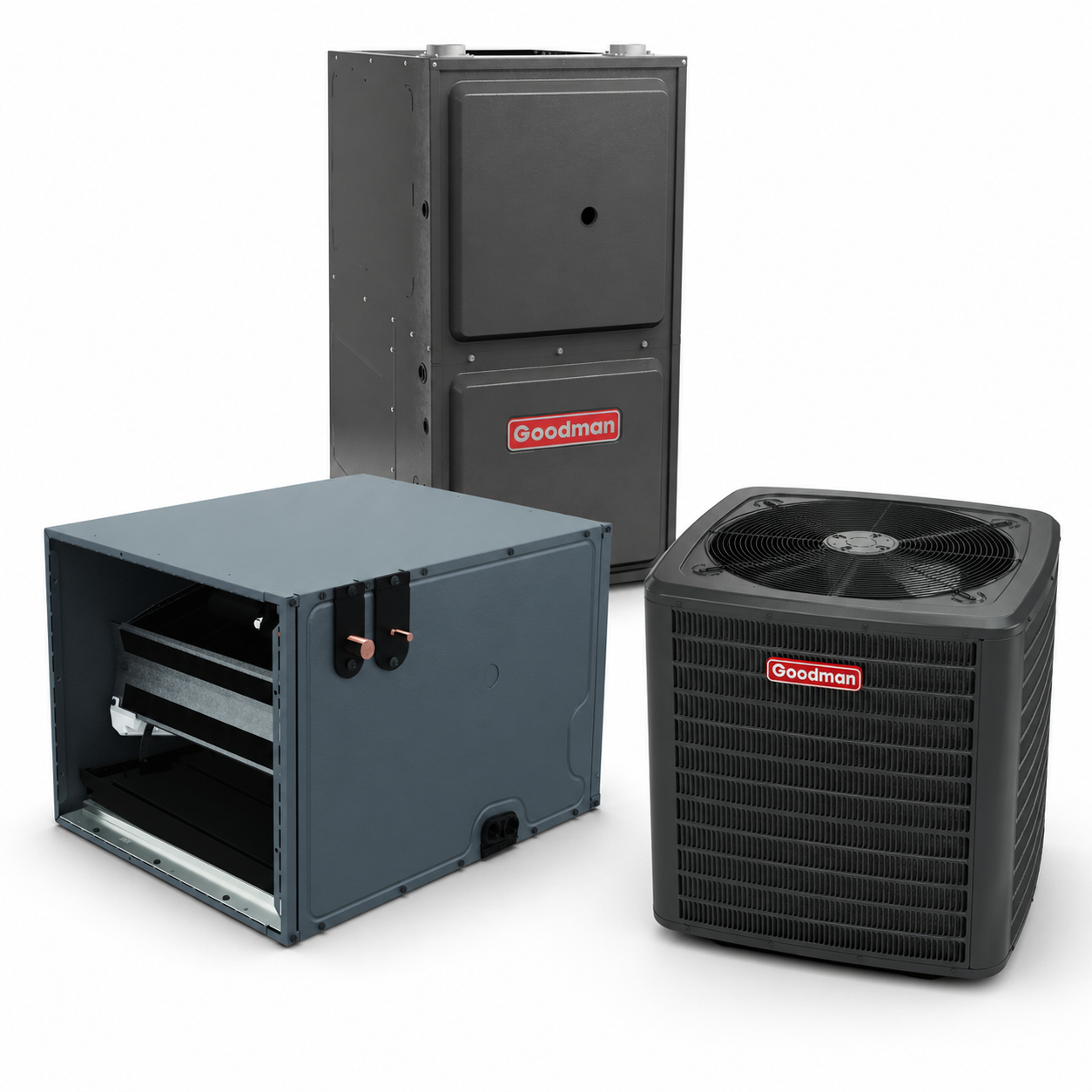

Goodman 2 Ton 14.3 SEER2 96% AFUE 40,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

SKU: CHPTA2426C3 + GLXS4BA2410 + GD9T960403BN

AC Type

AC & Furnace System

Refrigerant Type

R32

Brand

Goodman

Outdoor Unit

24000 BTU VO (2.0 TON)

Indoor Unit

24000 BTU (2.0 TON)

Looking For

AC & Furnace System

SEER2 Rating

14.3

Airflow Direction

Downflow, Horizontal

Blower Motor

9-Speed - ECM

Maximum CFM

1200

Fuel Type

Natural Gas, Propane

Burner Stages

Two Stages

Coil Style

A-Coil

Furnace Heating BTU

40,000 BTU (3.33 Ton)

Furnace Efficiency

96% AFUE

Cabinet Width (in)

! Cabinet might need adjustment for sizing.

Goodman 2 Ton 21" Height Horizontal Cased Evaporator Coil - TXV - R32 (Line Set Length) No installation 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,105.00

Shipping calculated at checkout.

View full details

Goodman

Goodman 2 Ton 14.3 SEER2 96% AFUE 40,000 BTU Gas Furnace and R32 Air Conditioner System - Downflow/Horizontal

Product Overview

OVERVIEW

The Goodman CHPTA2426C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA2426C3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

2 ton horizontal evaporator coil
Can be used with heat pump and AC-only condensers
R32: Complies with Clean Air Act New Refrigerant Requirements
Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
Factory-installed TXV kit

2 Tons

At an output of 2 tons, the Goodman CHPTA2426C3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA2426C3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA2426C3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA2426C3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA2426C3 to live up to the Goodman quality name.

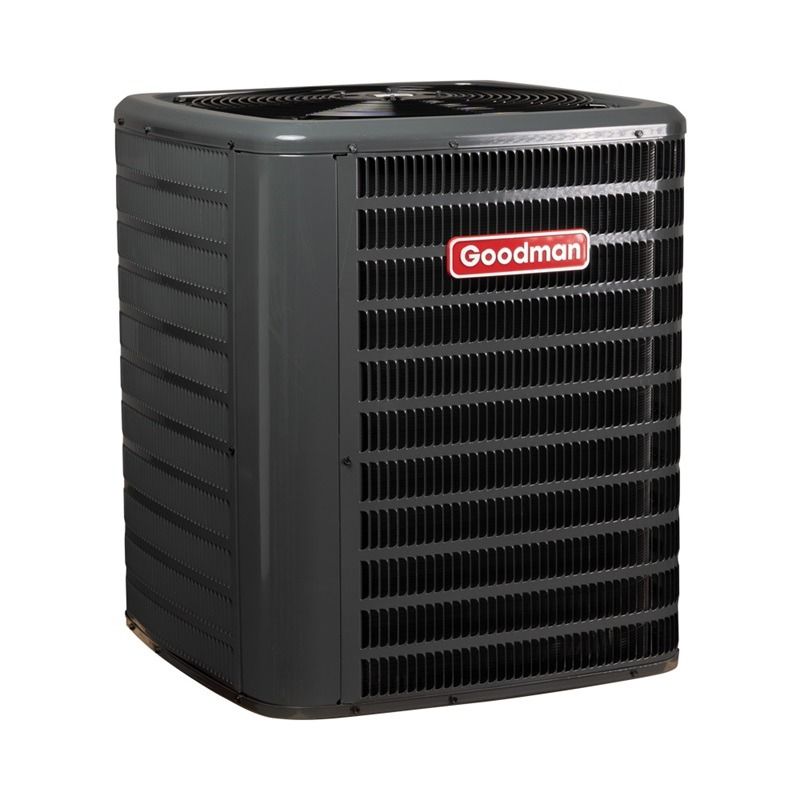

OVERVIEW

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA2410 air conditioner condenser is a popular choice for homeowners around the United States.

QUICK FACTS

Ideal size to cover a small house in ideal climates
2 ton, 14.3 SEER2 AC-only condenser
R32: Complies with Clean Air Act New Refrigerant Requirements
Fully charged for up to 15' of line set
Low sound output
Factory-installed filter drier

2 Ton

The GLXS4BA2410 Goodman condenser is a 2 ton unit, meaning that it can cover up to a small home in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.

14.3 SEER2

The GLXS4BA2410 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.

Warranty

The GLXS4BA2410 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The GLXS4BA2410 Goodman AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The GLXS4BA2410 provides peace of mind thanks to its durability and reliability enhancements.

Installation and Maintenance

The Goodman GLXS4BA2410 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GLXS4BA2410 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.

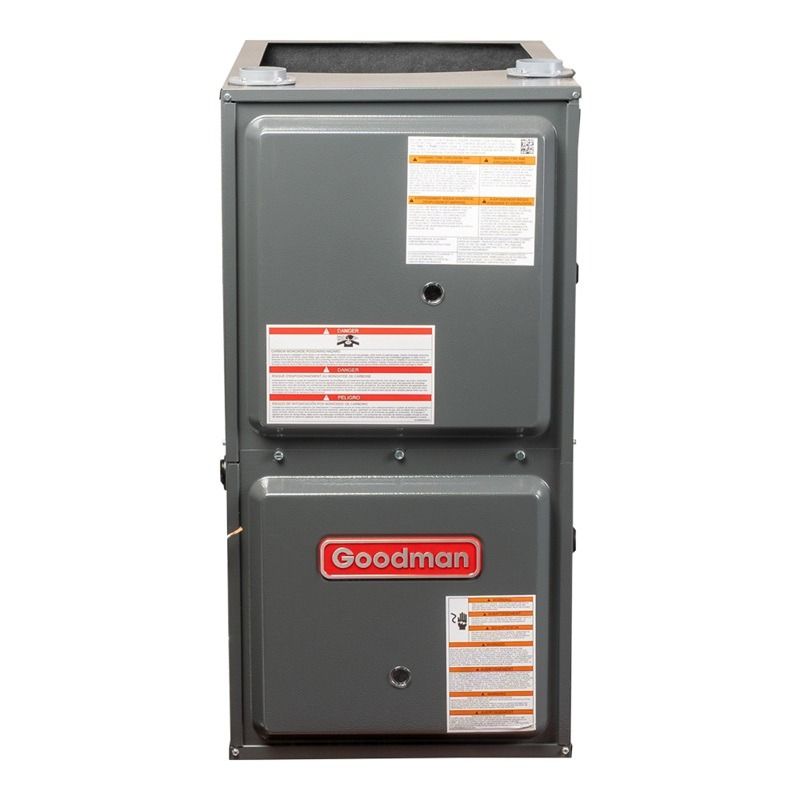

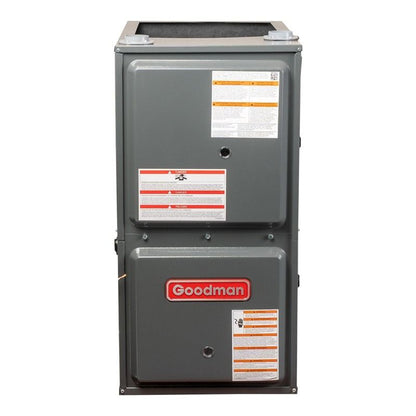

OVERVIEW

The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GD9T960403BN gas furnace is no exception to Goodman's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

QUICK FACTS

This furnace is ideal to heat a smaller house (depending on climate)
40,000 BTU 96% AFUE natural gas furnace
Requires plastic/PVC flue venting
Complies with Clean Air Act New Refrigerant Requirements
Can be used in the downflow or horizontal orientation
Can be converted to an LP furnace with an optional conversion kit (sold separately)
Innovative design for electrical efficiency, safety, and lower sound output

40,000 BTU

Heating up to a smaller house in average environmental conditions, the GD9T960403BN Goodman furnace has an input of 40,000 BTU's and an output of 38,400 BTU's (input X efficiency rating = output).

96% AFUE

The GD9T960403BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.

Two Stage 9-Speed Furnace

With a two stage burner, the GD9T960403BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.

Warranty

With installation that follows your state and local codes, the GD9T960403BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through Goodman.

Durability and Reliability

The outer casing on the GD9T960403BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GD9T960403BN Goodman furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GD9T960403BN comes with natural gas valves built in. However, increasing its installation potential, the GD9T960403BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.

Product Benefits (CHPTA2426C3)

Factory-installed thermal expansion valves for cooling and heat pump applications

Product Features (CHPTA2426C3)

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Horizontal application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified
ETL Listed

Cabinet Features (CHPTA2426C3)

Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CHPTA2426C3

product category	Unitary
product class pim	Coil
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	CHPTA_3
series name	CHPTA AlumaFin7™
model efficiency	13.4 SEER2
family description	CHPTA AlumaFin7™ Evaporator Coil
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051688490
item stocking unit of measure uom	EA
pallet qty	12
country of origin	USA
us hts code	8415.90.8025
canadian hts code	8415.90.90.00
produced in us	Yes
cabinet finish	Painted
cased vs uncased	Cased
dimensions unit depth	21 in
dimensions unit height	21 in
dimensions unit width	26 in
expansion device	TXV
tonnage range	1.5;2
pipe size gas	7/8 in
pipe size liquid	3/8 in
refrigerant type	R-32
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	28.00 in
dimensions case height	23.50 in
dimensions case width	26.50 in
dimensions distribution unit depth	28 in
dimensions distribution unit height	23.5 in
dimensions distribution unit width	26.5 in
dimensions pallet depth	58.50 in
dimensions pallet height	75.50 in
dimensions pallet width	54.00 in
dimensions shipping unit depth	28.00 in
dimensions shipping unit height	23.50 in
dimensions shipping unit width	26.50 in
distribution shipping volume unit	17437 in³
shipping volume unit	17437.000 in³
truck factor	0.0000
volume case	17437.000 in³
volume distribution shipping unit	17437 in³
weight case	62.000 lb
weight distribution shipping unit	62 lb
weight shipping unit	62.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family	10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential	10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family	5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential	5 YEARS UNIT REPLACEMENT

Product Features (GLXS4BA2410)

Energy-Efficienct Compressor
Fully charged for 15' of tubing length
Copper tube/ enhanced aluminum fin coil-5mm diameter
Factory-installed filter drier
Sweat connection service valves with easy access to gauge ports
Enclosed contactor with lug connection
High-pressure switch
Capacitors with extended life

Cabinet Features (GLXS4BA2410)

Removable grille-style top designcompliant with UL 60335-2-40
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Wire fan discharge grille
Steel louver coil guard
Top and side maintenance access
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLXS4BA2410

product category	Unitary
product class pim	Split Air Conditioner
system family	Unitary Split System
function category	Cooling Only
product type	Equipment
unit type	Outdoor
market type	Residential-Single Family
product family	GLXS4B
series name	GLXS4B
model efficiency	14.3 SEER2
family description	Energy-Efficient Classic R-32 Split System Air Conditioner, 14.3 SEER2, 1½ To 5 Tons
communication feature	No
communication feature type	Non-Communicating
export control classification number eccn	EAR99
universal product code upc	663051691612
item stocking unit of measure uom	EA
pallet qty	2
country of origin	USA
us hts code	8415.90.8085
canadian hts code	8415.90.90.00
cooling capacity nominal	24000 Btu/H
eer2 hsvtc	11.7
energy star certified	No
seer 2 hsvtc	14.3
produced in us	Yes
cooling operation range std max	125 °F
cooling operation range std min	55 °F
rated cooling condition ambient db	95 °F
rated cooling condition ambient wb	75 °F
max overcurrent protection	15 A
min circuit amps	10.94 A
power frequency	60 Hz
power phase	1 Ph
power voltage	208/240 V
rated load amps	8.192 A
compressor stages	Single Stage
compressor type	Rotary
dimensions unit depth	26 in
dimensions unit height	27 in
dimensions unit width	26 in
sound pressure high cooling	74 dBA
weight unit	70 lb
cooling capacity rated	22600 Btu/H
tonnage	2
additional refrigerant charge oz ft	0.55 lb
factory std refrigerant charge	53 oz
pipe size gas	3/4 in
pipe size liquid	3/8 in
refrigerant pre charged line length	15 ft
refrigerant type	R-32
standard line set length max	200 ft
standard line set length vertical	79 ft
valve size suction o d	3/4 in
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	27.50 in
dimensions case height	29.50 in
dimensions case width	27.50 in
dimensions distribution unit depth	27.5 in
dimensions distribution unit height	29.5 in
dimensions distribution unit width	27.5 in
dimensions pallet depth	27.50 in
dimensions pallet height	29.50 in
dimensions pallet width	55.00 in
dimensions shipping unit depth	27.50 in
dimensions shipping unit height	29.50 in
dimensions shipping unit width	27.50 in
distribution shipping volume unit	22309.375 in³
shipping volume unit	22309.375 in³
truck factor	0.0000
volume case	22309.375 in³
volume distribution shipping unit	22309.375 in³
weight case	134.000 lb
weight distribution shipping unit	134 lb
weight shipping unit	134.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS
registered parts warranty residential	ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS
standard parts warranty residential	ALL PARTS - 5 YEARS PARTS

Product Benefits (GD9T960403BN)

"1. High reliability and quality2. Faster condensate water drainage and no unit water leakage3. Durable and long igniter life4. Provisions for electronic air cleaner and humidifier5. Energy Efficient and quiet circulation6. Lower NOx emission7. Self-diagnostic control board with constant memory8. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards9. Operates on two-stage or single-stage thermostats10. Easy Connection for EAC and Humidifier"

Product Features (GD9T960403BN)

"1. Heavy-duty aluminized-steel tubular heat exchanger2. Stainless-steel sloped secondary heat exchanger3. Silicon Nitride igniter4. Color-coded low-voltage terminals 5. Multi-speed ECM blower motor with continuous fan speed6. All models comply with California 40 ng/J 7. Fault code LED Output8. AHRI Certified and ETL Listed9. Two-stage gas valve10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"

Technical Specifications - GD9T960403BN

product category	Unitary
product class pim	Gas Furnace
system family	Unitary Split System
function category	Heating Only
product type	Equipment
unit type	Indoor
market type	Residential-Single Family
product family	GD9T96
series name	GD9T96
model efficiency	0.96
family description	Two Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE
installation type	Ducted
communication feature	No
export control classification number eccn	EAR99
universal product code upc	663051686663
item stocking unit of measure uom	EA
pallet qty	4
country of origin	USA
us hts code	7322.90.0015
canadian hts code	7322.90.10.21
afue	96 %
cooling capacity nominal	36000 Btu/H
installation configuration	Downflow/Horizontal
produced in us	Yes
temperature rise range high fire	25-55 °F
temperature rise range low fire	20-50 °F
max overcurrent protection	15 A
min circuit amps	7.8 A
power frequency	60 Hz
power phase	1 Ph
power voltage	115 V
air flow rate high heating	882 ft³/min
air flow rate low heating	677 ft³/min
dimensions blower diameter	10 in
dimensions blower width	8 in
dimensions unit depth	28-7/8 in
dimensions unit height	34-1/2 in
dimensions unit width	17-1/2 in
heat exchanger type	Gas
motor speed type	Multi Speed ECM
nox burner type	Low NOx
weight unit	112 lb
blower motor horsepower	0.5 metric hp
high fire input capacity	40000 Btu
high fire output capacity	38800
low fire input capacity	28000
low fire output capacity	27160
gas valve type	Two Stage
proposition 65 label	Yes
carton type	CTN
case qty	1
dimensions case depth	30.00 in
dimensions case height	38.50 in
dimensions case width	18.50 in
dimensions distribution unit depth	30 in
dimensions distribution unit height	38.5 in
dimensions distribution unit width	18.5 in
dimensions pallet depth	60.00 in
dimensions pallet height	38.50 in
dimensions pallet width	37.00 in
dimensions shipping unit depth	30.00 in
dimensions shipping unit height	38.50 in
dimensions shipping unit width	18.50 in
distribution shipping volume unit	21367.5 in³
shipping volume unit	21367.500 in³
truck factor	0.0000
volume case	21367.500 in³
volume distribution shipping unit	21367.5 in³
weight case	160.000 lb
weight distribution shipping unit	160 lb
weight shipping unit	160.000 lb
registered parts warranty commercial	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family	ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential	HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential	HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family	ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential	HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
