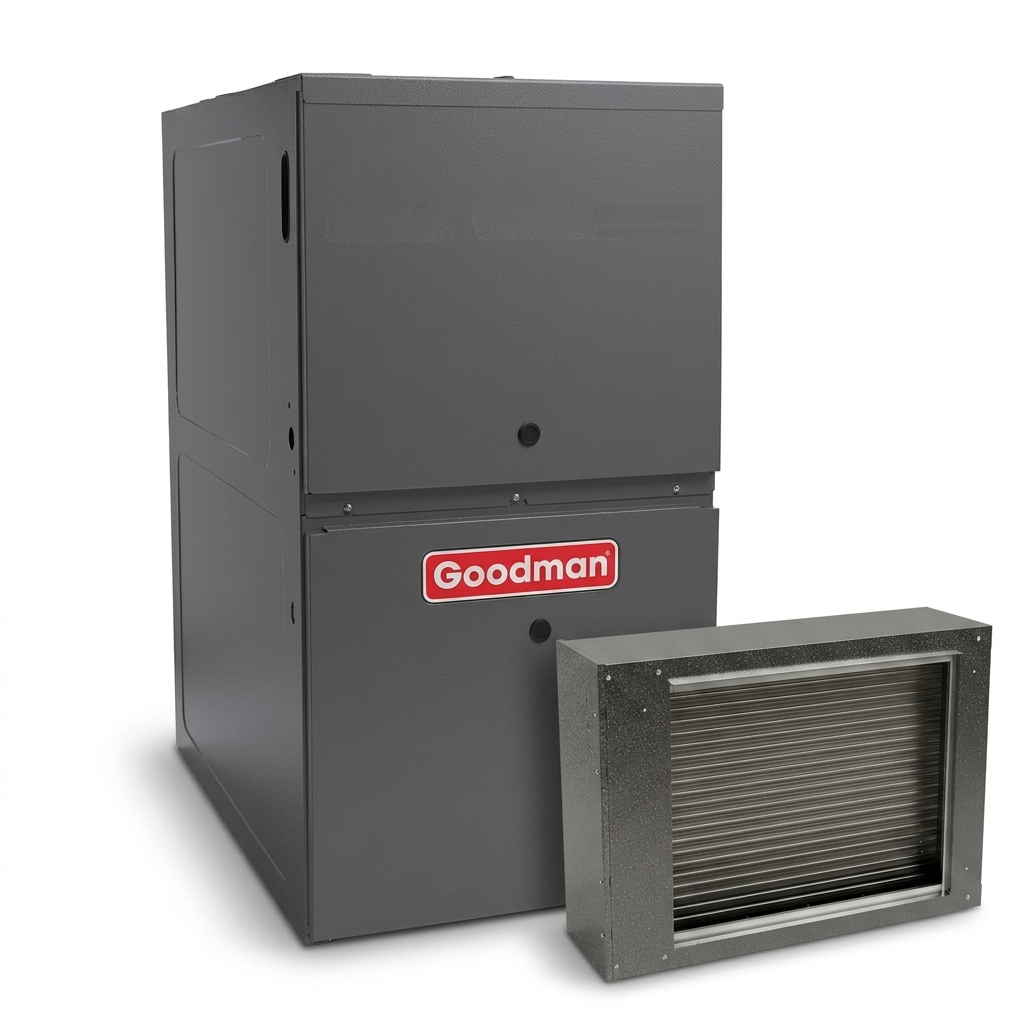

Goodman 2.5 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal
Product Overview
Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3
The Goodman CSCT3012M3 is an ideal evaporator coil for medium-sized homes, delivering dependable and efficient cooling performance. With a durable all-aluminum construction and full compatibility with R-32 refrigerant, this unit is both long-lasting and environmentally conscious—making it a smart solution for modern HVAC systems.
Features and Benefits:
- Nominal Capacity: 2–2.5 tons – Suitable for medium-sized residential applications.
- Dimensions: 33½" W x 12" D x 25" H – Compact size allows flexible installation.
- Service Valve: ⅜" Liquid, ⅞" Suction – Standard connection sizes for quick setup.
- All-Aluminum Evaporator Coil: Provides long-lasting durability and efficient heat transfer, reducing corrosion risks.
- Optimized for R-32 Refrigerant: Delivers energy-efficient cooling while supporting low-GWP refrigerant compliance.
- Factory-Installed Thermal Expansion Valve (TXV): Enhances performance and cooling accuracy.
- UV-Resistant Drain Pan: Helps prevent mold and mildew growth, promoting cleaner and healthier indoor air quality.
This coil is a dependable upgrade or replacement component for HVAC systems using R-32 refrigerant, combining compact design with performance-enhancing features for long-term value.
Goodman 2.5 Ton Cased Evaporator Coil TVX 33.5" Cabinet Horizontal Slab R32 CSCT3012M3
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 5 years | 10 years | 10 years |

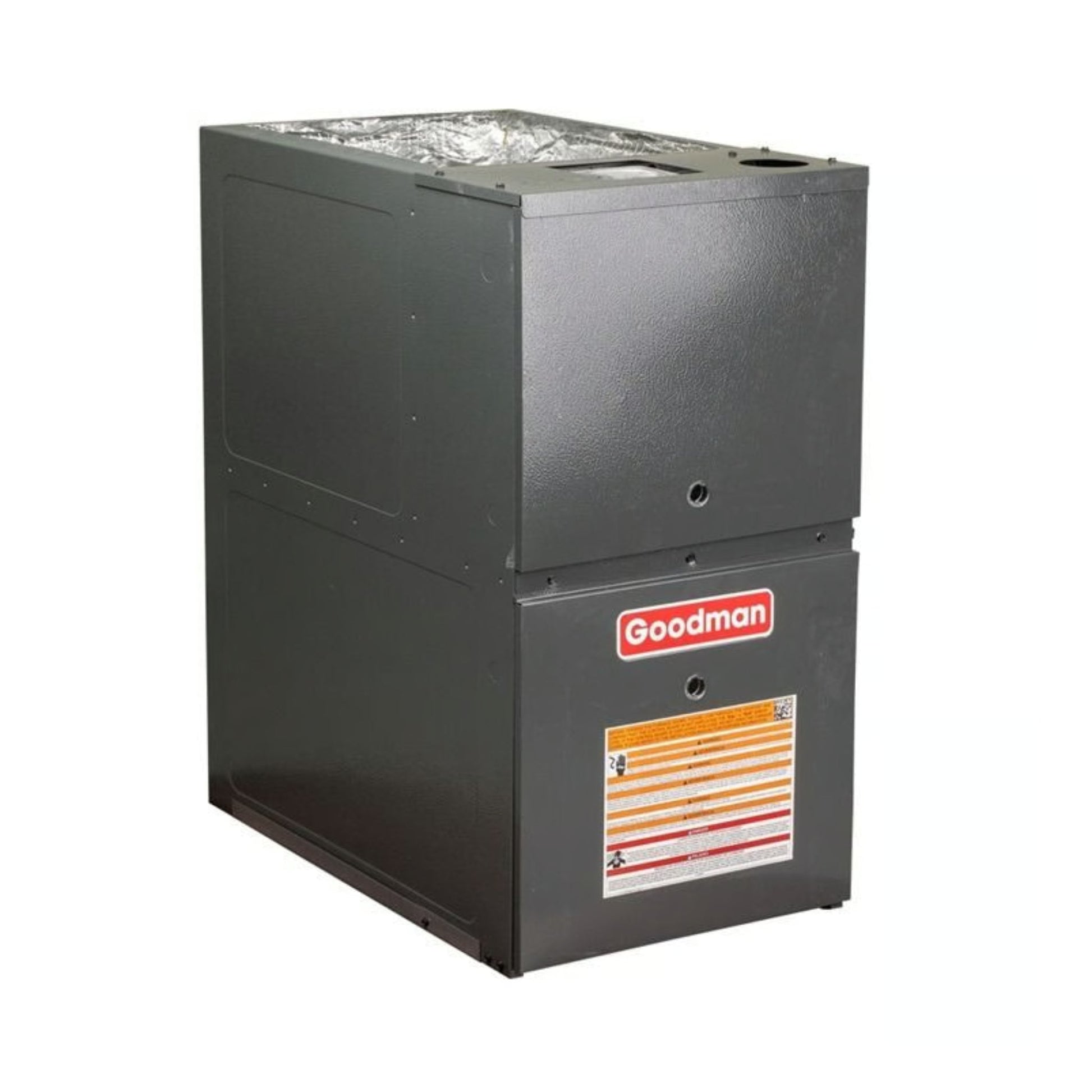

Goodman 80% 80K BTU Gas Furnace Two Stage 21" Width Upflow/Horizontal R32 GR9T800804CN
The Goodman GR9T800804CN gas furnace is built for durability, efficiency, and quiet operation. Delivering 80,000 BTUs of heating power with an 80% AFUE rating, this two-stage, 9-speed furnace offers flexible installation options in both upflow and horizontal configurations. Equipped with a 9-speed ECM blower motor and advanced self-diagnostic control board, this unit ensures optimal indoor comfort while reducing utility costs and maintenance concerns. Compatible with natural gas and convertible to propane, it is a solid solution for medium-sized homes seeking long-lasting, cost-effective heating.
Key Features
- Heating Input - 80,000 BTU heating input with 80% AFUE for energy-efficient performance
- Burner - Two-stage burner for enhanced comfort and quiet operation
- Blower Motor - 9-speed ECM blower motor for improved airflow and electrical efficiency
- Installation - Multi-positional installation – upflow or horizontal configuration
- Fuel - Factory set for natural gas; convertible to propane with optional kit
- Venting - Metal flue venting required for safe exhaust
- Igniter - Durable hot surface igniter increases ignition reliability
- Cabinet - Heavy-gauge steel cabinet with improved airtight construction
- Control Board - Self-diagnostic control board for quick troubleshooting and maintenance
- Suitability - Ideal for medium-sized homes in compatible climate zones
This furnace is an excellent choice for residential applications where efficiency, noise reduction, and installation flexibility are priorities. Its dependable design and premium features make it a reliable upgrade or replacement in most HVAC systems.
Goodman 80% 80K BTU Gas Furnace Two Stage 21" Width Upflow/Horizontal R32 GR9T800804CN
| Warranty Type | Heat Exchanger | Parts | Unit |
| Standard Warranty | 5 years | 5 years | 5 years |
| Registered Warranty | Lifetime | 10 years | 10 years |
Product Features (CSCT3012M3)
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling applications
- Compact and versatile - right or left horizontal position
- Copper sweat connections
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features (CSCT3012M3)
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Compact and versatile - right or left horizontal position
- Copper sweat connections
Technical Specifications - CSCT3012M3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CSCT |
| series name | CSCT |
| family description | CSCT Horizontal Slab |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736795 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | Mexico |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | No |
| cased vs uncased | Cased |
| dimensions unit width | 25-1/2 in |
| expansion device | TXV |
| tonnage | 2.5 |
| tonnage range | 2.5 |
| condensate drain outlet | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 14.00 in |
| dimensions case height | 25.50 in |
| dimensions case width | 35.50 in |
| dimensions pallet depth | 56.00 in |
| dimensions pallet height | 56.00 in |
| dimensions pallet width | 43.00 in |
| dimensions shipping unit depth | 14.00 in |
| dimensions shipping unit height | 25.50 in |
| dimensions shipping unit width | 35.50 in |
| shipping volume unit | 12673.500 in³ |
| truck factor | 0.0000 |
| volume case | 12673.500 in³ |
| weight case | 52.090 lb |
| weight shipping unit | 52.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Benefits (GR9T800804CN)
- High reliabilitynd quality
- Durablend long igniter life
- Provisions for electronicir cleanernd humidifier
- Quietnd Economical heating
- Energy Efficientnd quiet circulation
- Self-diagnostic control board with constant memory
- Operates on two-stage or single-stage thermostats
- Easy Connection for EACnd Humidifier
Product Features (GR9T800804CN)
- Heavy-dutyluminized-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Two-Stage gas valve
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers
Technical Specifications - GR9T800804CN
| product category | Unitary |
|---|---|
| product class pim | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GR9T80 |
| model efficiency | 0.80 |
| family description | Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE |
| installation type | Ducted |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051685628 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 80 % |
| cooling capacity nominal | 48000 Btu/H |
| installation configuration | Upflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 25-55 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 12.45 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1587.6302745 ft³/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 10 in |
| dimensions unit depth | 28 in |
| dimensions unit height | 33-3/8 in |
| dimensions unit width | 21 in |
| heat exchanger type | Gas |
| motor speed type | Multi Speed ECM |
| nox burner type | Non NOx Rated |
| weight unit | 129 lb |
| blower motor horsepower | 3/4 metric hp |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 64,000 |
| low fire input capacity | 56,000 |
| low fire output capacity | 44,800 |
| gas valve type | Two Stage |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 35.50 in |
| dimensions case width | 22.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 35.5 in |
| dimensions distribution unit width | 22 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 35.50 in |
| dimensions pallet width | 44.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 35.50 in |
| dimensions shipping unit width | 22.00 in |
| distribution shipping volume unit | 23430 in³ |
| shipping volume unit | 23430.000 in³ |
| truck factor | 0.0000 |
| volume case | 23430.000 in³ |
| volume distribution shipping unit | 23430 in³ |
| weight case | 115.500 lb |
| weight distribution shipping unit | 115.5 lb |
| weight shipping unit | 115.500 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
