Goodman

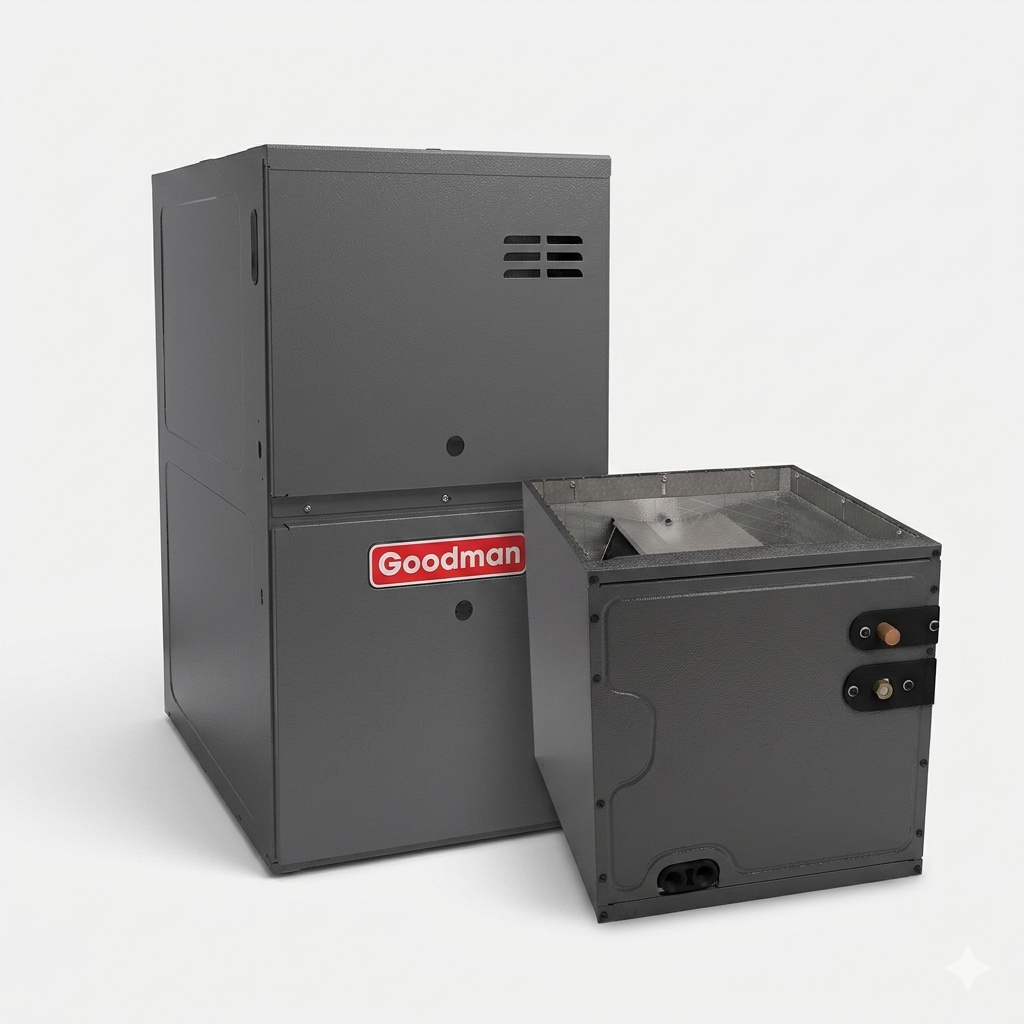

Goodman 2.5 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

SKU: CAPFA3022D3 + GR9T800804CN

System highlights
AC Type
Furnace & Coil Systems
Refrigerant Type
R32
Brand
Goodman
Indoor Unit
30000 BTU (2.5 TON)
Looking For
Furnace & Coil Systems
Airflow Direction
Upflow, Horizontal
Blower Motor
9-Speed - ECM
Maximum CFM
1600
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
80,000 BTU (6.67 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
24 1/2
! Cabinet might need adjustment for sizing.
Goodman 2.5 Ton 24.5" Width Vertical Evaporator Coil - Cased - R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$2,646.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 2.5 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

Product Overview

OVERVIEW

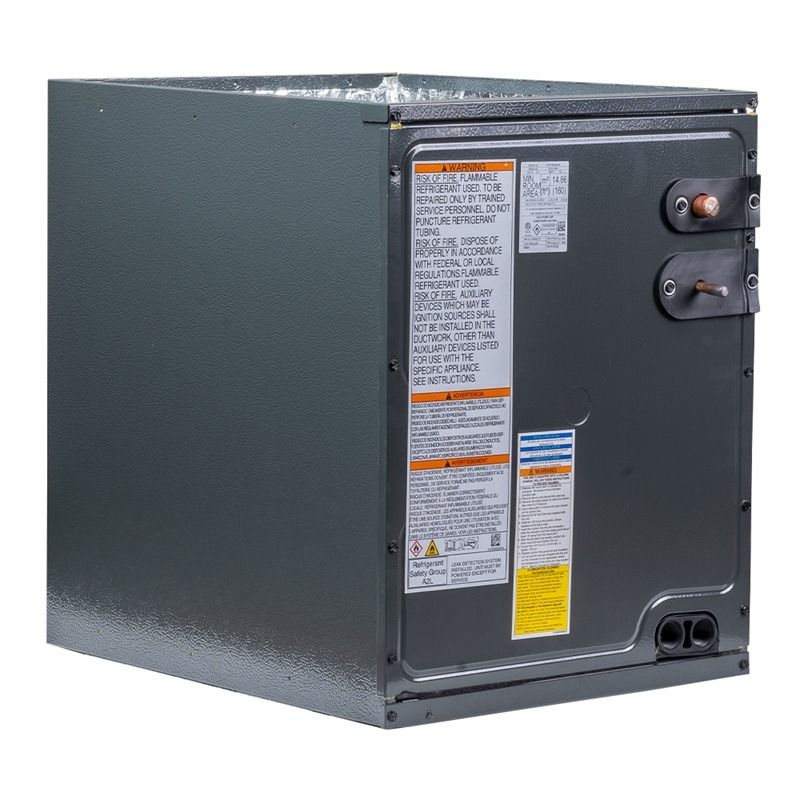

With the CAPFA3022D3 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPFA3022D3 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 2.5 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application

2.5 Tons

The Goodman CAPFA3022D3 evaporator coil is rated for a 2.5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPFA3022D3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPFA3022D3 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPFA3022D3 evaporator coil's foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit's run time. With compatible equipment, the CAPFA3022D3 evaporator coil lives up to Goodman's enhanced comfort and efficiency standards at a reasonable price.

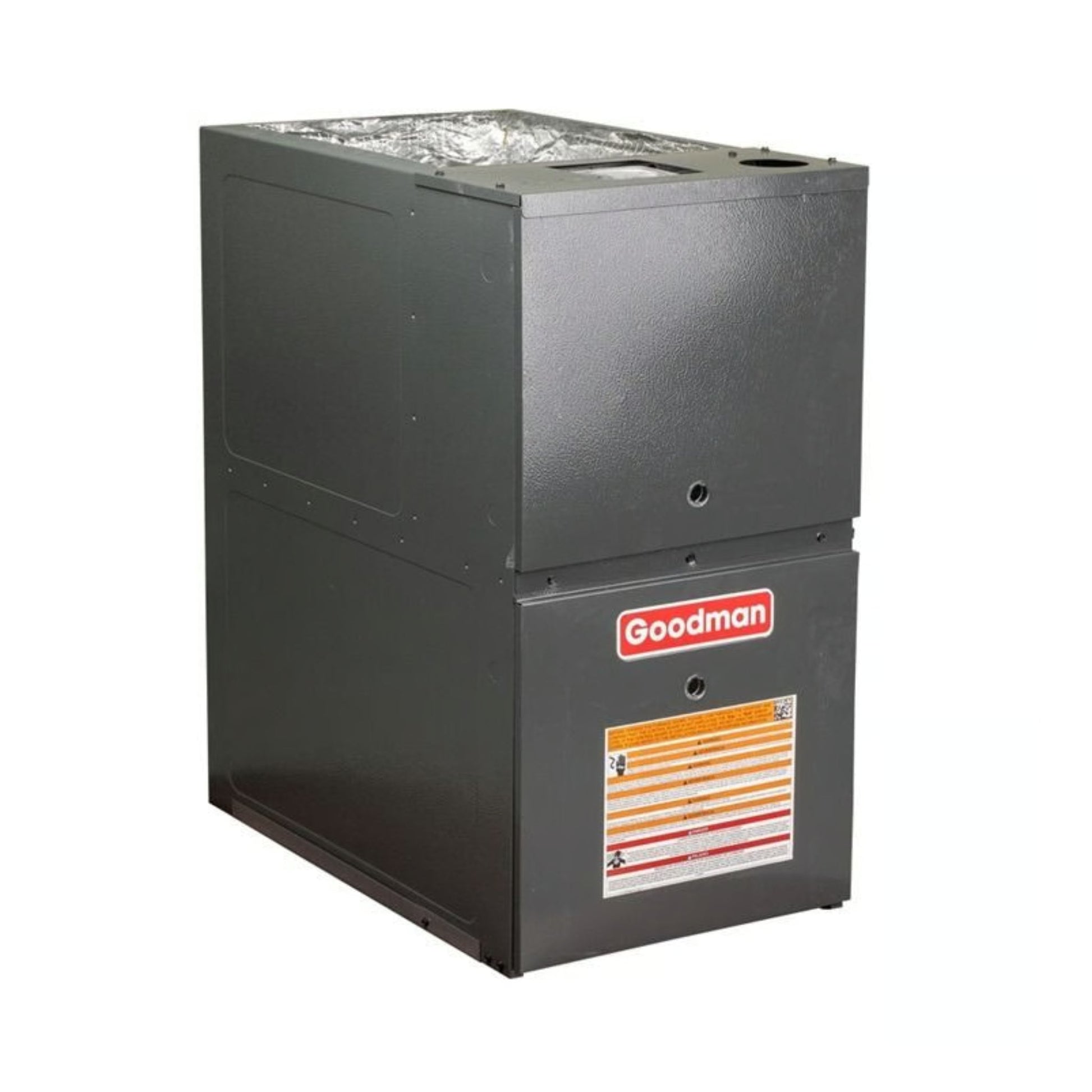

Goodman 80% 80K BTU Gas Furnace Two Stage 21" Width Upflow/Horizontal R32 GR9T800804CN

The Goodman GR9T800804CN gas furnace is built for durability, efficiency, and quiet operation. Delivering 80,000 BTUs of heating power with an 80% AFUE rating, this two-stage, 9-speed furnace offers flexible installation options in both upflow and horizontal configurations. Equipped with a 9-speed ECM blower motor and advanced self-diagnostic control board, this unit ensures optimal indoor comfort while reducing utility costs and maintenance concerns. Compatible with natural gas and convertible to propane, it is a solid solution for medium-sized homes seeking long-lasting, cost-effective heating.

Key Features

  • Heating Input - 80,000 BTU heating input with 80% AFUE for energy-efficient performance
  • Burner - Two-stage burner for enhanced comfort and quiet operation
  • Blower Motor - 9-speed ECM blower motor for improved airflow and electrical efficiency
  • Installation - Multi-positional installation – upflow or horizontal configuration
  • Fuel - Factory set for natural gas; convertible to propane with optional kit
  • Venting - Metal flue venting required for safe exhaust
  • Igniter - Durable hot surface igniter increases ignition reliability
  • Cabinet - Heavy-gauge steel cabinet with improved airtight construction
  • Control Board - Self-diagnostic control board for quick troubleshooting and maintenance
  • Suitability - Ideal for medium-sized homes in compatible climate zones

This furnace is an excellent choice for residential applications where efficiency, noise reduction, and installation flexibility are priorities. Its dependable design and premium features make it a reliable upgrade or replacement in most HVAC systems.

Goodman 80% 80K BTU Gas Furnace Two Stage 21" Width Upflow/Horizontal R32 GR9T800804CN

Warranty Type Heat Exchanger Parts Unit
Standard Warranty 5 years 5 years 5 years
Registered Warranty Lifetime 10 years 10 years

Product Features (CAPFA3022D3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed optimized metering device (piston)
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Vertical application
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Technical Specifications - CAPFA3022D3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPFA_32
series name CAPFA AlumaFin7™
family description CAPFA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051696266
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us No
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 24.5 in
dimensions unit height 21 in
dimensions unit width 22 in
evap coil rows 3
evap fin density fins per inch 17
expansion device Orifice
tonnage 2.5
tonnage range 2;2.5
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 27.00 in
dimensions case height 25.00 in
dimensions case width 26.00 in
dimensions distribution unit depth 27 in
dimensions distribution unit height 25 in
dimensions distribution unit width 26 in
dimensions pallet depth 55.00 in
dimensions pallet height 78.00 in
dimensions pallet width 53.00 in
dimensions shipping unit depth 27.00 in
dimensions shipping unit height 25.00 in
dimensions shipping unit width 26.00 in
distribution shipping volume unit 17550 in³
shipping volume unit 17550.000 in³
truck factor 0.0000
volume case 17550.000 in³
volume distribution shipping unit 17550 in³
weight case 54.000 lb
weight distribution shipping unit 54 lb
weight shipping unit 54.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT

Product Benefits (GR9T800804CN)

  • High reliabilitynd quality
  • Durablend long igniter life
  • Provisions for electronicir cleanernd humidifier
  • Quietnd Economical heating
  • Energy Efficientnd quiet circulation
  • Self-diagnostic control board with constant memory
  • Operates on two-stage or single-stage thermostats
  • Easy Connection for EACnd Humidifier

Product Features (GR9T800804CN)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • "Silicon Nitride igniter"
  • Color-coded low-voltage terminals
  • Two-Stage gas valve
  • Multi-speed ECM blower motor with continuous fan speed
  • Fault code LED Output
  • Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers

Technical Specifications - GR9T800804CN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GR9T80
model efficiency 0.80
family description Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
installation type Ducted
export control classification number eccn EAR99
universal product code upc 663051685628
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 80 %
cooling capacity nominal 48000 Btu/H
installation configuration Upflow/Horizontal
produced in us Yes
temperature rise range high fire 25-55 °F
max overcurrent protection 15 A
min circuit amps 12.45 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1587.6302745 ft³/min
dimensions blower diameter 10 in
dimensions blower width 10 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 21 in
heat exchanger type Gas
motor speed type Multi Speed ECM
nox burner type Non NOx Rated
weight unit 129 lb
blower motor horsepower 3/4 metric hp
high fire input capacity 80000 Btu
high fire output capacity 64,000
low fire input capacity 56,000
low fire output capacity 44,800
gas valve type Two Stage
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 22.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 22 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 44.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 22.00 in
distribution shipping volume unit 23430 in³
shipping volume unit 23430.000 in³
truck factor 0.0000
volume case 23430.000 in³
volume distribution shipping unit 23430 in³
weight case 115.500 lb
weight distribution shipping unit 115.5 lb
weight shipping unit 115.500 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
