Goodman 2.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32
Product Overview

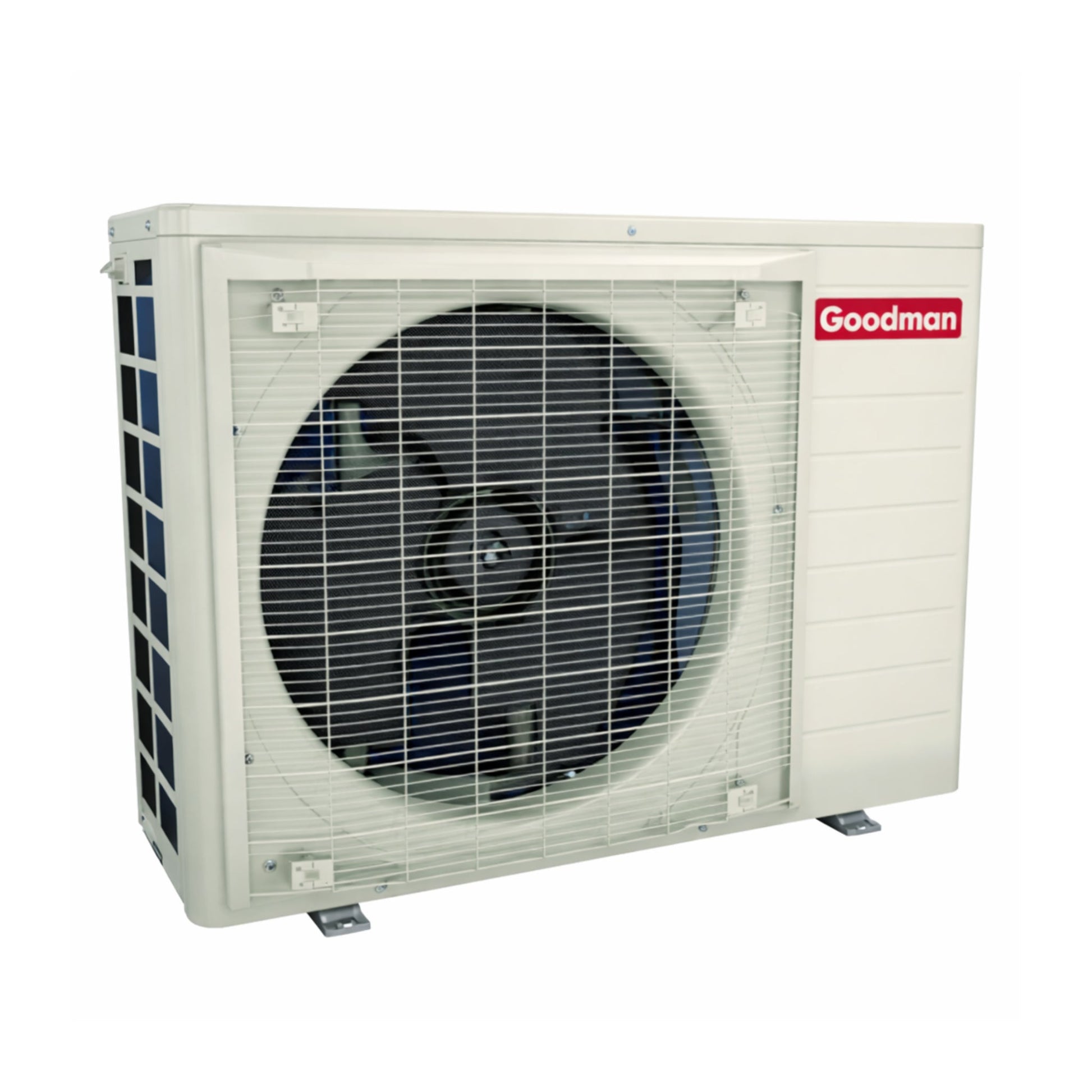

Goodman 2.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA3010
This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.
Standard Features
- Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
- Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
- High-density compressor sound blanket for enhanced sound reduction
- Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
- Proprietary control algorithmic logic for optimized system performance and reliability
- Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
- Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
- Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
- Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
- Field-selectable boost mode increases compressor speed during unusually high cooling loads
- Field-installed bi-flow filter drier for enhanced refrigerant system protection
- Integrated coil and ambient temperature sensors for accurate system monitoring
- Suction pressure transducer for improved compressor protection and performance tracking
- Sweat connection service valves with easy access to gauge ports for streamlined maintenance
- AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance
Cabinet & Durability Features
- Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
- Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
- High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
- 500-hour salt spray tested to ensure superior corrosion protection
- Wire fan discharge grille for added safety and structural integrity
- Top and side maintenance access panels for easier installation and serviceability
- When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
- Optional anchor bracket kits available for high-wind and severe weather installations
Goodman 2.5 Ton 17.2 SEER2 AC Inverter Condenser Side Discharge Cooling R32 GXV6SA3010
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Features
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segmentLED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
- ETL Listed
Cabinet Features
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV6SA3010
| sku | GXV6SA3010 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV6SA |
| series name | GXV6SA |
| short description | Goodman Split Air Conditioner 16.2 SEER2, Variable |
| product description | g sd 16.2 s2 r32 inv-2.5tac-sw |
| cooling btu | 28,400 |
| seer2 | 16.2 |
| decibel level (dba) | 66 dBA |
| refrigerant | R-32 |
| compressor type | Inverter |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 22.4 A |
| tonnage | 2.5 |
| btu/tonnage | 28,400 BTU/2.5 Ton |
| min/max outdoor temp for cooling | 0 °F to 115 °F |
| height | 27.375 in |
| width | 36-5/8 in |
| depth | 13.75 in |
| weight | 129 lb |
| warranty | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Air Conditioner |
| model efficiency | 16.2 SEER2 |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051747043 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 10 |
| energy star certified | No |
| seer 2 hsvtc | 17.5 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 17.6 A |
| max overcurrent protection | 25 A |
| min circuit amps | 22.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 66 dBA |
| weight unit | 129 lb |
| cooling capacity rated | 28400 Btu/H |
| factory std refrigerant charge | 76 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
