Goodman 2.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32
Product Overview

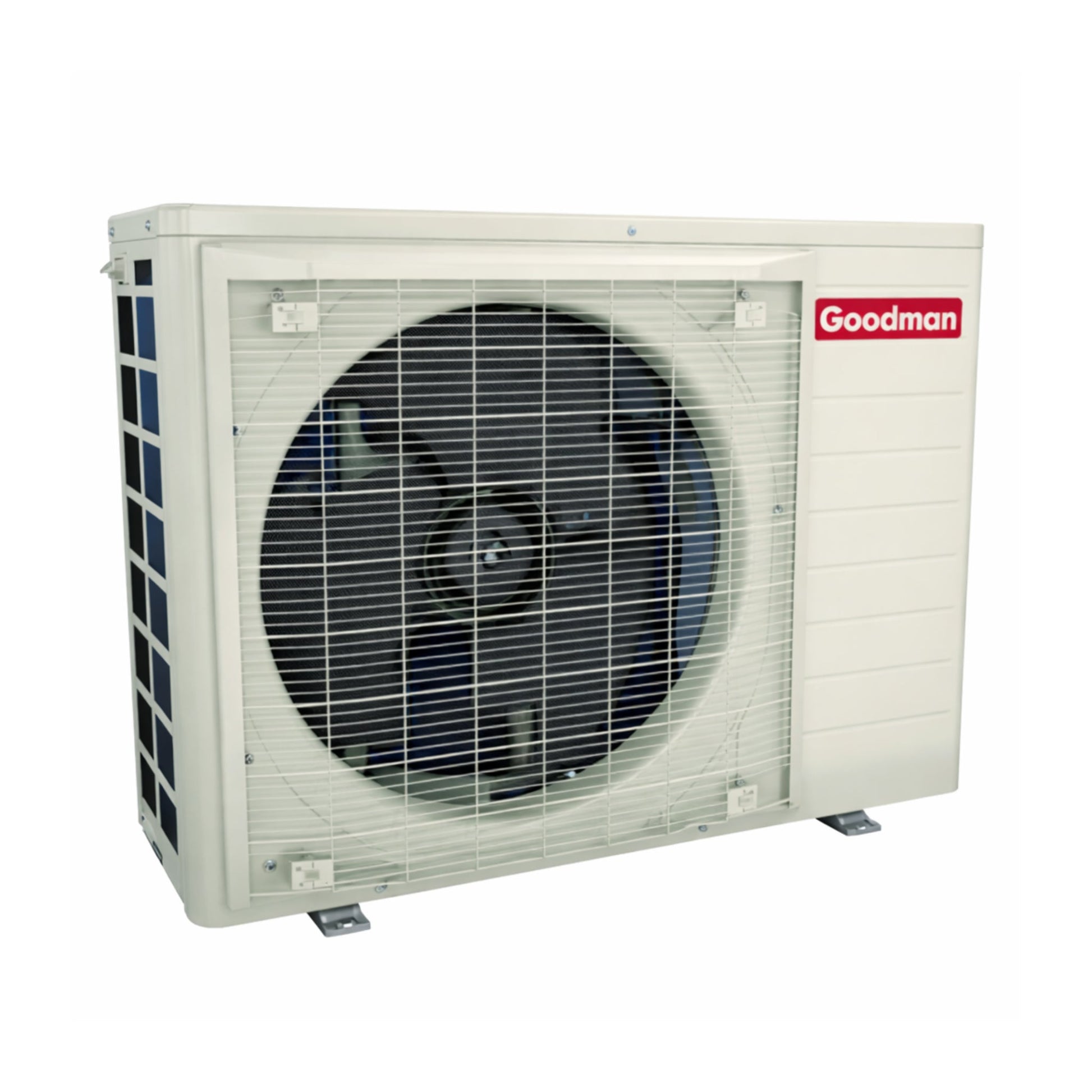

Goodman 2.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA3010
The Goodman GZV6SA3010 is a high-efficiency 2.5-ton side discharge heat pump condenser engineered for compact installations, quiet operation, and dependable performance. Equipped with a variable-speed inverter compressor and optimized for R-32 refrigerant, this unit delivers precise temperature control while meeting modern efficiency and durability standards. Its slim profile makes it ideal for residential applications with limited outdoor space.
Key Features
- Variable-Speed Inverter Compressor for Improved Comfort and Energy Efficiency
- Quiet Digitally Commutated Fan Motor
- High-Density Compressor Sound Blanket for Reduced Operating Noise
- Advanced Proprietary Control Algorithmic Logic
- Non-Communicating System Configuration
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
Cabinet Features
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Long-Term Corrosion Resistance
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored
This 2.5-ton condenser is an excellent choice for homeowners seeking inverter technology, space-saving design, and reliable heating and cooling performance.
Goodman 2.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA3010
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Benefits
- Meets the 2023 M1 Test Standards
Product Features
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
- ETL Listed
Cabinet Features
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GZV6SA3010
| sku | GZV6SA3010 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV6SA |
| series name | GSV6S |
| short description | Goodman Split Heat Pump 16.2 SEER2, Variable |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16.2 SEER2 & 8.5 HSPF2 |
| product description | 16.2 SEER2 HP R32, 2.5 Ton |
| cooling btu | 28,400 |
| heating btu | 28,800 |
| seer2 | 16.2 |
| decibel level (dba) | 66 dBA |
| refrigerant | R-32 |
| compressor type | Inverter |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 22.4 A |
| tonnage | 2.5 |
| btu/tonnage | 28,400 BTU/2.5 Ton |
| min/max outdoor temp for heating | -10 °F to 70 °F |
| min/max outdoor temp for cooling | 0 °F to 115 °F |
| height | 27.375 in |
| width | 36-5/8 in |
| depth | 13.75 in |
| weight | 132 lb |
| warranty | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Heat Pump |
| model efficiency | 16.2 SEER2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747081 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | Mexico |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.3 |
| eer2 hsvtc | 10 |
| energy star certified | No |
| heating capacity nominal | 30000 Btu/H |
| hspf 2 hsvtc | 8.5 |
| seer 2 hsvtc | 17.5 |
| produced in us | No |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 25 A |
| min circuit amps | 22.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 17.6 A |
| compressor stages | Variable |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 66 dBA |
| weight unit | 132 lb |
| cooling capacity rated | 28400 Btu/H |
| heating capacity rated | 28800 Btu/H |
| factory std refrigerant charge | 76 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
